PRODUCT details
9.269.215.10

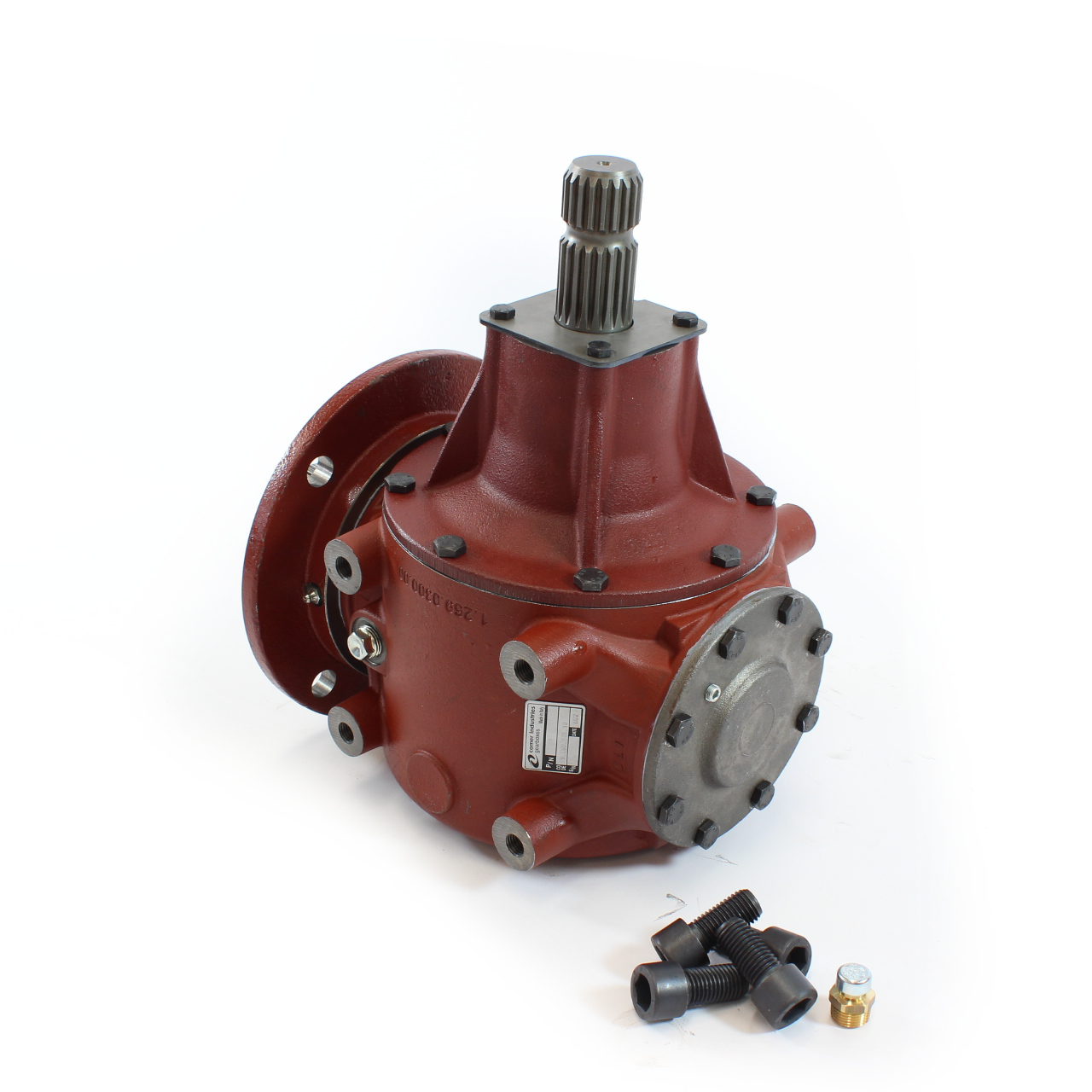

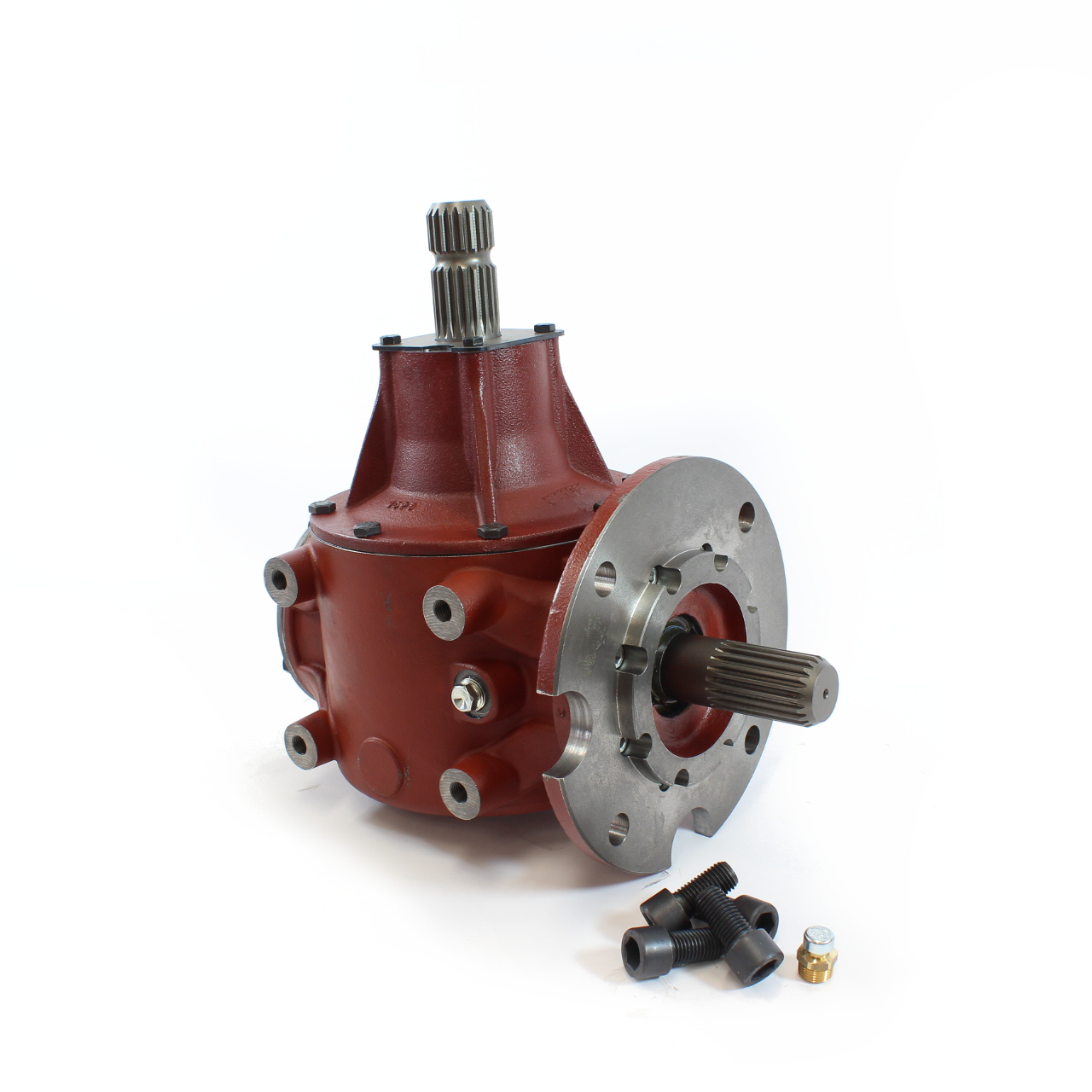

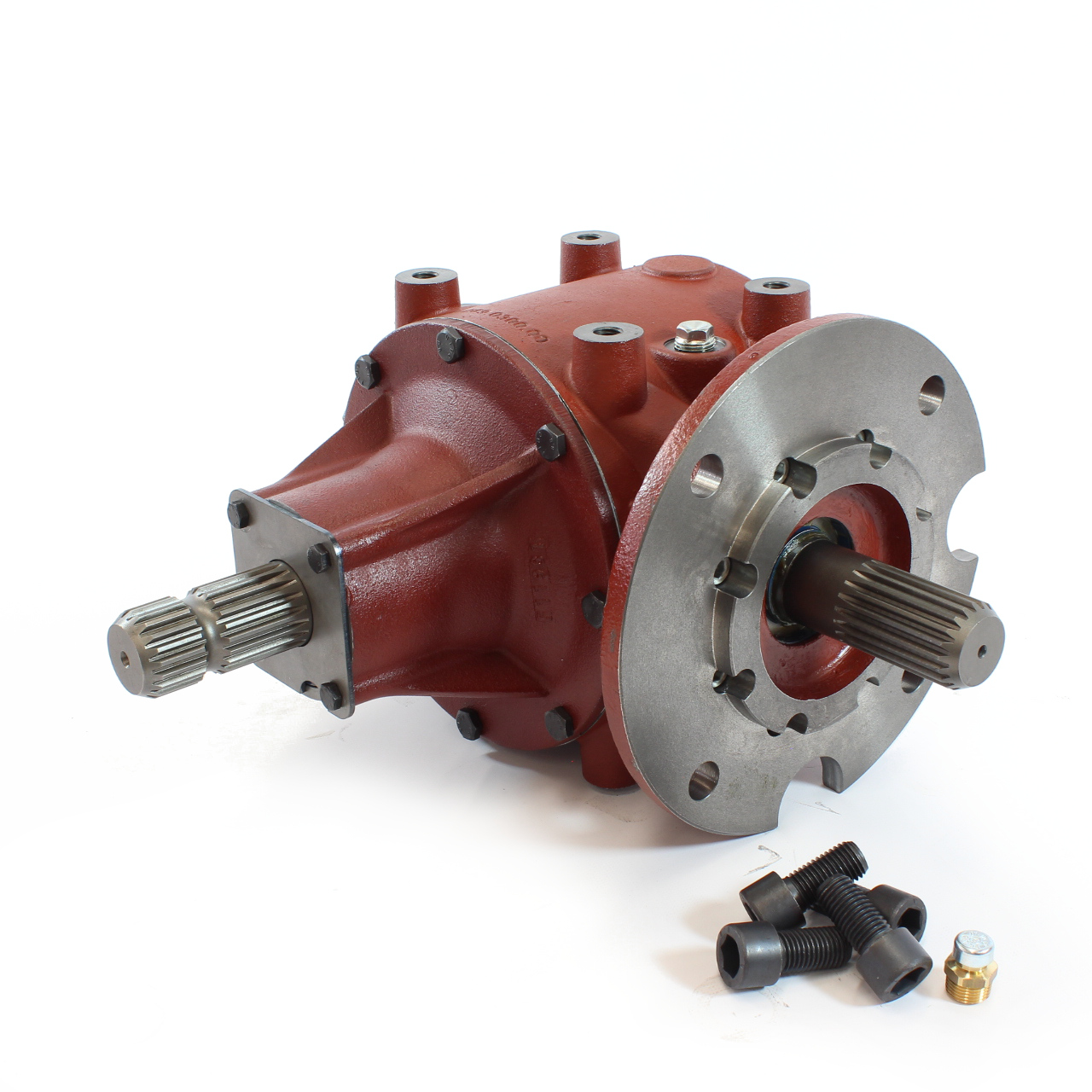

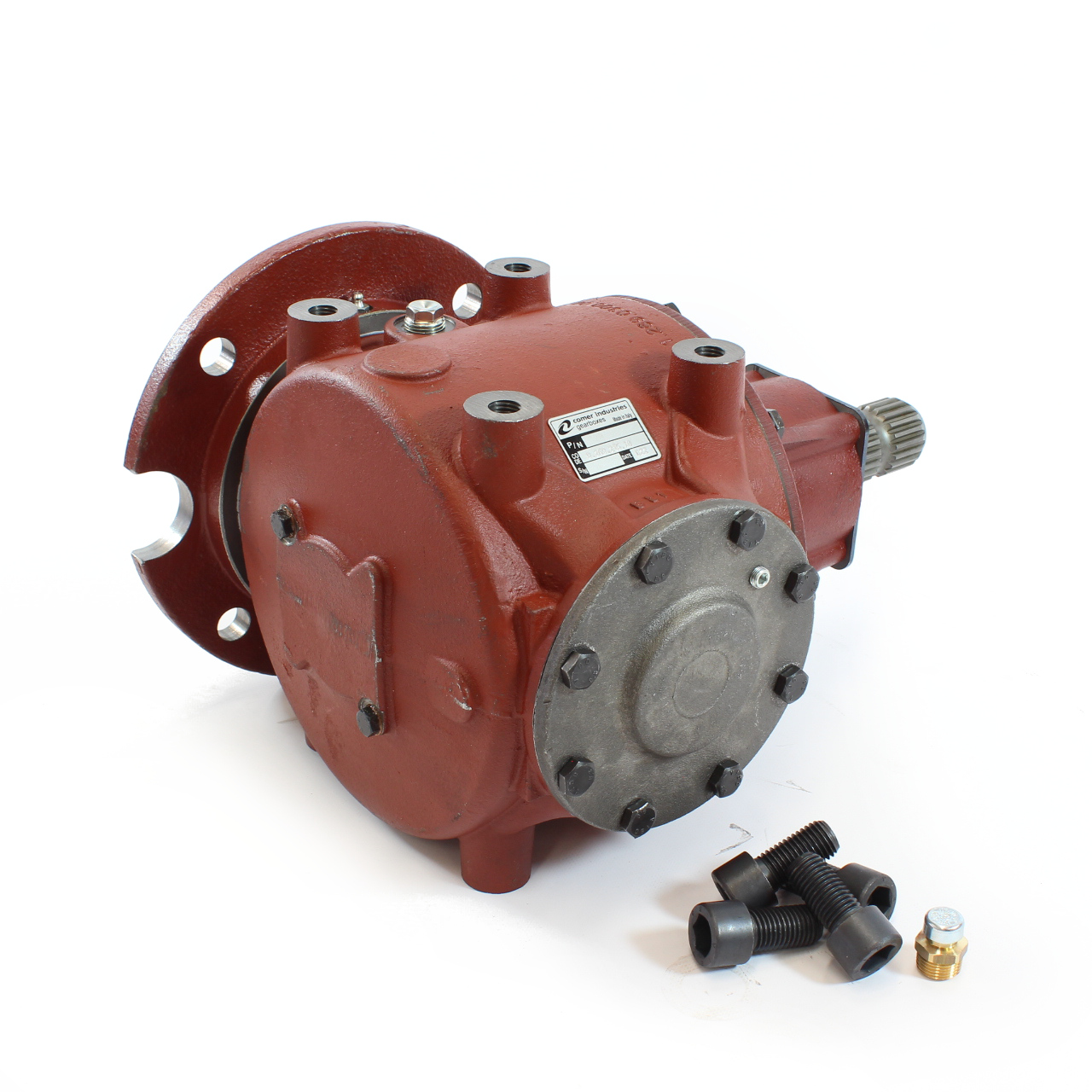

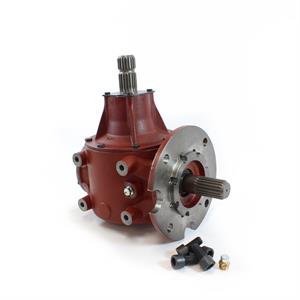

GEARBOX 1.35 M-73.5 R-66 T-269B
GEARBOX 1.35 M-73.5 R-66 T-269B
€ 1.142,21
DISPONIBILITÀ LIMITATA
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-269B
Technical features:
Type of application:
Reduction gear unit
Input power rate: 89Cv-66Kw (540RPM)
Speed increasing unit
Input power rate: 100Cv-73.5Kw (540RPM)
Ratio: 1,35
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 49.8
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: T-269B
Technical features:
Type of application:
Reduction gear unit
Input power rate: 89Cv-66Kw (540RPM)
Speed increasing unit
Input power rate: 100Cv-73.5Kw (540RPM)
Ratio: 1,35
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 49.8
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
