CENTRIFUGAL FERTILIZER SPREADER

It is an operating machine carried by the tractor with three point linkage.

It is used to spread granulated and pulverulent fertilizer. Spreading occurs with a rotary plate designed to grant a regular distribution over a wide area.

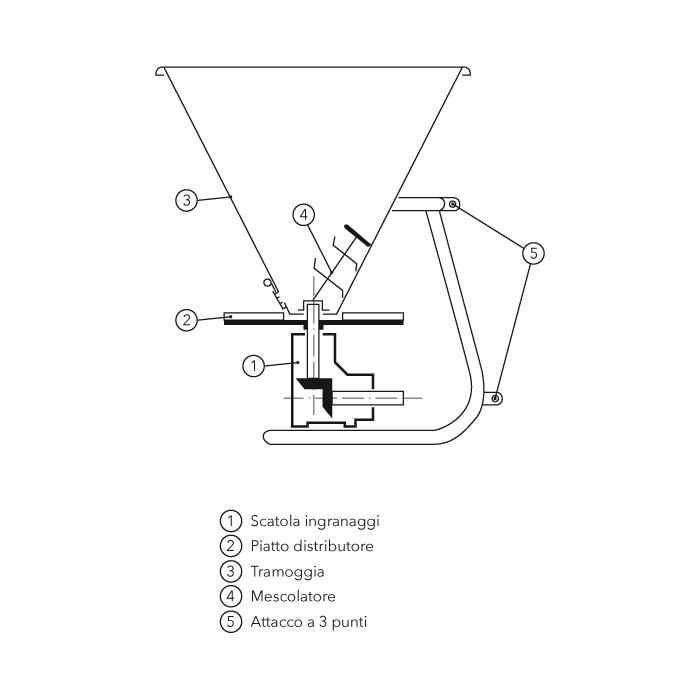

An angle transmission that works vertically topward is driven by the tractor through the cardan shaft and it controls a horizontal plate with a diameter of 380 – 450 mm on which falls the fertilizer from the hopper and the distribution is due to the centrifugal force.

The hopper also contains a mixer driven by the transmission output shaft with the functions to keep the fertilizer way always free from any lumps or cloggings.

Here are some average rates:

• Hopper capacity 250 - 500 Kg
• Spreading width for powder fertilizer 5 — 6 m
• Spreading width for granular fertilizer 10 — 14 m
• Absorbed power 8 - 15 CV

REMARK: The double fertilizer spreaders, i.e. those having two plates or distributing disks, grant a bigger work capacity thanks to their bigger spreading width.

- Gearboxes for the standard fertilizer spreader:

• L.150B (9.150.001.30 – 9.150.800.30)
• L.25B (9.124.326.20)
• L.150C
• L.25C (9.124.800.30 – 9.124.803.50)

The range of P.T.O. drive shafts normally used on this type of machine is:

Series: T  Type:  10 / 20

Safety device:

• Suggested: Bi-directional ratchet clutch torque limiter (R)

Ex.: 07.125.021.10

- Recommended code list

9.150.001.30 – 9.150.800.30

9.124.326.20

9.124.800.30 – 9.124.803.50
