PRODUCT details

MANUFACTURER: Motovario S.P.A.

FEATURES:

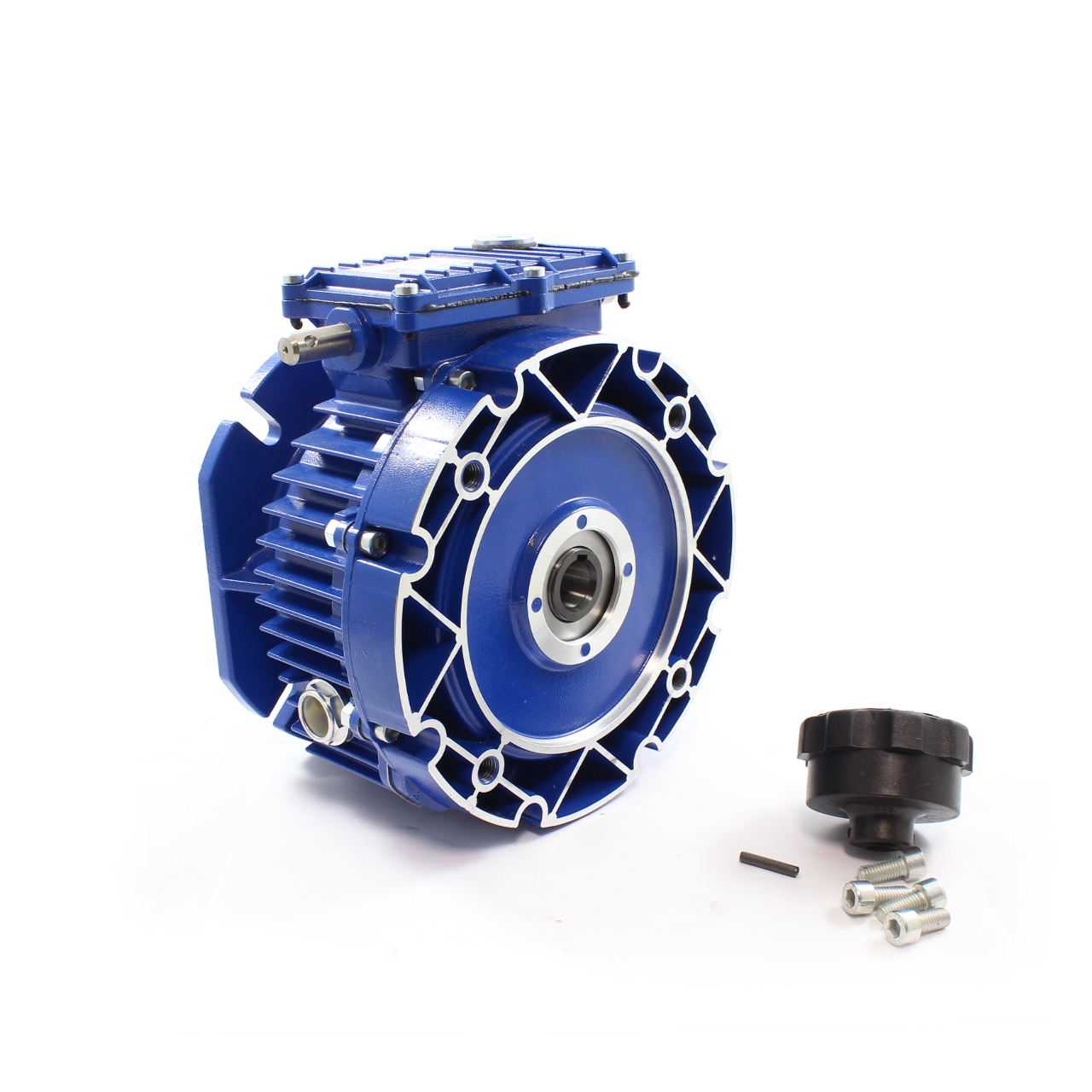

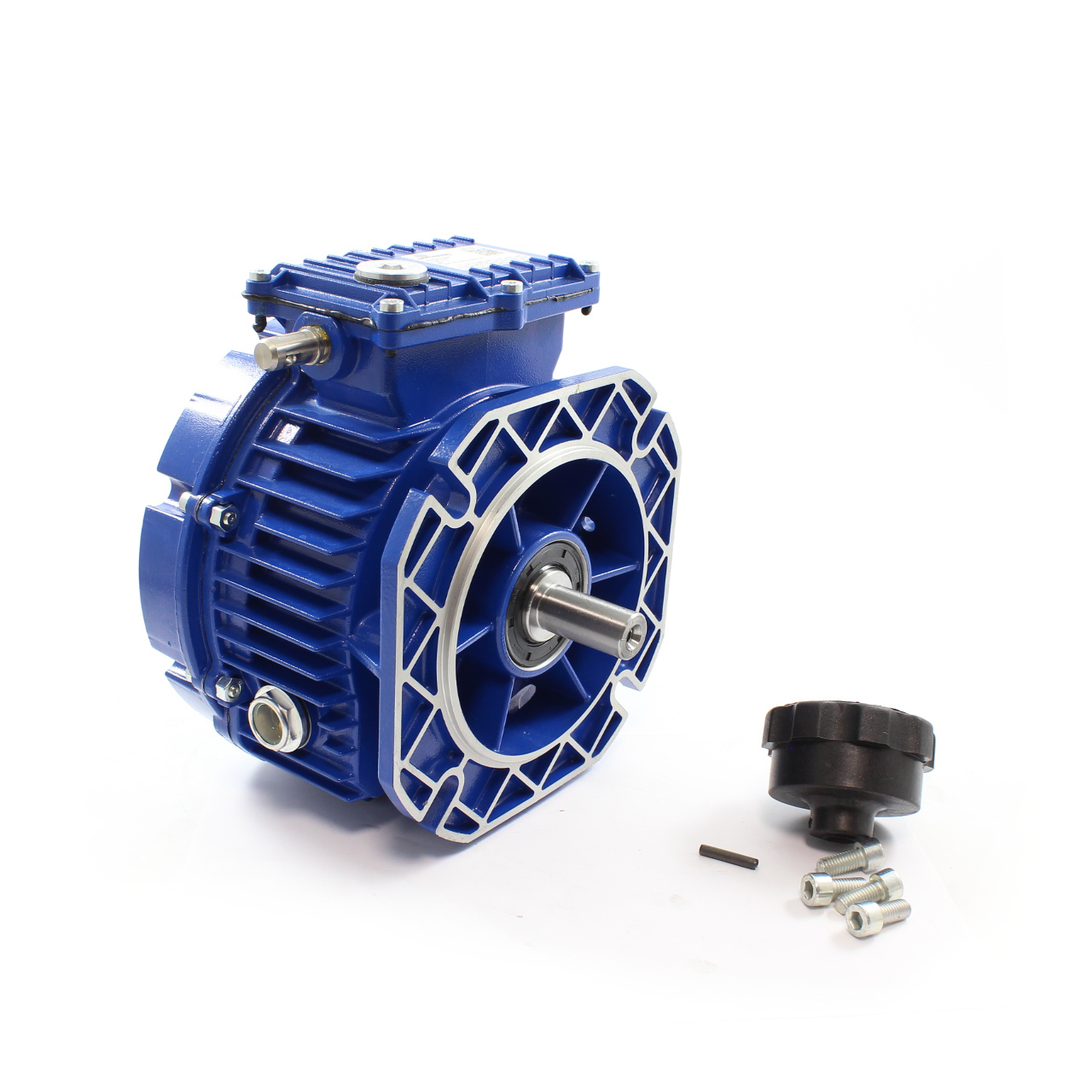

TXF010 P200*19 200/19*40 B5 CM MV
Type Input: Motor adapter
Size: 010
Version: F-Flange

Input dim.: 200x19 (IEC80 B5)
Motor adapter flange dim.: 200
Motor adapter Worm Diam.: 19
Motor adapter Flange Dim. D.200
Output Shaft Dim.: 19x40

Mounting position: B5
Speed Control: Manual

Speed Control Pos.: Pos.1
Handwheel: Inc/Dec Sp Indicator
Oil plugs: Level

Supplied complete with synthetic based lubricant, Eni Blasia 32.

Input oil seal: NBR-Nitrile
Output oil seal: NBR-Nitrile
Output bearings: Ball-Ball 2RS1
Lubrication: Eni Blasia 32

Poles: 4 / 1500 Rpm
Frequency (Hz): 50
Rpm Max: 1000,0
Rpm Min: 170,0

Paint: Ral 5010 blue
