PRODUCT details

M3043593

GR.CARC.PR.NMRV-P063 7,5 D25 U MV

€ 251,50
LIMITED AVAILABILITY
Shipment Costs
  • Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details

MANUFACTURER: Motovario S.P.A.

FEATURES:

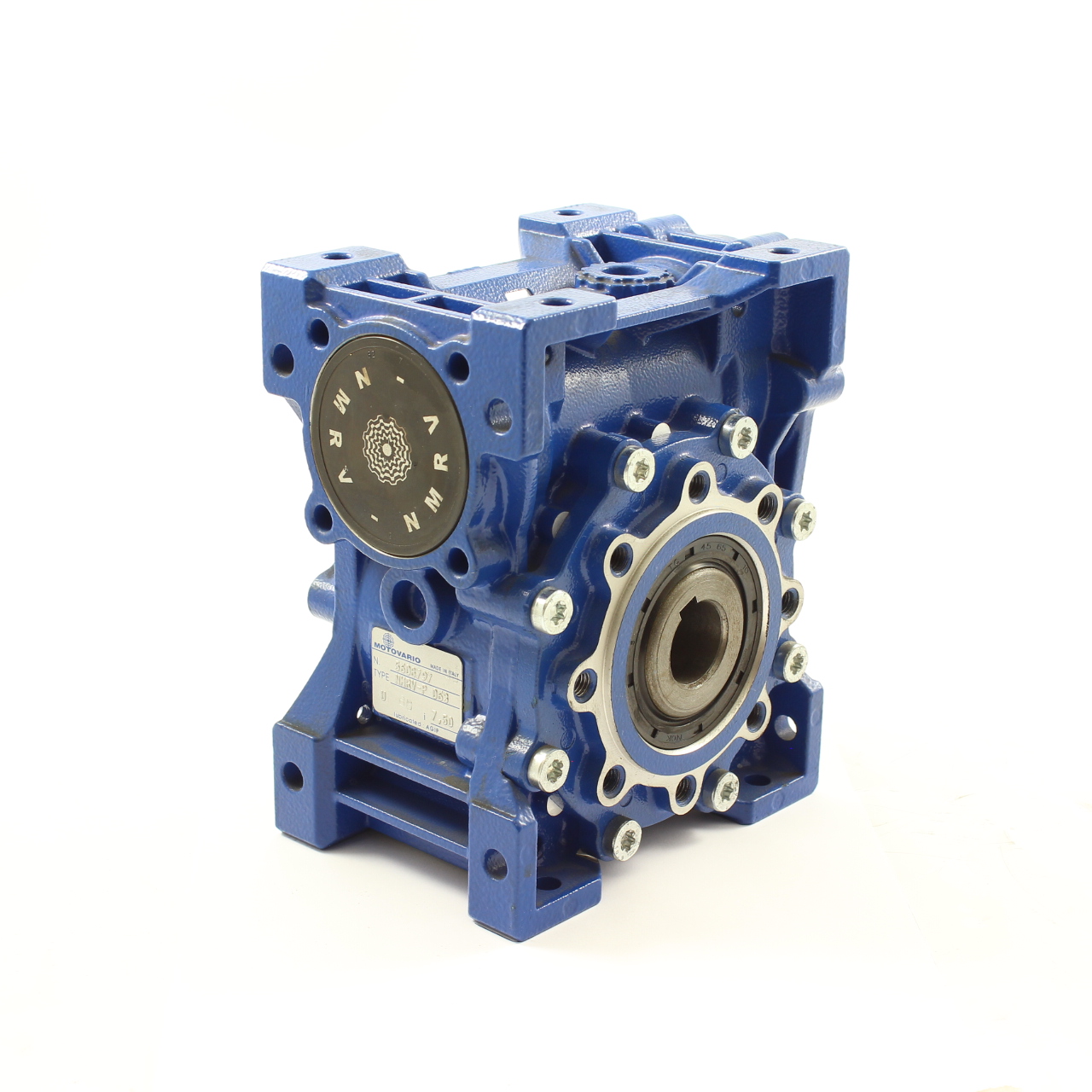

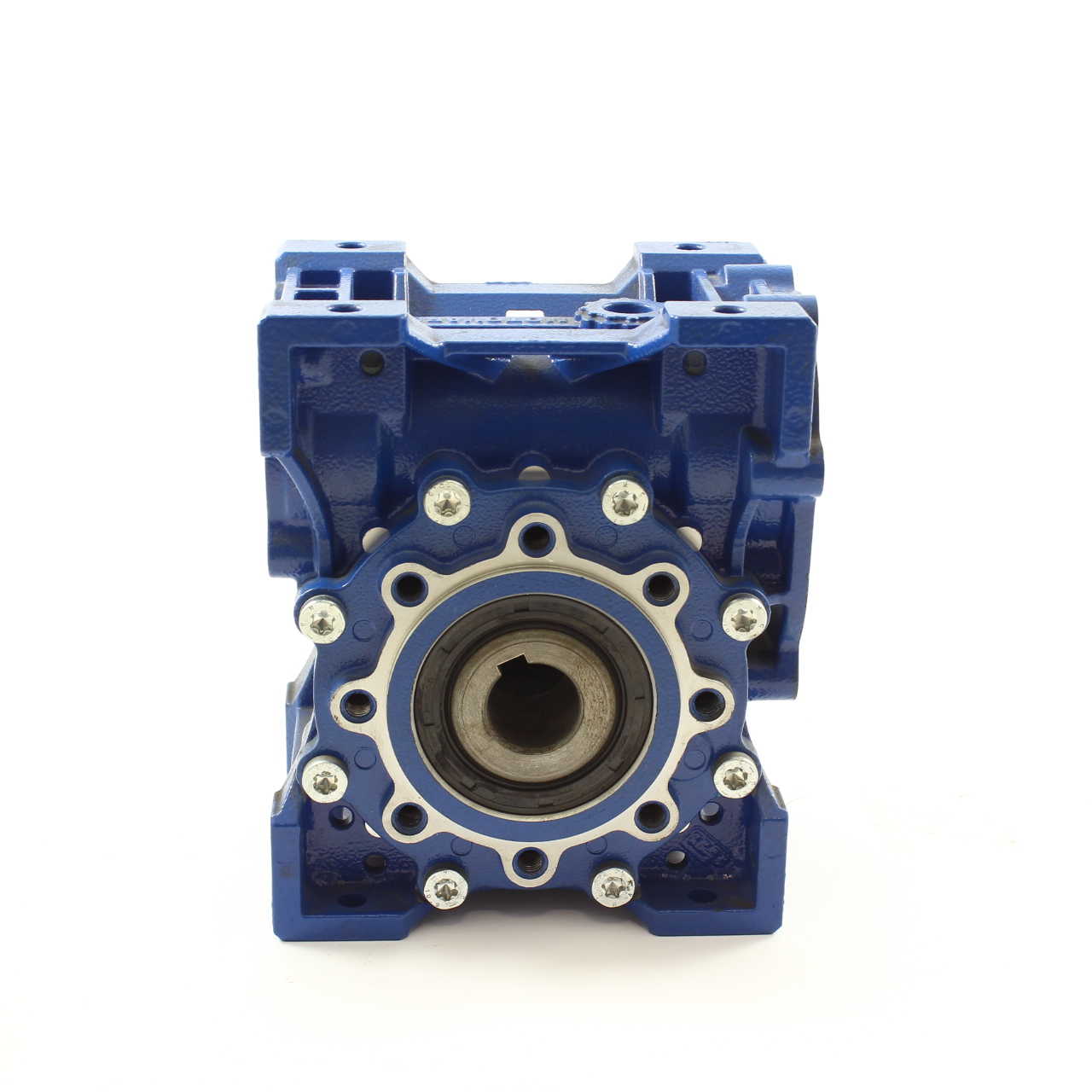

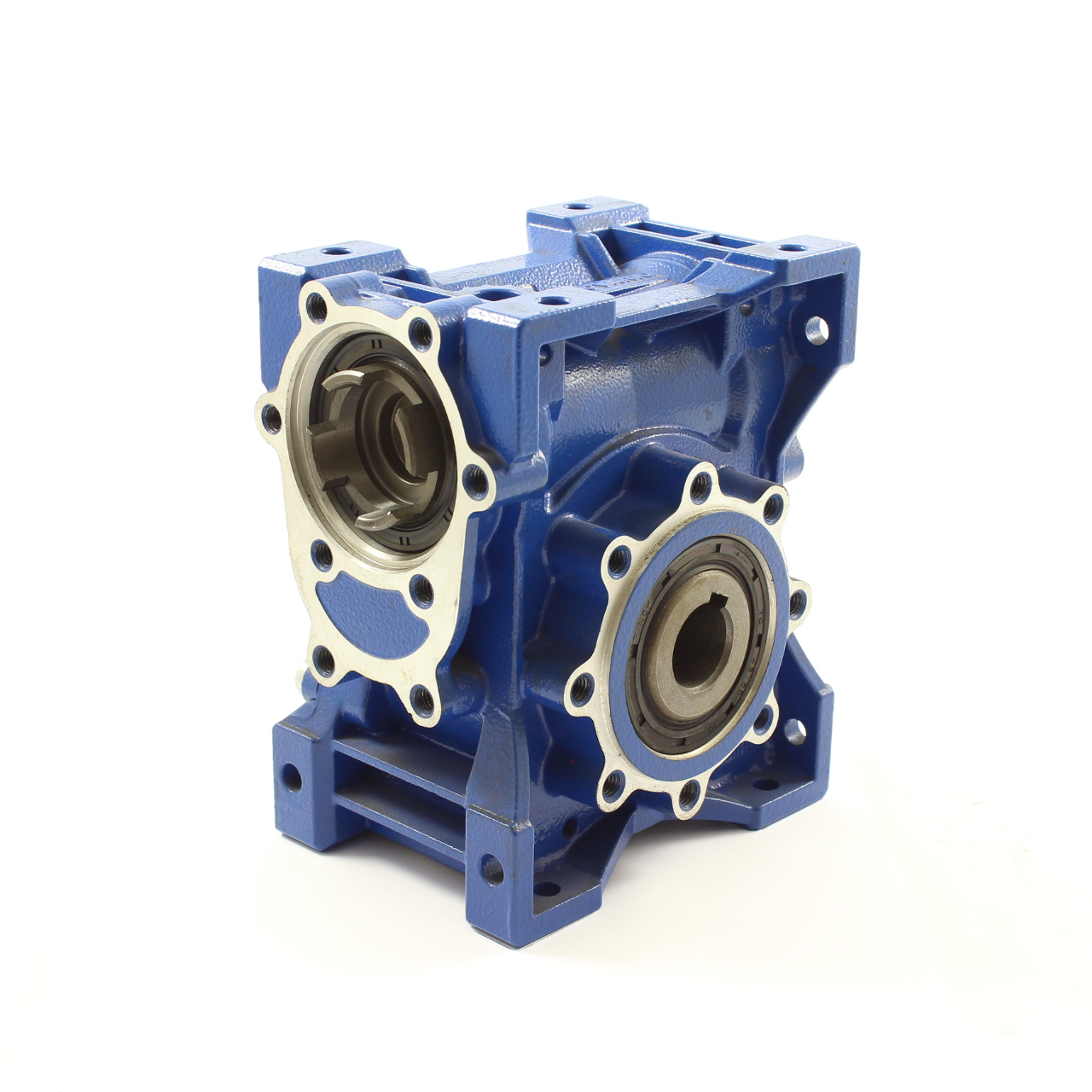

Casing kit NMRV-P063 7,5 D25 U MV
Worm Gearbox: NMRV Power
Size: 063
Ratio (i): 7,5

Hollow output shaft dim.: D.25

MODULARITY
The NMRVpower series allows to a single basic unit to install bush and flange that correspond to different motor sizes.
The basic unit can be purchased alone if it is a replacement of another NMRV-Power Series VSF, reusing the currently installed bushing and flange.
For the purchase of a new complete unit, it is instead necessary to purchase the bushing and flange relating to the motor to be installed.
The same applies to the use of HW pre-stages

Mounting position: U - Universal
Oil plugs: No plugs (Standard)

Supplied with lubricant ENI TELIUM VSF.

Output oil seal: NBR-Nitrile
Input oil seal: ACM-Polyacrylate
Output bearings: Ball bearings
Input bearings: Ball-Ball bearings
Lubrication: Eni Telium VSF 320

Paint: Ral 5010 blue




List of combined products
Availability
LIMITED AVAILABILITY
M3006903

GR.FLANGE USC.VSF063 FA 180 VER

€ 14,30
Availability
LIMITED AVAILABILITY
M3006908

GR.FLANGE USC.VSF063 FB 180 VER

€ 16,90
Availability
LIMITED AVAILABILITY
M3006911

GR.FLANGE USC.VSF063-BA 52 FC D200 VER

€ 19,60
Availability
LIMITED AVAILABILITY
M3006915

GR.FLANGE USC.VSF063 FD 200 VER

€ 18,90
Availability
LIMITED AVAILABILITY
M3006919

GR.FLANGE USC.VSF063 FE 160 VER

€ 16,40
Availability
LIMITED AVAILABILITY
M3016721

GR.TORQUE ARM VSF0 63-BA52

€ 17,30
Availability
LIMITED AVAILABILITY
M3016737

GR.COPRIHUB CROWN WHEEL VSF 063

€ 2,40
Availability
AVAILABLE
M3043605

GR.CARC.PR.HW030 5,45 19 U MV

€ 110,00
Availability
LIMITED AVAILABILITY
M3043970

KIT FLANGE PAM NMRV-P06 3/075 D105 B14 VER

€ 17,30
Availability
LIMITED AVAILABILITY
M3043971

KIT FLANGE PAM NMRV-P06 3/075 D.120 B14

€ 17,30
Availability
LIMITED AVAILABILITY
M3043972

KIT FLANGE PAM NMRV-P06 3/075 D140 B14 VER

€ 17,30
Availability
LIMITED AVAILABILITY
M3043975

KIT FLANGE PAM NMRV-P06 3/075 D160 B5 VER

€ 17,30
