PRODUCT details

M3043601

GR.CARC.PR.NMRV-P075 10, 0 D28 U MV

€ 300,40
LIMITED AVAILABILITY
Shipment Costs
  • Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details

MANUFACTURER: Motovario S.P.A.

FEATURES:

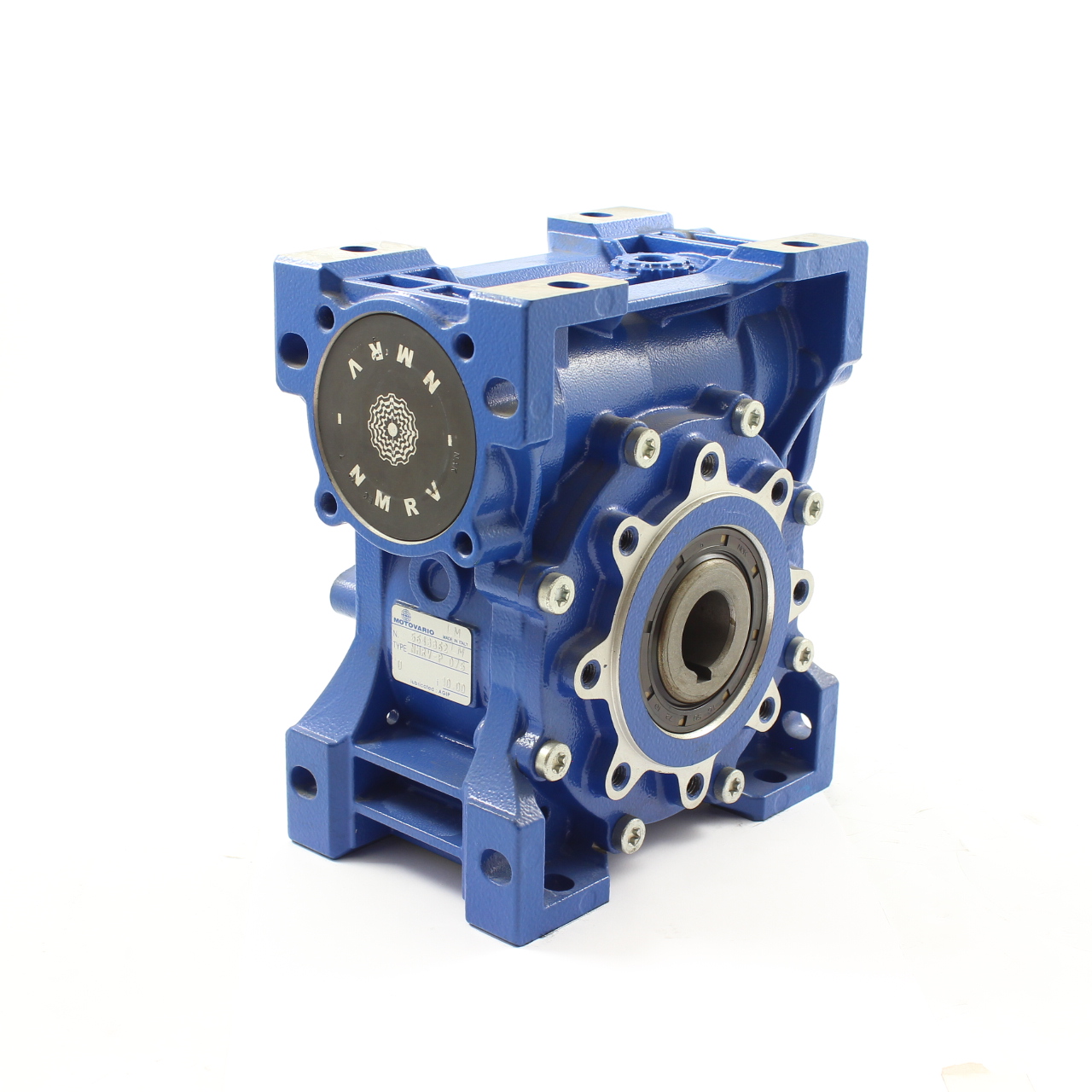

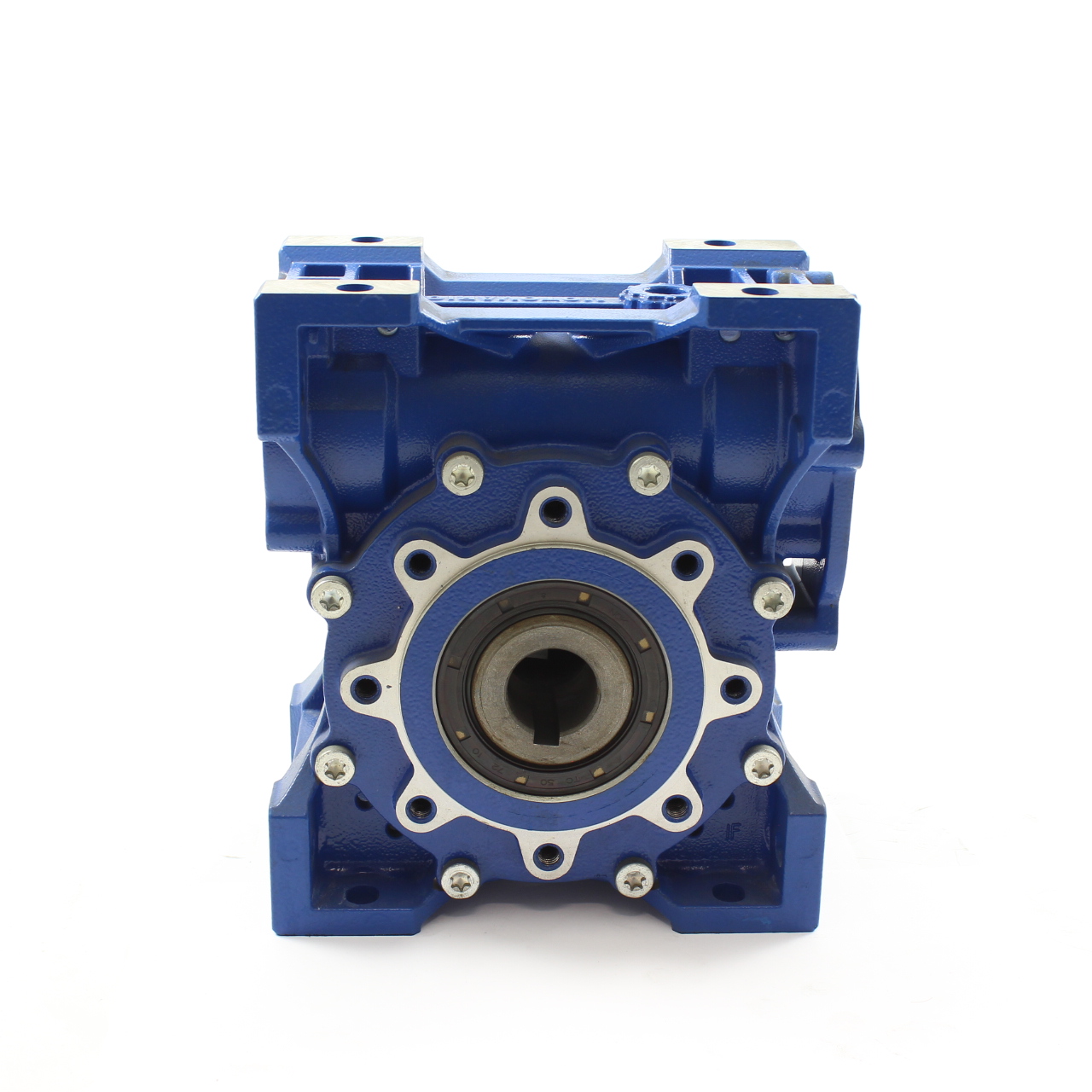

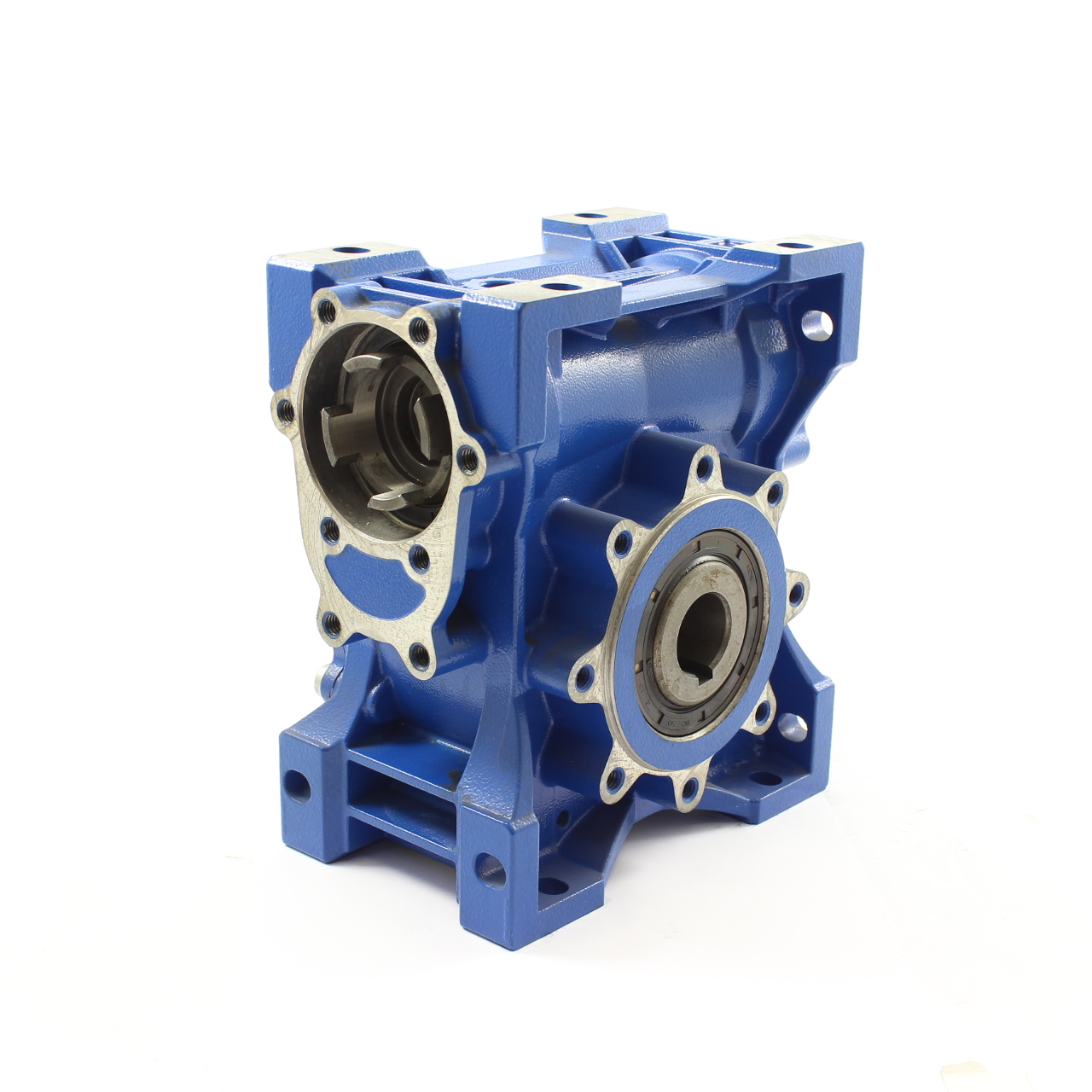

Casing kit NMRV-P075 10,0 D28 U MV
Worm Gearbox: NMRV Power
Size: 075
Ratio (i): 10

Hollow output shaft dim.: D.28

MODULARITY
The NMRVpower series allows to a single basic unit to install bush and flange that correspond to different motor sizes.
The basic unit can be purchased alone if it is a replacement of another NMRV-Power Series VSF, reusing the currently installed bushing and flange.
For the purchase of a new complete unit, it is instead necessary to purchase the bushing and flange relating to the motor to be installed.
The same applies to the use of HW pre-stages

Mounting position: U - Universal
Oil plugs: No plugs (Standard)

Supplied with lubricant ENI TELIUM VSF.

Output oil seal: NBR-Nitrile
Input oil seal: ACM-Polyacrylate
Output bearings: Ball bearings
Input bearings: Ball-Ball bearings
Lubrication: Eni Telium VSF 320

Paint: Ral 5010 blue




List of combined products
Availability
COMING SOON
M2006539

COP.RITEGNO BUSHING PAM NMRV-P063-075

€ 1,10
Availability
LIMITED AVAILABILITY
M2515913

BUSHING PAM NMRV-P075 D. 14

€ 16,90
Availability
LIMITED AVAILABILITY
M3006921

GR.FLANGE USC.VSF075 FA 200 VER

€ 18,40
Availability
LIMITED AVAILABILITY
M3006923

GR.FLANGE USC.VSF075 FB 160 VER

€ 18,10
Availability
AVAILABLE
M3016722

GR.TORQUE ARM VSF0 75-BA72

€ 29,00
Availability
AVAILABLE
M3043500

GR.ALB.COLL.HW030+NMRV-P 075 i=5,45

€ 38,70
Availability
LIMITED AVAILABILITY
M3043501

GR.ALB.COLL.HW030+NMRV-P 075 i=7,88

€ 38,70
Availability
AVAILABLE
M3043605

GR.CARC.PR.HW030 5,45 19 U MV

€ 110,00
Availability
LIMITED AVAILABILITY
M3043970

KIT FLANGE PAM NMRV-P06 3/075 D105 B14 VER

€ 17,30
Availability
LIMITED AVAILABILITY
M3043971

KIT FLANGE PAM NMRV-P06 3/075 D.120 B14

€ 17,30
Availability
LIMITED AVAILABILITY
M3043972

KIT FLANGE PAM NMRV-P06 3/075 D140 B14 VER

€ 17,30
Availability
LIMITED AVAILABILITY
M3043974

KIT FLANGE PAM NMRV-P07 5 D160 B14 VER

€ 17,30
