PRODUCT details

M3043623

GR.CARC.PR.NMRV-P075 30, 0 D28 U MV

€ 300,40
LIMITED AVAILABILITY
Shipment Costs
  • Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details

MANUFACTURER: Motovario S.P.A.

FEATURES:

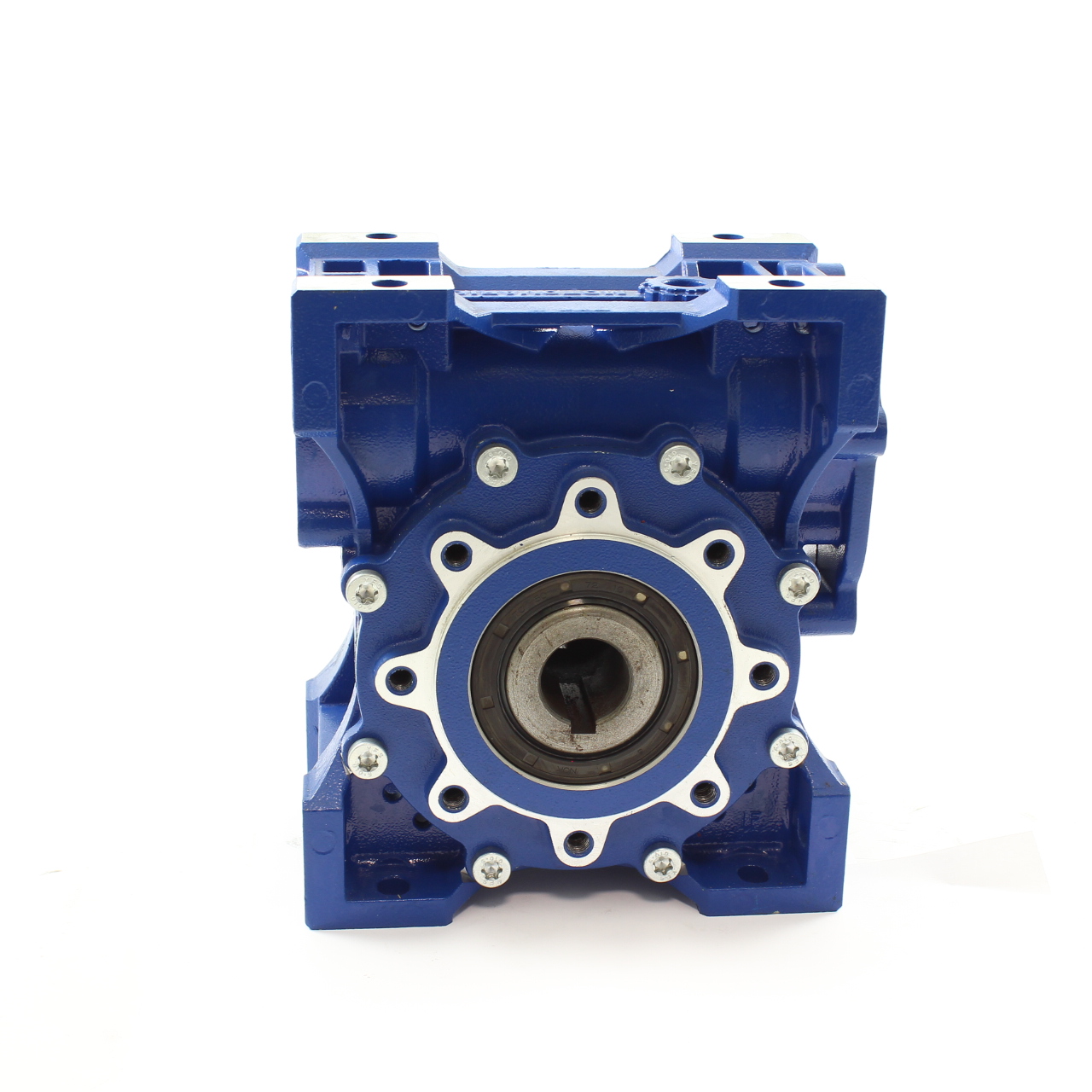

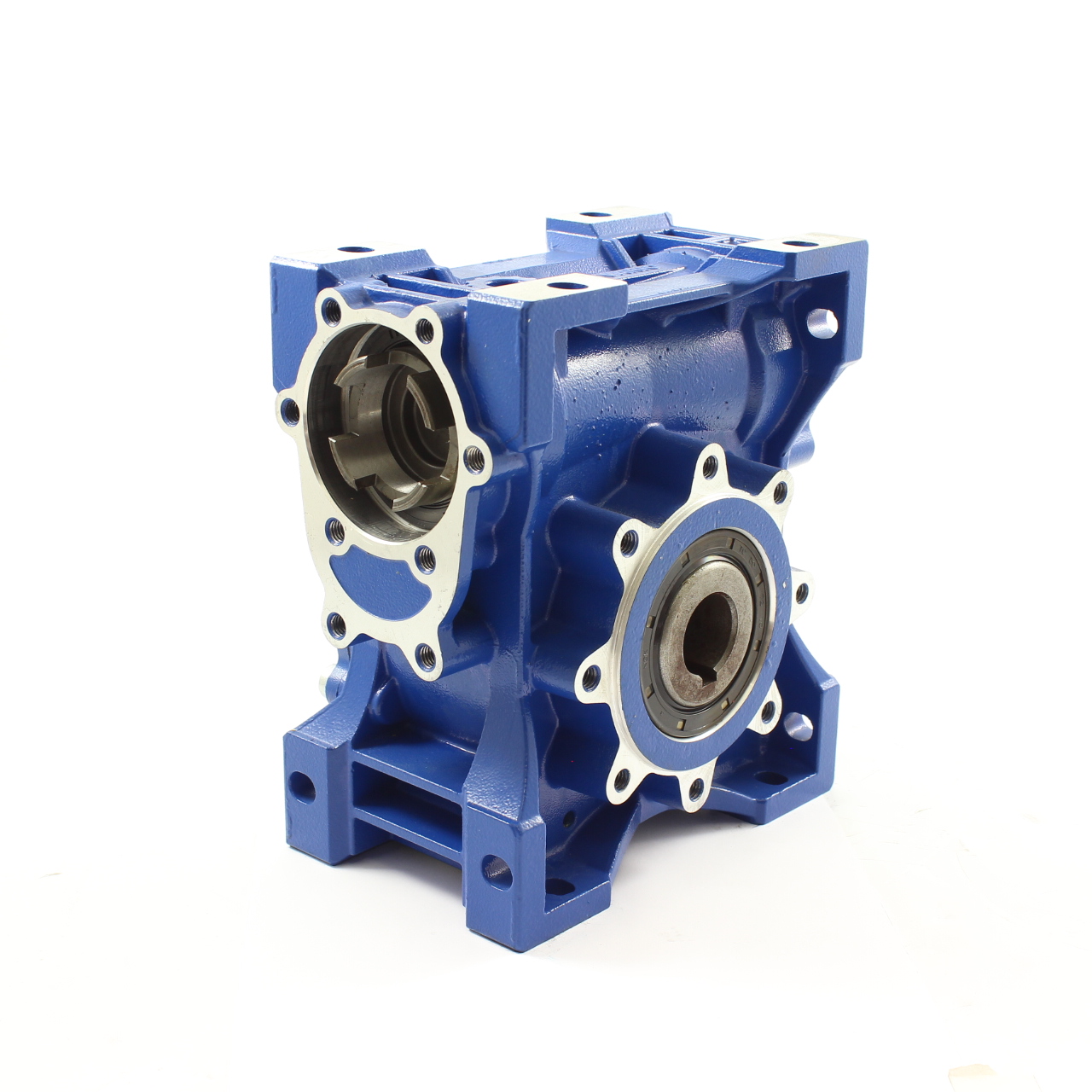

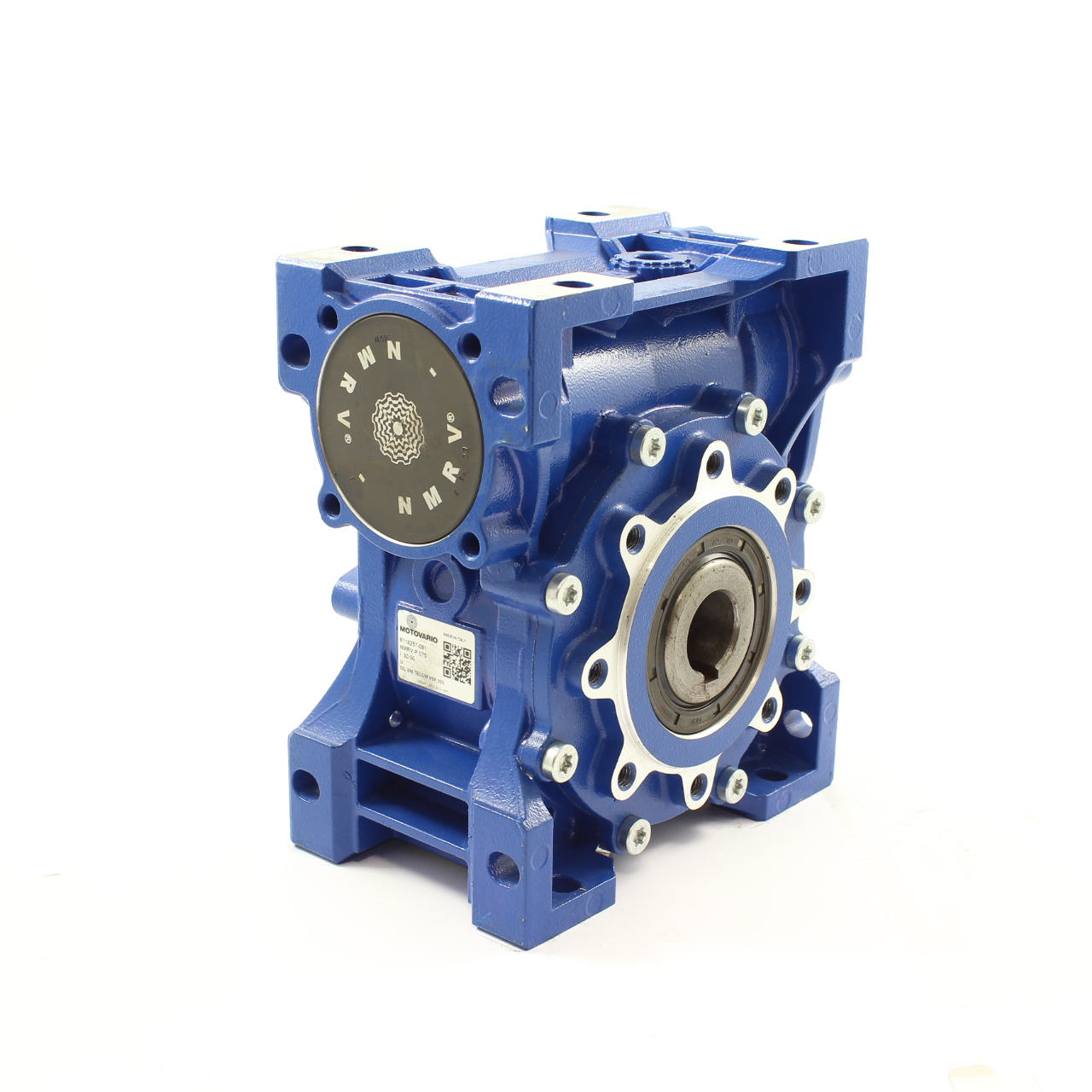

Casing kit NMRV-P075 30,0 D28 U MV
Worm Gearbox: NMRV Power
Size: 075
Ratio (i): 30

Hollow output shaft dim.: D.28

MODULARITY
The NMRVpower series allows to a single basic unit to install bush and flange that correspond to different motor sizes.
The basic unit can be purchased alone if it is a replacement of another NMRV-Power Series VSF, reusing the currently installed bushing and flange.
For the purchase of a new complete unit, it is instead necessary to purchase the bushing and flange relating to the motor to be installed.
The same applies to the use of HW pre-stages

Mounting position: U - Universal
Oil plugs: No plugs (Standard)

Supplied with lubricant ENI TELIUM VSF.

Output oil seal: NBR-Nitrile
Input oil seal: ACM-Polyacrylate
Output bearings: Ball bearings
Input bearings: Ball-Ball bearings
Lubrication: Eni Telium VSF 320

Paint: Ral 5010 blue
