PRODUCT details
GR.CARC.PR.NMRV-P090 15, 0 D35 B3 MV
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
MANUFACTURER: Motovario S.P.A.
FEATURES:

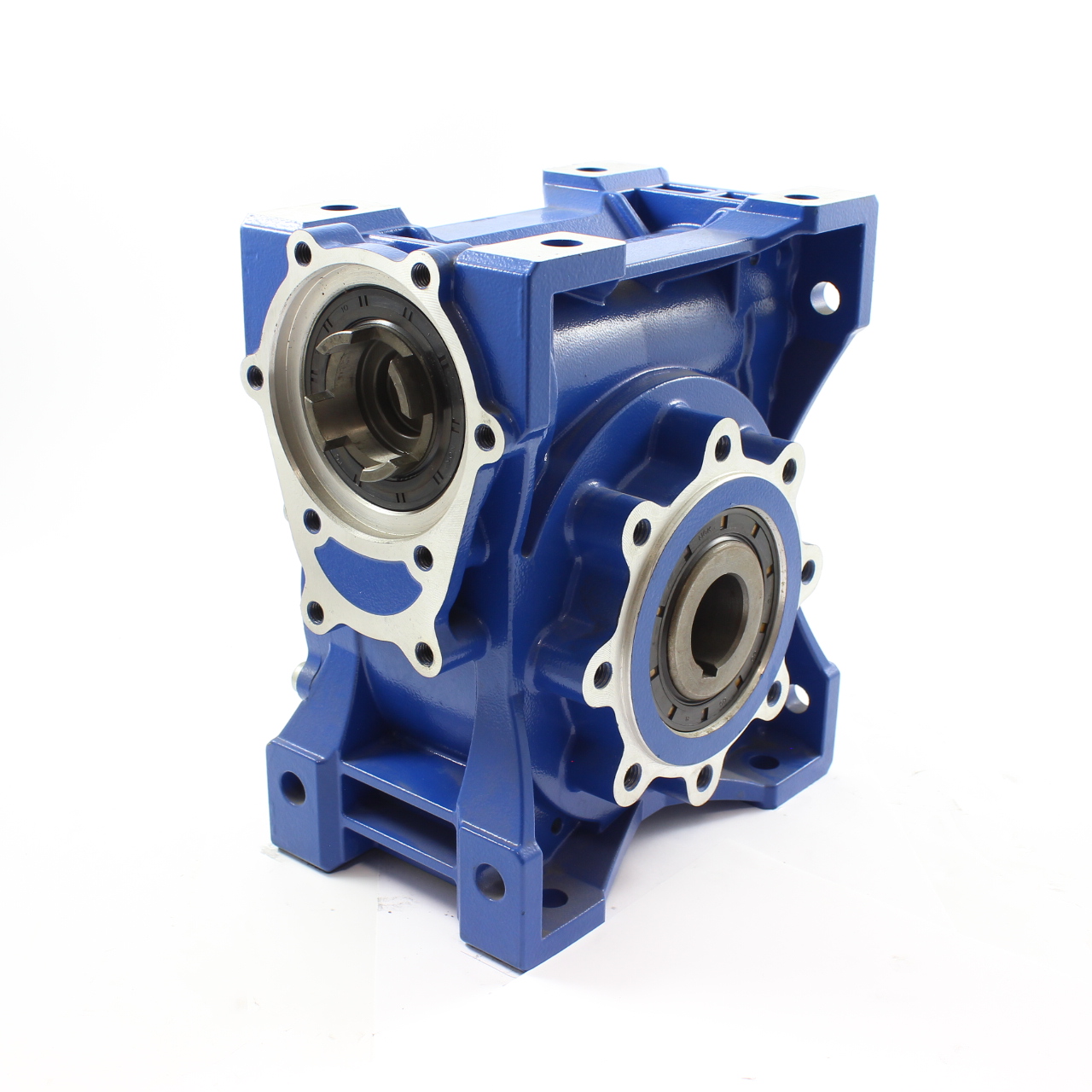

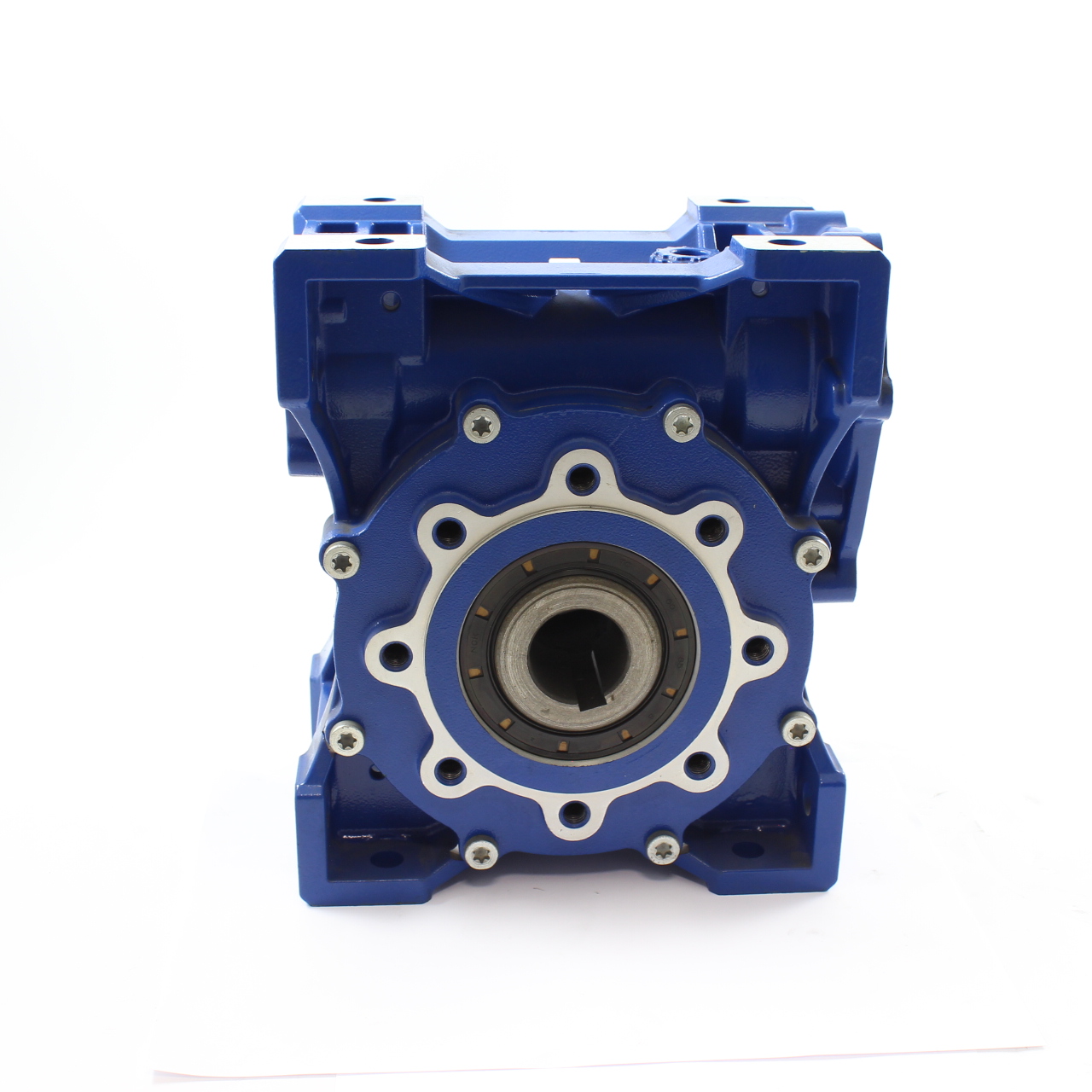

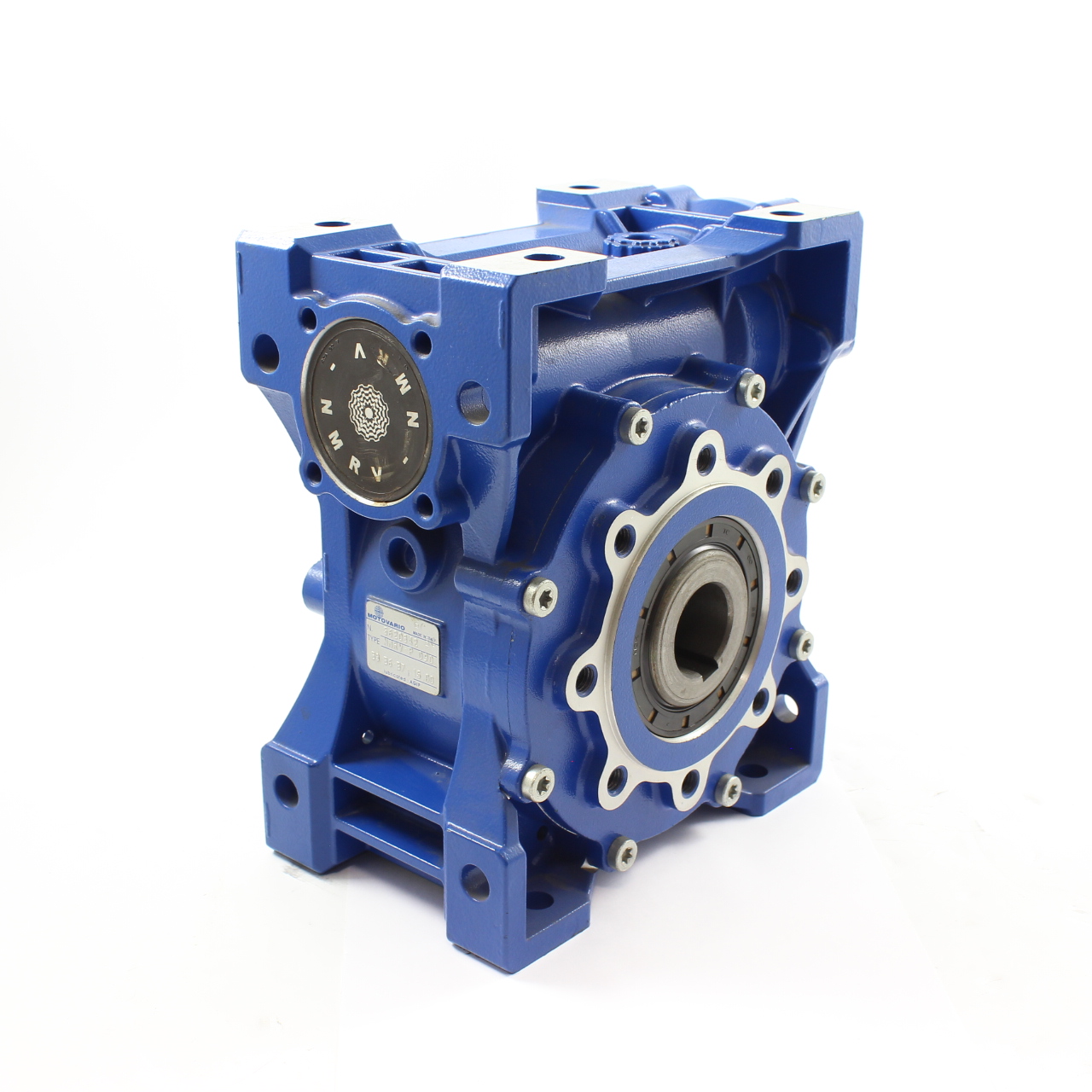

Casing kit NMRV-P090 15,0 D35 B3 MV
Worm Gearbox: NMRV Power
Size: 090
Ratio (i): 15
Hollow output shaft dim.: D.35
MODULARITY
The NMRVpower series allows to a single basic unit to install bush and flange that correspond to different motor sizes.
The basic unit can be purchased alone if it is a replacement of another NMRV-Power Series VSF, reusing the currently installed bushing and flange.
For the purchase of a new complete unit, it is instead necessary to purchase the bushing and flange relating to the motor to be installed.
The same applies to the use of HW pre-stages
Mounting position: B3
Oil plugs: No plugs (Standard)
Fornito completo di lubrificante a vita, olio a base sintetica, ENI TELIUM VSF per posizione di montaggio B3.
Output oil seal: NBR-Nitrile
Input oil seal: ACM-Polyacrylate
Output bearings: Ball bearings
Input bearings: Ball-Ball bearings
Lubrication: Eni Telium VSF 320
Paint: Ral 5010 blue
COP.RITEGNO BUSHING PAM NMRV-P090-110
GR.FLANGE USC.VSF090 FA 210 VER
GR.FLANGE USC.VSF090 FB 250 VER
GR.FLANGE USC.VSF090 FC 200 VER
GR.FLANGE USC.VSF090 FD 210 VER
GR. TORQUE ARM VSF 090
GR.ALB.COLL.HW040+NMRV-P 090 i=3,11
GR.ALB.COLL.HW040+NMRV-P 090 i=5,50
GR.ALB.COLL.HW040+NMRV-P 090 i=8,75
GR.CARC.PR.HW040 3,11 19 U MV
KIT FLANGE PAM NMRV-P09 0/110 D120 B14 VER
