PRODUCT details

M3043637

GR.CARC.PR.NMRV-P090 50, 0 D35 B3 MV

€ 348,30
LIMITED AVAILABILITY
Shipment Costs
  • Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details

MANUFACTURER: Motovario S.P.A.

FEATURES:

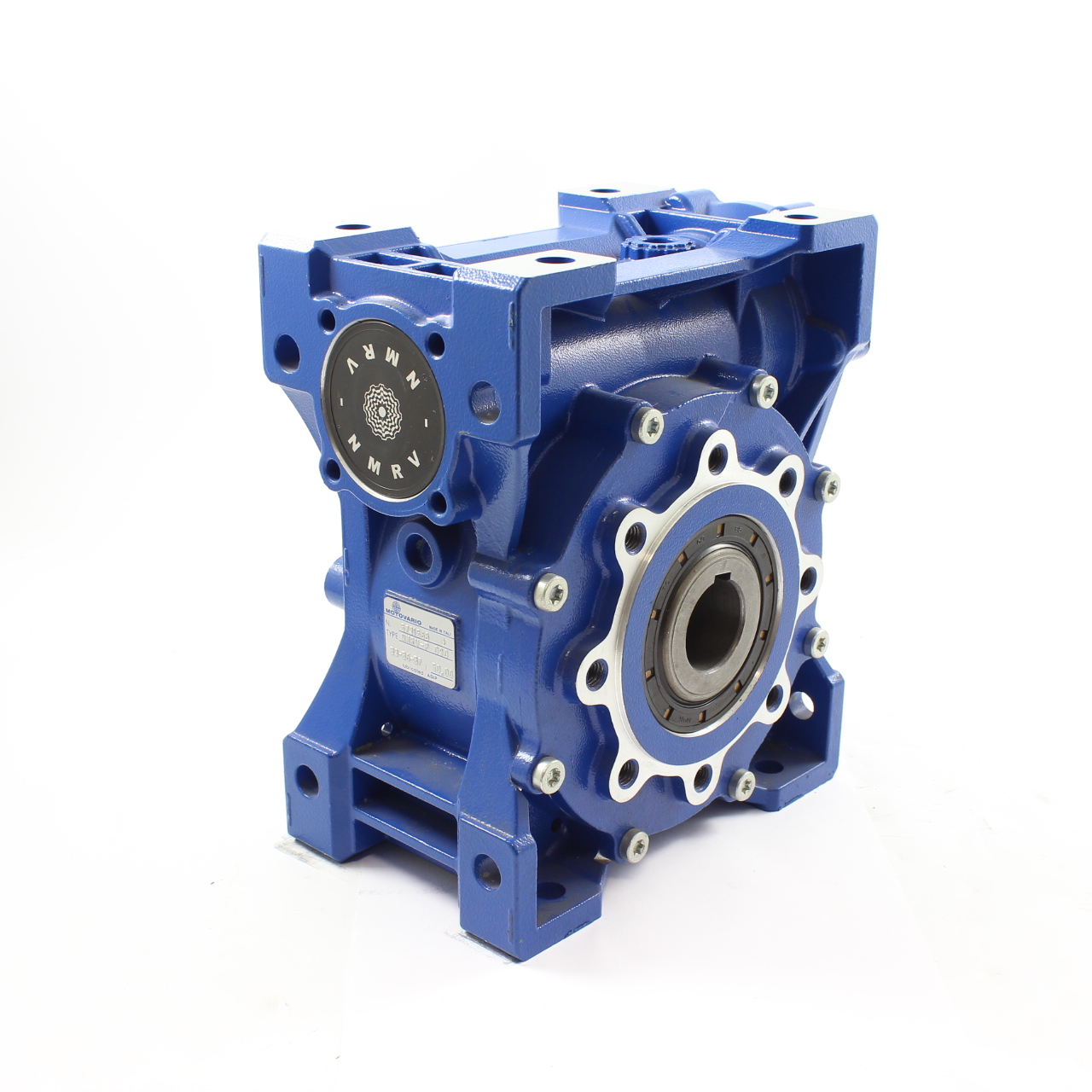

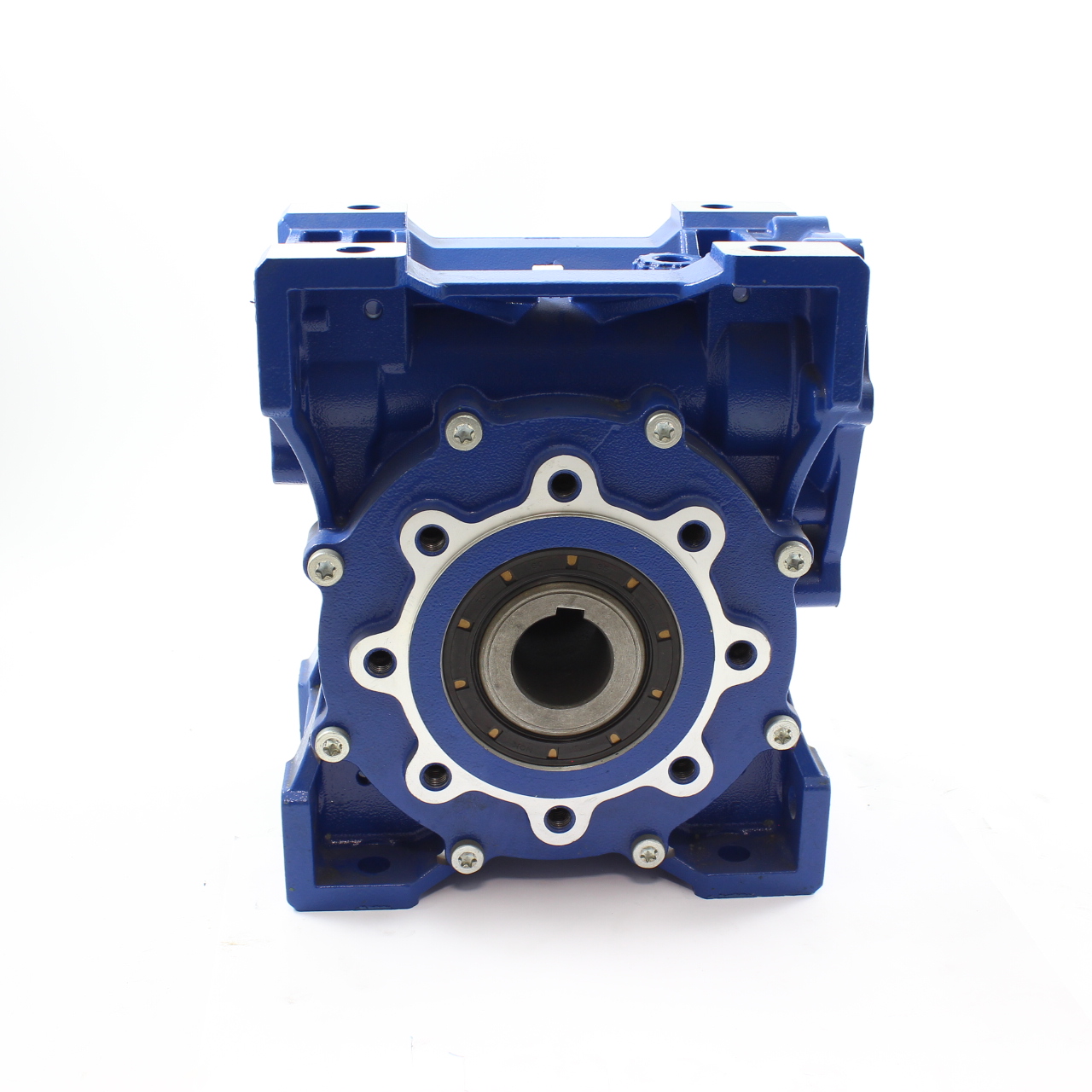

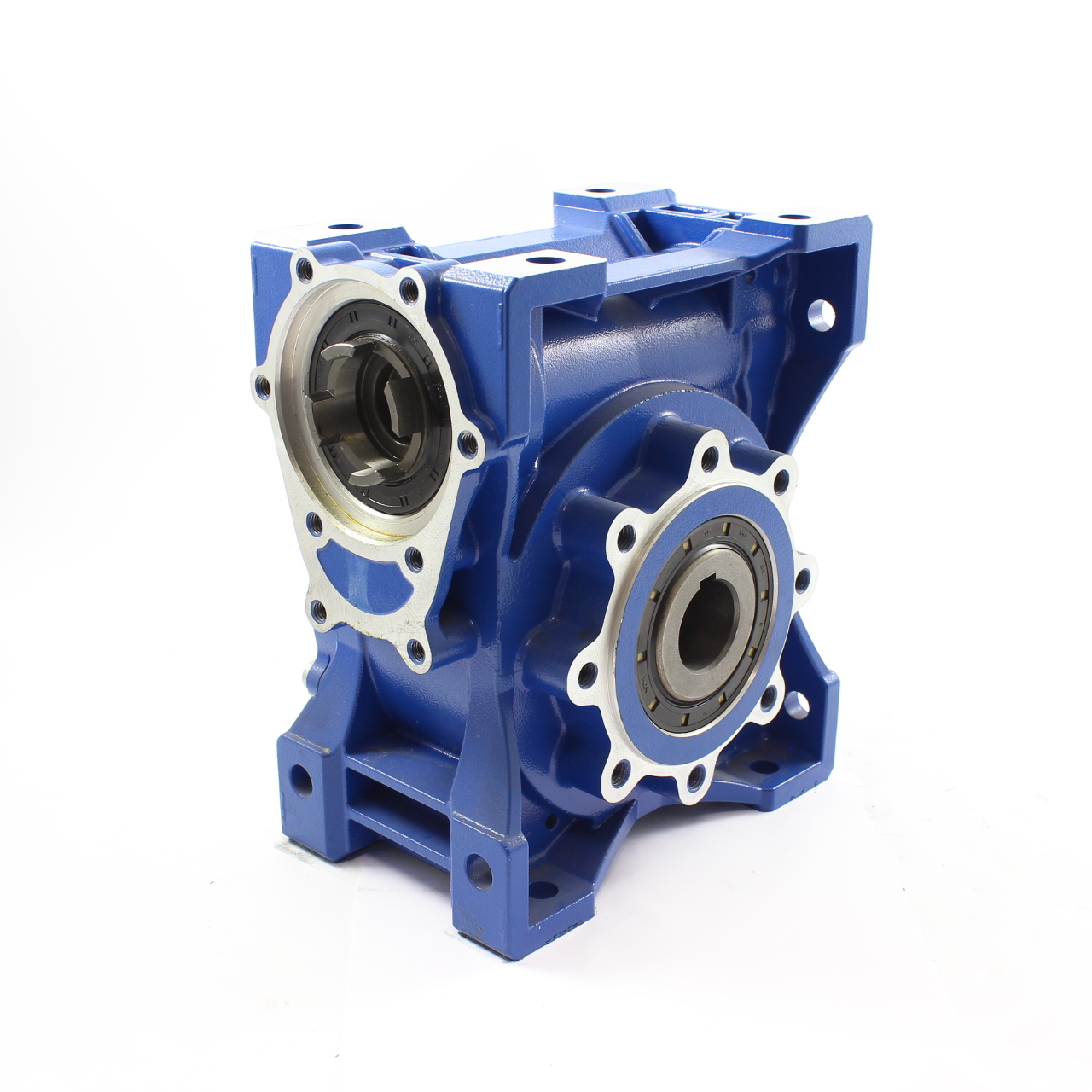

Casing kit NMRV-P090 50,0 D35 B3 MV
Worm Gearbox: NMRV Power
Size: 090
Ratio (i): 50

Hollow output shaft dim.: D.35

MODULARITY
The NMRVpower series allows to a single basic unit to install bush and flange that correspond to different motor sizes.
The basic unit can be purchased alone if it is a replacement of another NMRV-Power Series VSF, reusing the currently installed bushing and flange.
For the purchase of a new complete unit, it is instead necessary to purchase the bushing and flange relating to the motor to be installed.
The same applies to the use of HW pre-stages

Mounting position: B3
Oil plugs: No plugs (Standard)

Fornito completo di lubrificante a vita, olio a base sintetica, ENI TELIUM VSF per posizione di montaggio B3.

Output oil seal: NBR-Nitrile
Input oil seal: ACM-Polyacrylate
Output bearings: Ball bearings
Input bearings: Ball-Ball bearings
Lubrication: Eni Telium VSF 320

Paint: Ral 5010 blue

List of combined products
Availability
AVAILABLE
M2006540

COP.RITEGNO BUSHING PAM NMRV-P090-110

€ 2,10
Availability
COMING SOON
M3006926

GR.FLANGE USC.VSF090 FA 210 VER

€ 21,30
Availability
LIMITED AVAILABILITY
M3006930

GR.FLANGE USC.VSF090 FB 250 VER

€ 26,20
Availability
LIMITED AVAILABILITY
M3006932

GR.FLANGE USC.VSF090 FC 200 VER

€ 21,30
Availability
LIMITED AVAILABILITY
M3006933

GR.FLANGE USC.VSF090 FD 210 VER

€ 32,40
Availability
AVAILABLE
M3016724

GR. TORQUE ARM VSF 090

€ 60,00
Availability
COMING SOON
M3043578

GR.ALB.COLL.HW040+NMRV-P 090 i=3,11

€ 43,20
Availability
COMING SOON
M3043582

GR.ALB.COLL.HW040+NMRV-P 090 i=5,50

€ 43,20
Availability
LIMITED AVAILABILITY
M3043586

GR.ALB.COLL.HW040+NMRV-P 090 i=8,75

€ 43,20
Availability
LIMITED AVAILABILITY
M3043876

GR.CARC.PR.HW040 3,11 19 U MV

€ 133,40
Availability
AVAILABLE
M3043978

KIT FLANGE PAM NMRV-P09 0/110 D120 B14 VER

€ 34,90
Availability
AVAILABLE
M3044009

KIT FLANGE PAM NMRV-P09 0/110 D.140 B14 VER

€ 34,90
