PRODUCT details

M3043663

GR.CARC.PR.NMRV-P110 30, 0 D42 B3 MV

€ 585,90
LIMITED AVAILABILITY
Shipment Costs
  • Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details

MANUFACTURER: Motovario S.P.A.

FEATURES:

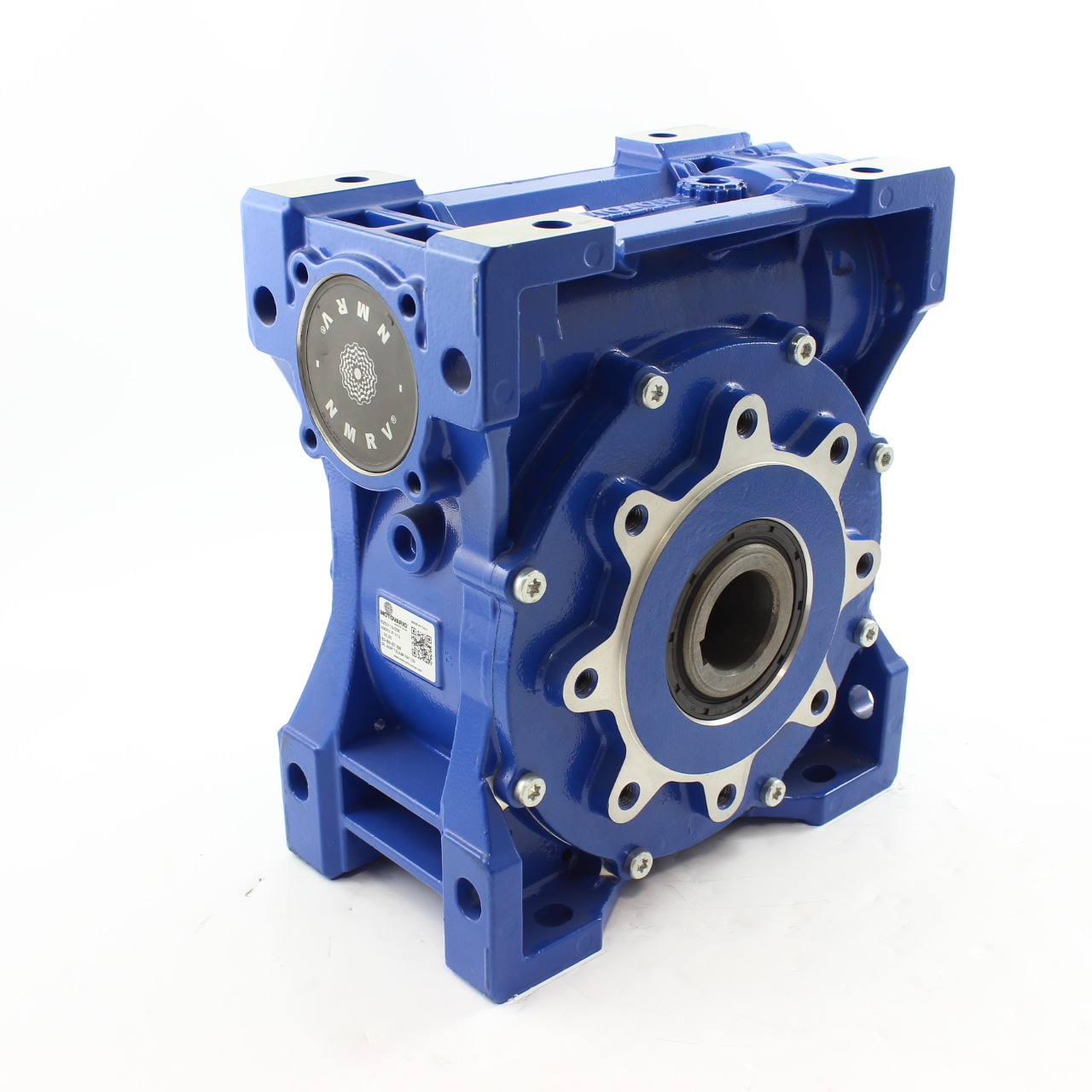

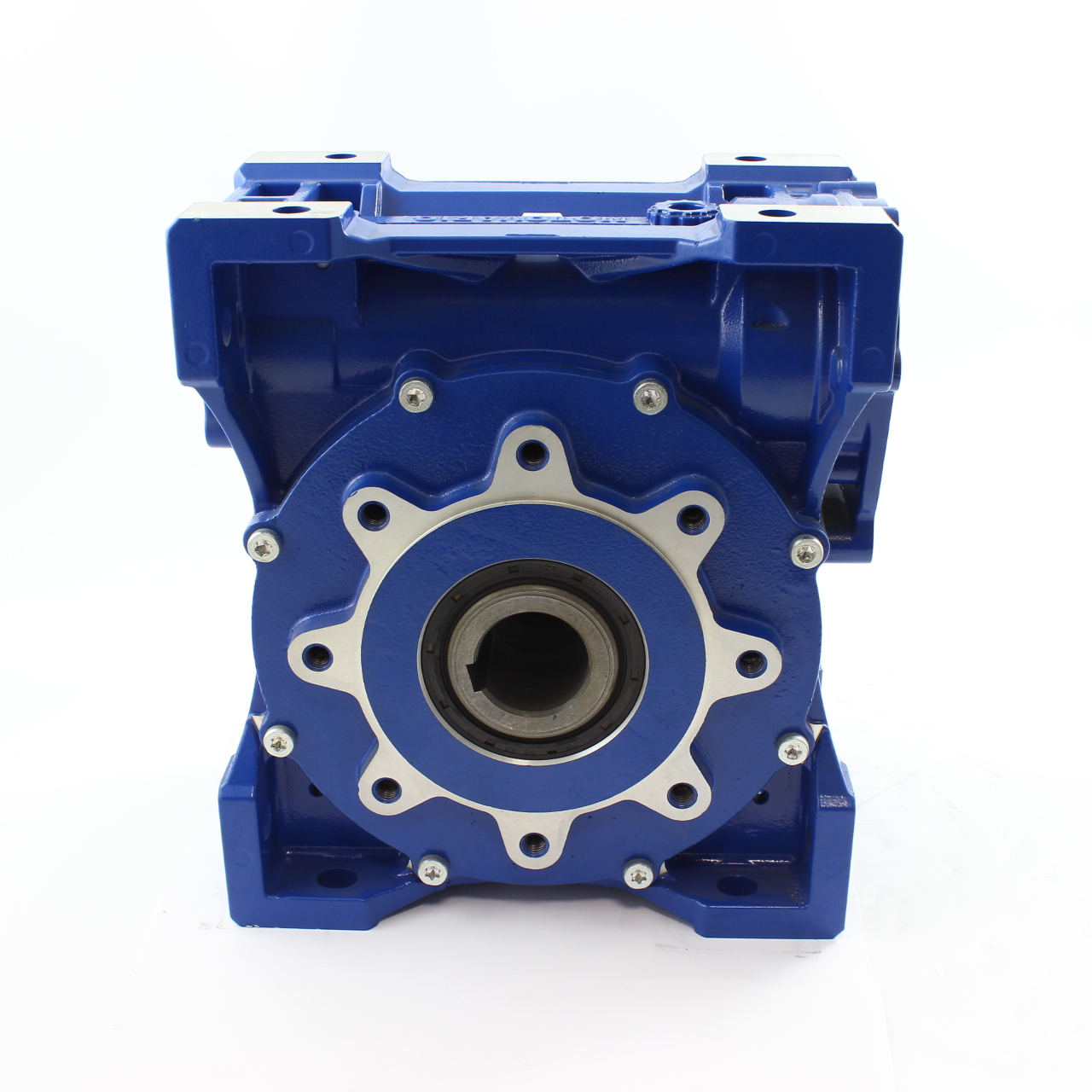

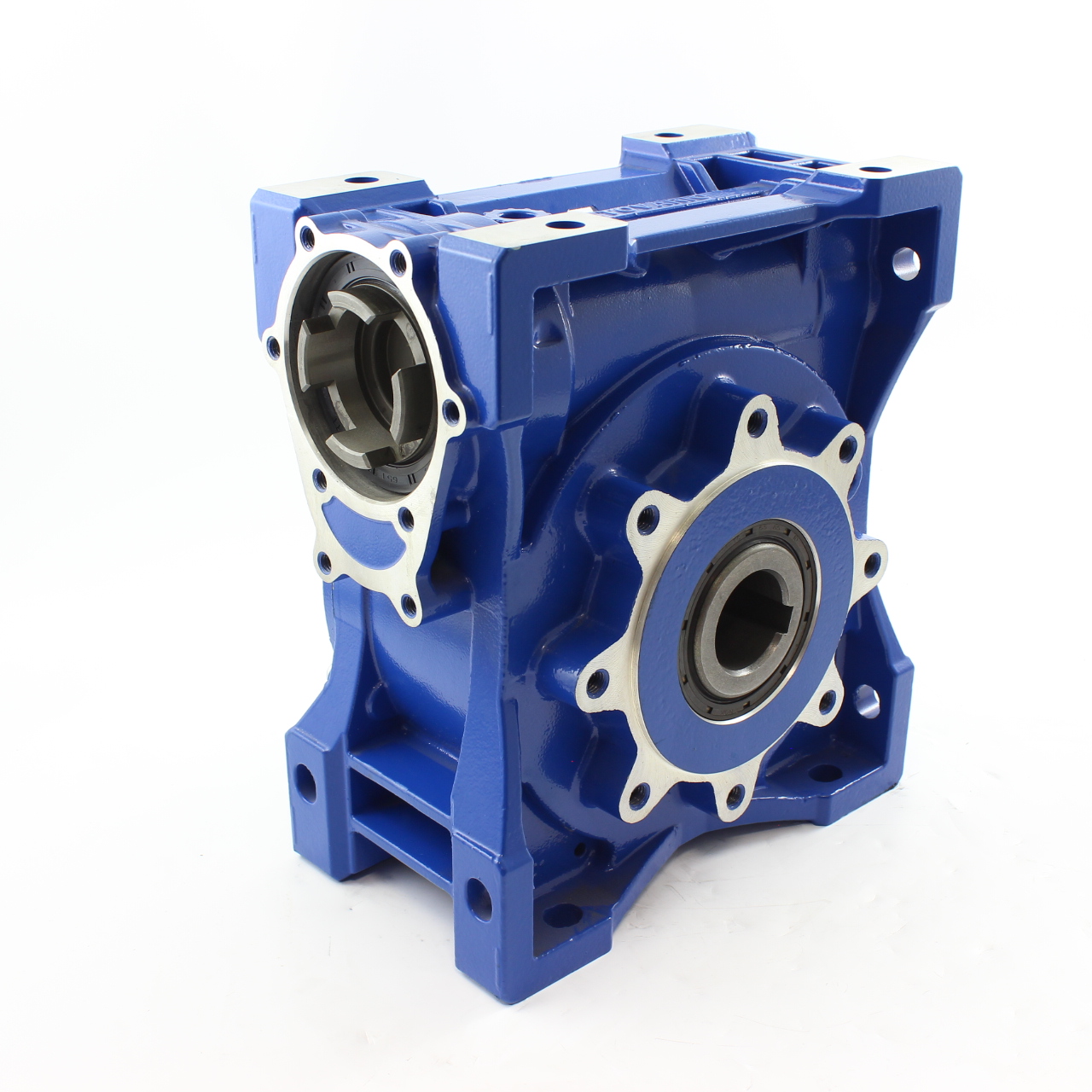

Casing kit NMRV-P110 30,0 D42 B3 MV
Worm Gearbox: NMRV Power
Size: 110
Ratio (i): 30

Hollow output shaft dim.: D.42

MODULARITY
The NMRVpower series allows to a single basic unit to install bush and flange that correspond to different motor sizes.
The basic unit can be purchased alone if it is a replacement of another NMRV-Power Series VSF, reusing the currently installed bushing and flange.
For the purchase of a new complete unit, it is instead necessary to purchase the bushing and flange relating to the motor to be installed.
The same applies to the use of HW pre-stages

Mounting position: B3
Oil plugs: No plugs (Standard)

Fornito completo di lubrificante a vita, olio a base sintetica, ENI TELIUM VSF per posizione di montaggio B3.

Output oil seal: NBR-Nitrile
Input oil seal: ACM-Polyacrylate
Output bearings: Ball bearings
Input bearings: Ball-Ball bearings
Lubrication: Eni Telium VSF 320

Paint: Ral 5010 blue

List of combined products
Availability
AVAILABLE
M2006540

COP.RITEGNO BUSHING PAM NMRV-P090-110

€ 2,10
Availability
COMING SOON
M2006541

COP.RITEGNO BUSHING PAM D38 NMRV-P110

€ 2,10
Availability
AVAILABLE
M2516383

BUSHING PAM NMRV-P110 D. 19

€ 24,60
Availability
LIMITED AVAILABILITY
M2516388

BUSHING PAM NMRV-P110 D. 38

€ 24,60
Availability
LIMITED AVAILABILITY
M3006942

GR.FLANGE USC.VSF105-11 0 FA 280 VER

€ 68,50
Availability
LIMITED AVAILABILITY
M3006943

GR.FLANGE USC.VSF105-11 0 FB 280 VER

€ 97,90
Availability
LIMITED AVAILABILITY
M3016725

GR. TORQUE ARM VSF 105-110

€ 68,50
Availability
LIMITED AVAILABILITY
M3043581

GR.ALB.COLL.HW040+NMRV-P 110 i=4,20

€ 50,90
Availability
LIMITED AVAILABILITY
M3043876

GR.CARC.PR.HW040 3,11 19 U MV

€ 133,40
Availability
AVAILABLE
M3043978

KIT FLANGE PAM NMRV-P09 0/110 D120 B14 VER

€ 34,90
Availability
AVAILABLE
M3044009

KIT FLANGE PAM NMRV-P09 0/110 D.140 B14 VER

€ 34,90
Availability
LIMITED AVAILABILITY
M3044010

KIT FLANGE PAM NMRV-P09 0/110 D160 B14 VER

€ 34,90
