PRODUCT details
M4003418
NMRV050 40,0 160*14 25 U MV
NMRV050 40,0 160*14 25 U MV
€ 189,80
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: Motovario S.P.A.
FEATURES:
NMRV050 40,0 160*14 25 U MV

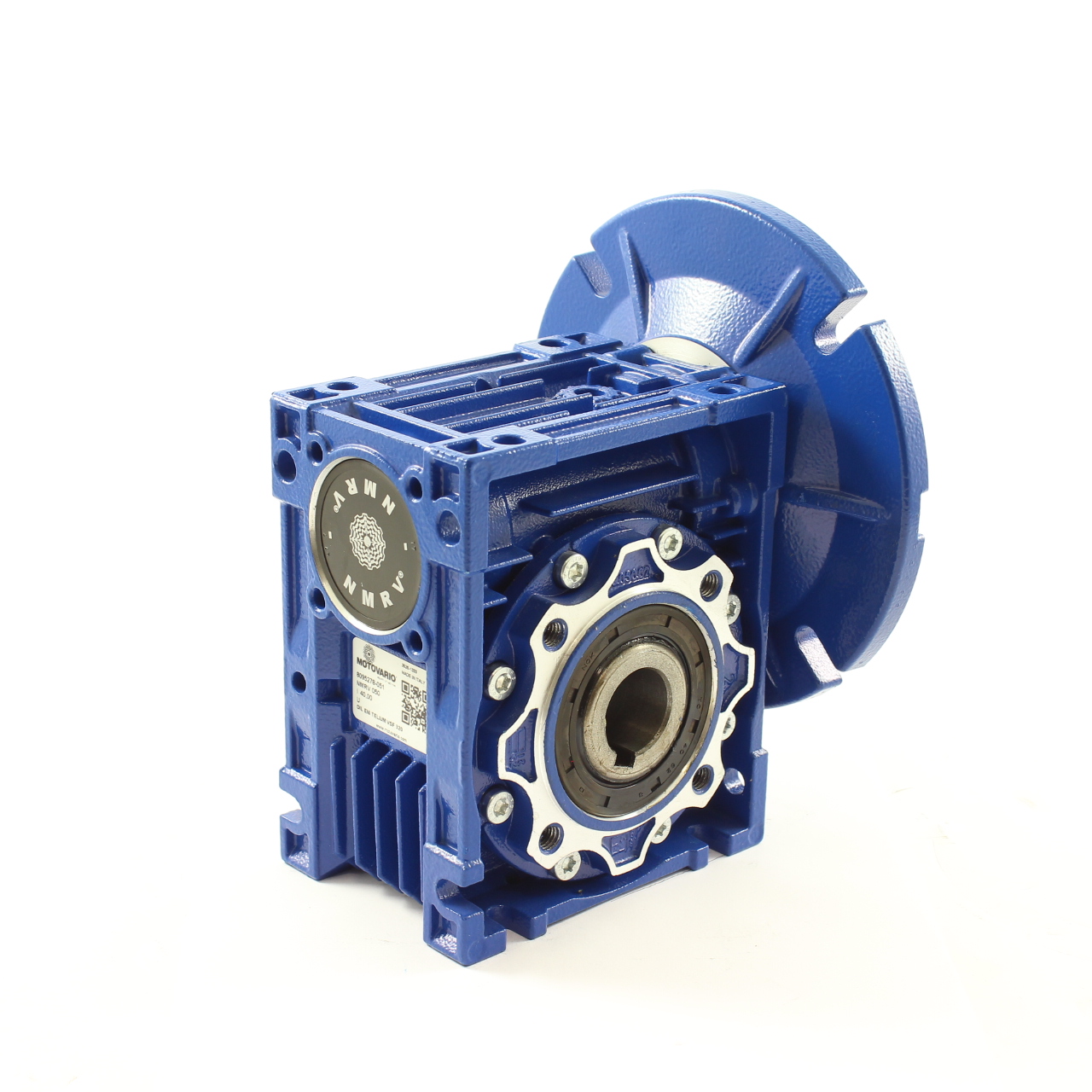

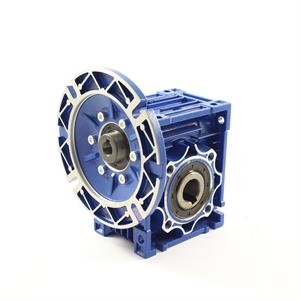

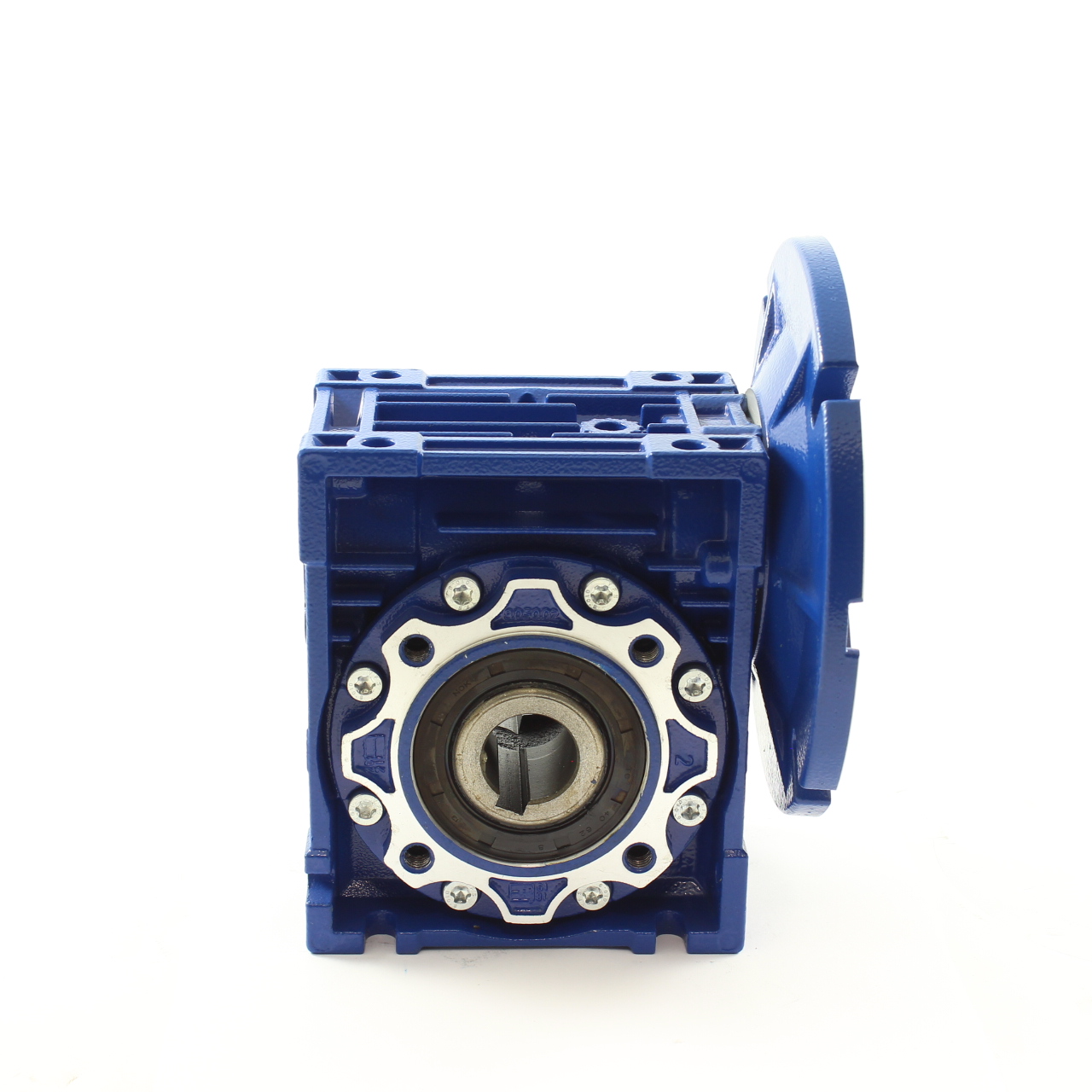

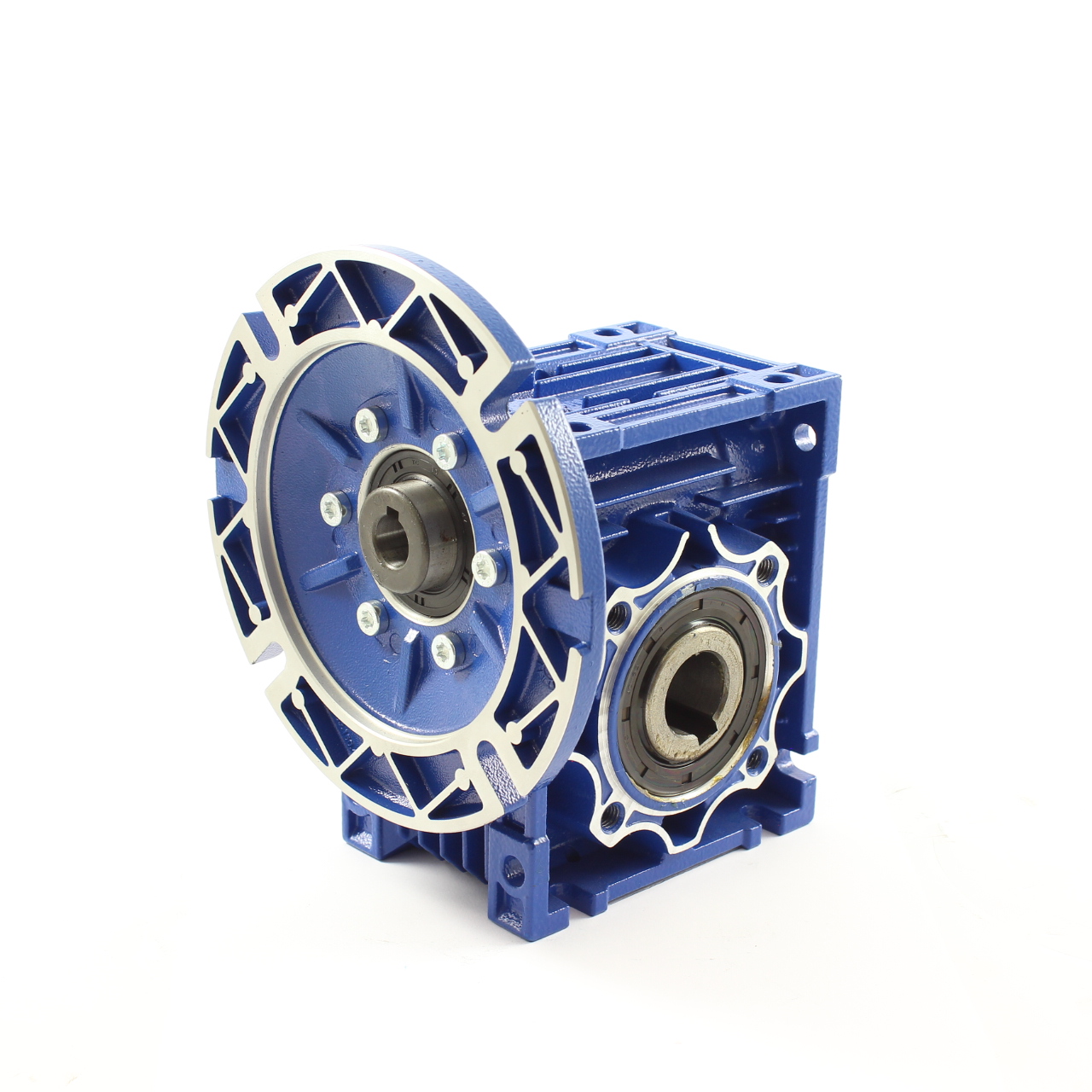

Worm Gearbox: Motor adapter NMRV
Size: 050
Ratio (i): 40
Input dim.: 160x14 (IEC71 B5)
Motor adapter flange dim.: 160
Motor adapter wrom Diam.: 14
Hollow output shaft dim.: D.25
Mounting position: U - Universal
Oil plugs: No plugs (Standard)
Supplied with lubricant ENI TELIUM VSF.
Output oil seal: NBR-Nitrile
Input oil seal: ACM-Polyacrylate
Output bearings: Ball bearings
Input bearings: Ball-Ball bearings
Lubrication: Eni Telium VSF 320
Paint: Ral 5010 blue
List of combined products
AVAILABLE
M3006882
GR.FLANGE USC.VSF050 FA 125 VER
GR.FLANGE USC.VSF050 FA 125 VER
€ 13,10
LIMITED AVAILABILITY
M3006888
GR.FLANGE USC.VSF050-BA 42 FB D125 VER
GR.FLANGE USC.VSF050-BA 42 FB D125 VER
€ 13,60
LIMITED AVAILABILITY
M3006890
GR.FLANGE USC.VSF050-BA 42 FC D160 VER
GR.FLANGE USC.VSF050-BA 42 FC D160 VER
€ 15,40
COMING SOON
M3006893
GR.FLANGE USC.VSF050 FD 140 VER
GR.FLANGE USC.VSF050 FD 140 VER
€ 14,60
AVAILABLE
M3016720
GR.TORQUE ARM VSF0 50/BA42
GR.TORQUE ARM VSF0 50/BA42
€ 14,40
