PRODUCT details
9.702.511.00

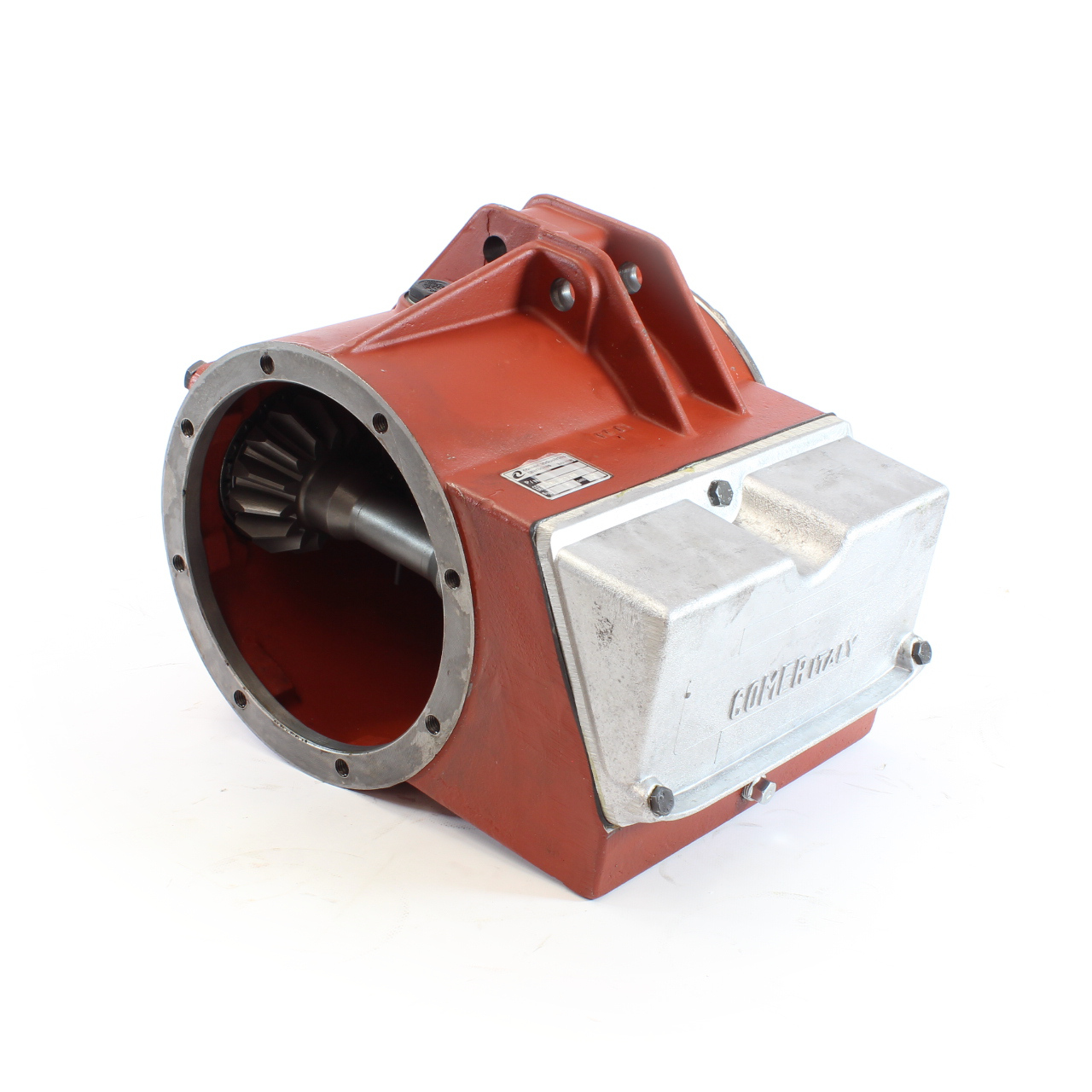

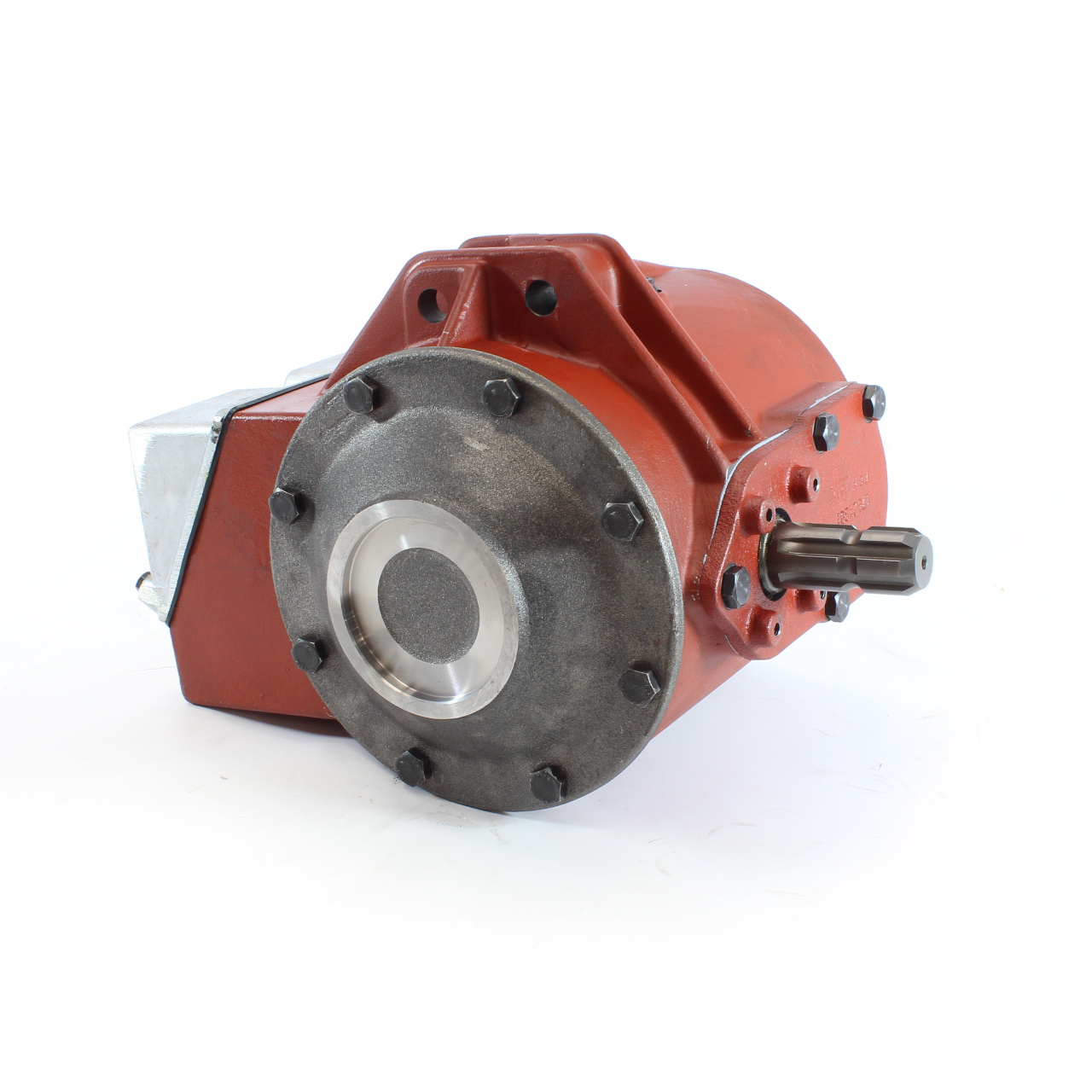

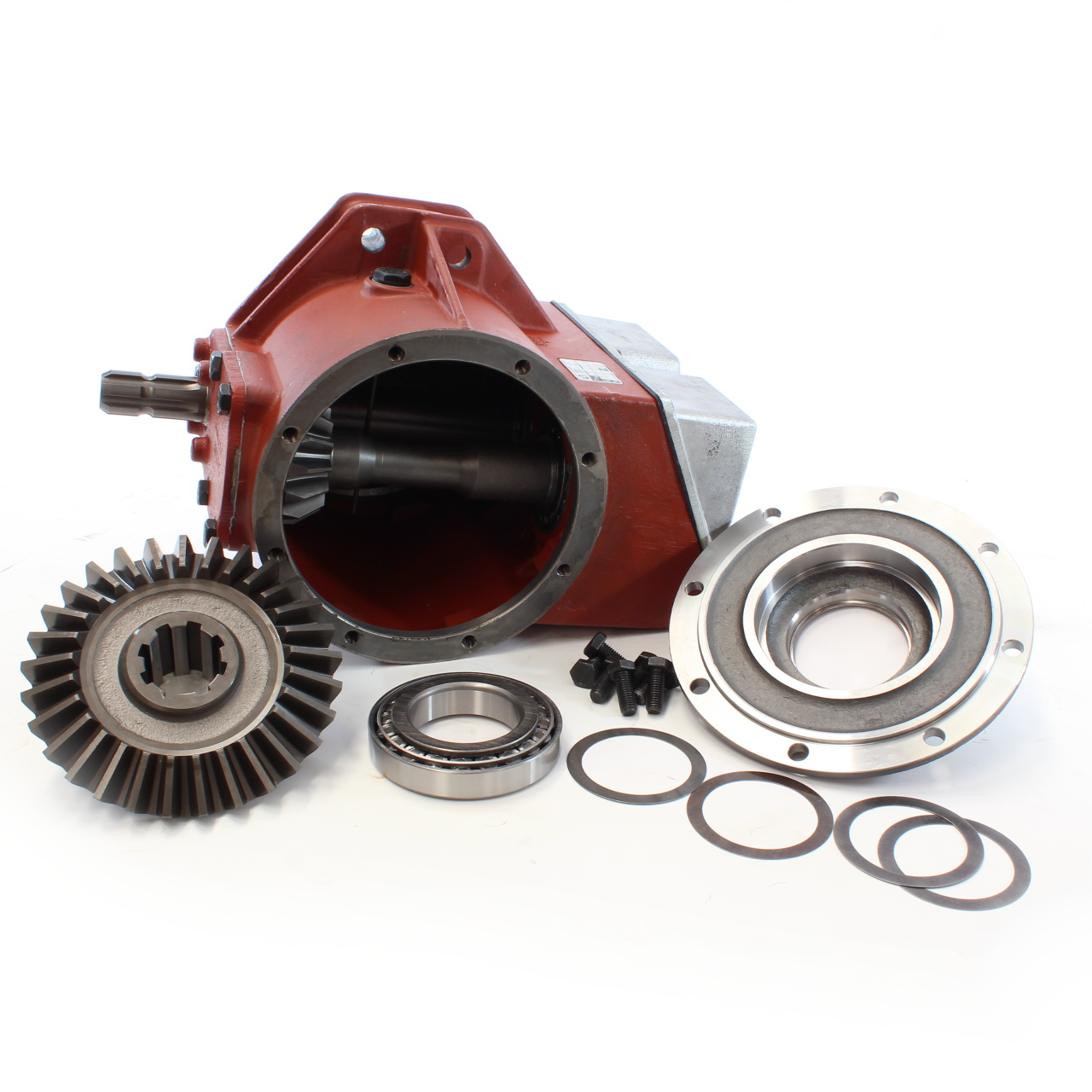

GEARBOX 2.29 2.65 RC- 51.5 MZ-2A SPEED-CHANGER
GEARBOX 2.29 2.65 RC- 51.5 MZ-2A SPEED-CHANGER
€ 1.409,96
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: MZ-2 A
Technical features:
Type of application: Reduction gearshift unit
Input power rate: 70Cv-51,5Kw (540RPM)
Ratio: 2,29:1 - 2,65:1
Outputs: 1
Multi speed units with hand operated gear shift changing gear inside.
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 59
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
List of combined products
LIMITED AVAILABILITY
0.702.1318.00
COVER
COVER
€ 96,80
LIMITED AVAILABILITY
0.702.2002.00
SHAFT
SHAFT
€ 247,95
COMING SOON
0.702.5008.00
GEAR Z18
GEAR Z18
€ 143,27
LIMITED AVAILABILITY
0.702.5009.00
GEAR Z19
GEAR Z19
€ 159,01
LIMITED AVAILABILITY
0.702.5010.00
GEAR Z21
GEAR Z21
€ 198,35
COMING SOON
0.702.5011.00
GEAR Z23
GEAR Z23
€ 184,21
LIMITED AVAILABILITY
0.702.6007.00
PINION 14 M6.75
PINION 14 M6.75
€ 347,84
COMING SOON
0.702.6008.00
CROWN WHEEL 29 M6.75
CROWN WHEEL 29 M6.75
€ 337,69
AVAILABLE
0.702.7201.00
GASKET
GASKET
€ 4,73
AVAILABLE
0.703.7106.00
PLUG TCAS-2215
PLUG TCAS-2215
€ 9,45
COMING SOON
1.702.1401.00
COVER OMER ITALY"
COVER OMER ITALY"
€ 92,89
