PRODUCT details
9.269.007.20

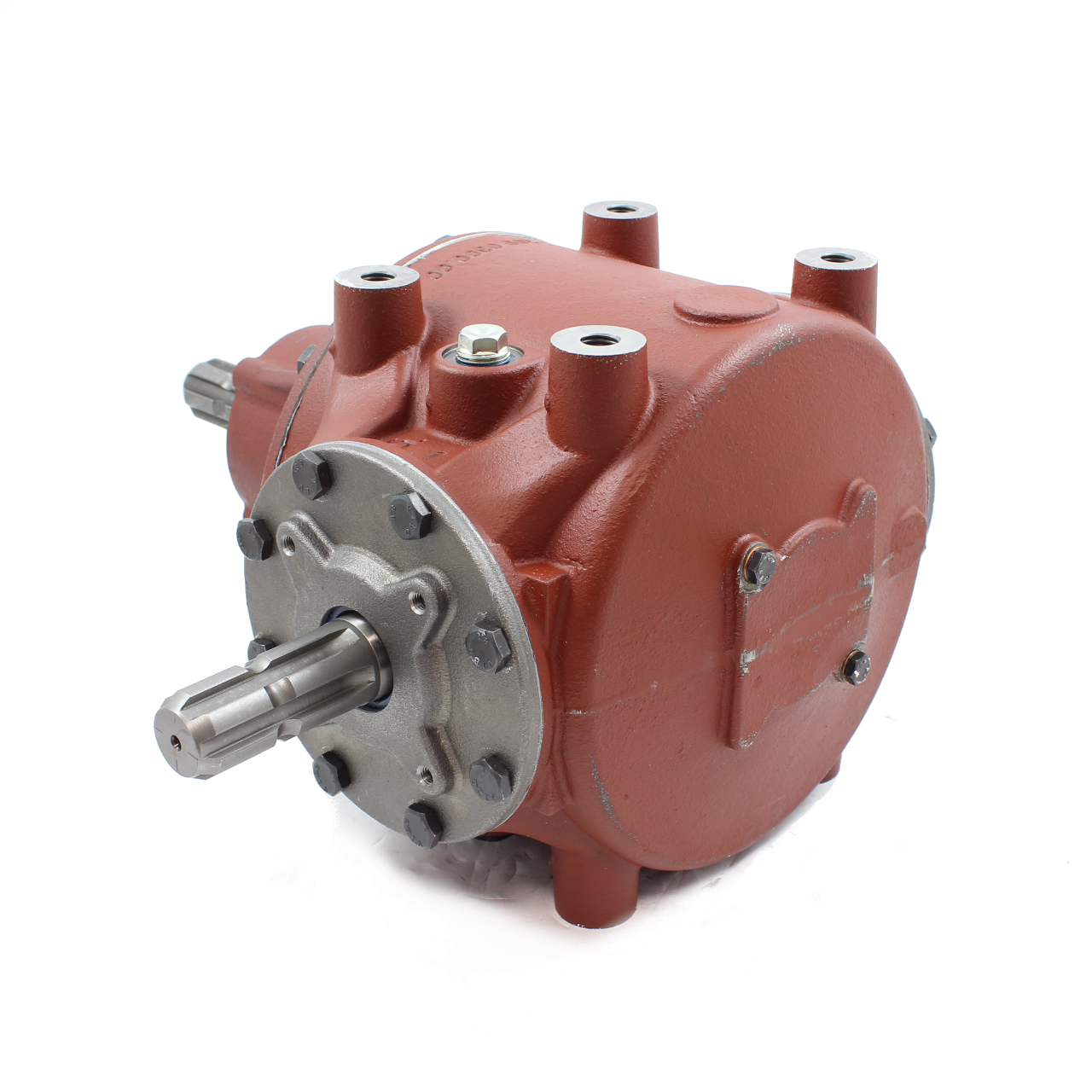

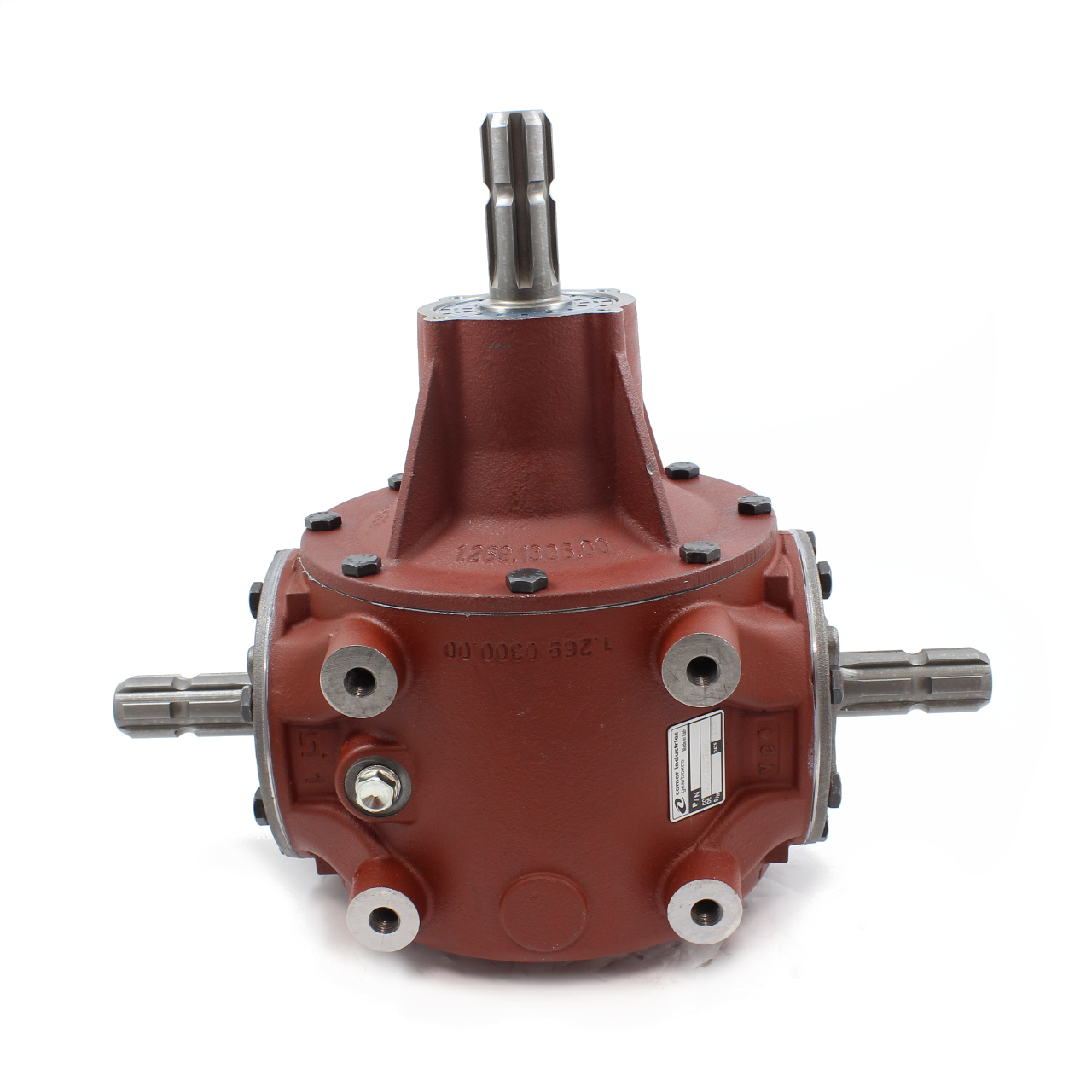

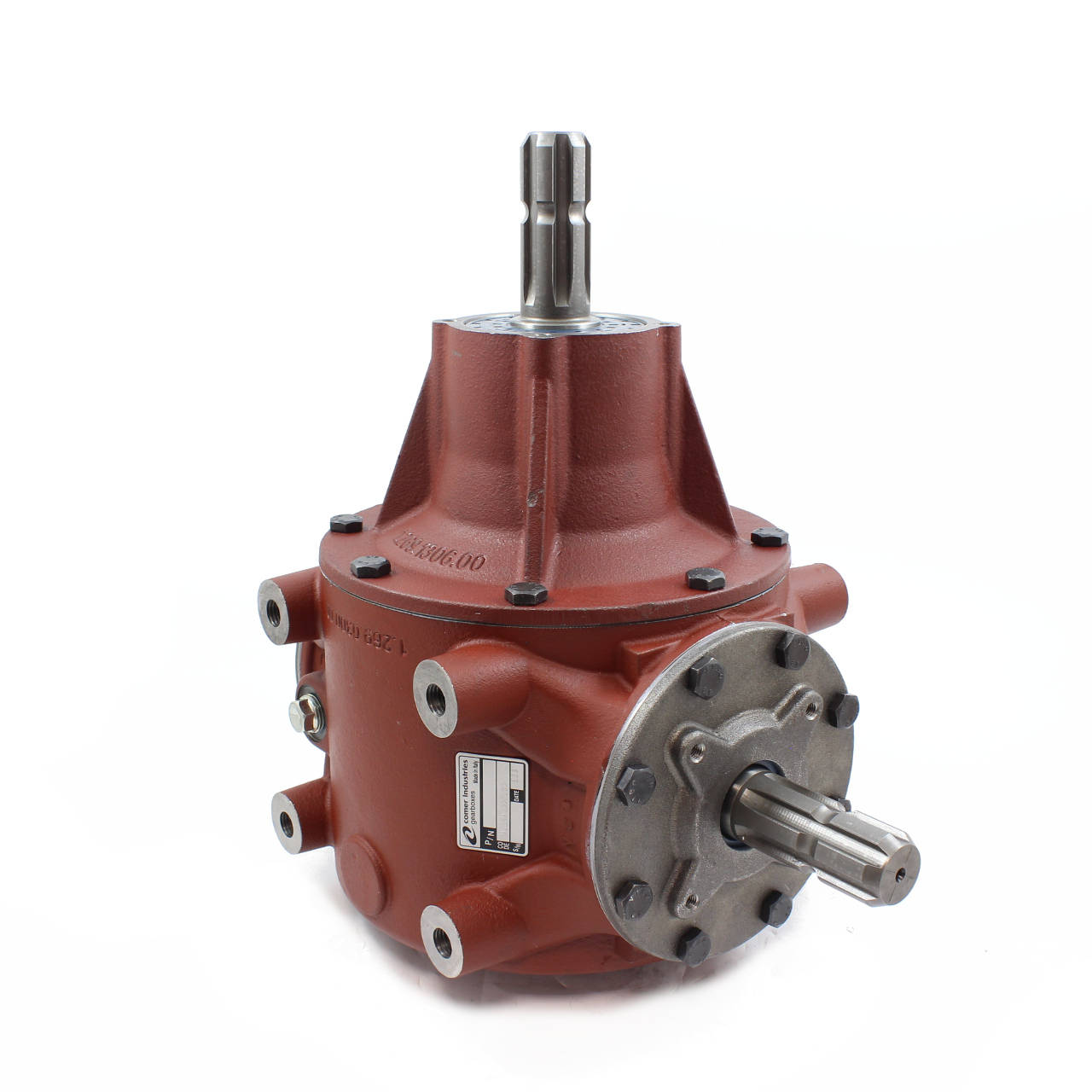

GEARBOX 1.42 M-77 R-66 T-269B
GEARBOX 1.42 M-77 R-66 T-269B
€ 902,91
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-269B
Technical features:
Type of application:
Reduction gear unit
Input power rate: 90Cv-66,2Kw (540RPM)
Speed increasing unit
Input power rate: 105.9Cv-77,3Kw (540RPM)
Ratio: 1.42
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 39.7
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: T-269B
Technical features:
Type of application:
Reduction gear unit
Input power rate: 90Cv-66,2Kw (540RPM)
Speed increasing unit
Input power rate: 105.9Cv-77,3Kw (540RPM)
Ratio: 1.42
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 39.7
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
