PRODUCT details
9.259.870.00

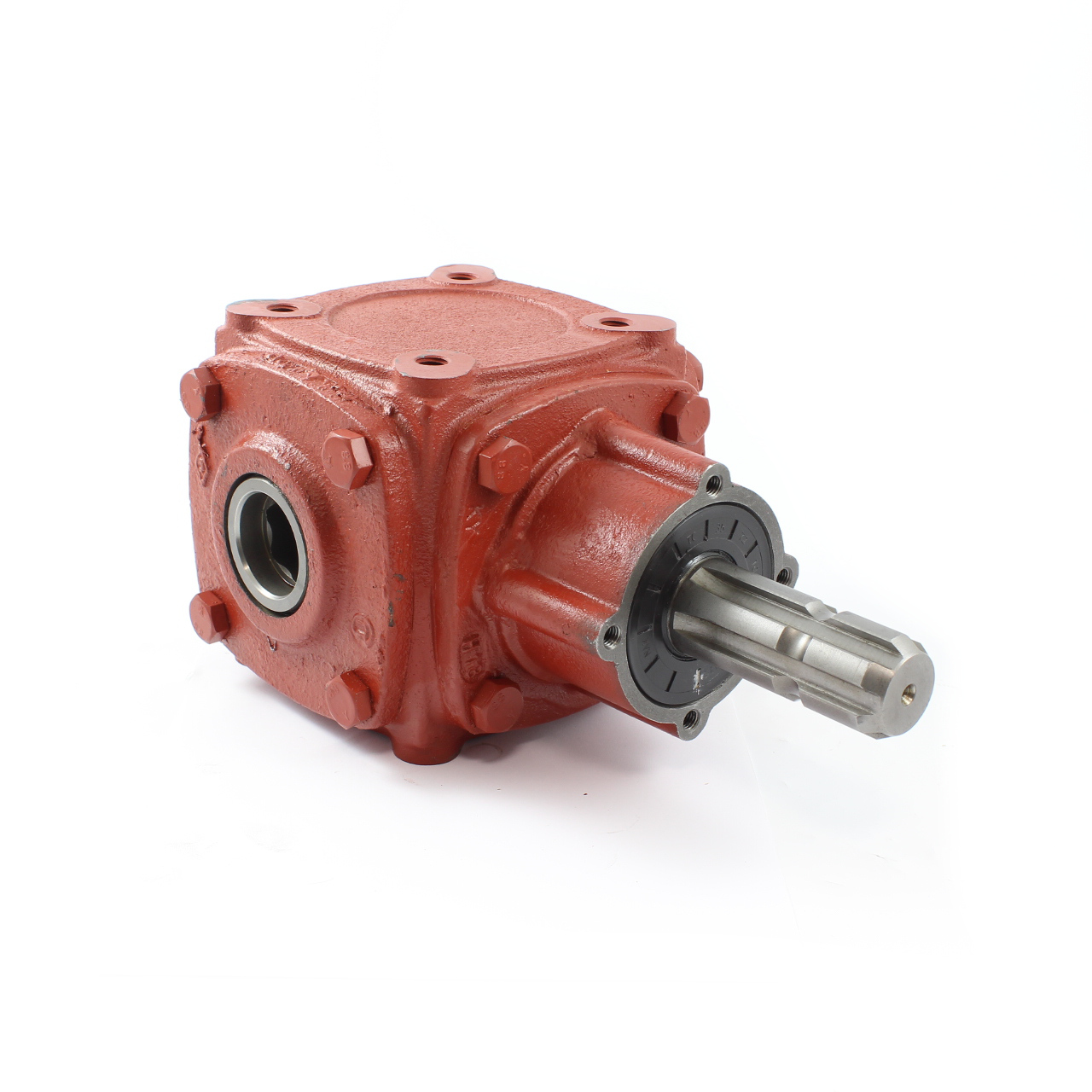

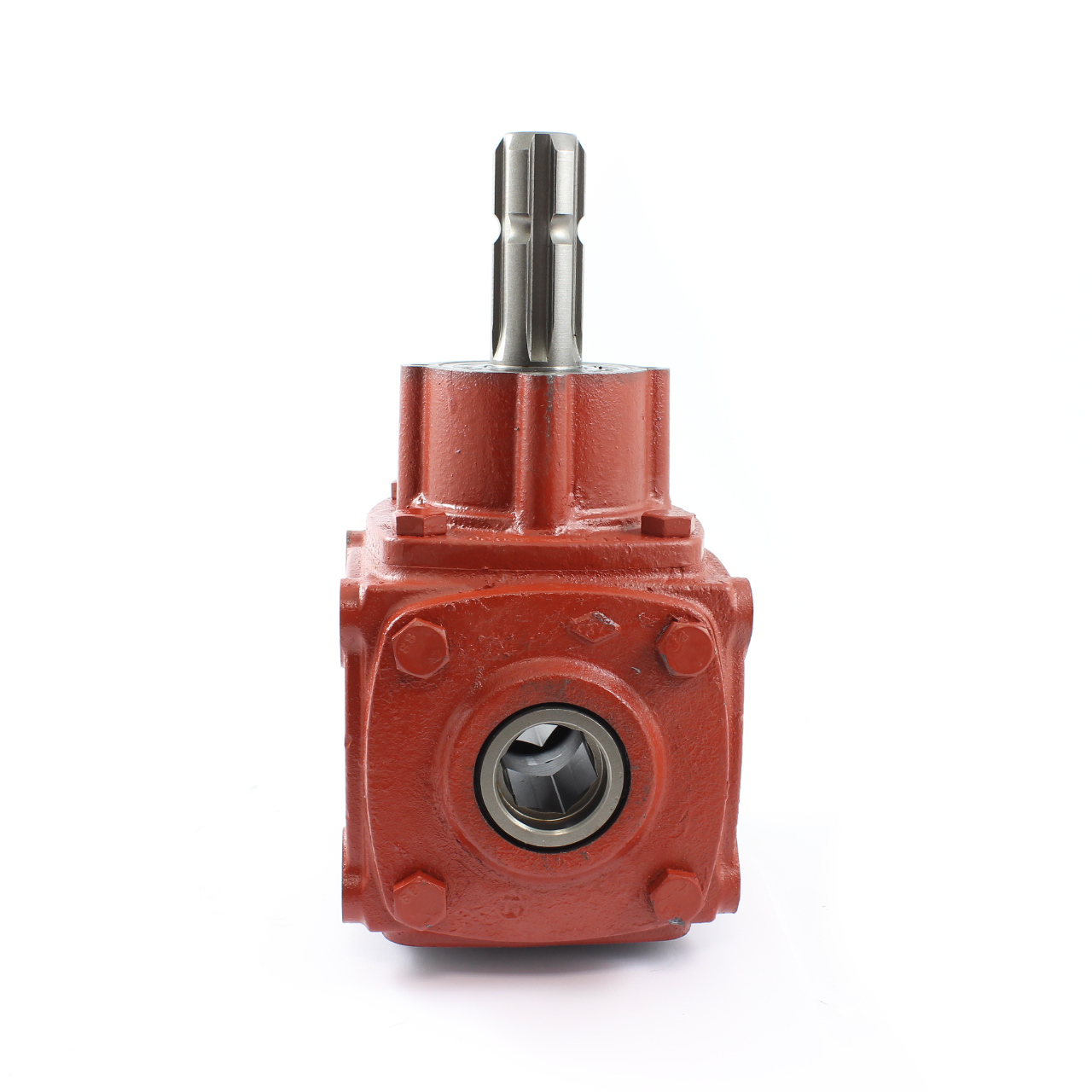

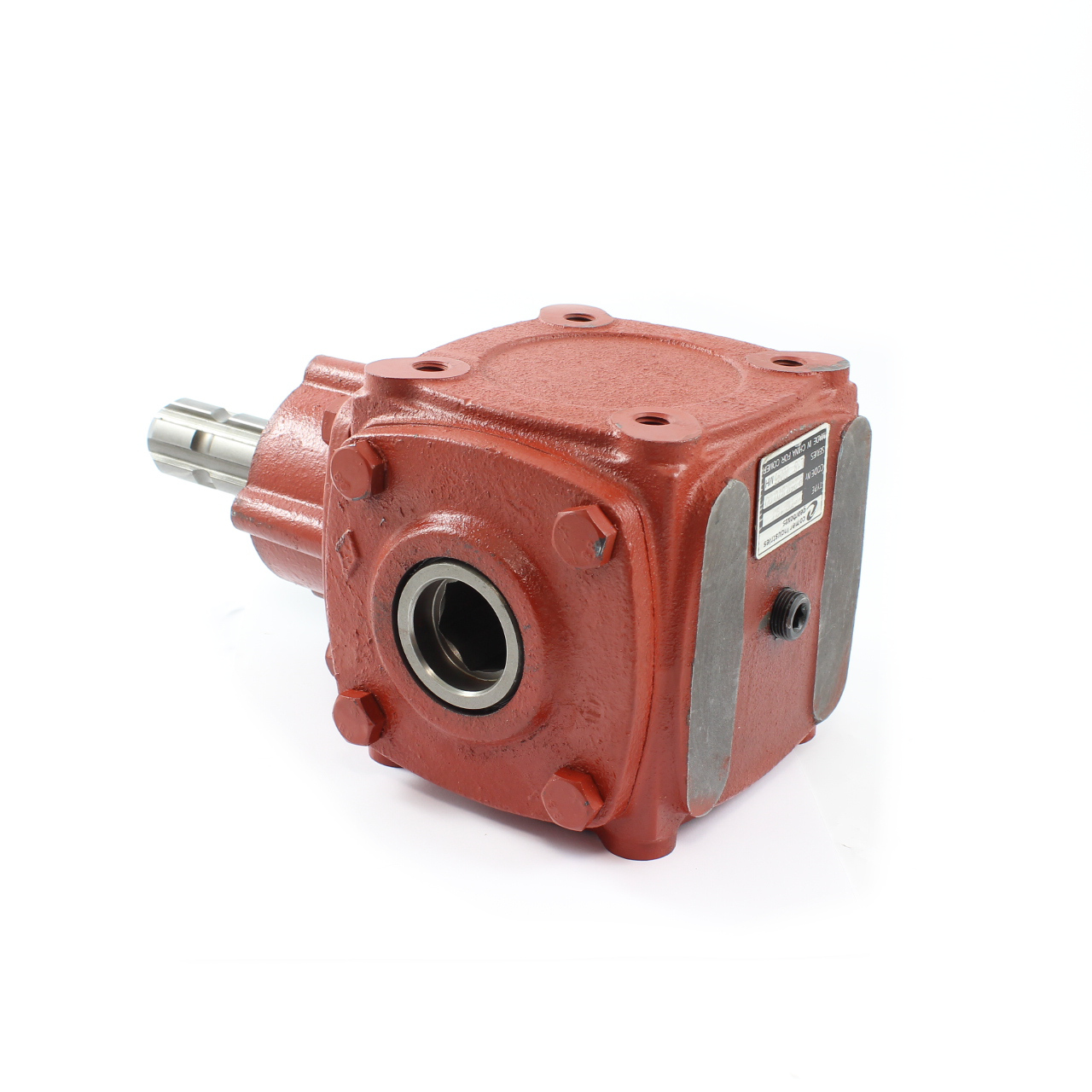

GEARBOX 1.46 M-20.6 R-16.9 TB-19J
GEARBOX 1.46 M-20.6 R-16.9 TB-19J
€ 257,37
COMING SOON
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: TB-19J
Technical features:
Type of application:
Reduction gear unit
Input power rate: 23 Cv-16.9 Kw (540RPM)
Speed increasing unit
Input power rate: 28Cv-20.6Kw (540RPM)
Ratio: 1,46
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 14.3
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
