PRODUCT details
9.267.003.00

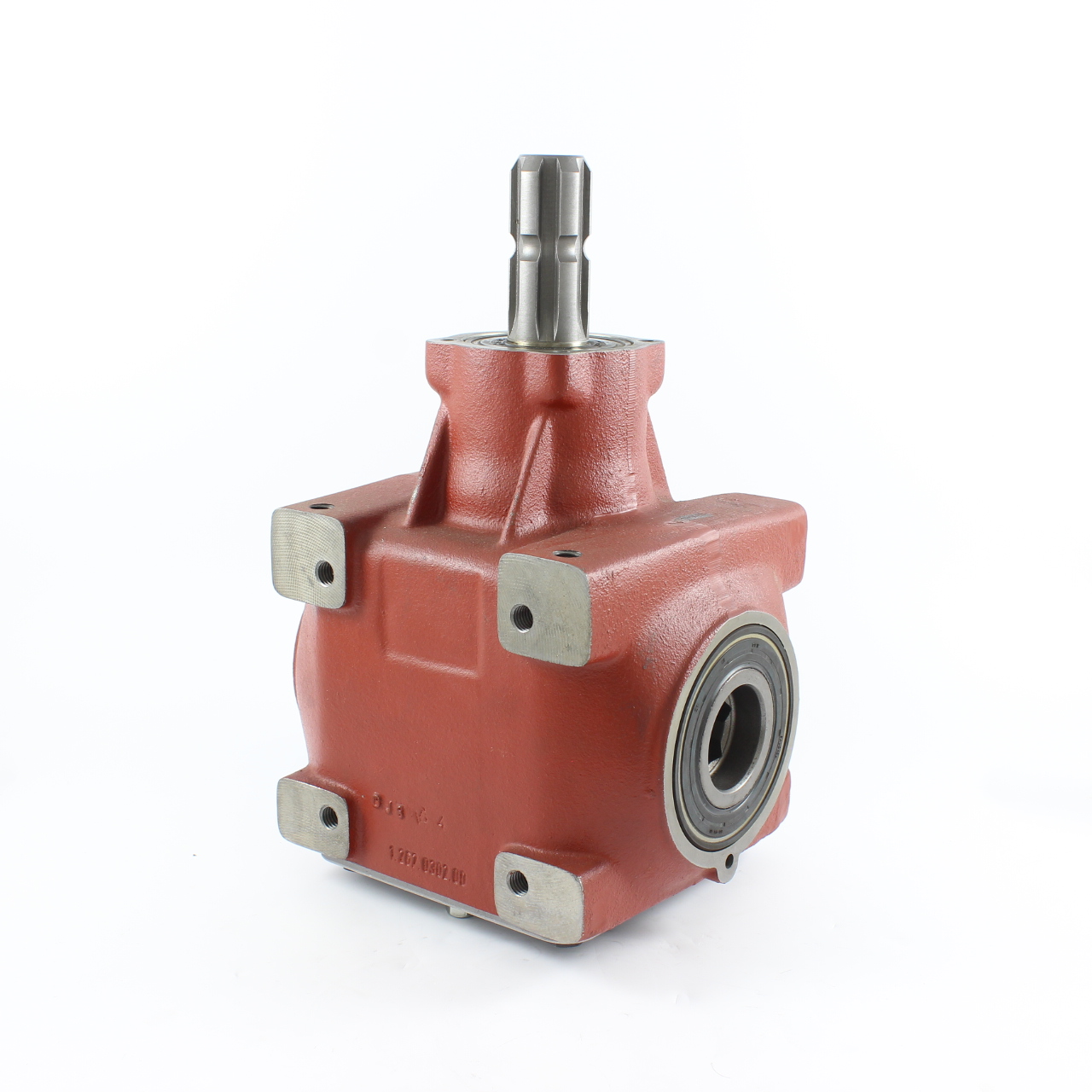

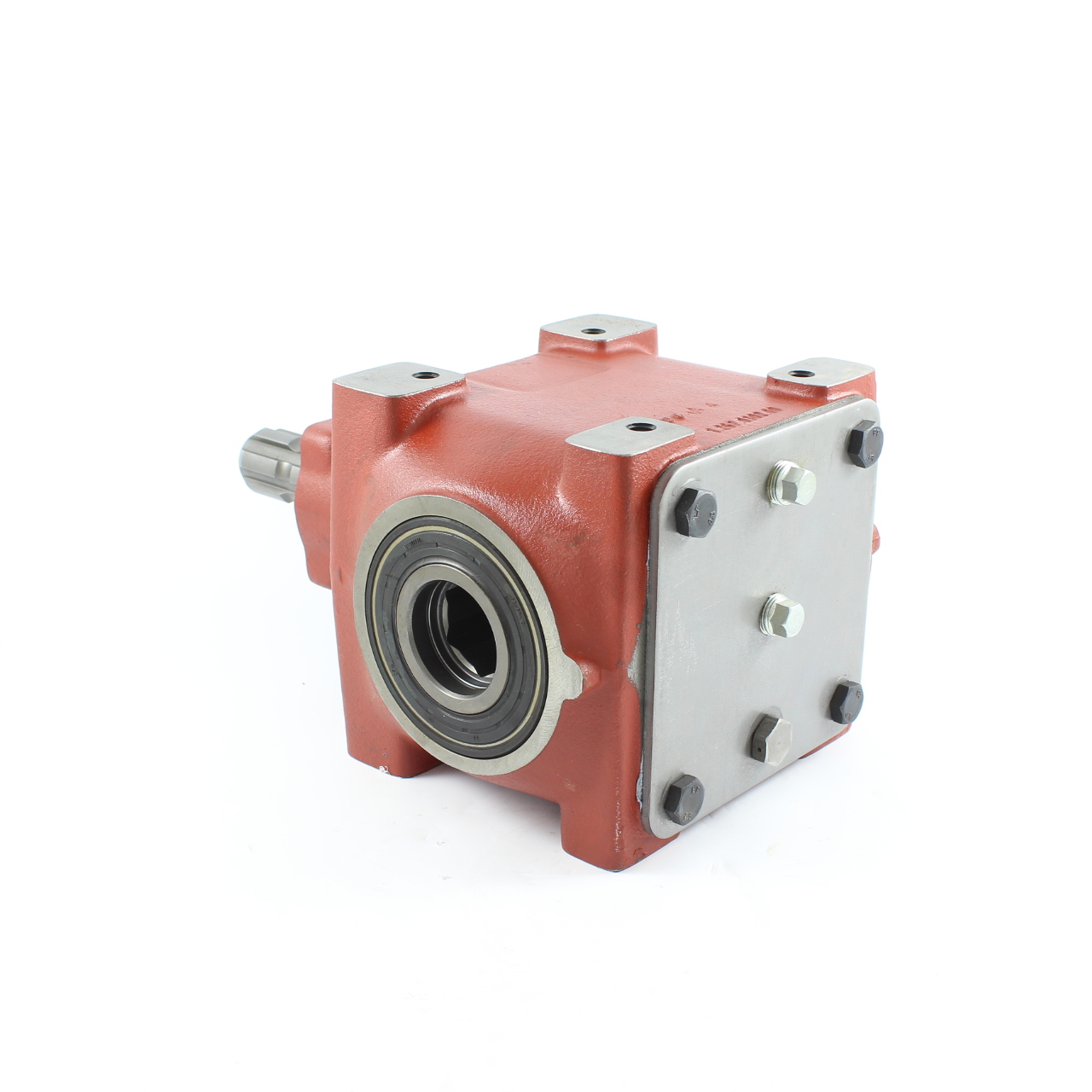

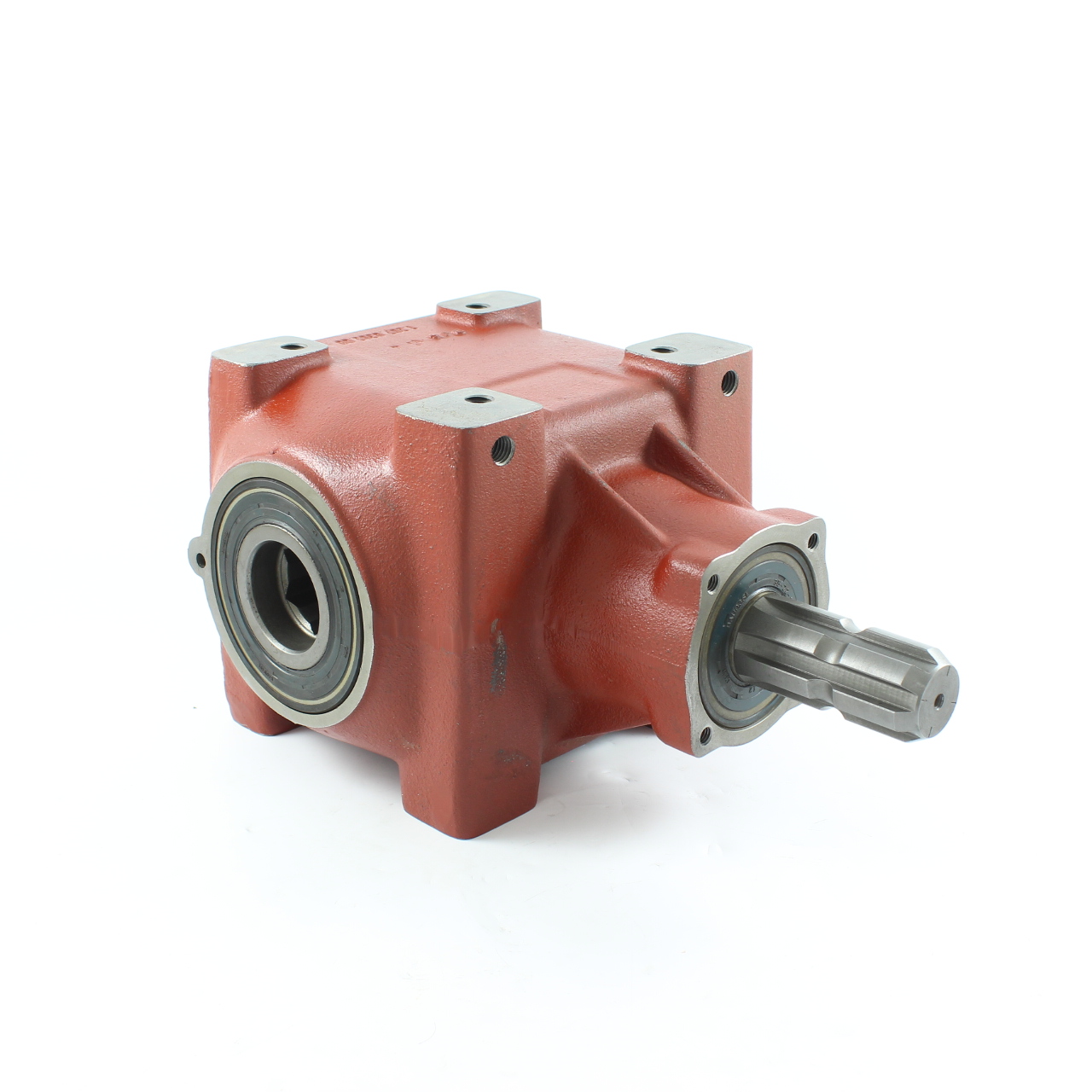

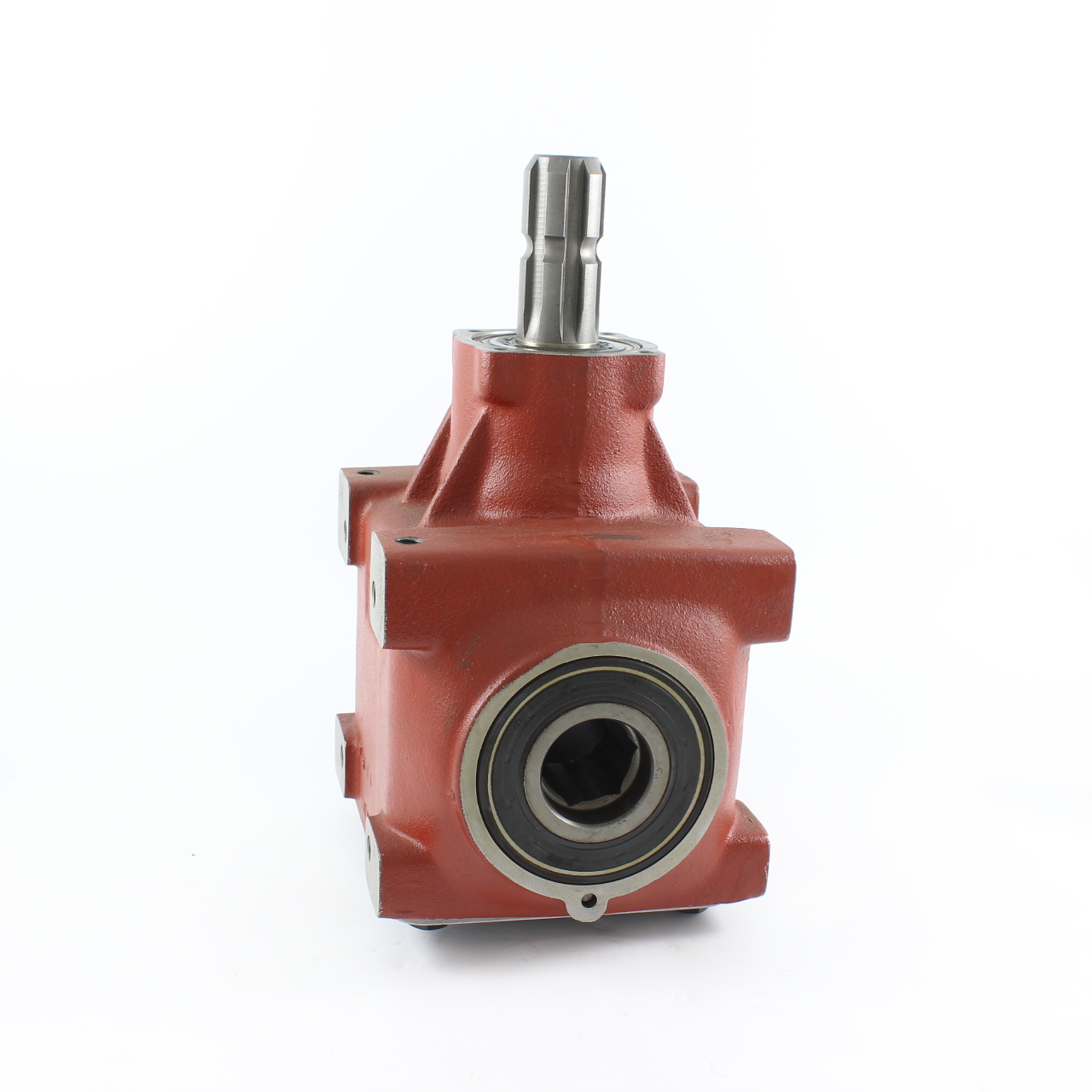

GEARBOX 1.46 M-38.3 R -29.5 TB-27C
GEARBOX 1.46 M-38.3 R -29.5 TB-27C
€ 607,64
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: TB-27C
Technical features:
Type of application:
Reduction gear unit
Input power rate: 40Cv-29,5Kw (540RPM)
Speed increasing unit
Input power rate: 52.5Cv-38,3Kw (540RPM)
Ratio: 1,46
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 19,3
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: TB-27C
Technical features:
Type of application:
Reduction gear unit
Input power rate: 40Cv-29,5Kw (540RPM)
Speed increasing unit
Input power rate: 52.5Cv-38,3Kw (540RPM)
Ratio: 1,46
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 19,3
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
