PRODUCT details
9.312.797.00

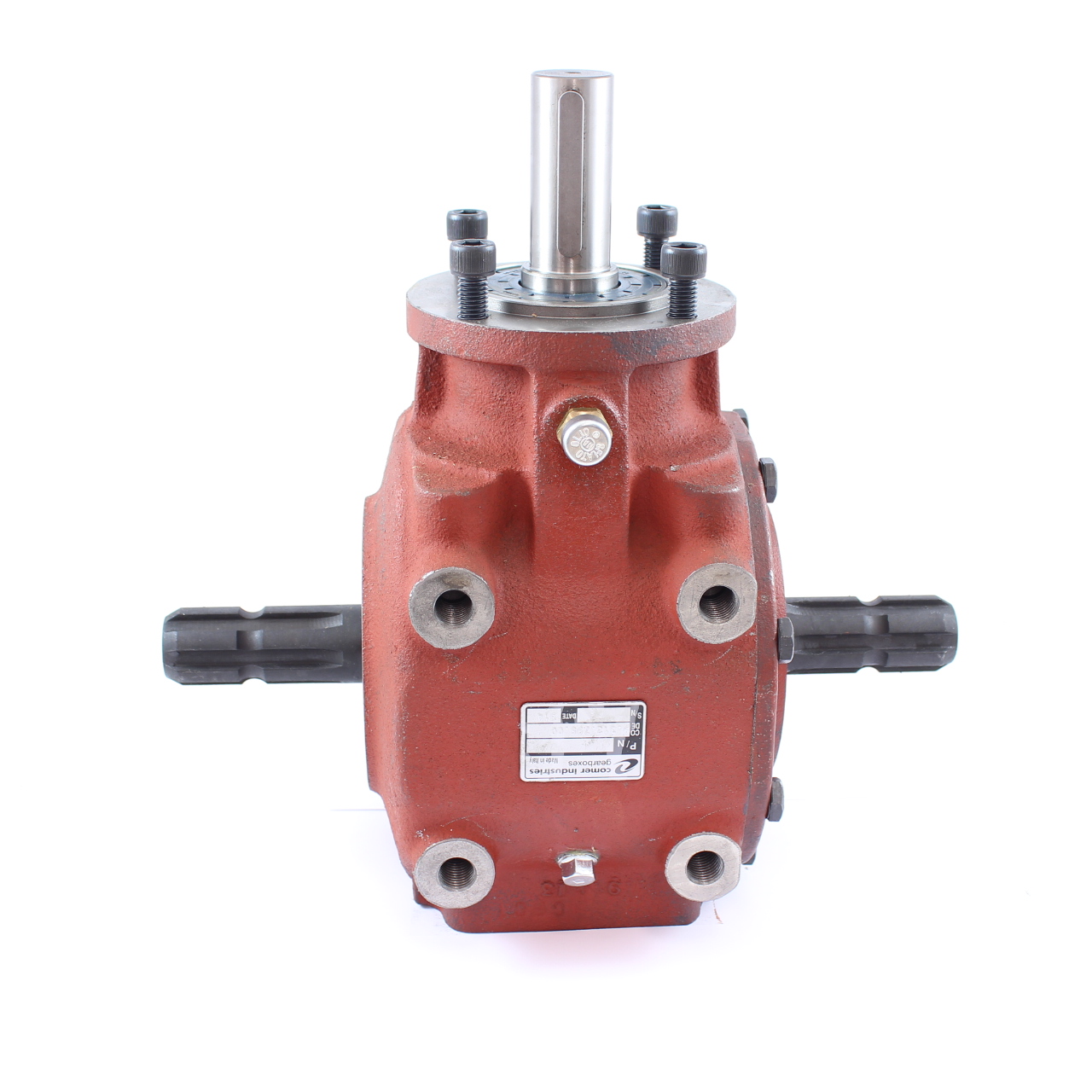

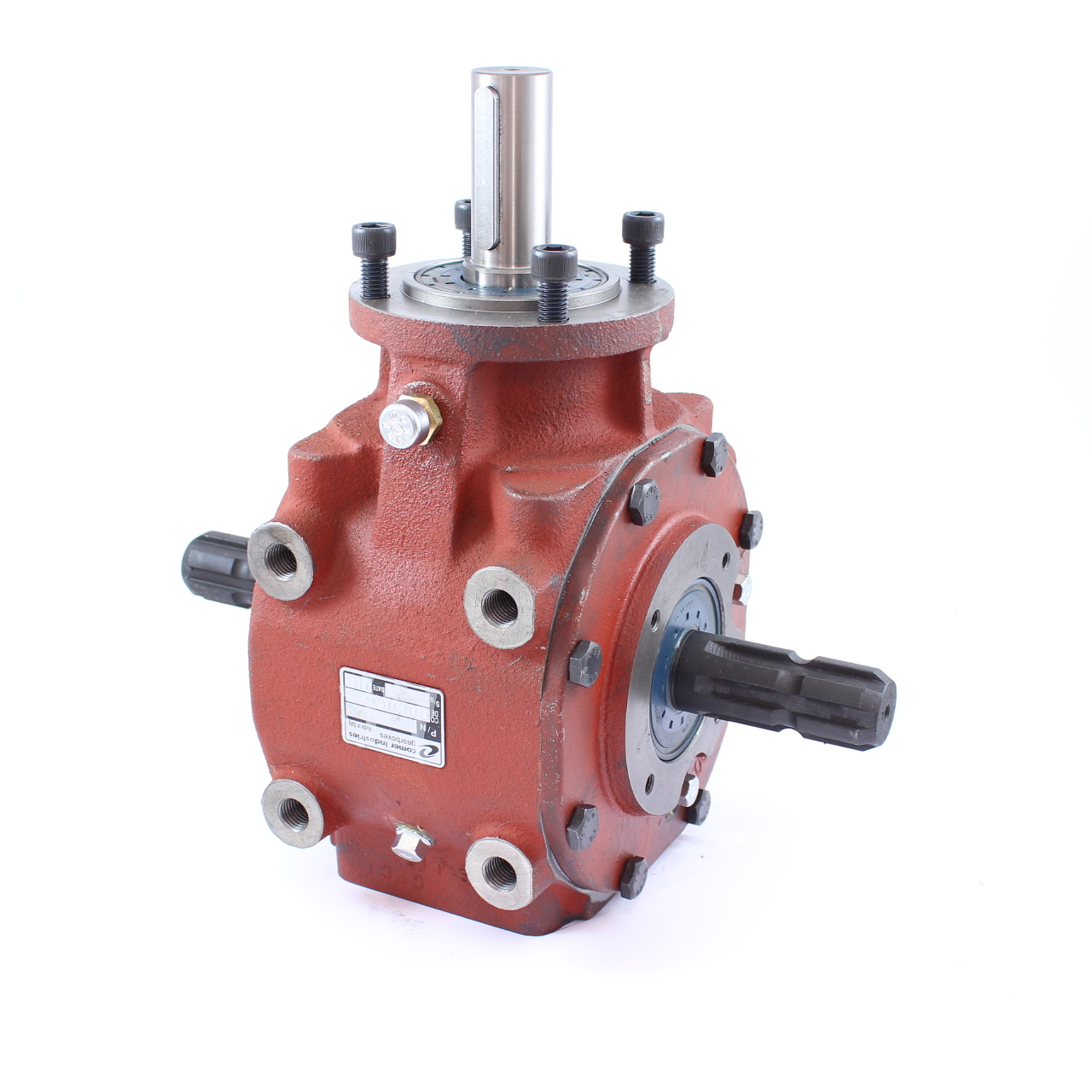

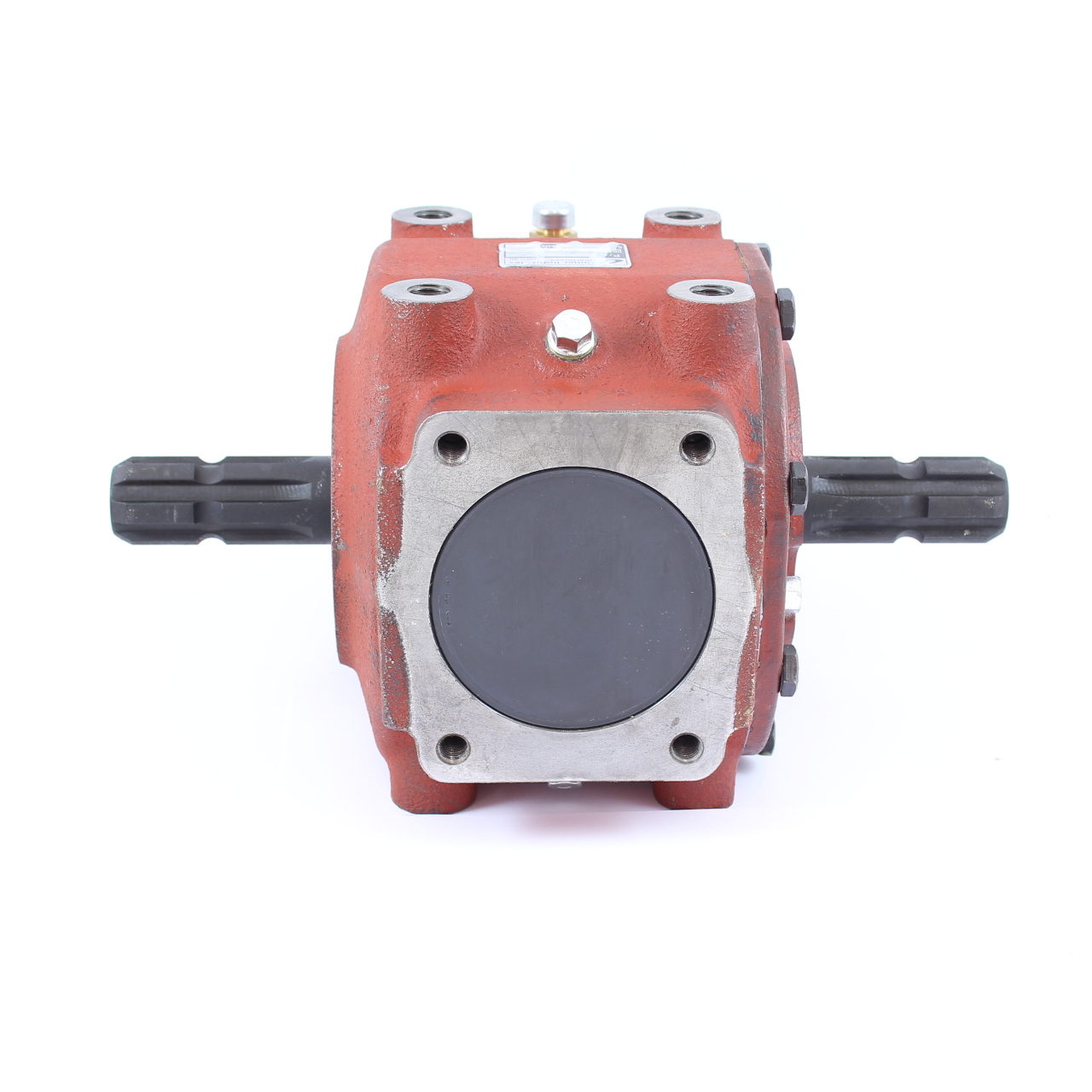

GEARBOX 1.6 DR M-55.9 T-312A
GEARBOX 1.6 DR M-55.9 T-312A
€ 821,62
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-312A
Technical features:
Type of application: Speed increasing unit
Input power rate: 76Cv-55,9Kw (540RPM)
Ratio: 1,6
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component

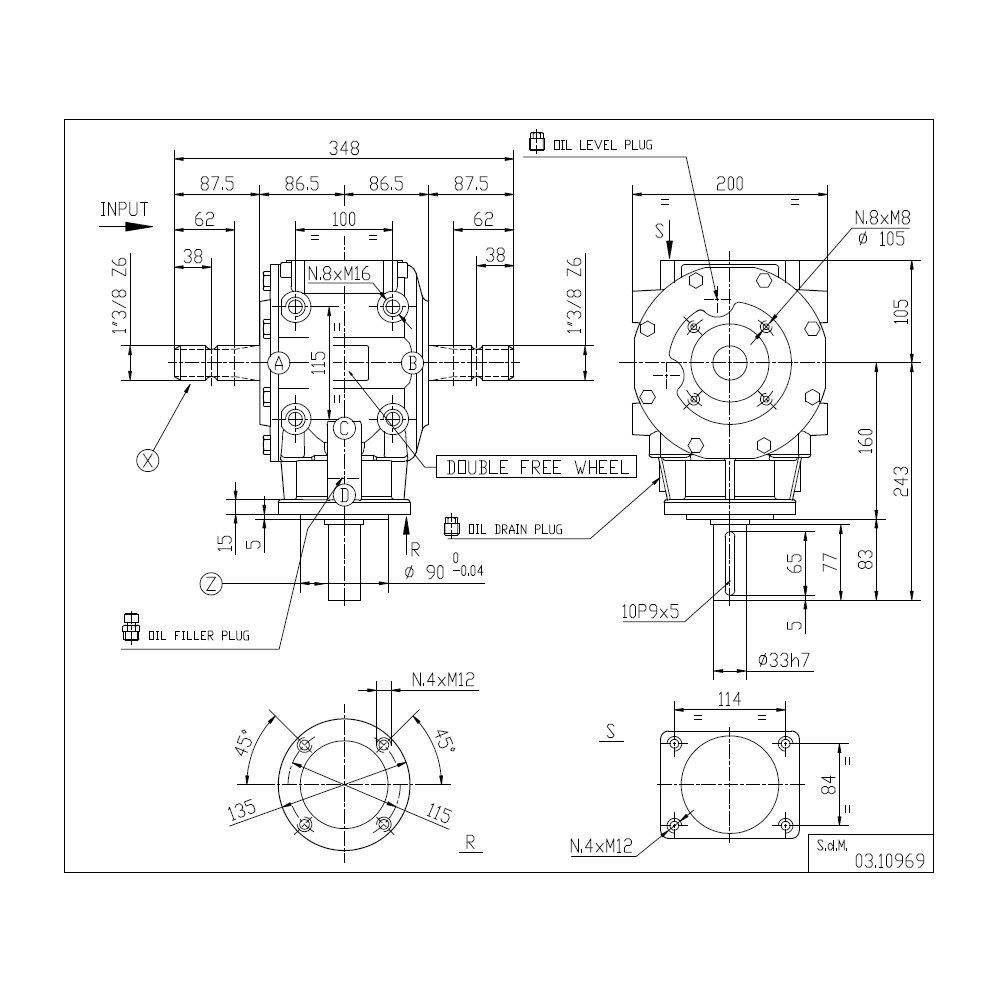

Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 27
Special features: Double overrunning clutch inside
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
