PRODUCT details
9.281.009.00

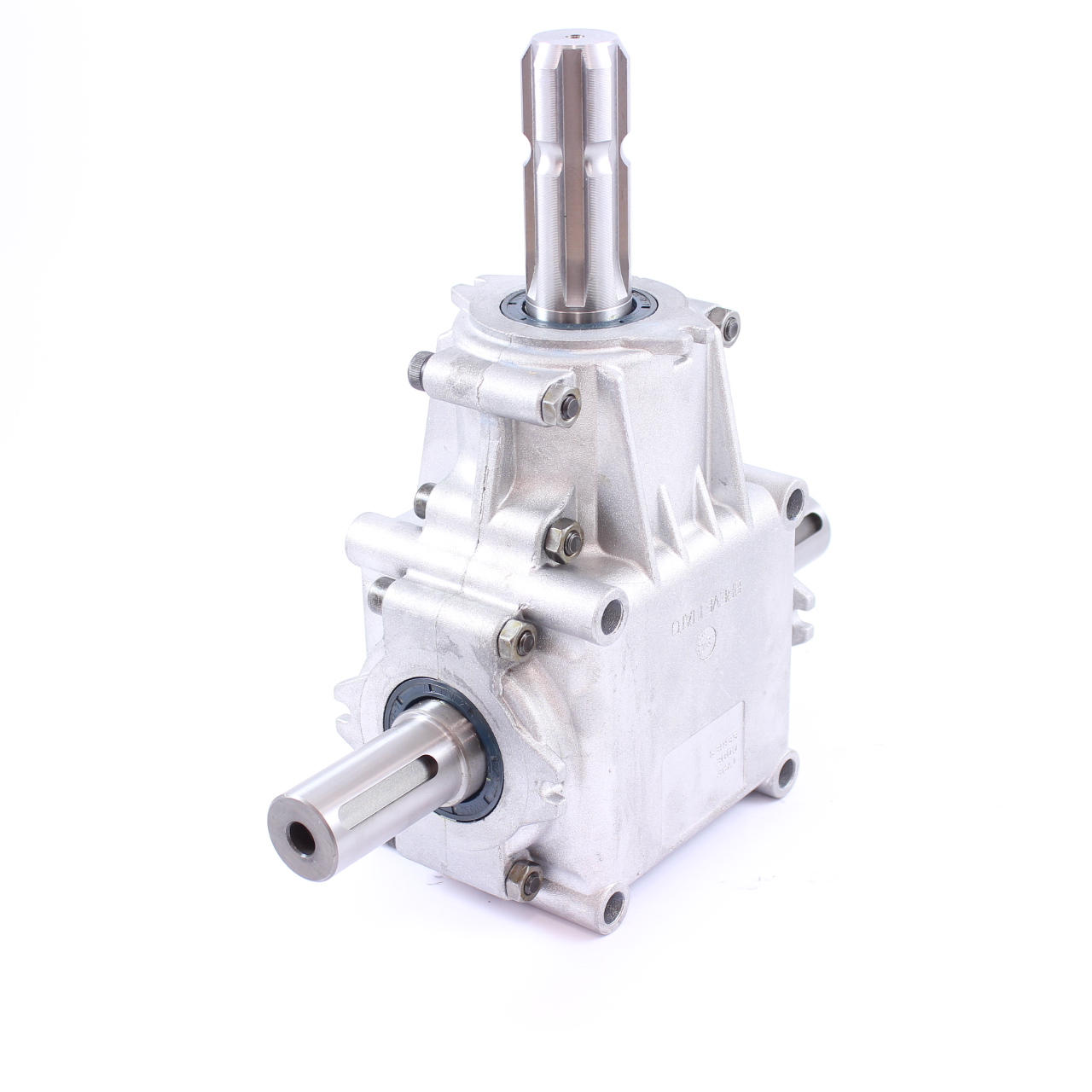

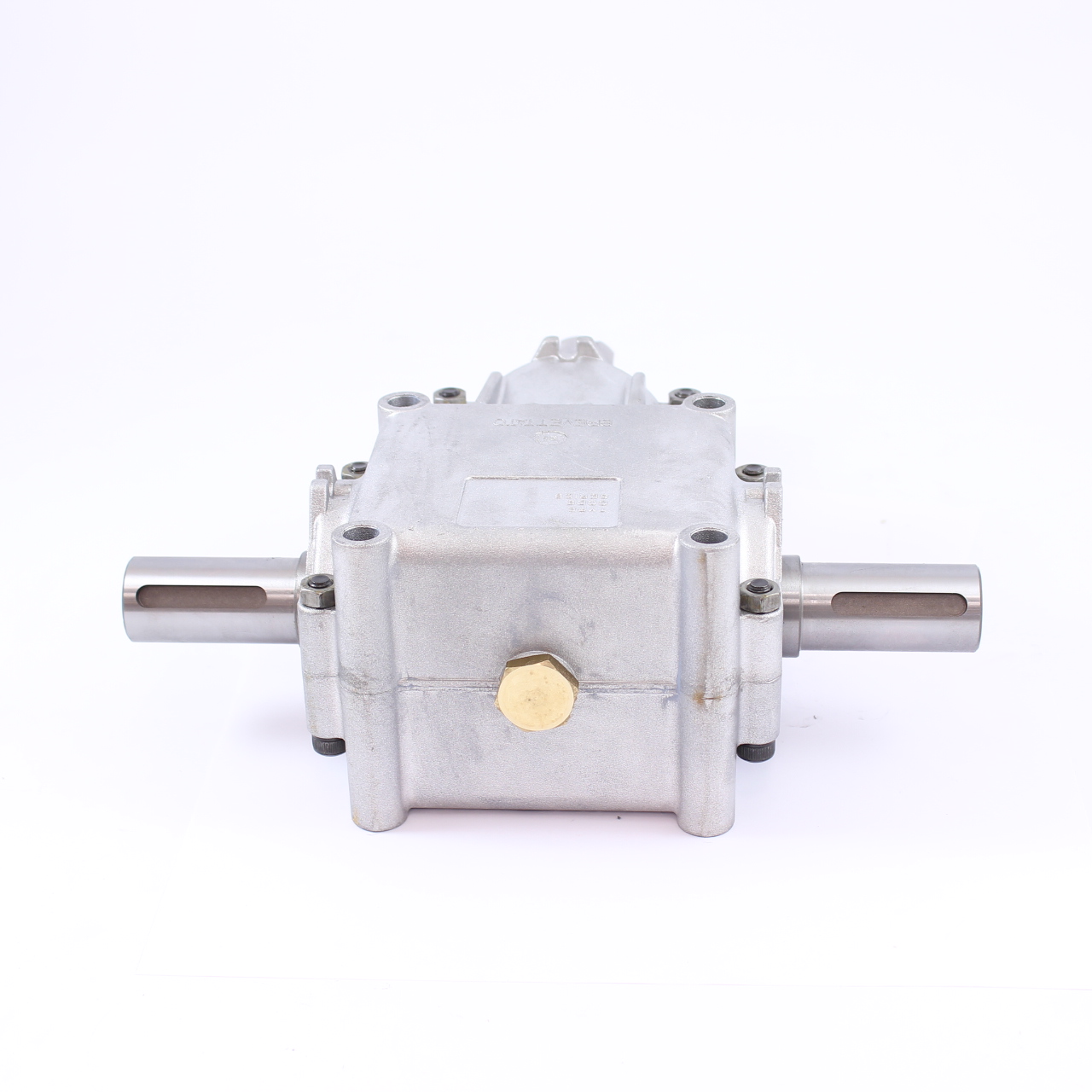

GEARBOX 1.84 M-12.5 R -8.8 T-281A
GEARBOX 1.84 M-12.5 R -8.8 T-281A
€ 325,24
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-281A
Technical features
Type of application:
Reduction gear unit
Input power rate: 12Cv-8.8Kw (540RPM)
Speed increasing unit
Input power rate: 17Cv-12.5Kw (540RPM)
Ratio: 1,84
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Aluminum
Dry weight: Kg 7
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: T-281A
Technical features
Type of application:
Reduction gear unit
Input power rate: 12Cv-8.8Kw (540RPM)
Speed increasing unit
Input power rate: 17Cv-12.5Kw (540RPM)
Ratio: 1,84
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Aluminum
Dry weight: Kg 7
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
