PRODUCT details
9.292.013.00

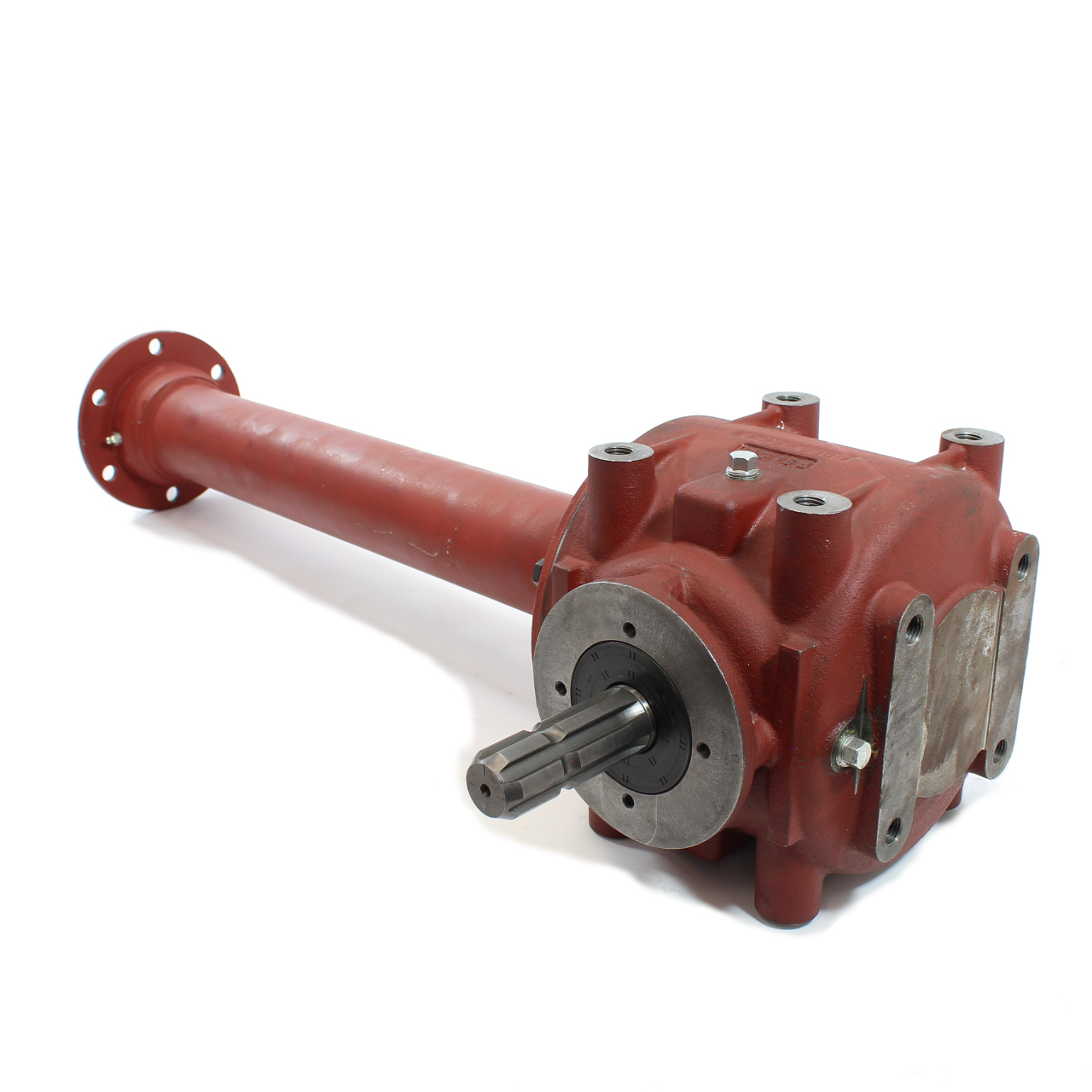

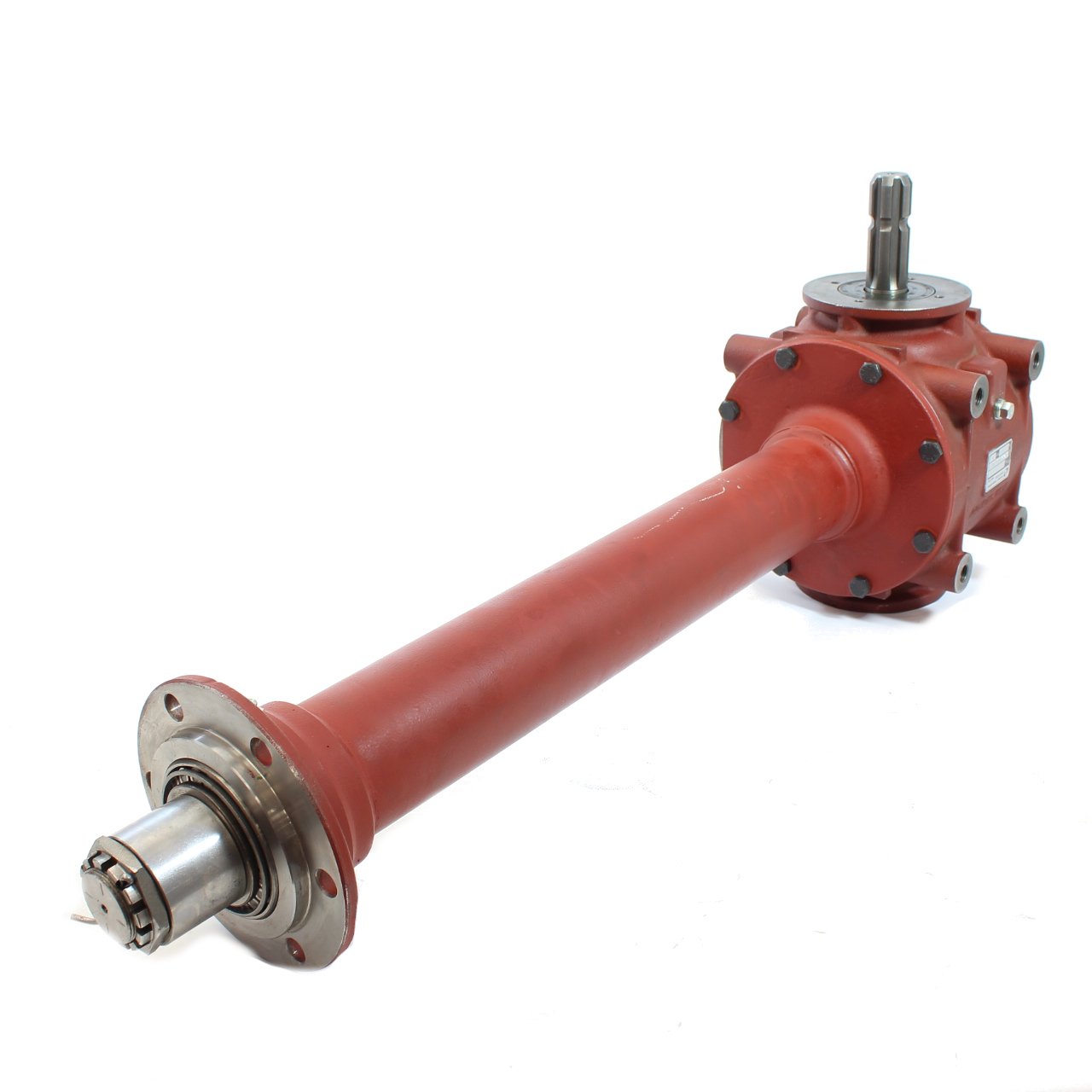

GEARBOX 1.86 R-47.8 7 00TLZ-292A
GEARBOX 1.86 R-47.8 7 00TLZ-292A
€ 969,40
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: TLZ-292A
Technical features:
Type of application: Reduction gear unit
Input power rate: 65Cv-47,8Kw (540RPM)
Ratio: 1,86
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 53
Special features: Supplied complete of extension
Supplied without lubricant
• Available to Speed increasing unit (please ask our TECHNICAL DEPARTMENT)
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: TLZ-292A
Technical features:
Type of application: Reduction gear unit
Input power rate: 65Cv-47,8Kw (540RPM)
Ratio: 1,86
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 53
Special features: Supplied complete of extension
Supplied without lubricant
• Available to Speed increasing unit (please ask our TECHNICAL DEPARTMENT)
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
