PRODUCT details
9.290.707.00
GEARBOX 1.9 M-62.5 R- 55.1 T-290A
GEARBOX 1.9 M-62.5 R- 55.1 T-290A
€ 677,11
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-290A
Technical features:
Reduction gear unit
Input power rate: 75Cv-55.1Kw (540RPM)
Speed increasing unit
Input power rate: 85Cv-62.5Kw (540RPM)
Ratio: 1,86
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component

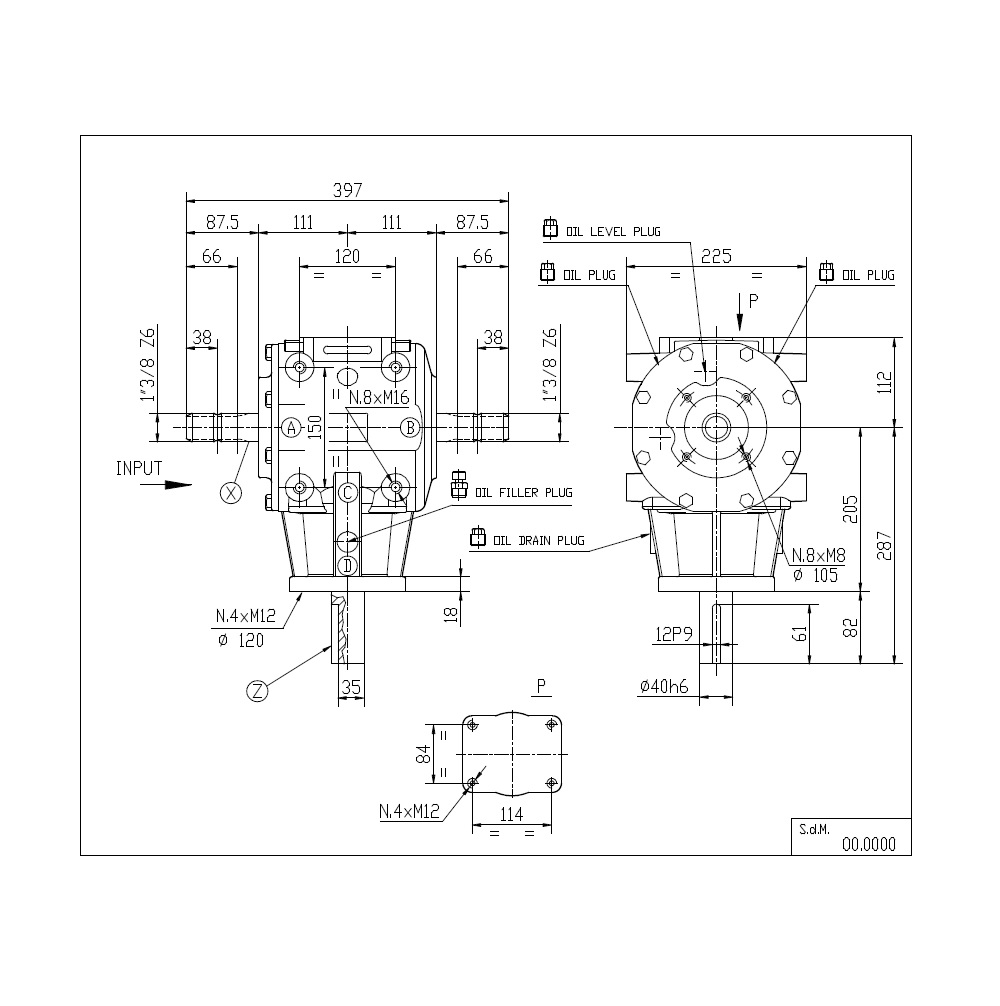

Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 31
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
