PRODUCT details
9.304.006.00

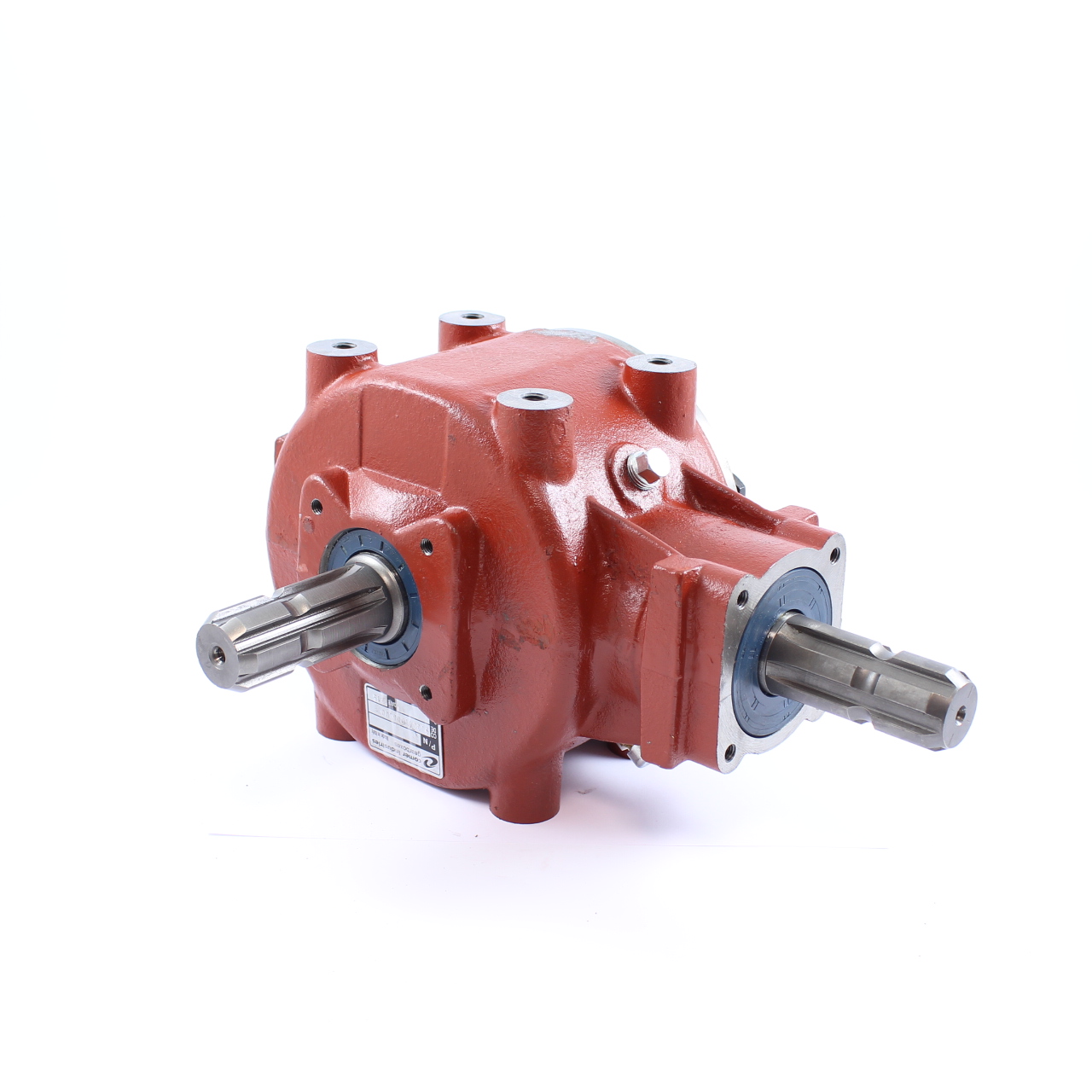

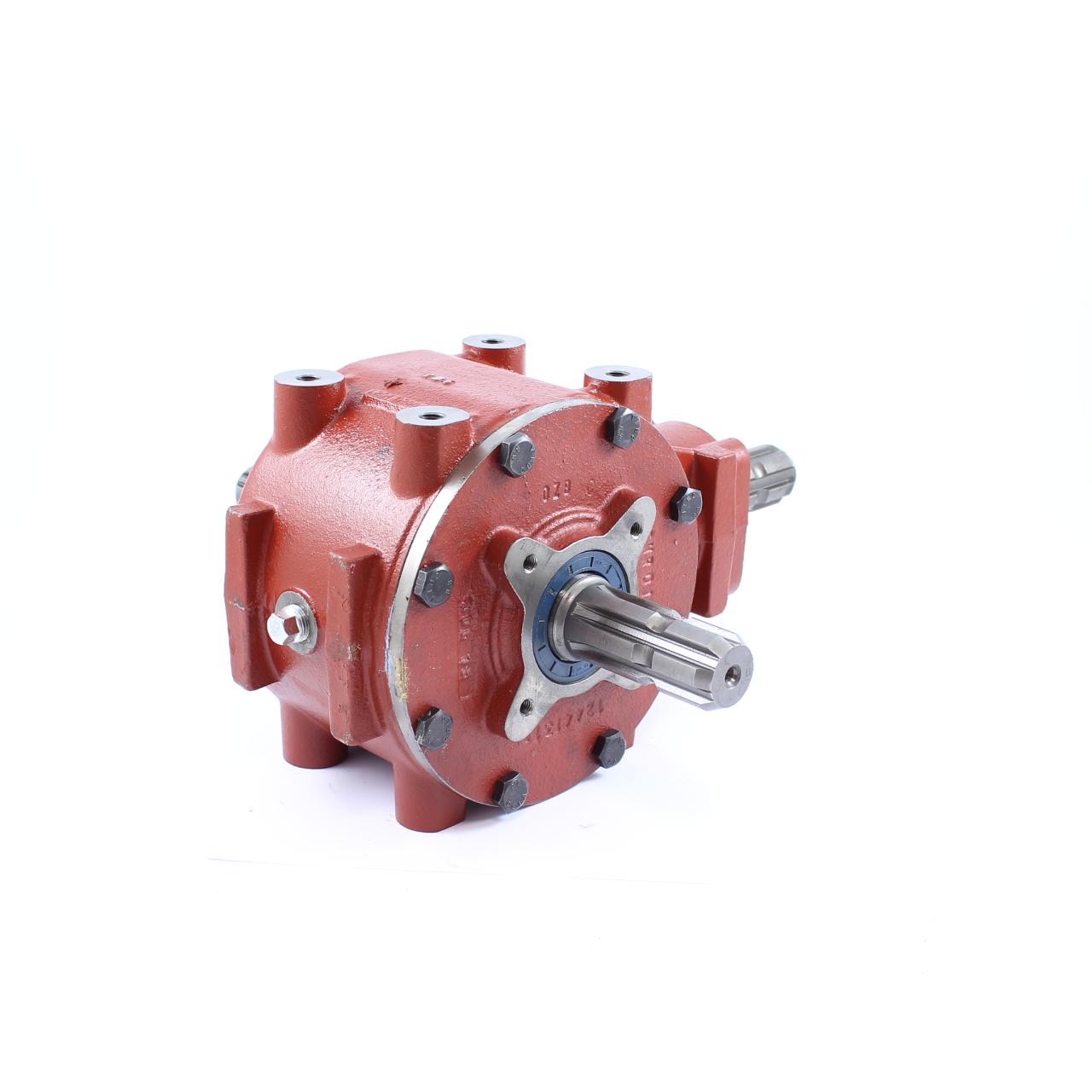

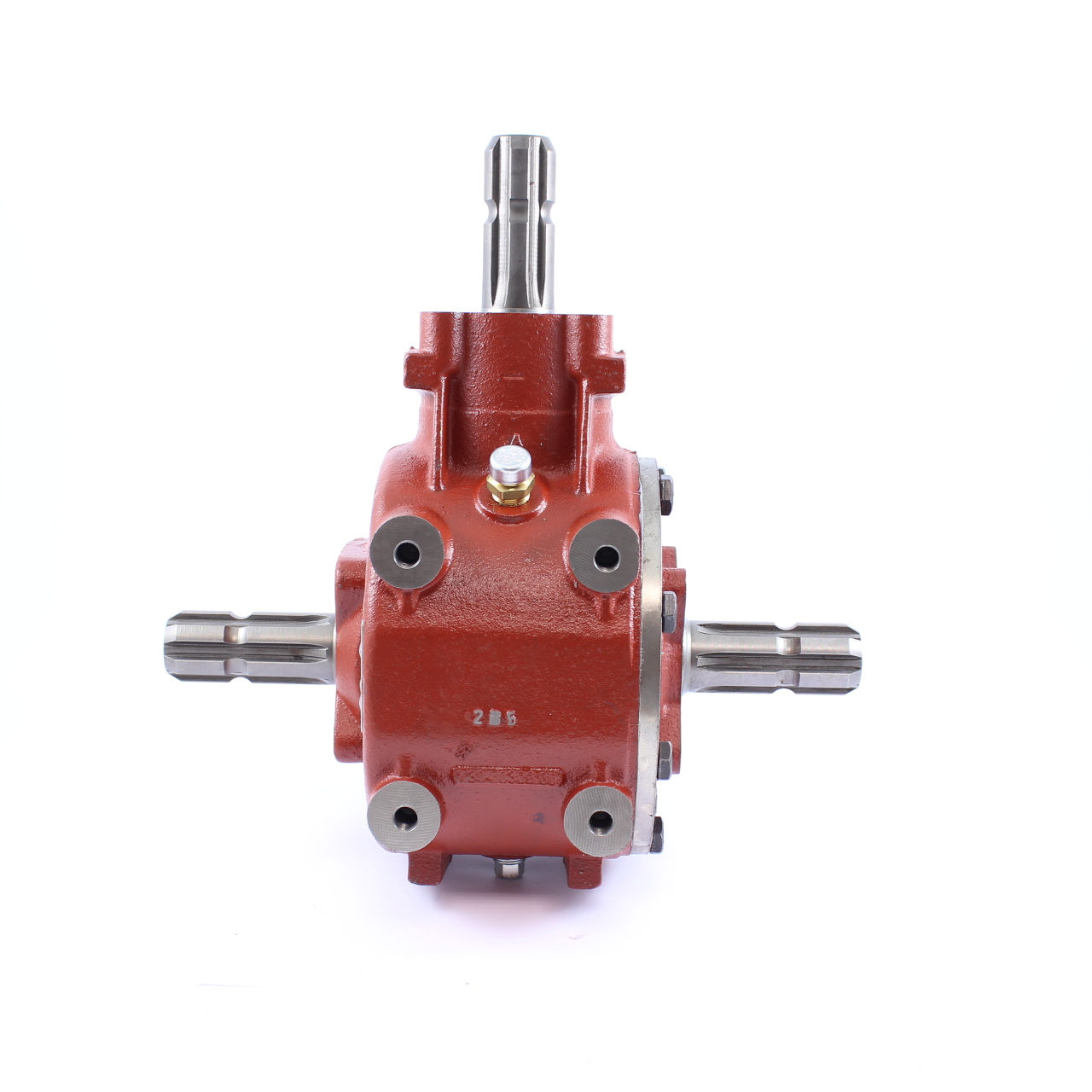

GEARBOX 1.93 M-40 R-2 7 T-304A
GEARBOX 1.93 M-40 R-2 7 T-304A
€ 377,28
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-304A
Technical features:
Type of application: Speed increasing unit
Input power rate: 55Cv-40,4Kw (540RPM)
Type of application: Reduction gear unit
Input power rate: 38Cv-27.9Kw (540RPM)
Ratio: 1.93
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 20
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
