PRODUCT details
9.311.730.00

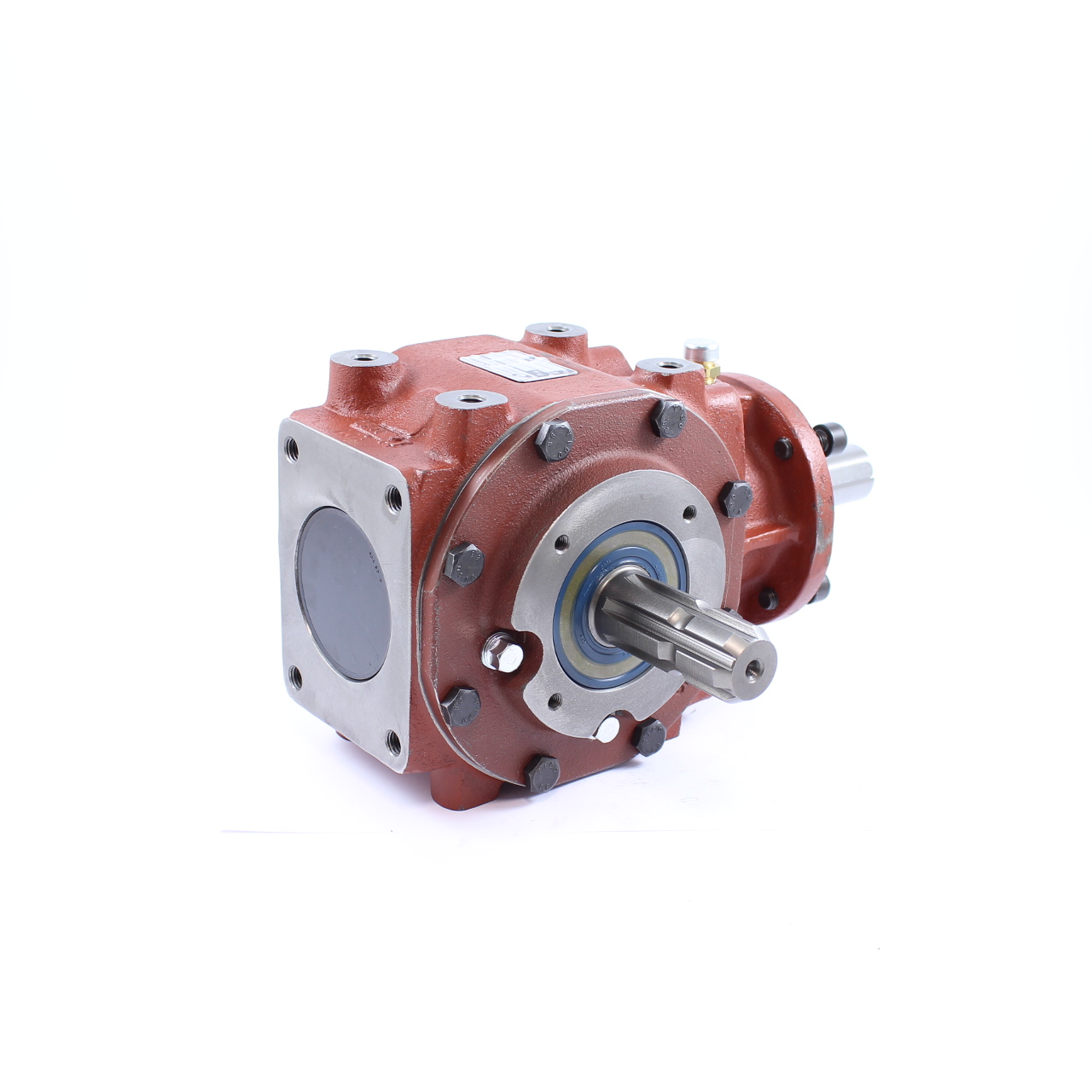

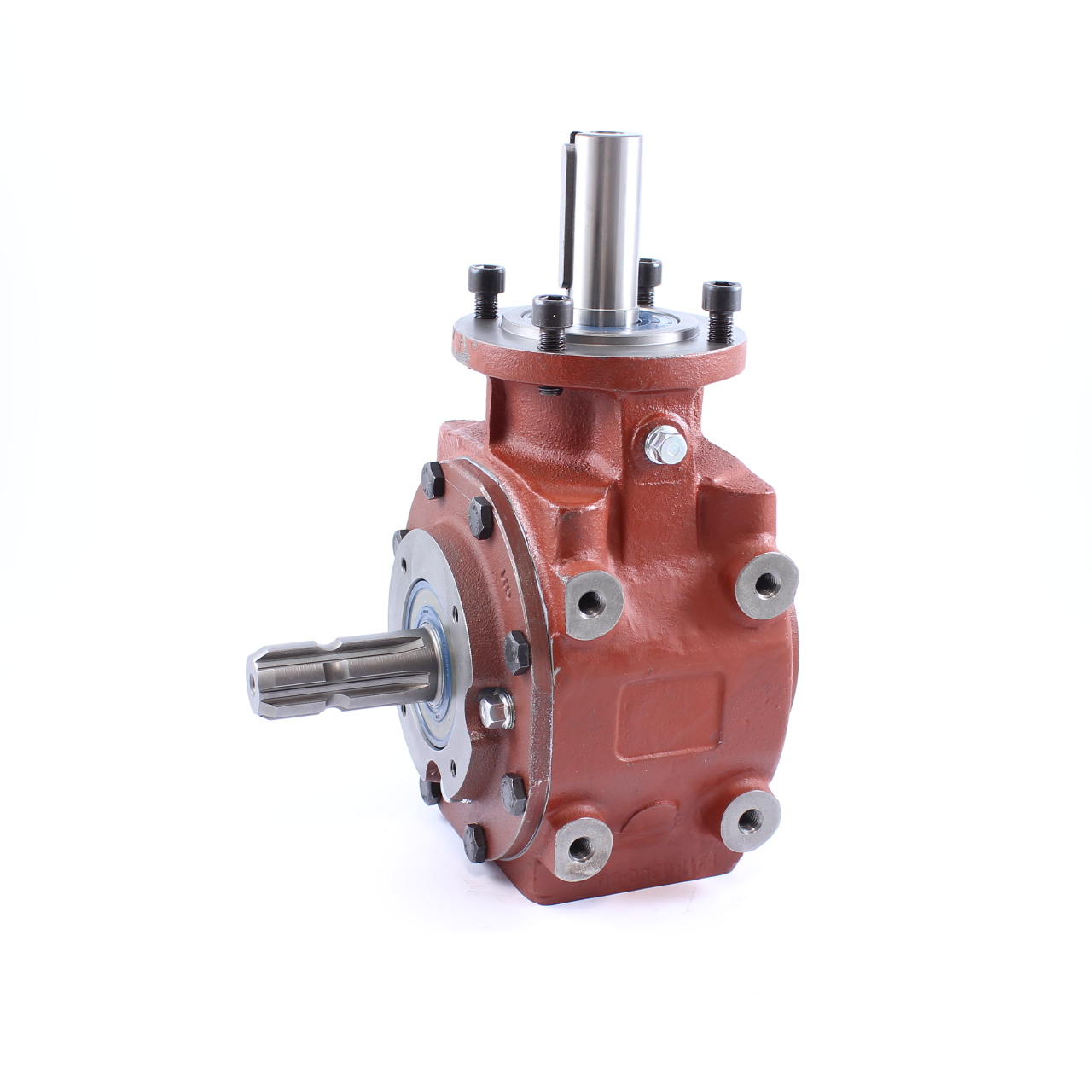

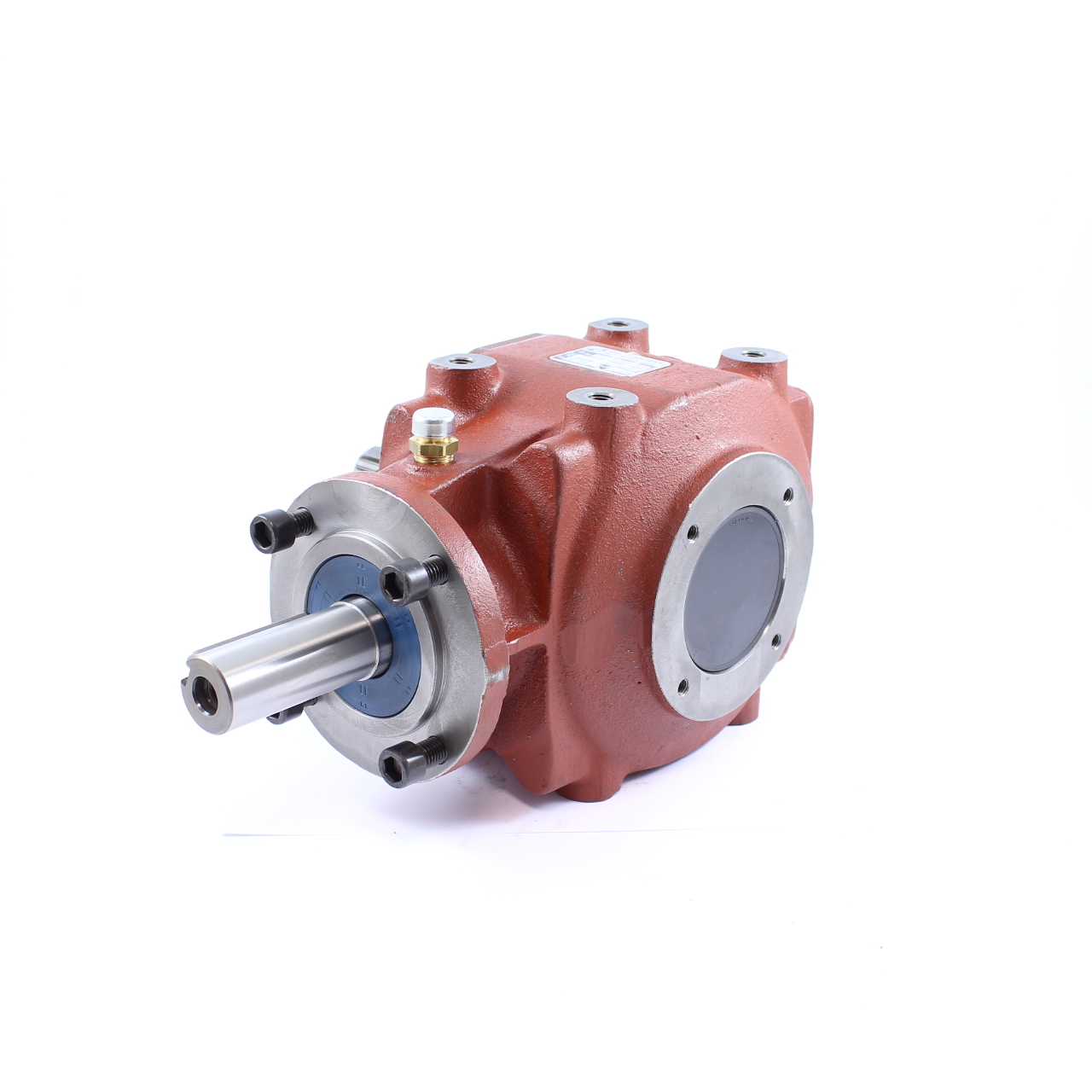

GEARBOX 1.93 M-44 R-2 7 T-311A
GEARBOX 1.93 M-44 R-2 7 T-311A
€ 444,02
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-311A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 38Cv-27.9Kw (540RPM)
Speed increasing unit
Input power rate: 60Cv-44.4Kw (540RPM)
Ratio: 1,93
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component

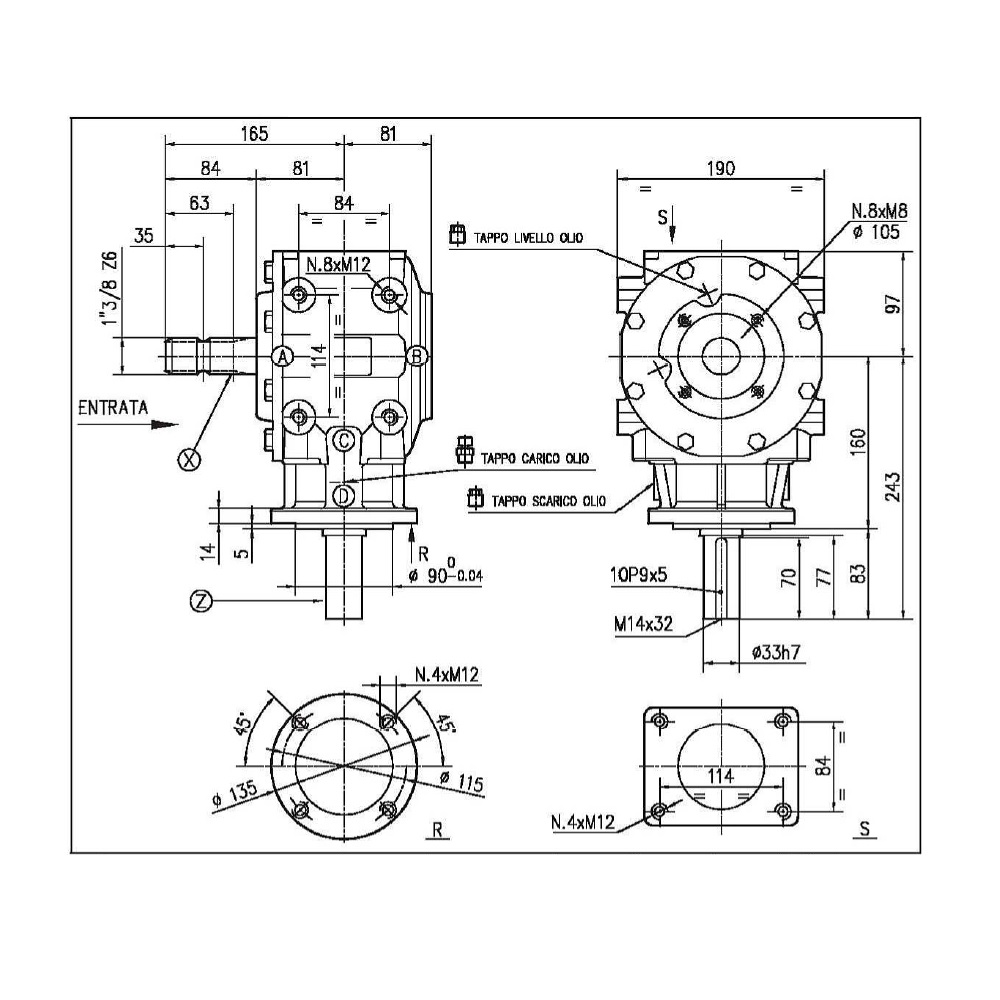

Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 23,5
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
