PRODUCT details
9.262.007.10

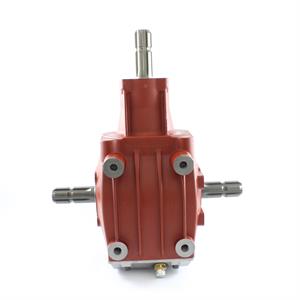

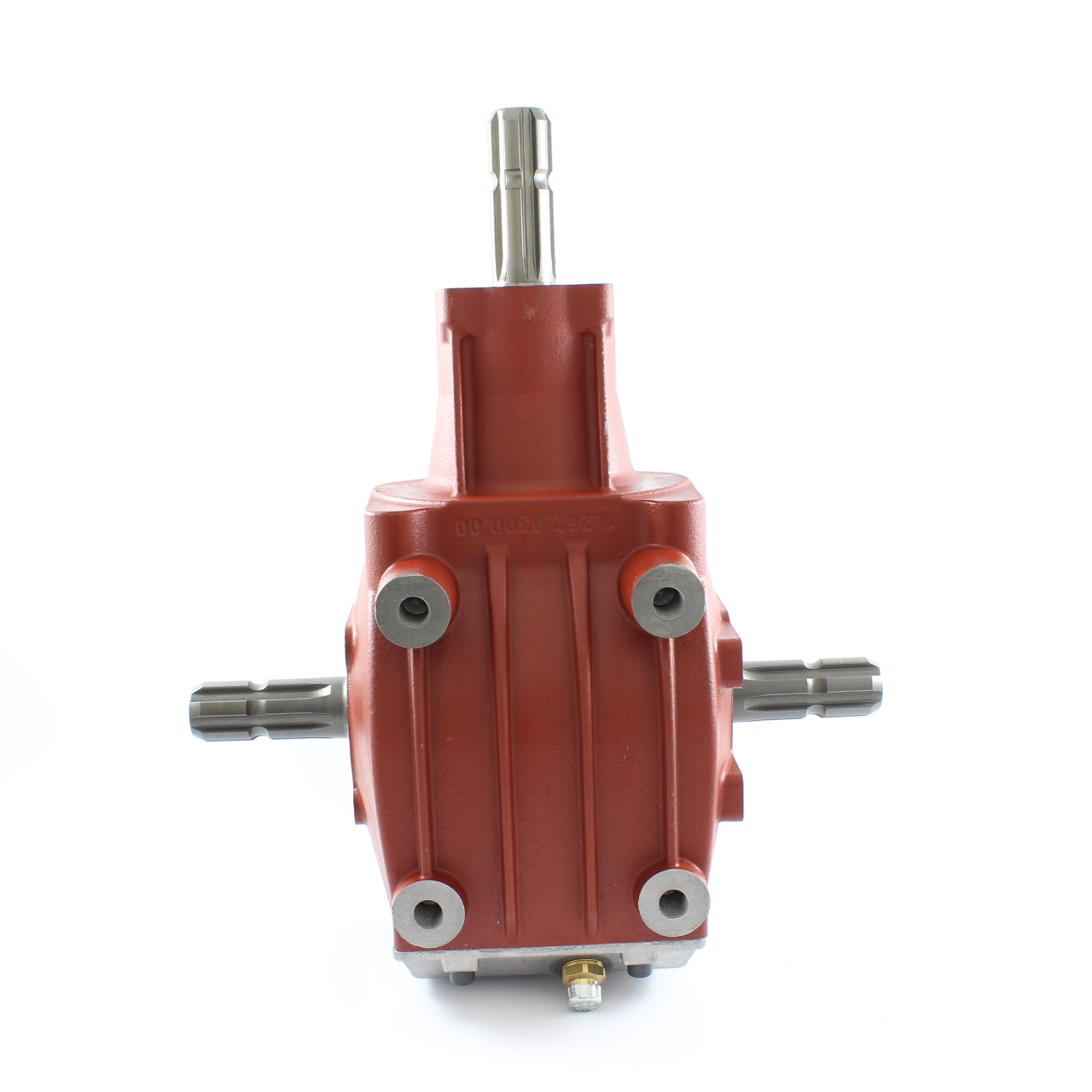

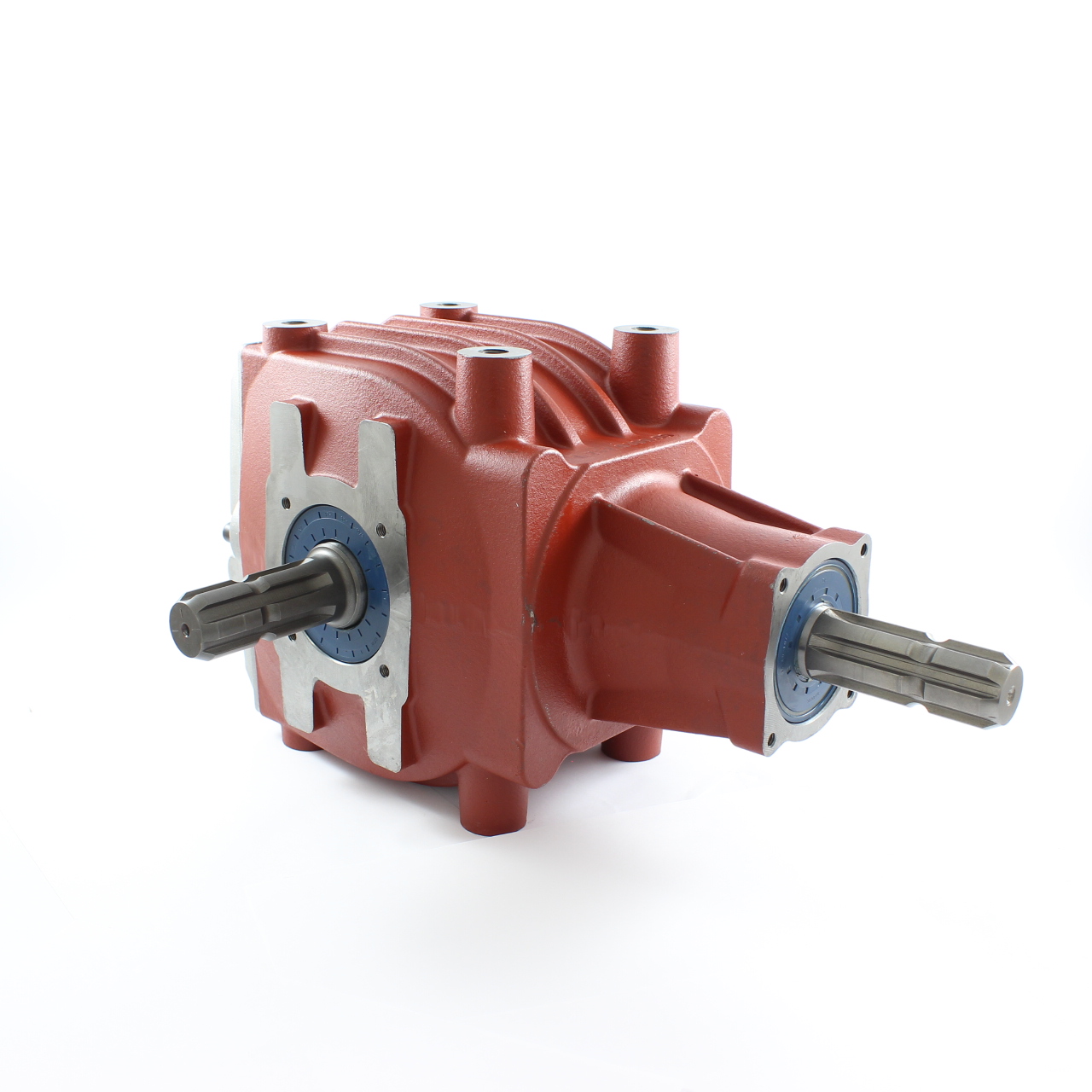

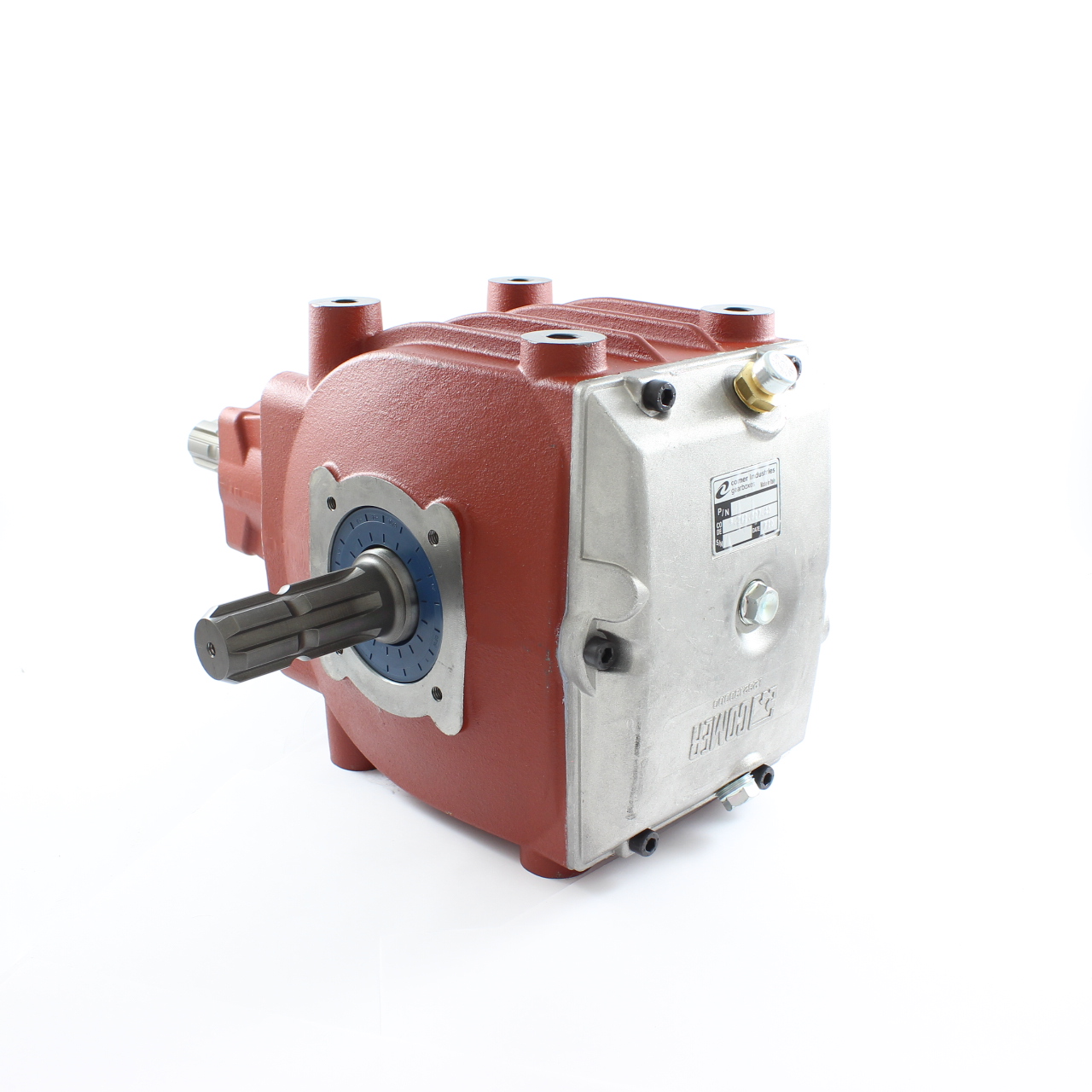

GEARBOX 1.93 M-72.1 R -60.4 T-22A
GEARBOX 1.93 M-72.1 R -60.4 T-22A
€ 862,58
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-22A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 82Cv-60,4Kw (540RPM)
Speed increasing unit
Input power rate: 98,8Cv-72,1Kw (540RPM)
Ratio: 1,93
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 33
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: T-22A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 82Cv-60,4Kw (540RPM)
Speed increasing unit
Input power rate: 98,8Cv-72,1Kw (540RPM)
Ratio: 1,93
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 33
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
List of combined products
COMING SOON
0.132.7106.00
NUT M30X1.5
NUT M30X1.5
€ 16,84
LIMITED AVAILABILITY
0.262.2002.00
SHAFT 1"3/8 Z6
SHAFT 1"3/8 Z6
€ 154,11
LIMITED AVAILABILITY
0.262.3005.00
SHAFT 1 3/8"
SHAFT 1 3/8"
€ 238,41
LIMITED AVAILABILITY
0.262.5000.00
PINION Z15 M6,9
PINION Z15 M6,9
€ 151,61
AVAILABLE
8.4.7.01111
COPIGLIA B4X55 UNI1336
COPIGLIA B4X55 UNI1336
€ 3,36
AVAILABLE
8.7.1.00315
DOUBLE LIP SEAL 35x80x10
DOUBLE LIP SEAL 35x80x10
€ 8,43
AVAILABLE
8.7.3.00331
OIL SEAL 45X85X10
OIL SEAL 45X85X10
€ 8,43
