PRODUCT details
9.331.004.00

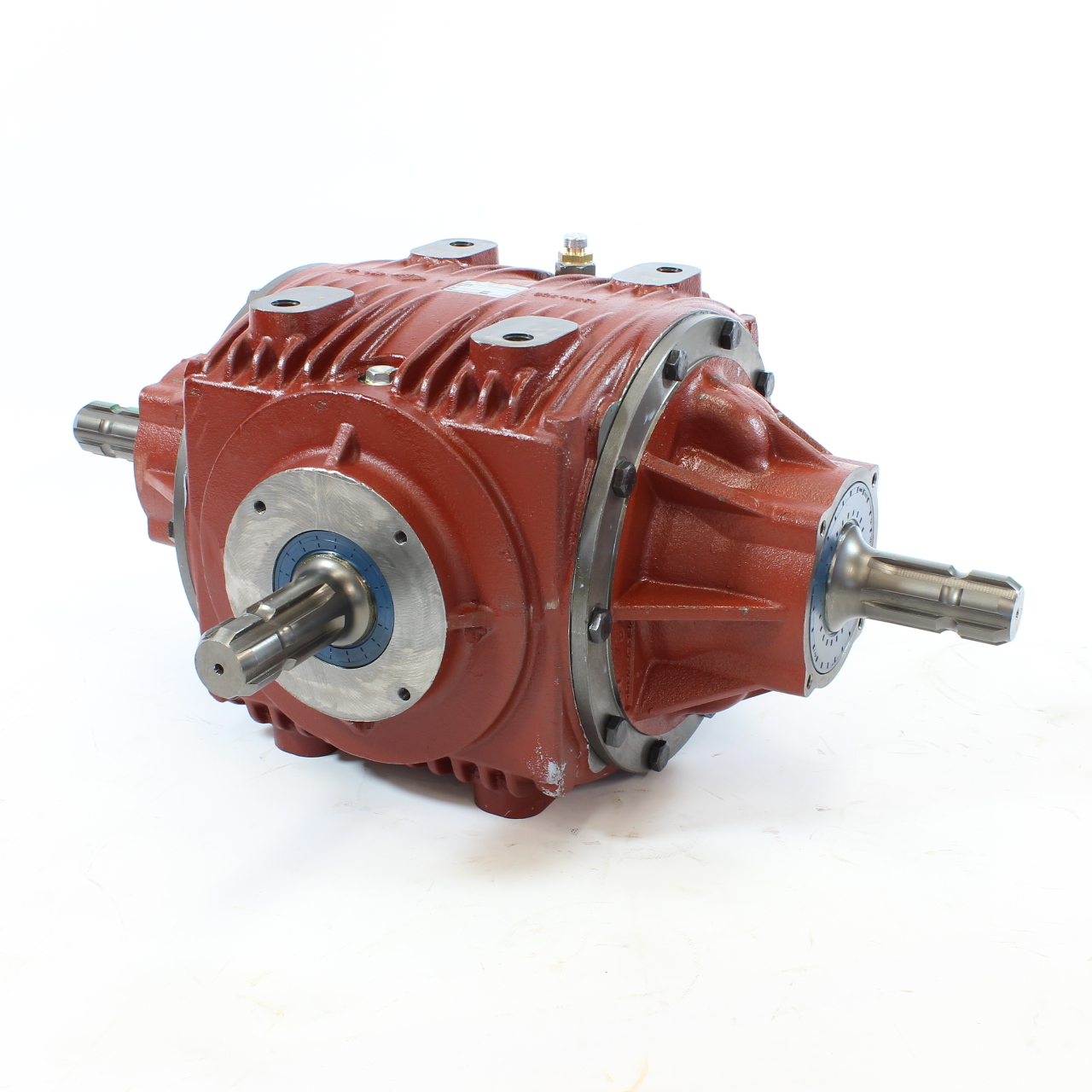

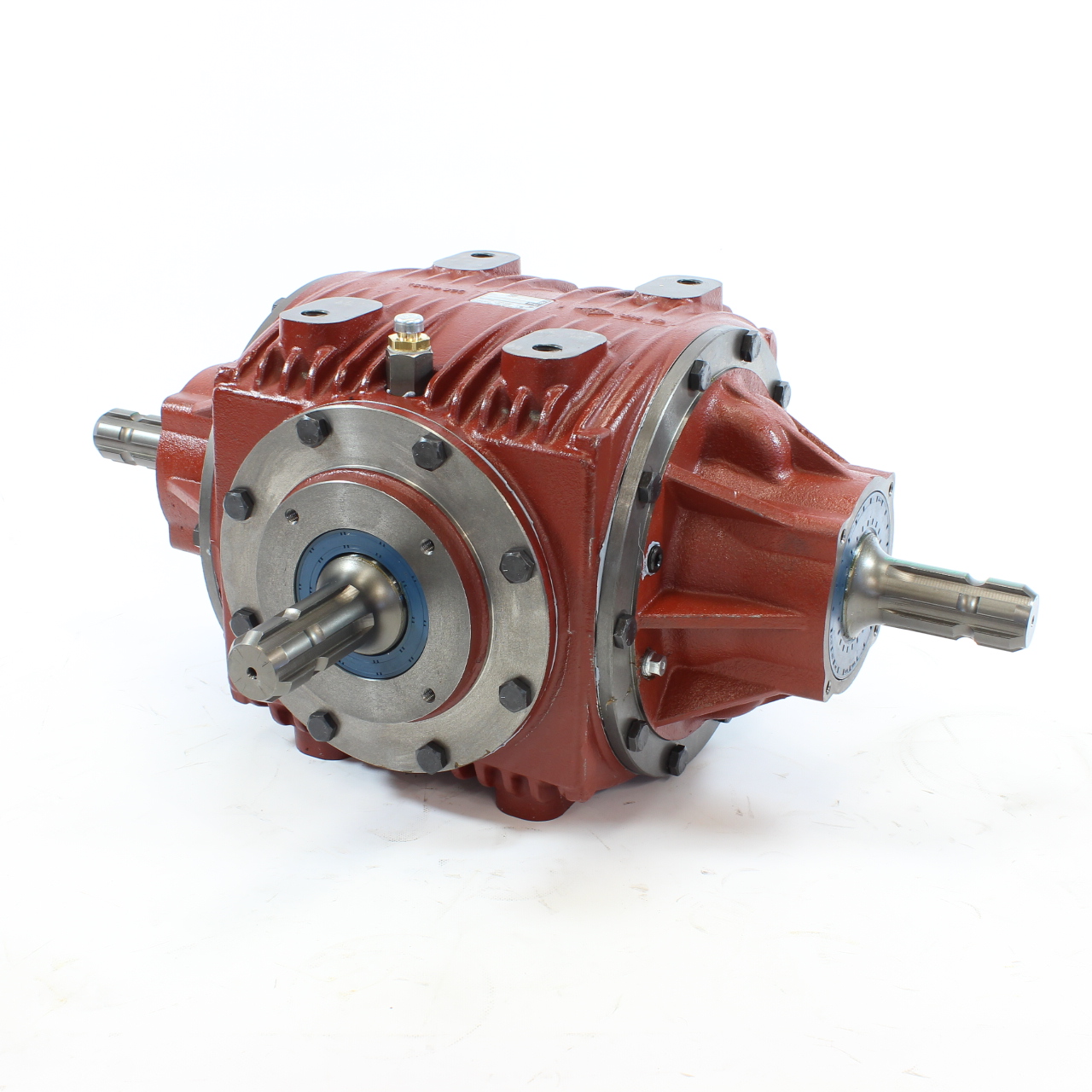

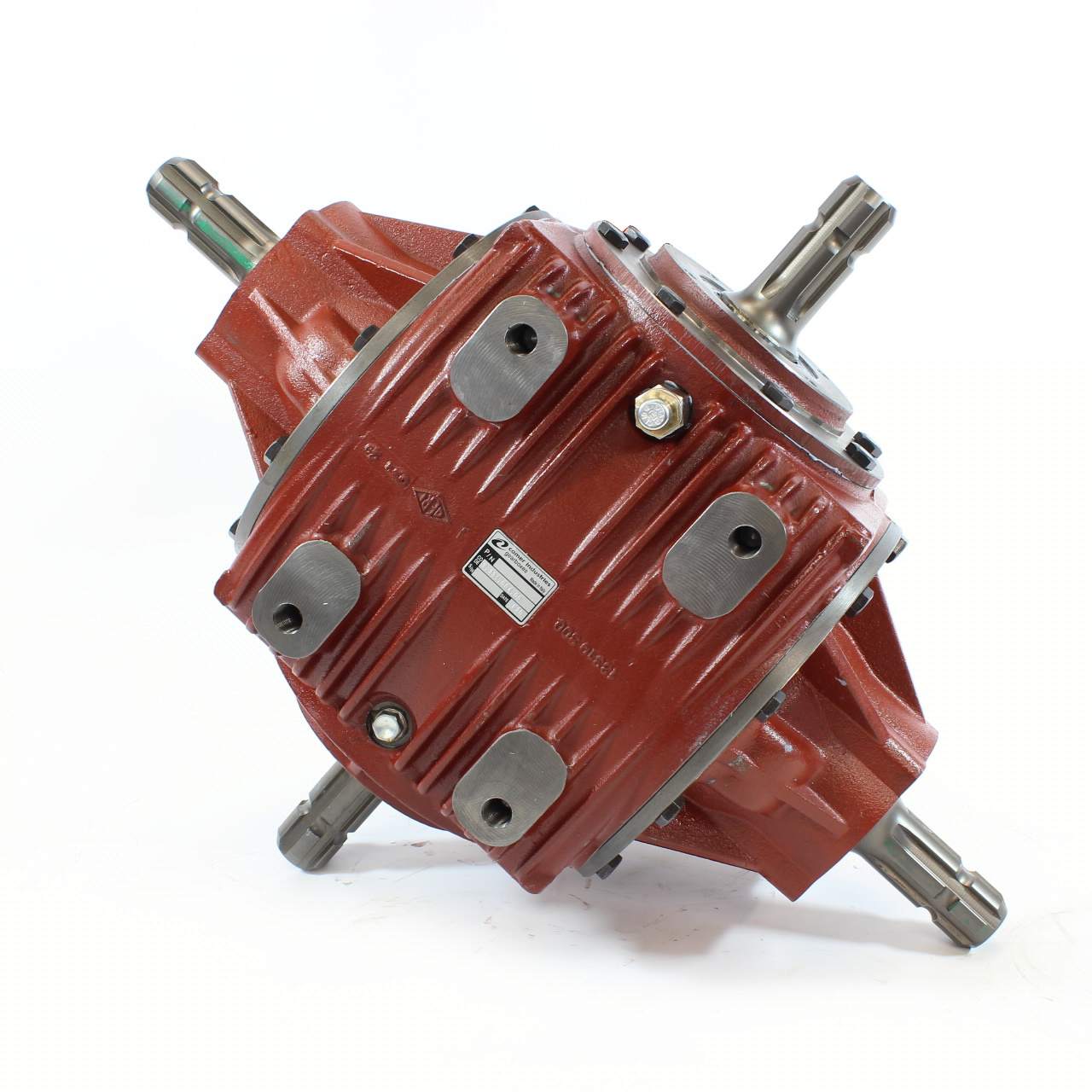

GEARBOX 1.94 M-220.5 R-147 T-331A
GEARBOX 1.94 M-220.5 R-147 T-331A
€ 3.983,55
COMING SOON
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-331A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 200Cv - 147Kw (540RPM)
Speed increasing unit
Input power rate: 300Cv - 220,5Kw (540RPM)
Ratio: 1.94
Outputs: 3
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 122,4
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: T-331A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 200Cv - 147Kw (540RPM)
Speed increasing unit
Input power rate: 300Cv - 220,5Kw (540RPM)
Ratio: 1.94
Outputs: 3
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 122,4
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
