PRODUCT details
9.262.214.10

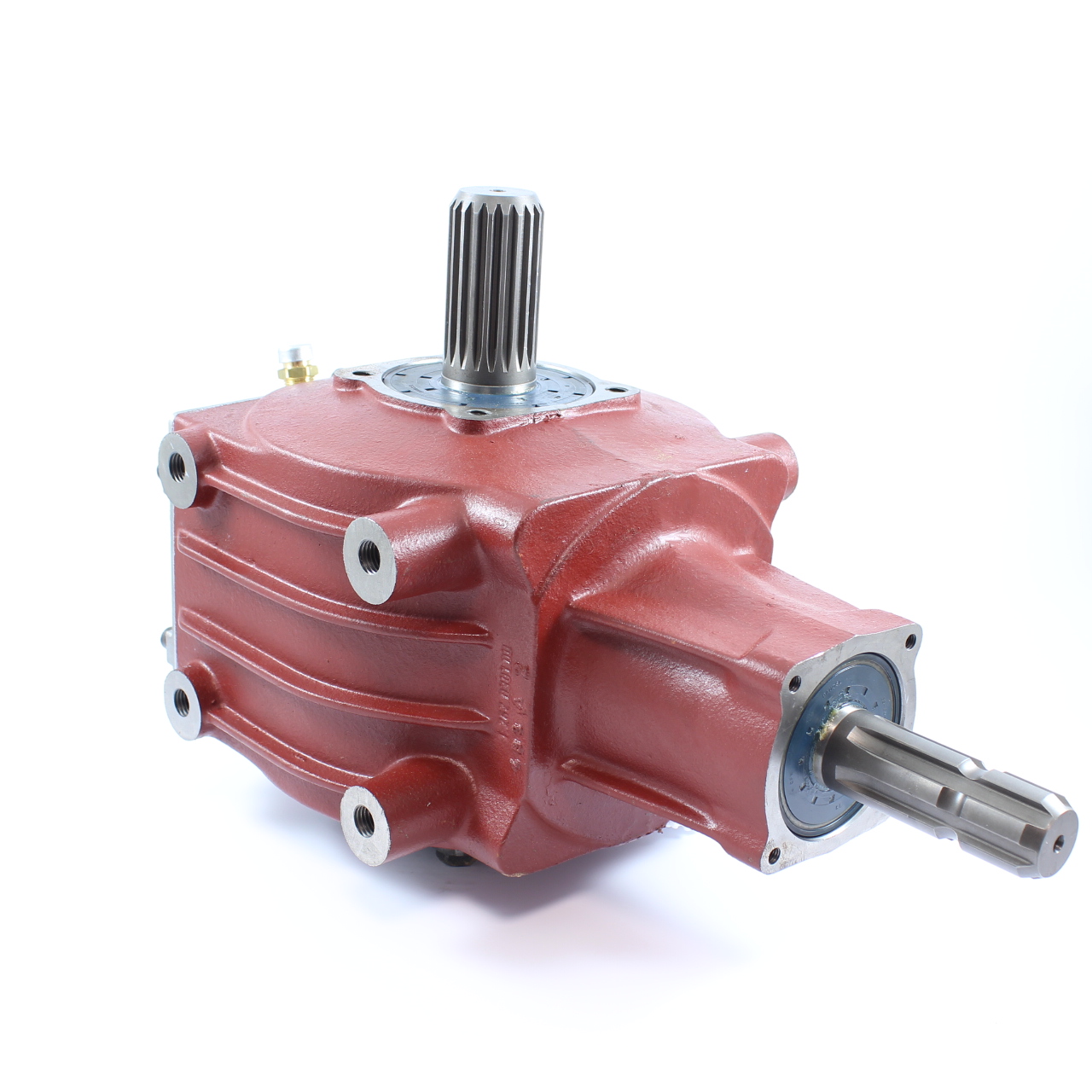

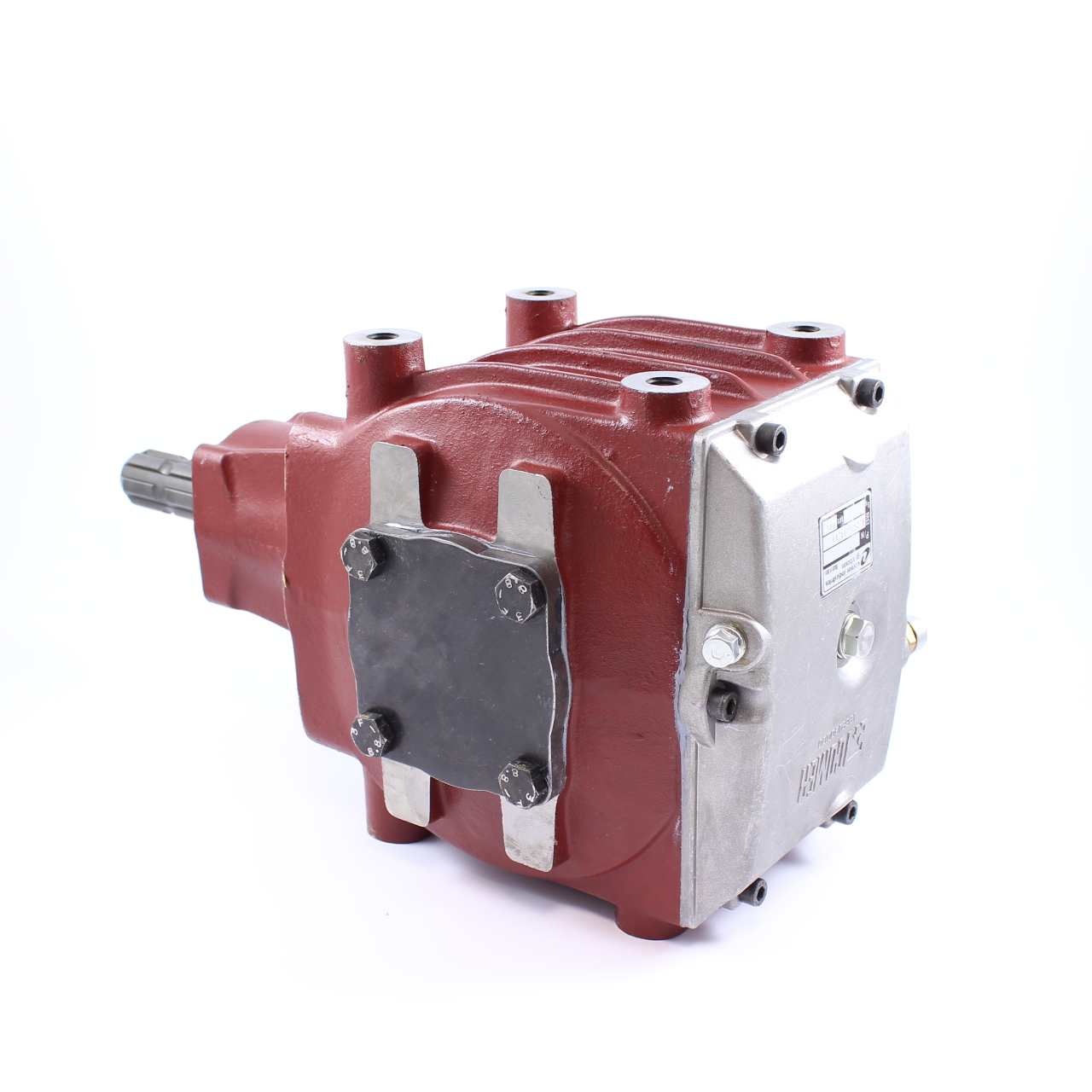

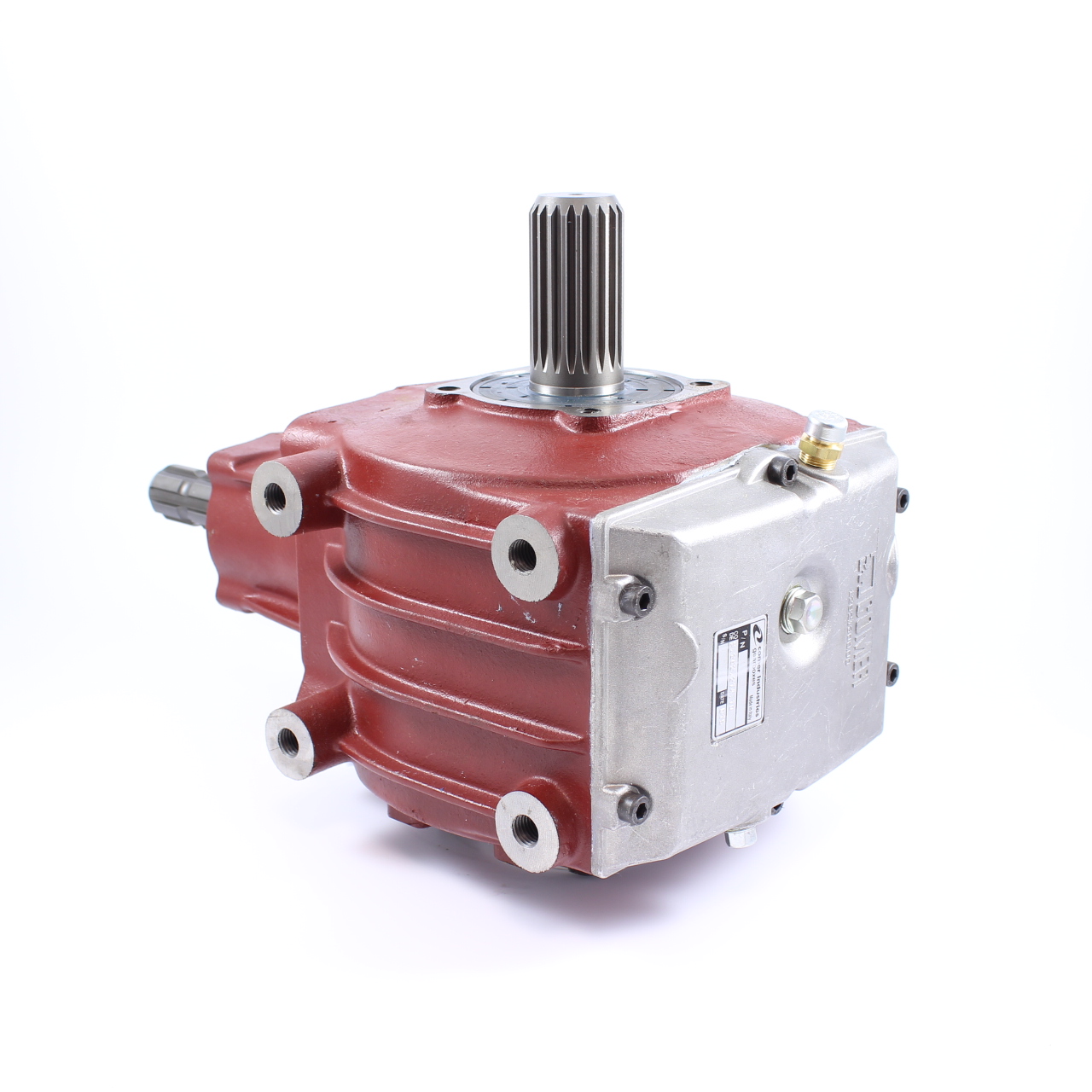

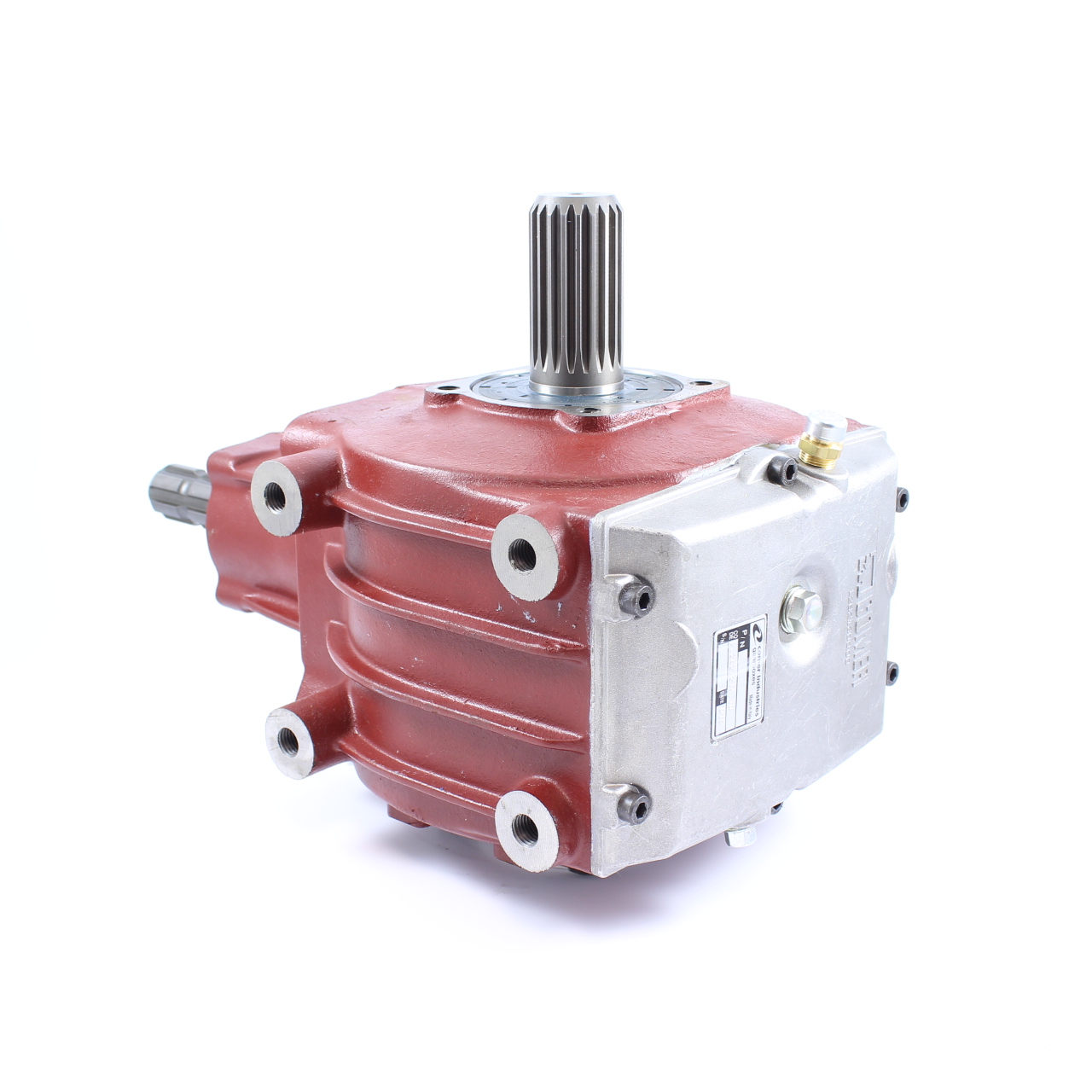

GEARBOX 2.42 M-62.6 R-47.8 T-22A
GEARBOX 2.42 M-62.6 R-47.8 T-22A
€ 890,87
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-22A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 65Cv-47.8Kw (540RPM)
Speed increasing unit
Input power rate: 85Cv-62.6Kw (540RPM)
Ratio: 2.42
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 29
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: T-22A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 65Cv-47.8Kw (540RPM)
Speed increasing unit
Input power rate: 85Cv-62.6Kw (540RPM)
Ratio: 2.42
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 29
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
