PRODUCT details
9.104.142.12

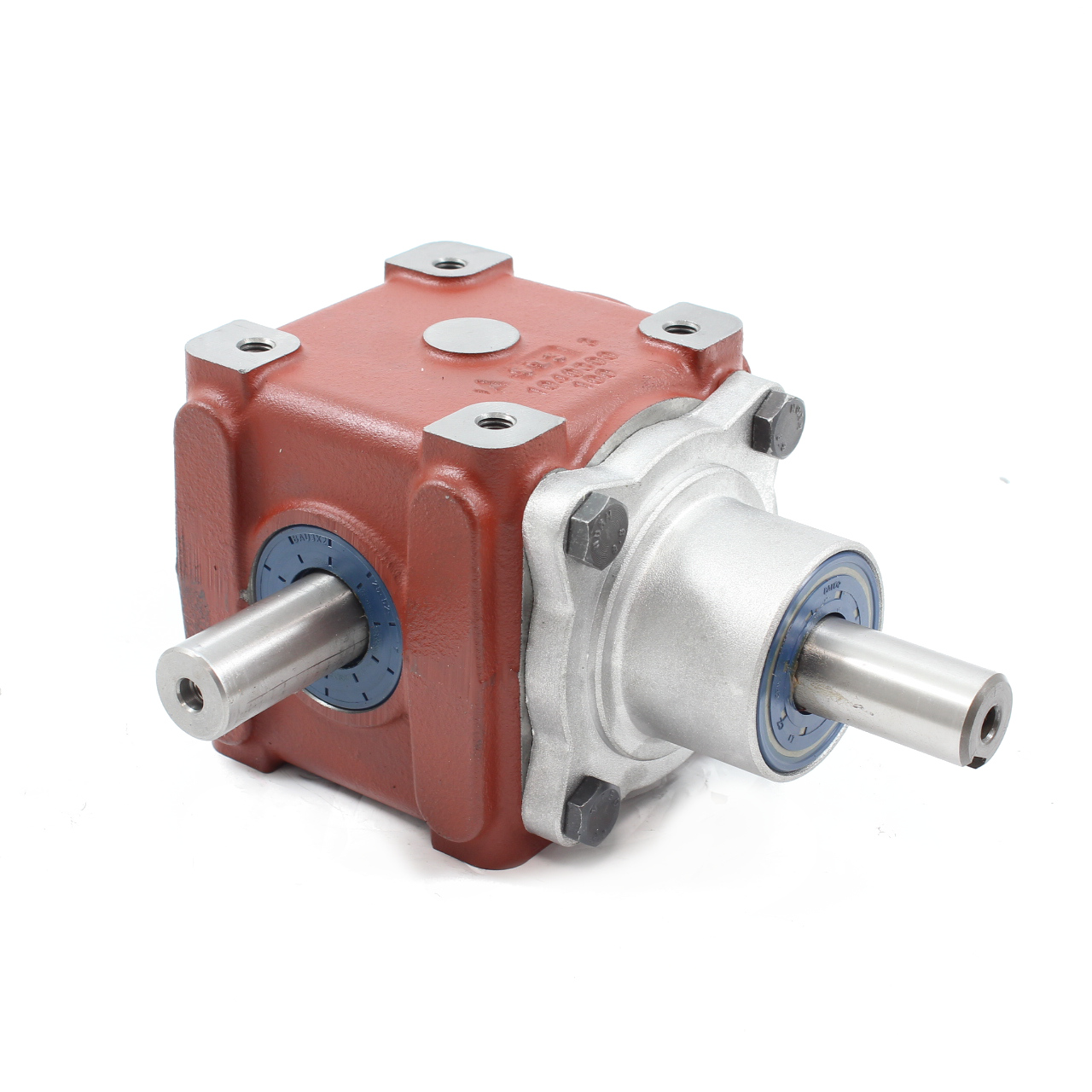

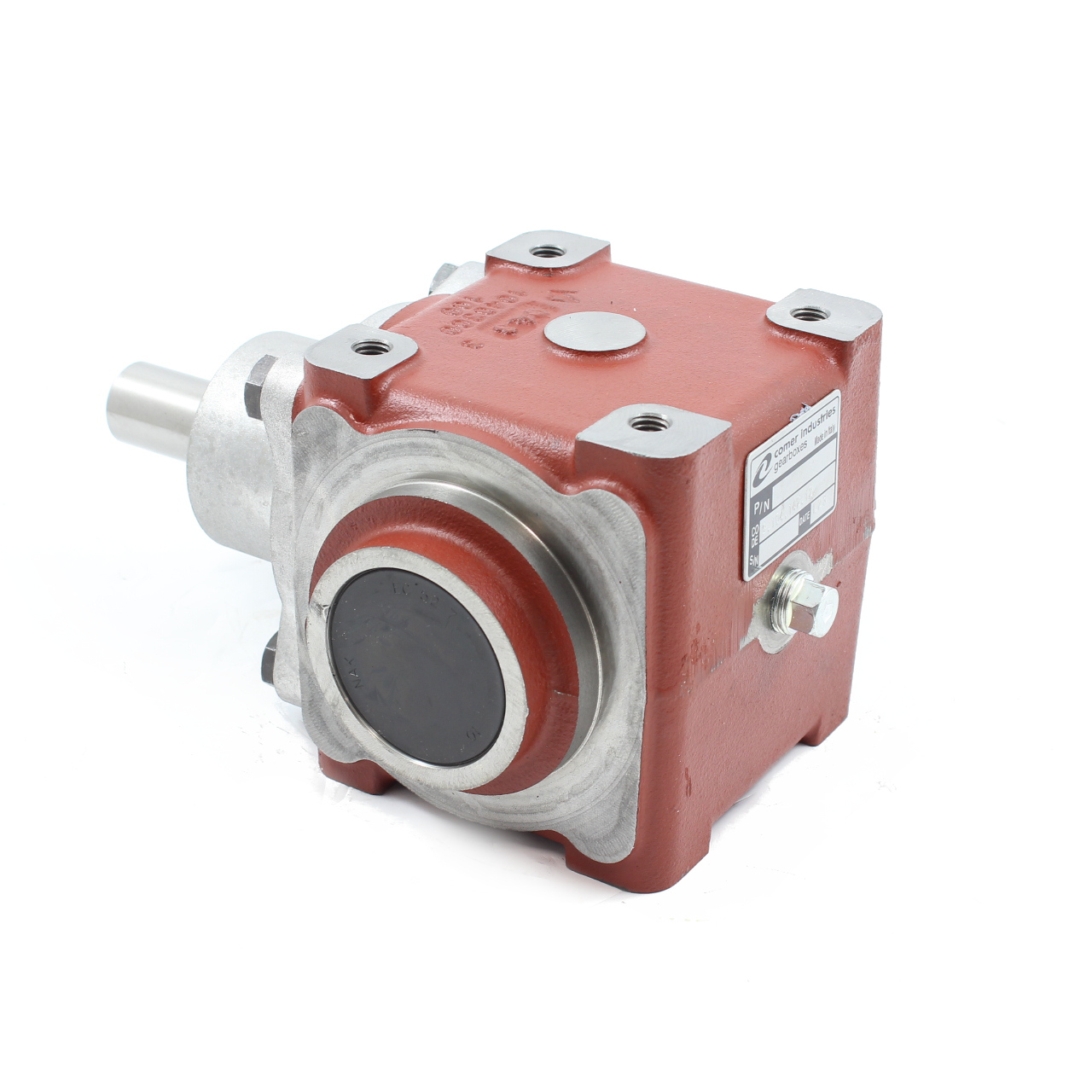

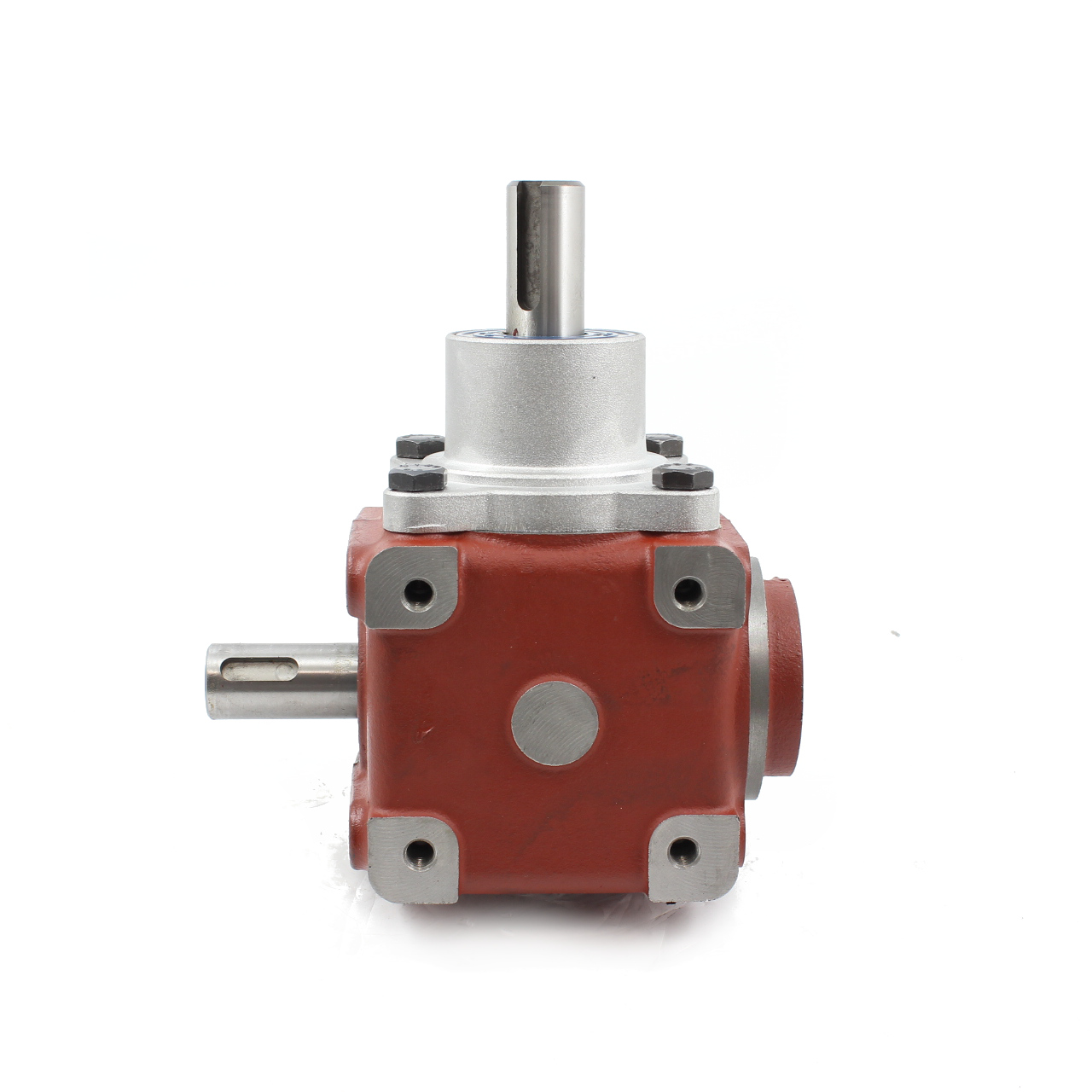

GEARBOX 2.78 M-5 R-3 L-5A
GEARBOX 2.78 M-5 R-3 L-5A
€ 271,70
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: L-5A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 4Cv-3Kw (540RPM)
Speed increasing unit
Input power rate: 7Cv-5Kw (540RPM)
Ratio: 2.78
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 6.6
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: L-5A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 4Cv-3Kw (540RPM)
Speed increasing unit
Input power rate: 7Cv-5Kw (540RPM)
Ratio: 2.78
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 6.6
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
