PRODUCT details
9.124.104.10

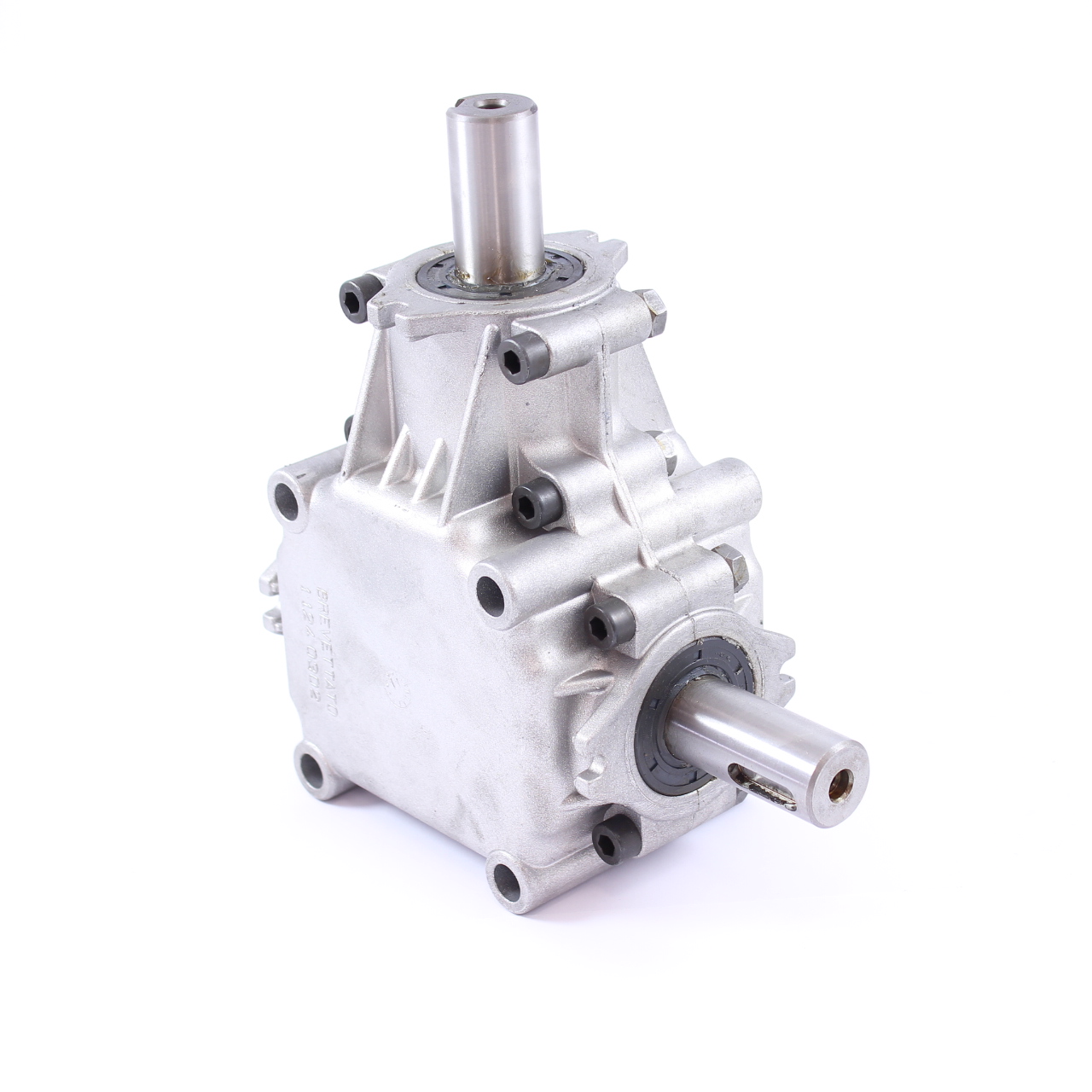

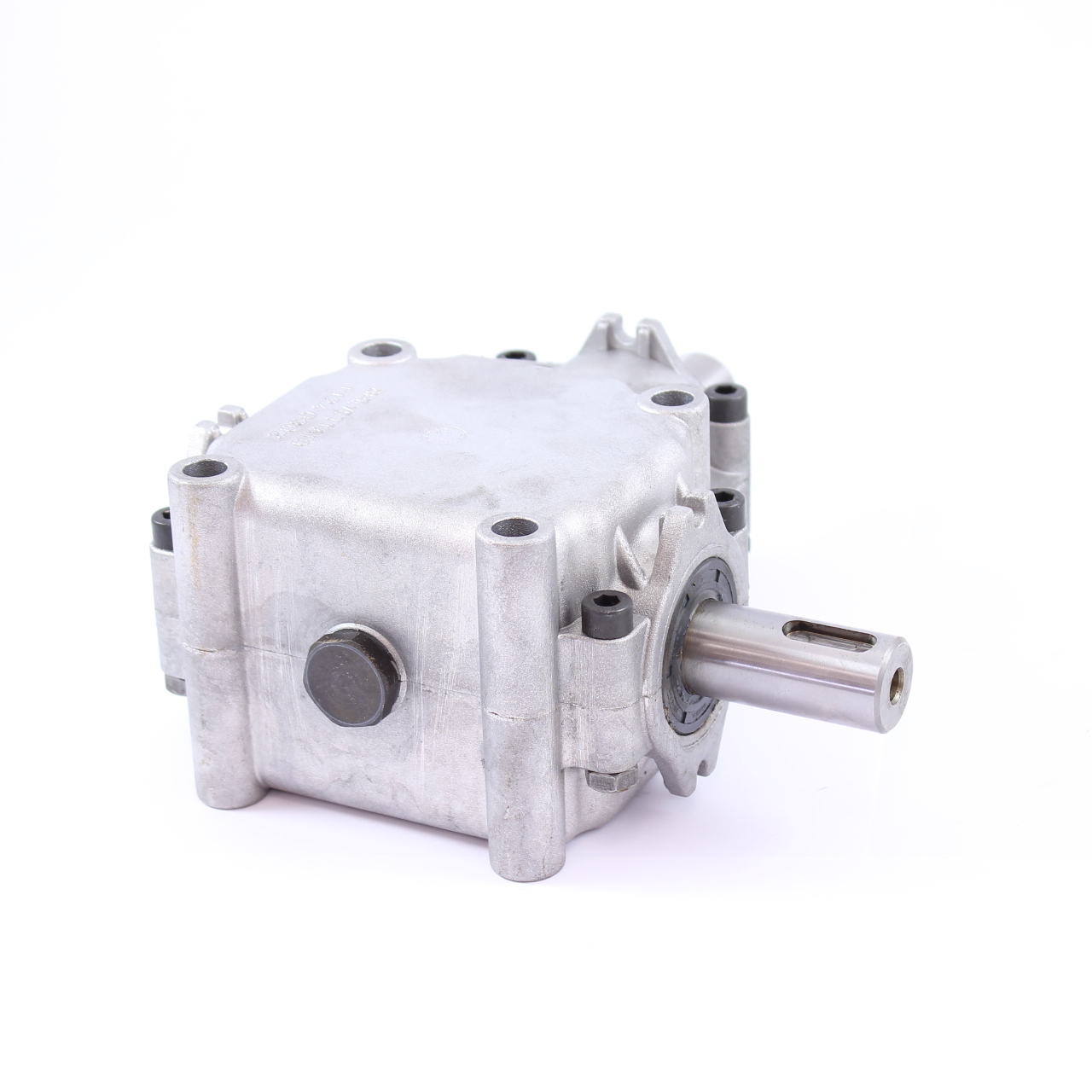

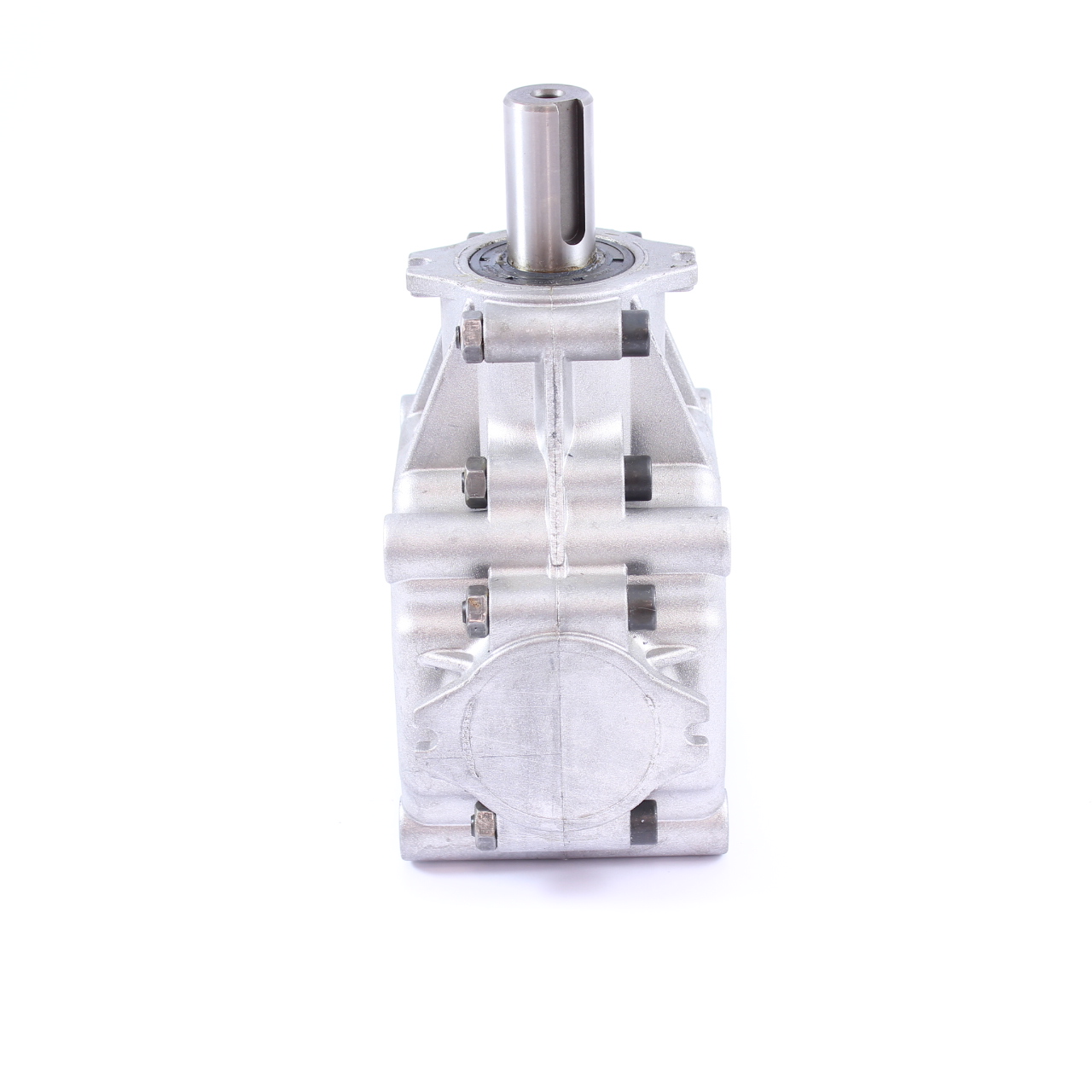

GEARBOX 2.78 M-5.2 R- 2.9 L-25A
GEARBOX 2.78 M-5.2 R- 2.9 L-25A
€ 238,28
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: L-25A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 4Cv-2.9Kw (540RPM)
Speed increasing unit
Input power rate: 7Cv-5.2Kw (540RPM)
Ratio: 2,78
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Aluminum
Dry weight: Kg 4,1
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: L-25A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 4Cv-2.9Kw (540RPM)
Speed increasing unit
Input power rate: 7Cv-5.2Kw (540RPM)
Ratio: 2,78
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Aluminum
Dry weight: Kg 4,1
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
