PRODUCT details
9.278.063.10

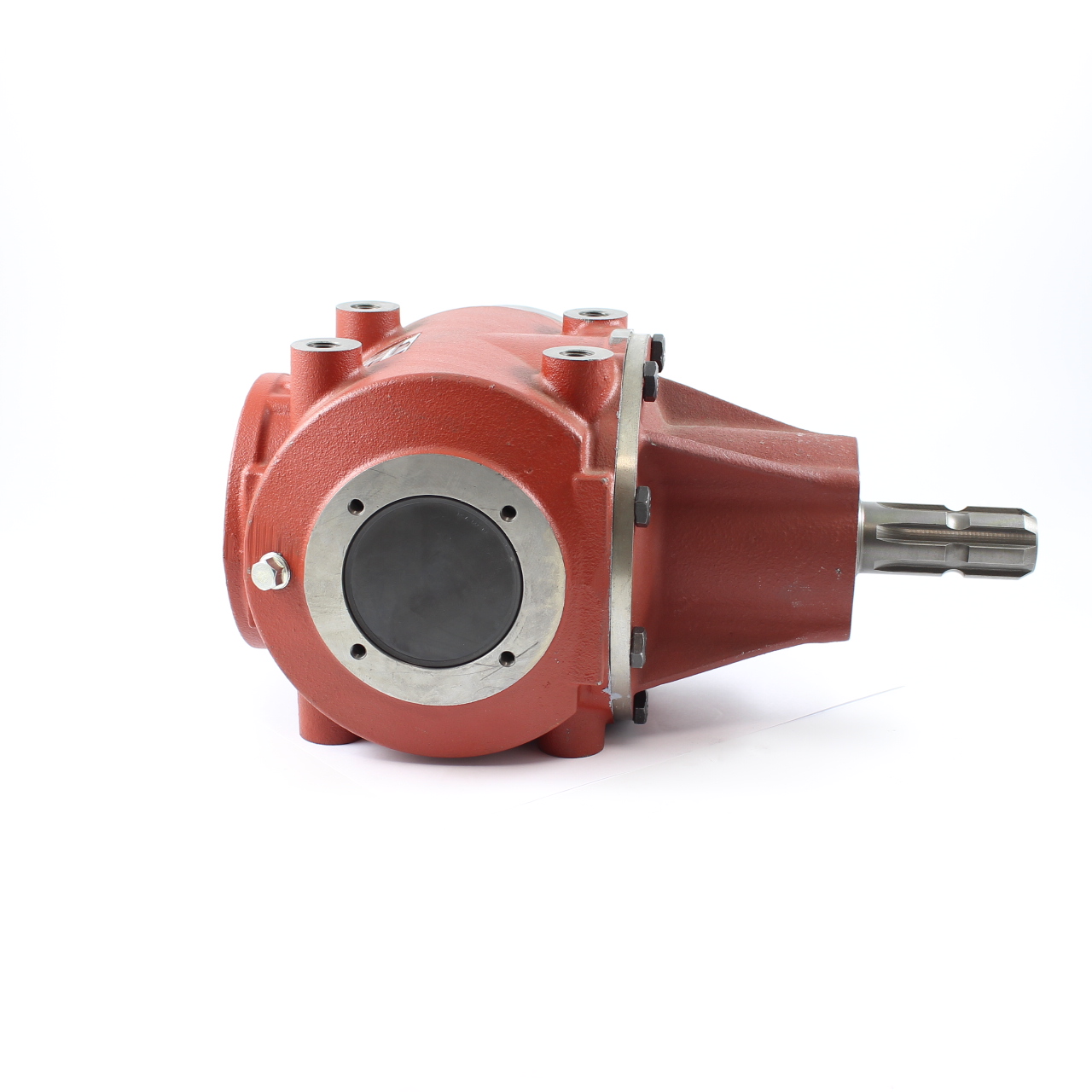

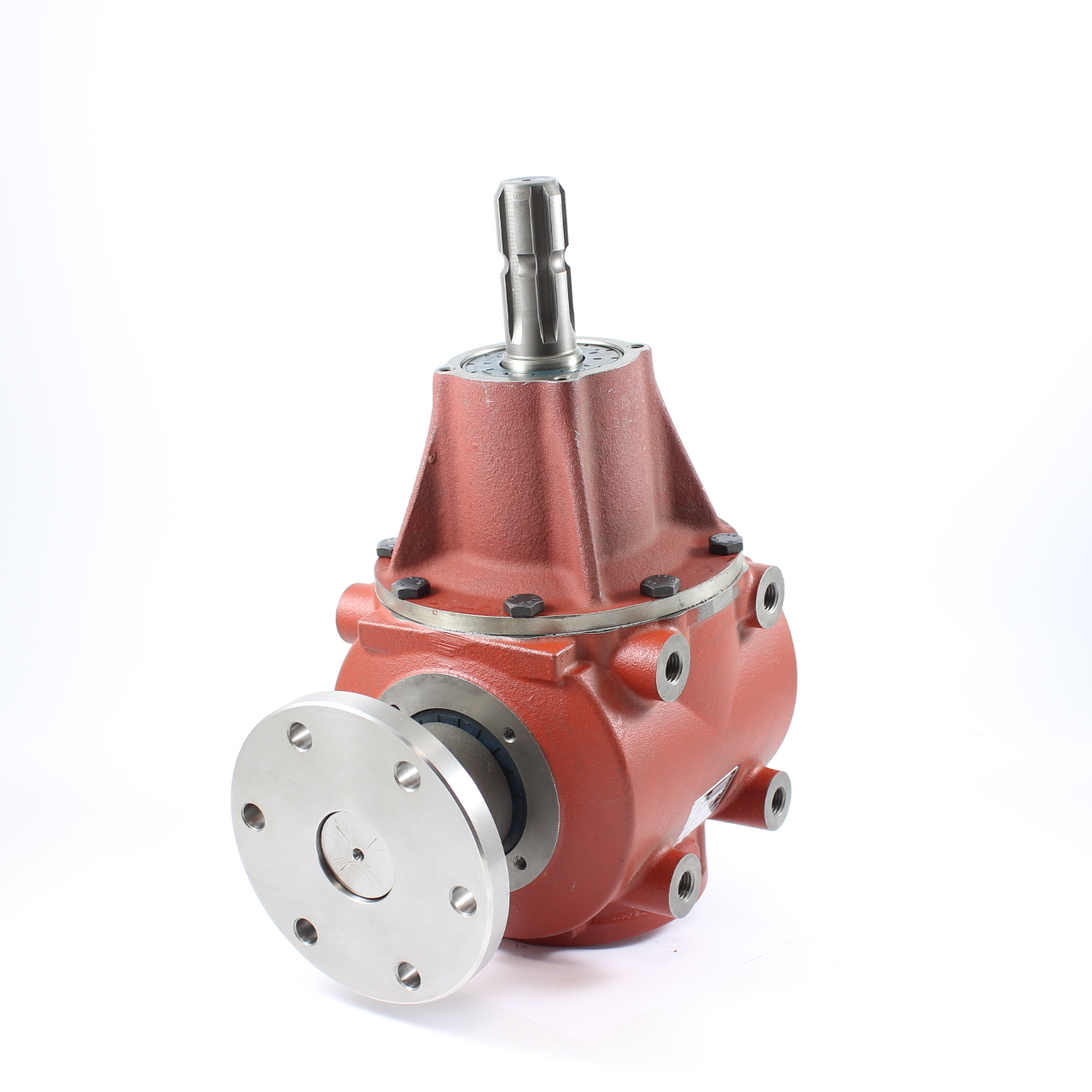

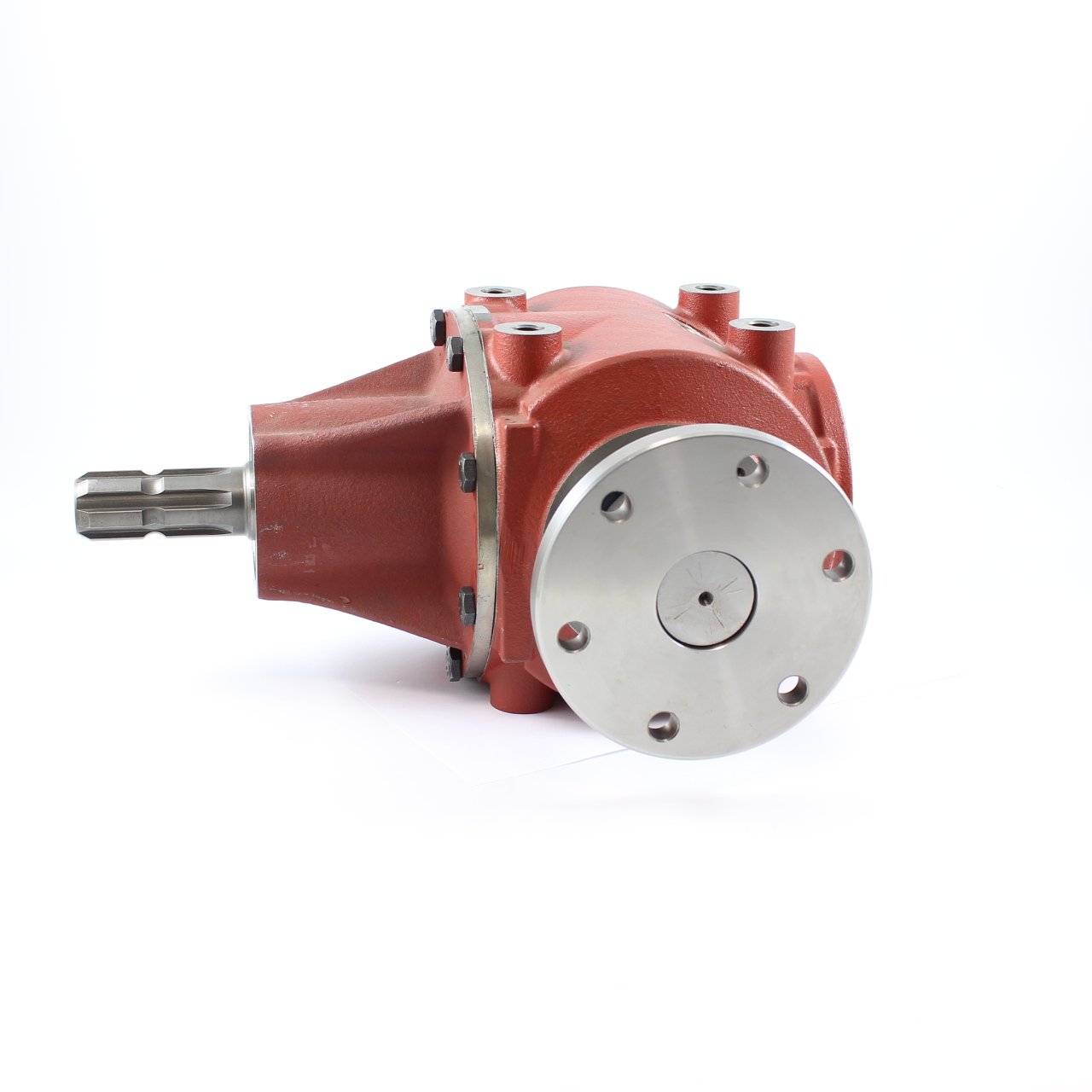

GEARBOX 2.91 M-33.1 R -21.3 T-278F
GEARBOX 2.91 M-33.1 R -21.3 T-278F
€ 679,25
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-278 A
Technical features
Type of application:
Reduction gear unit
Input power rate: 29Cv-21.3Kw (540RPM)
Speed increasing unit
Input power rate: 45Cv-33.1Kw (540RPM)
Ratio: 2.91
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 27
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
