PRODUCT details
9.281.024.00

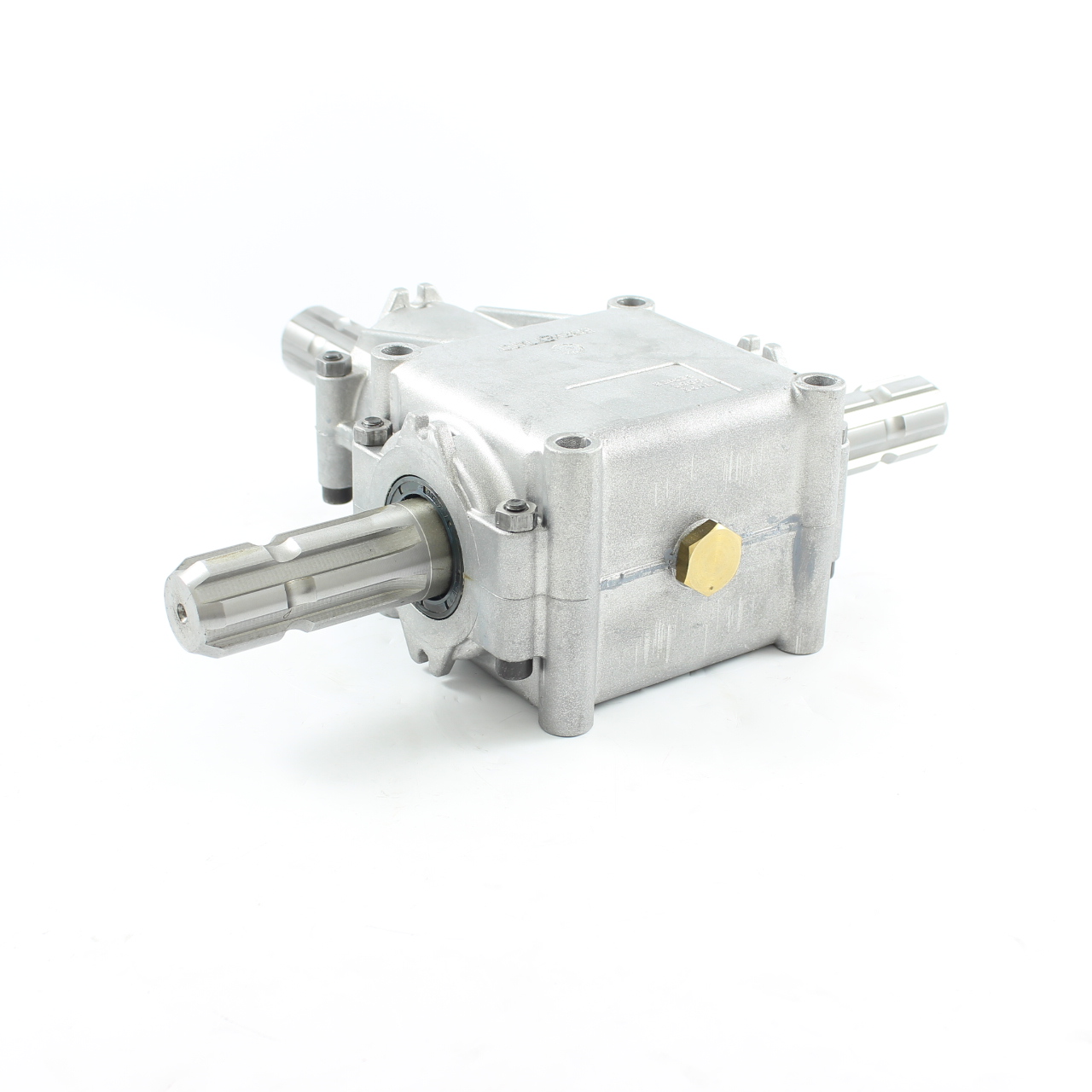

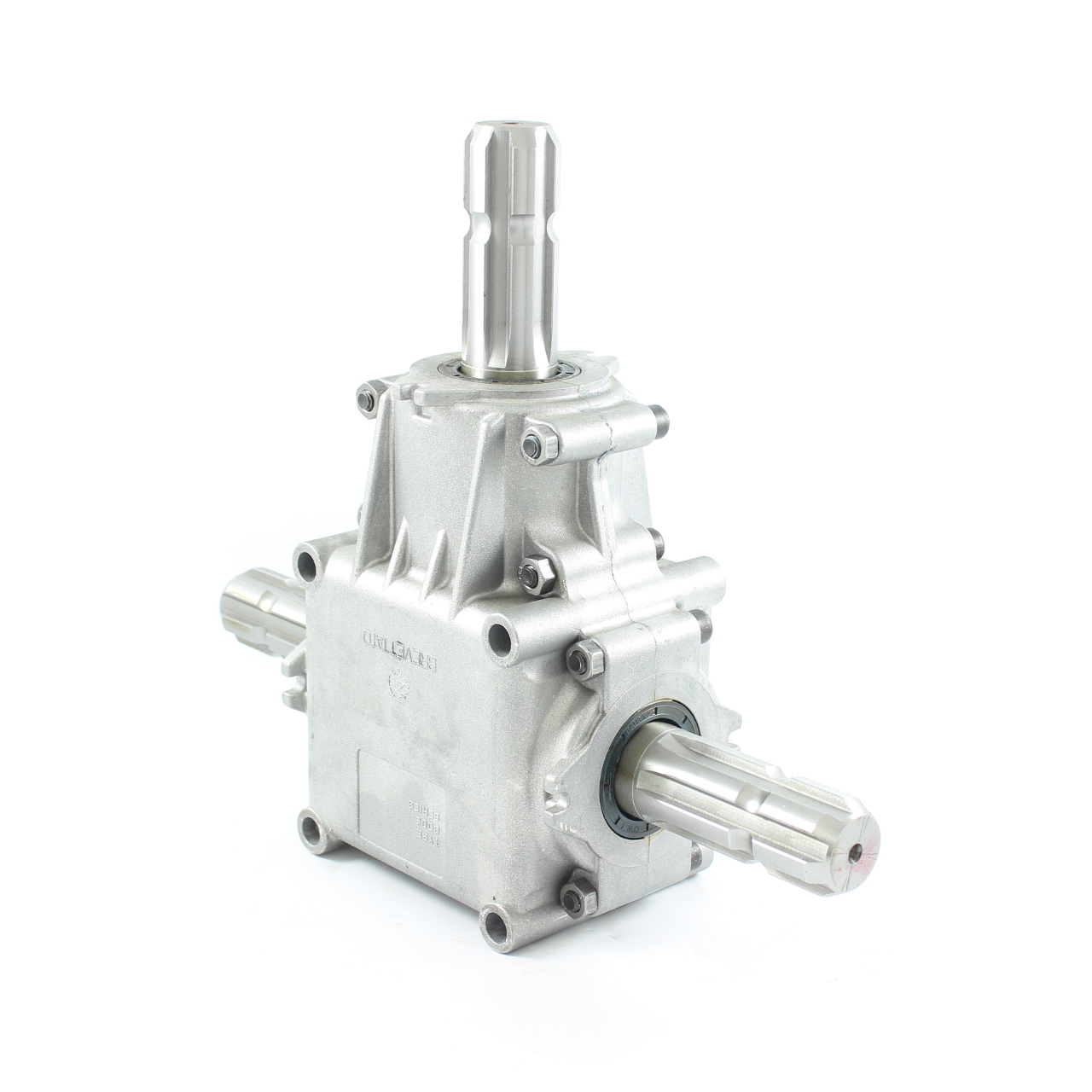

GEARBOX 2.91 M-8.1 R- 3.7 T-281A
GEARBOX 2.91 M-8.1 R- 3.7 T-281A
€ 277,98
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-281A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 5Cv-3,7Kw (540RPM)
Speed increasing unit
Input power rate: 11,1Cv-8,1Kw (540RPM)
Ratio: 2,91
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Aluminum
Dry weight: Kg 7,6
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: T-281A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 5Cv-3,7Kw (540RPM)
Speed increasing unit
Input power rate: 11,1Cv-8,1Kw (540RPM)
Ratio: 2,91
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Aluminum
Dry weight: Kg 7,6
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
