PRODUCT details

MANUFACTURER: COMER INDUSTRIES S.P.A.

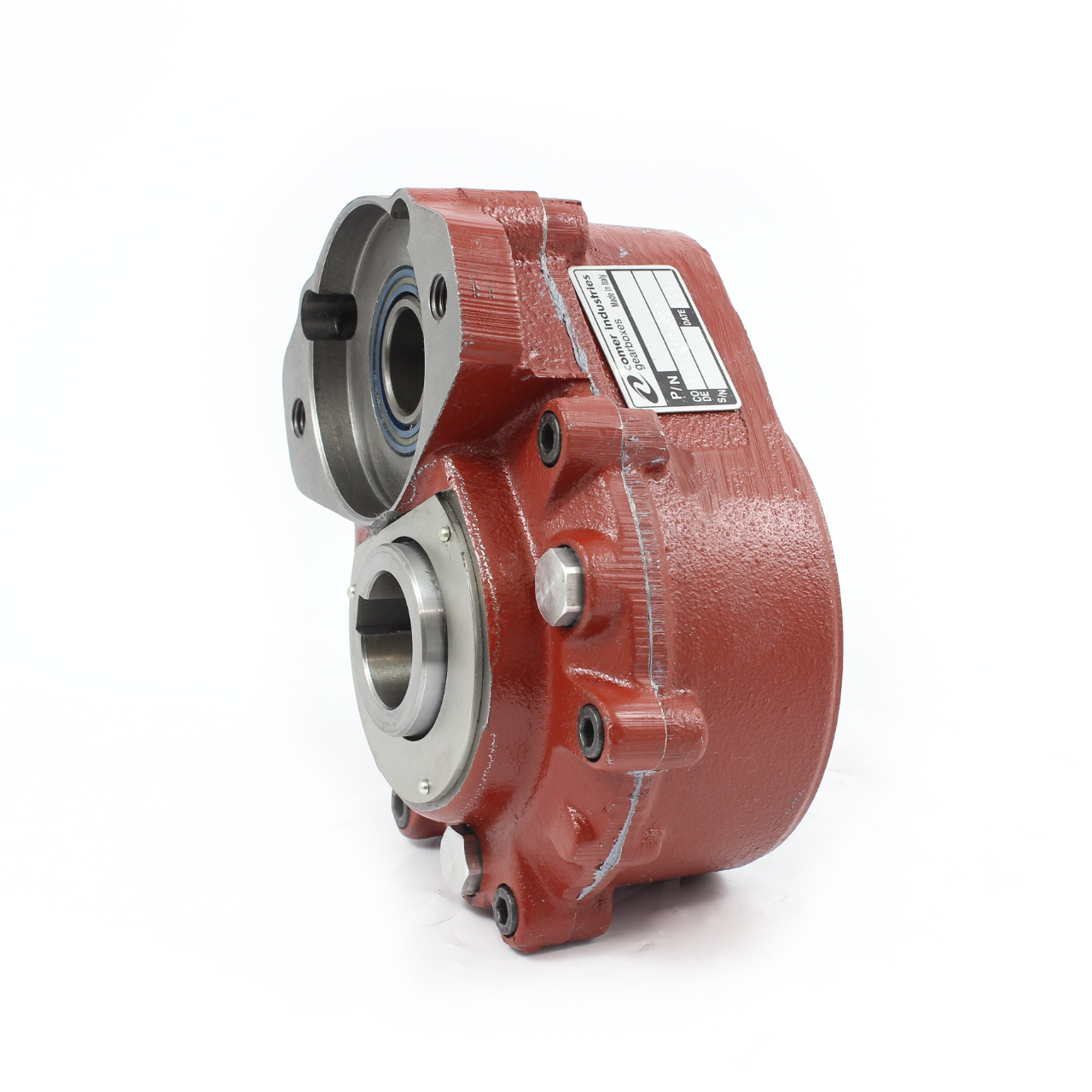

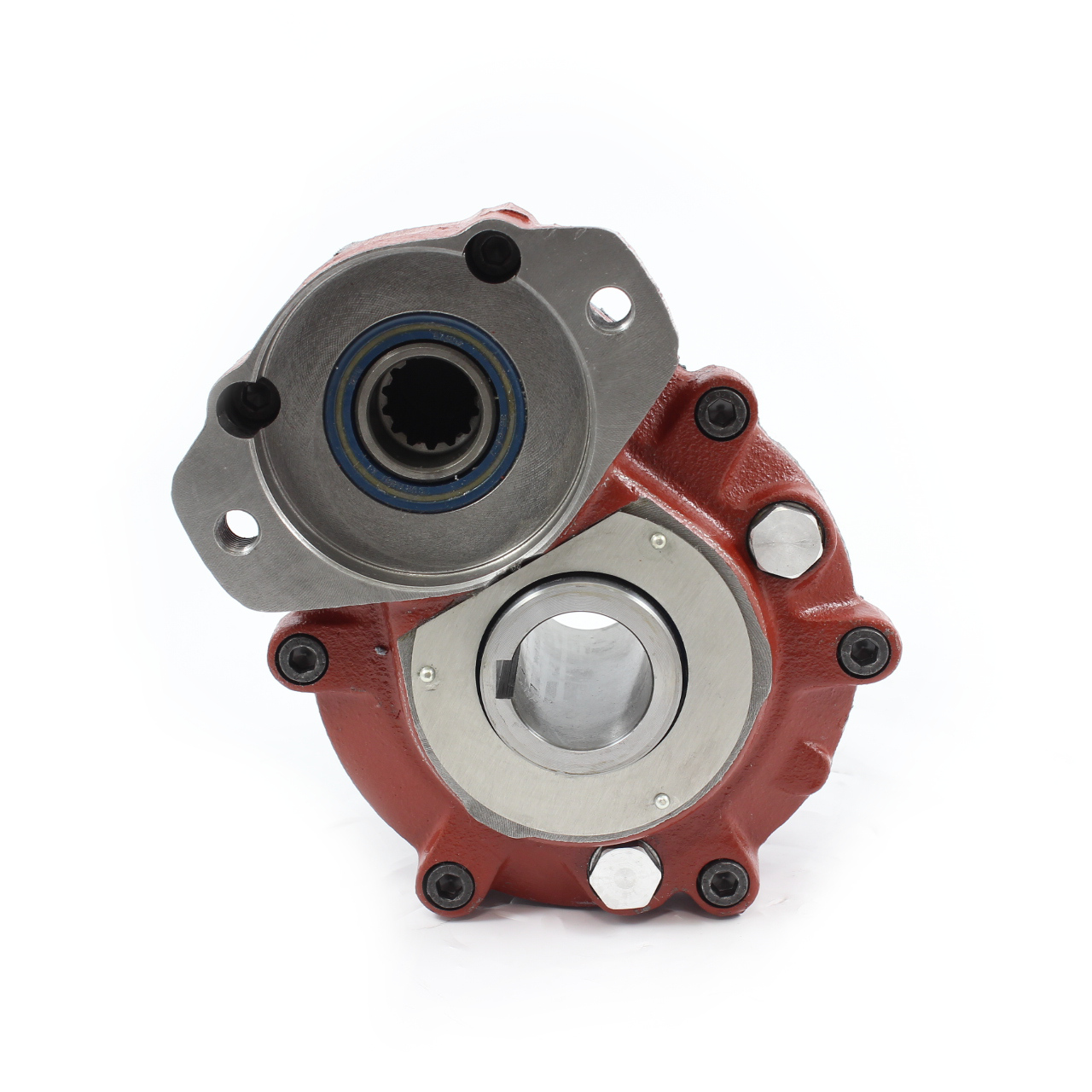

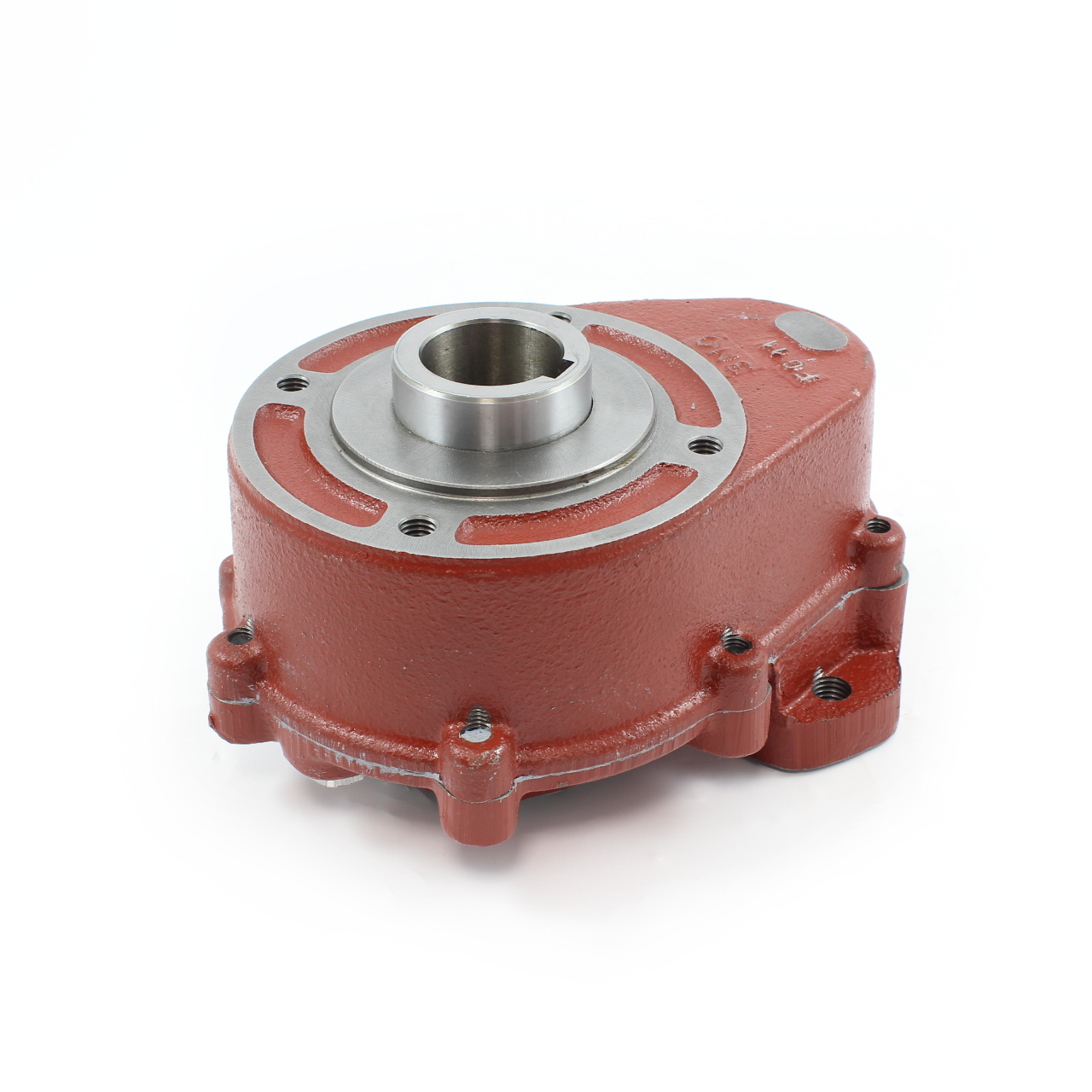

Model: FR-70

Technical features:

Type of application:
Reduction gear unit
Input power rate: 16Cv-12Kw (540RPM)

Speed increasing unit
Input power rate: 30Cv-22Kw (540RPM)

Ratio: 2,9

Outputs: 2

Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.

Material: Cast iron

Dry weight: Kg 8,1

Supplied with grease

• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
