PRODUCT details

MANUFACTURER: BERMA

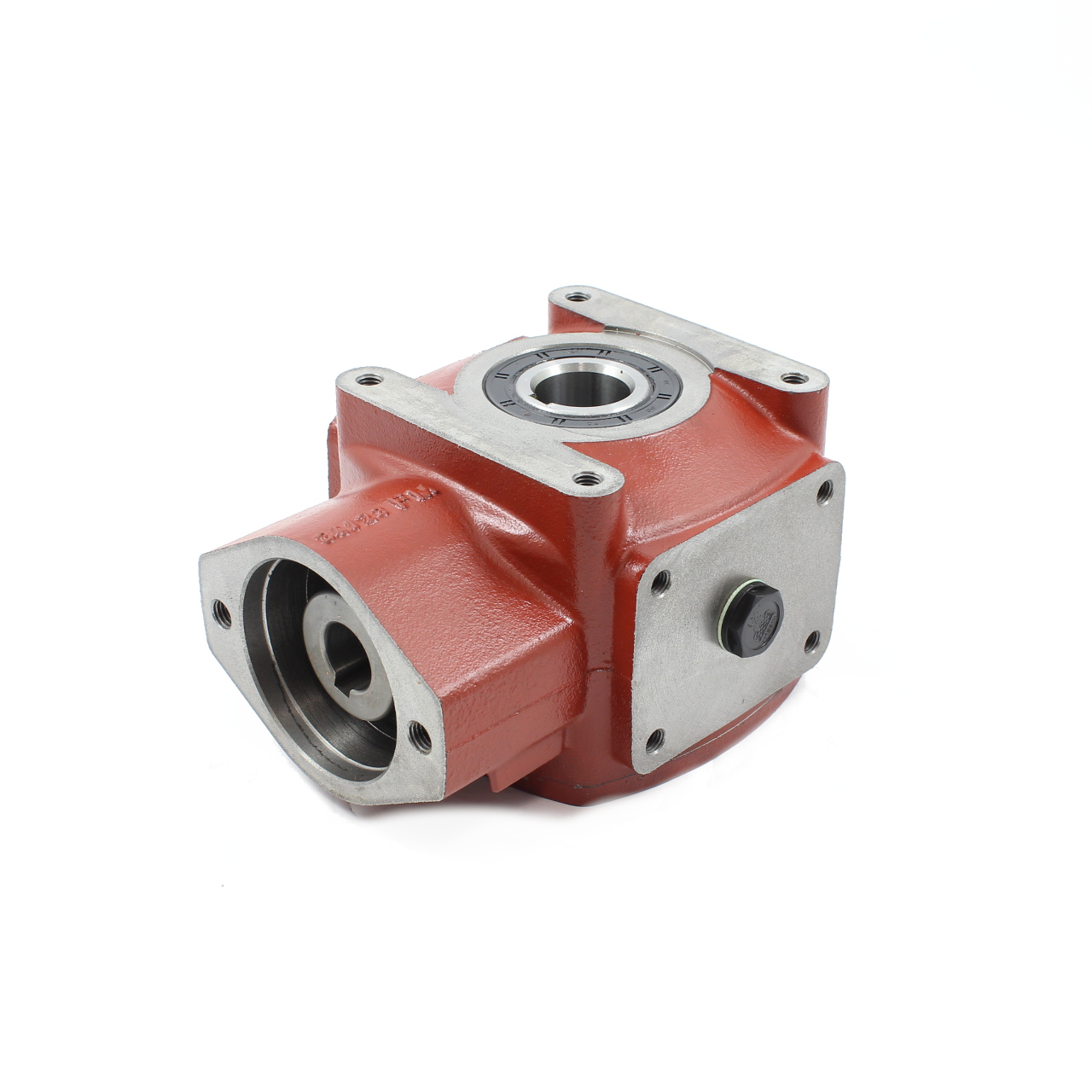

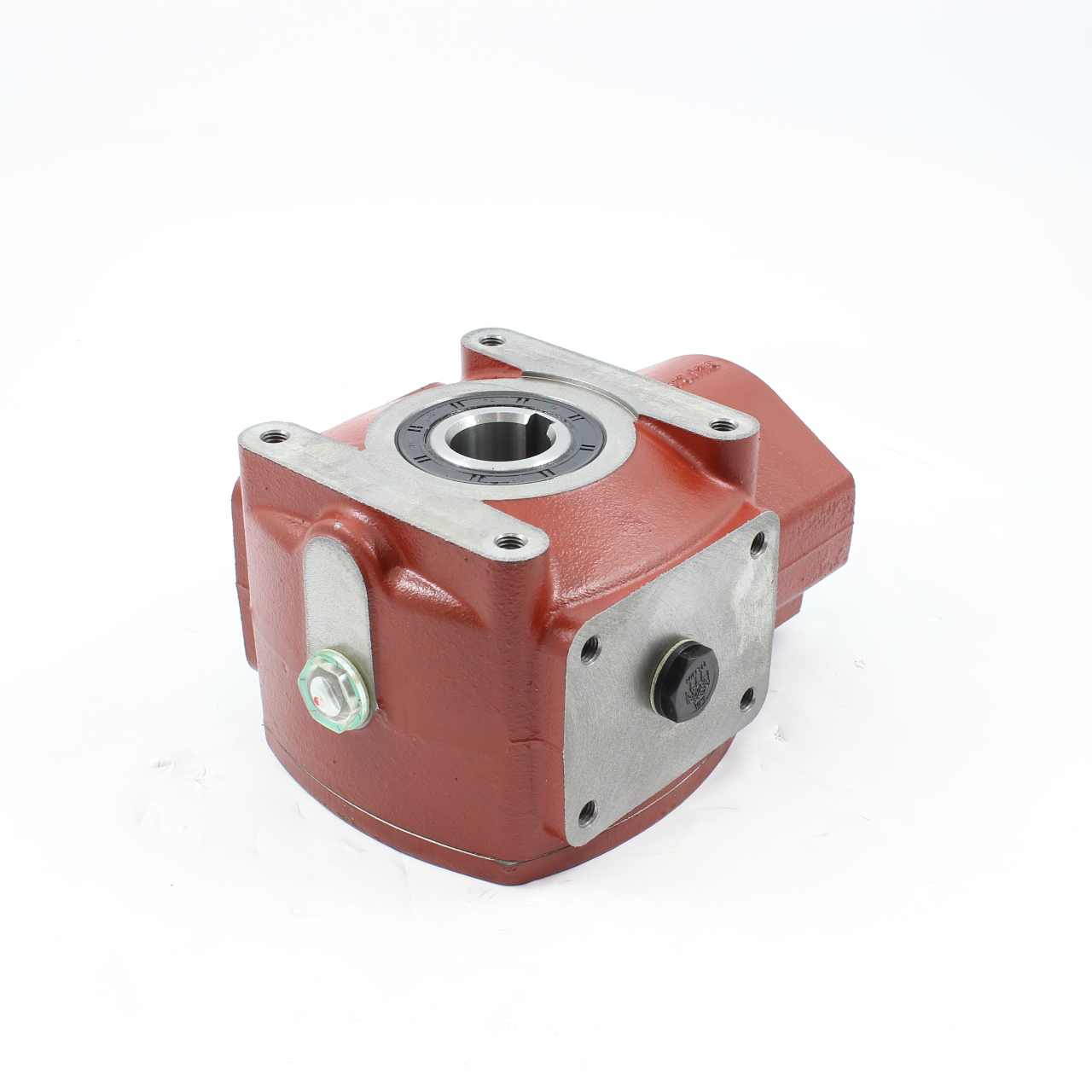

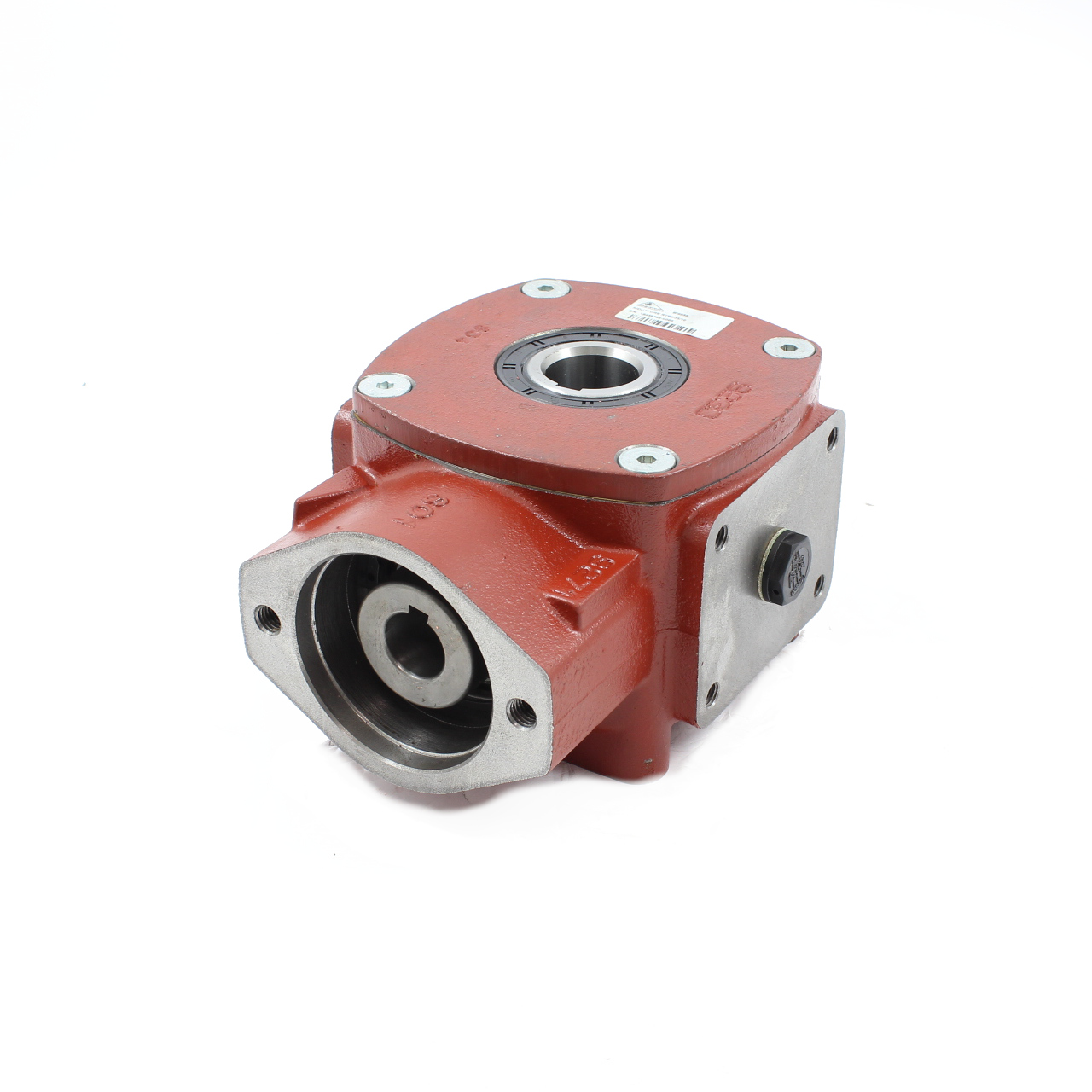

Model: RT 90

Technical features:

Type of application: Reduction gear unit

Output shaft dim.: D 35 ch 10
Input shaft dim.: D 25
Ratio: 3,1
Output Torque: 900 Nm
Outputs: 1

Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component


Shafts Rotation: Download data sheet to check the possible available rotation.

Material: Cast iron

Dry weight: Kg 11,5

Supplied without lubricant

• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
