9.304.000.00

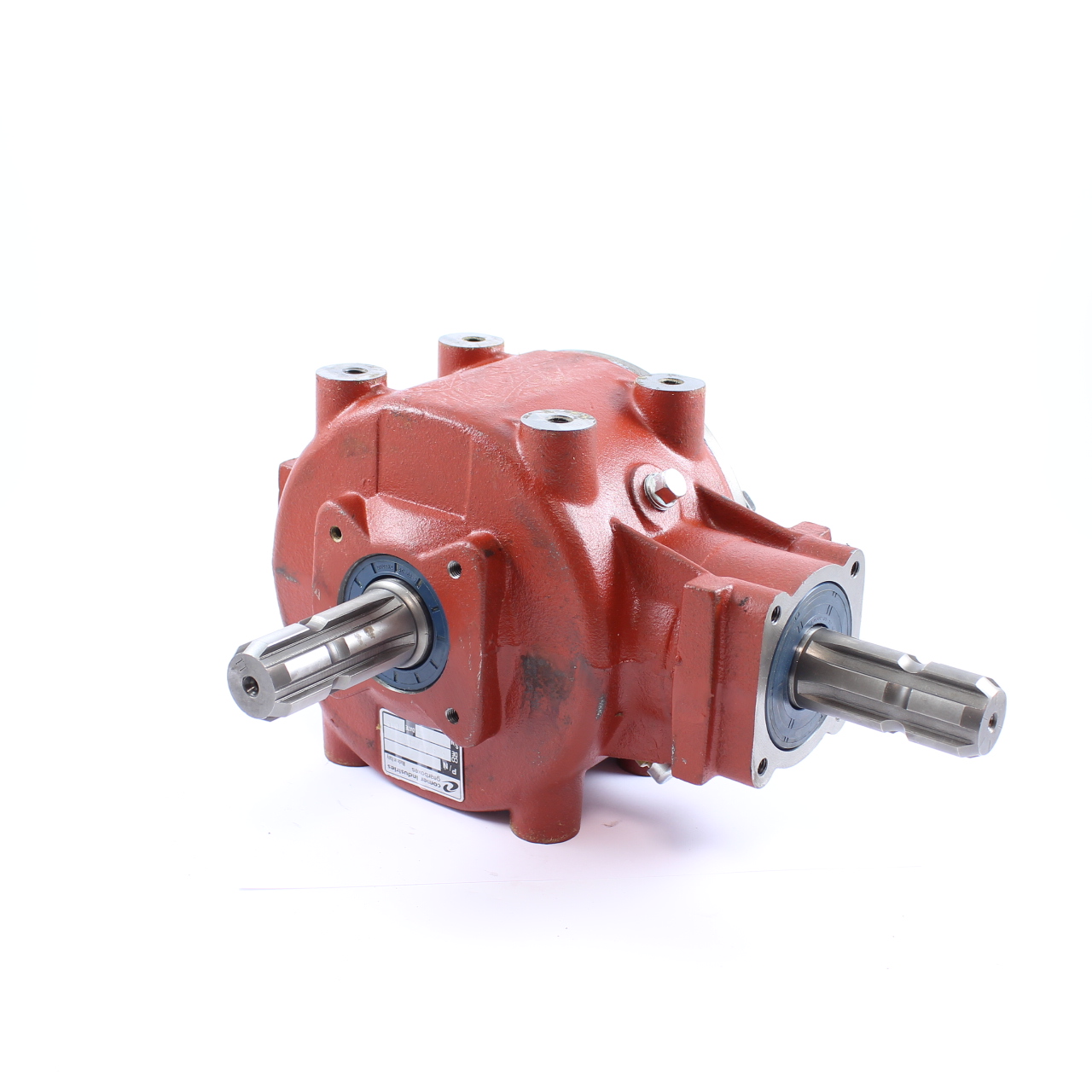

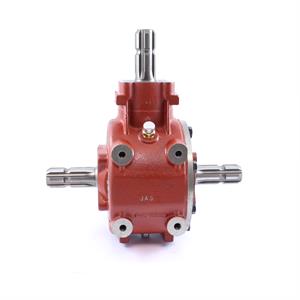

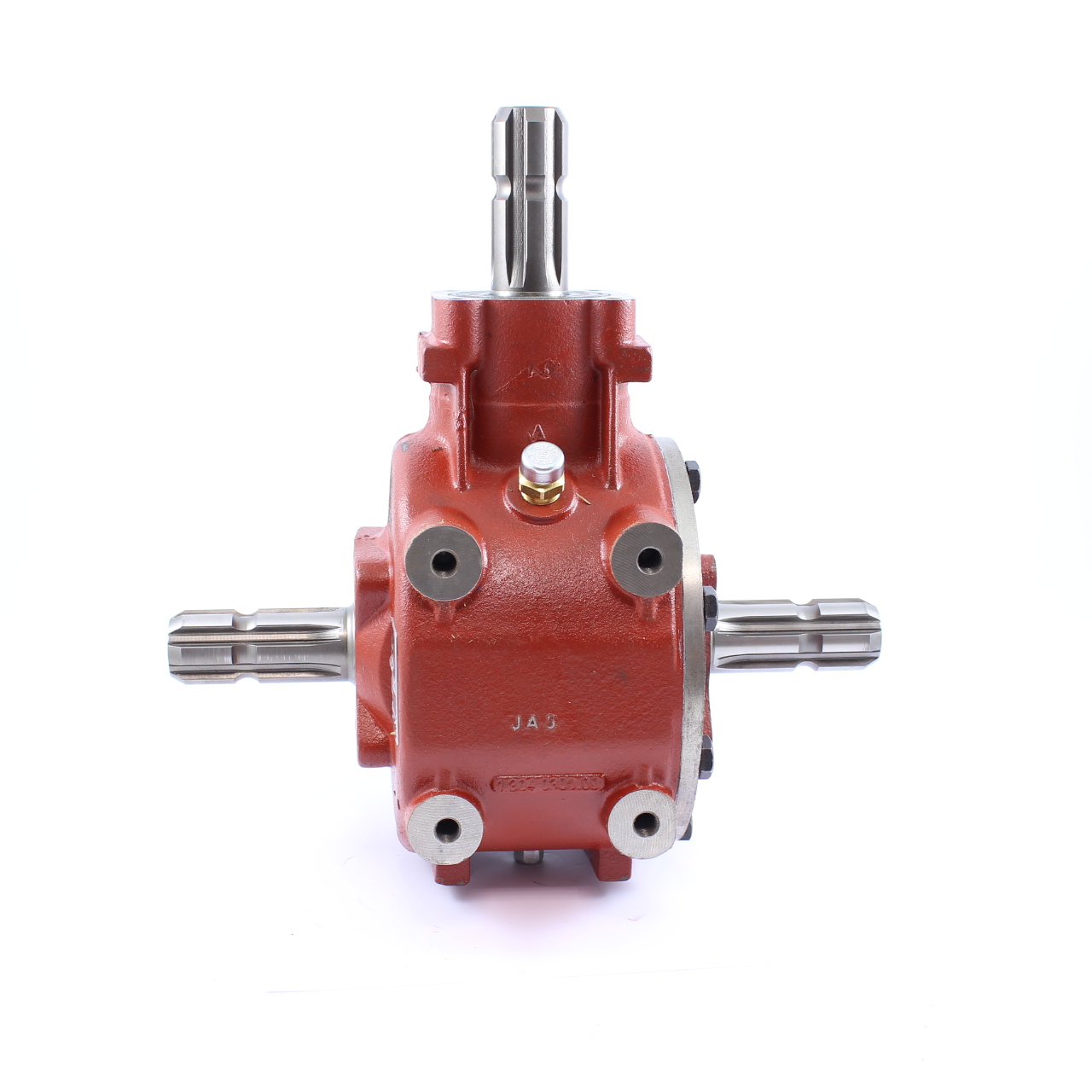

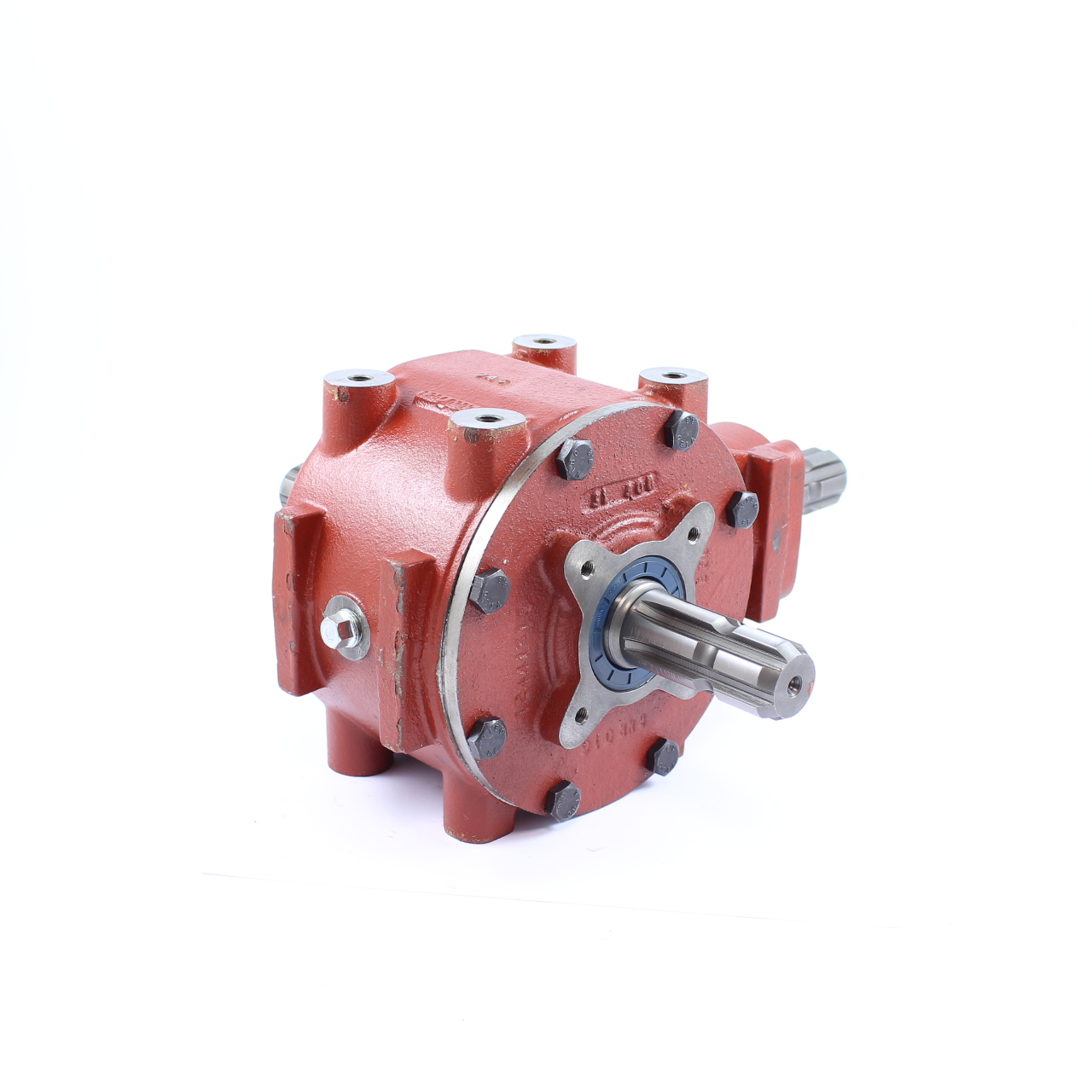

GEARBOX 3 M-36 R-18 T -304A
GEARBOX 3 M-36 R-18 T -304A
€ 377,28
COMING SOON
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-304A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 25Cv-18.4Kw (540RPM)
Speed increasing unit
Input power rate: 50Cv-36.8Kw (540RPM)
Ratio: 3
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component

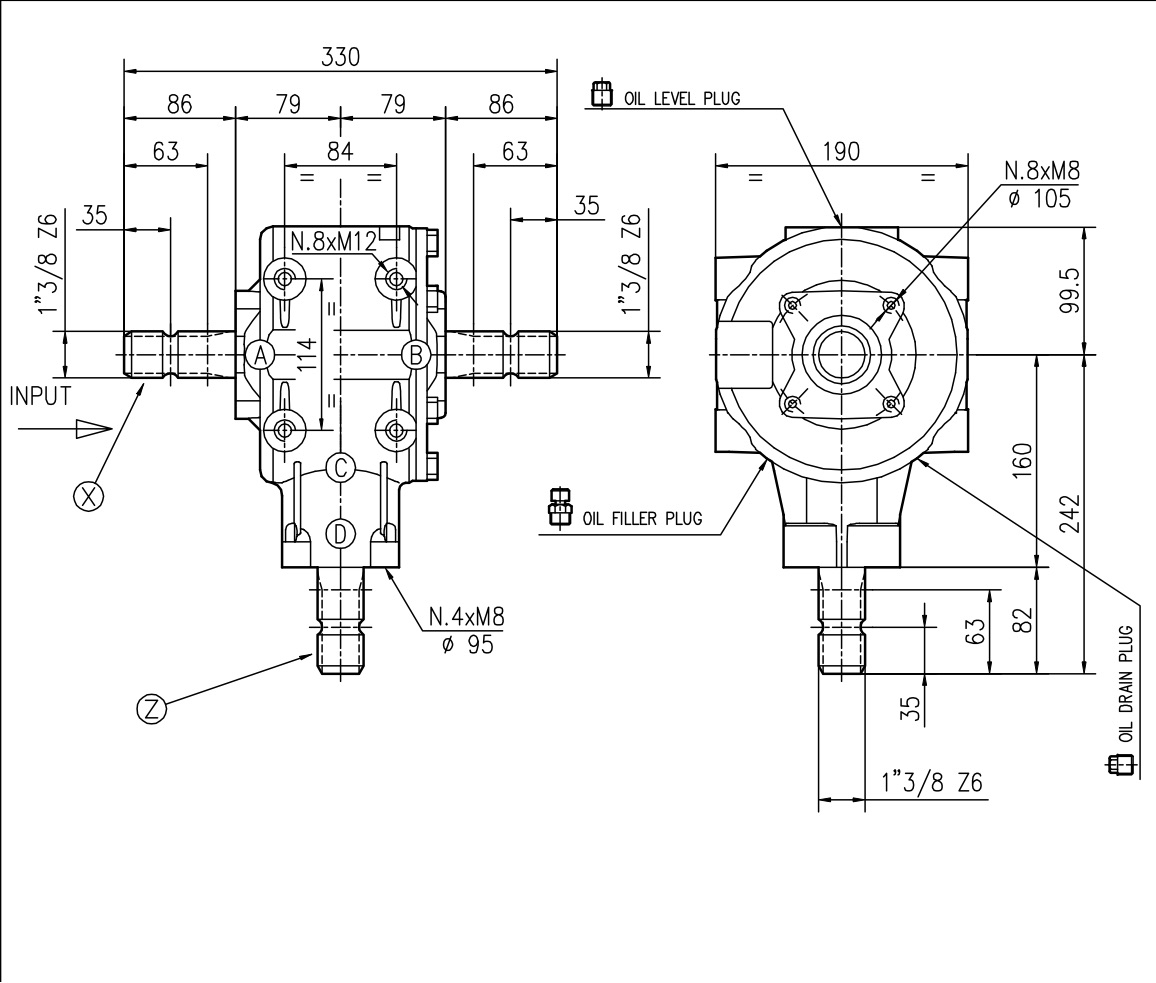

Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 20
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: T-304A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 25Cv-18.4Kw (540RPM)
Speed increasing unit
Input power rate: 50Cv-36.8Kw (540RPM)
Ratio: 3
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 20
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
List of combined products
LIMITED AVAILABILITY
0.244.6204.00
CROWN WHEEL Z36 M4,35
CROWN WHEEL Z36 M4,35
€ 186,21
LIMITED AVAILABILITY
0.304.3002.00
ALBERO PASSANTE 1"3/8 Z6
ALBERO PASSANTE 1"3/8 Z6
€ 59,03
LIMITED AVAILABILITY
0.304.5001.00
PINION SHAFT Z.12 M.4.35
PINION SHAFT Z.12 M.4.35
€ 145,63
LIMITED AVAILABILITY
8.0.1.00871
BALL BEARING 6208
BALL BEARING 6208
€ 23,01
AVAILABLE
8.4.1.01141
PARALLEL KEY B 12x8x30
PARALLEL KEY B 12x8x30
€ 3,95
