PRODUCT details
9.312.702.00

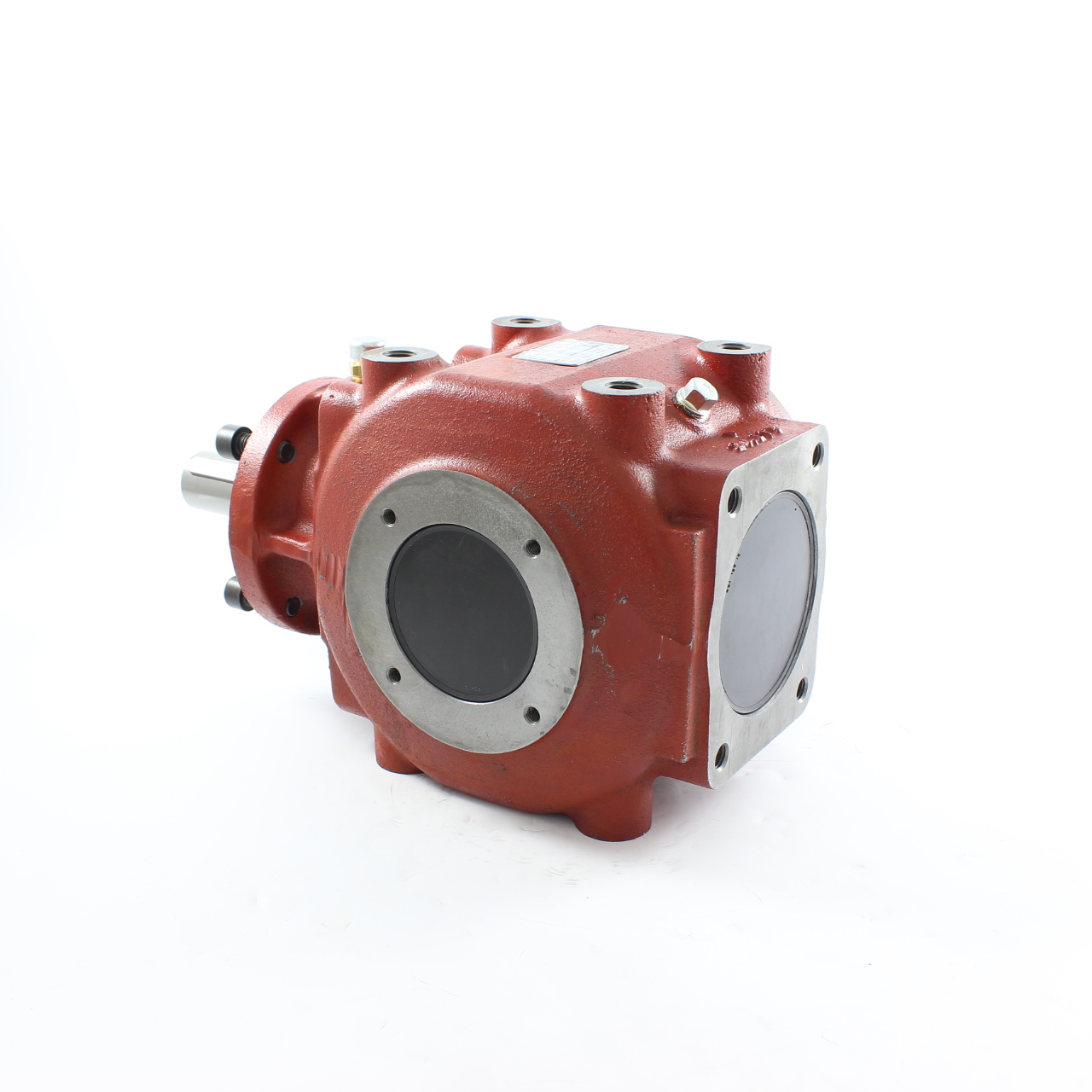

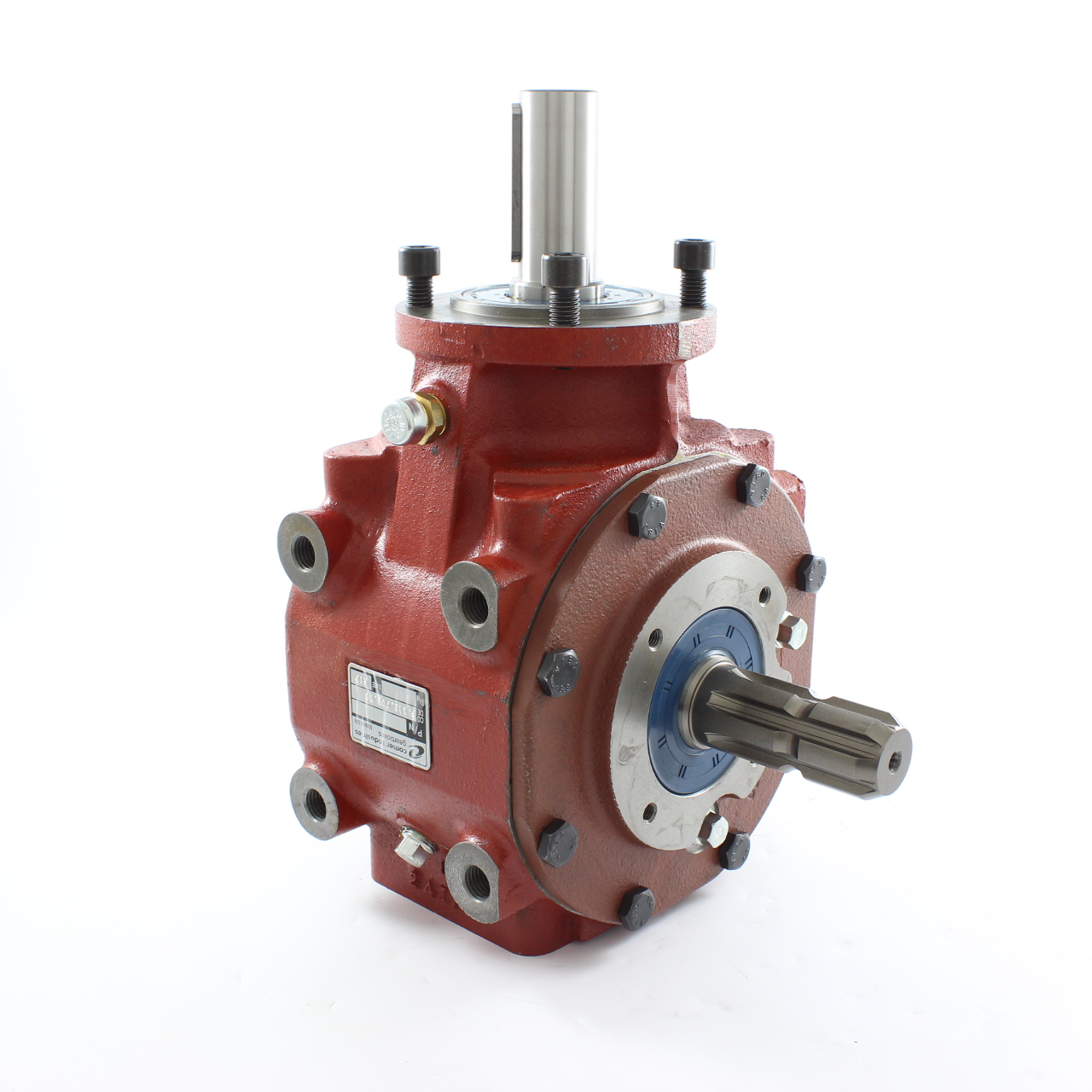

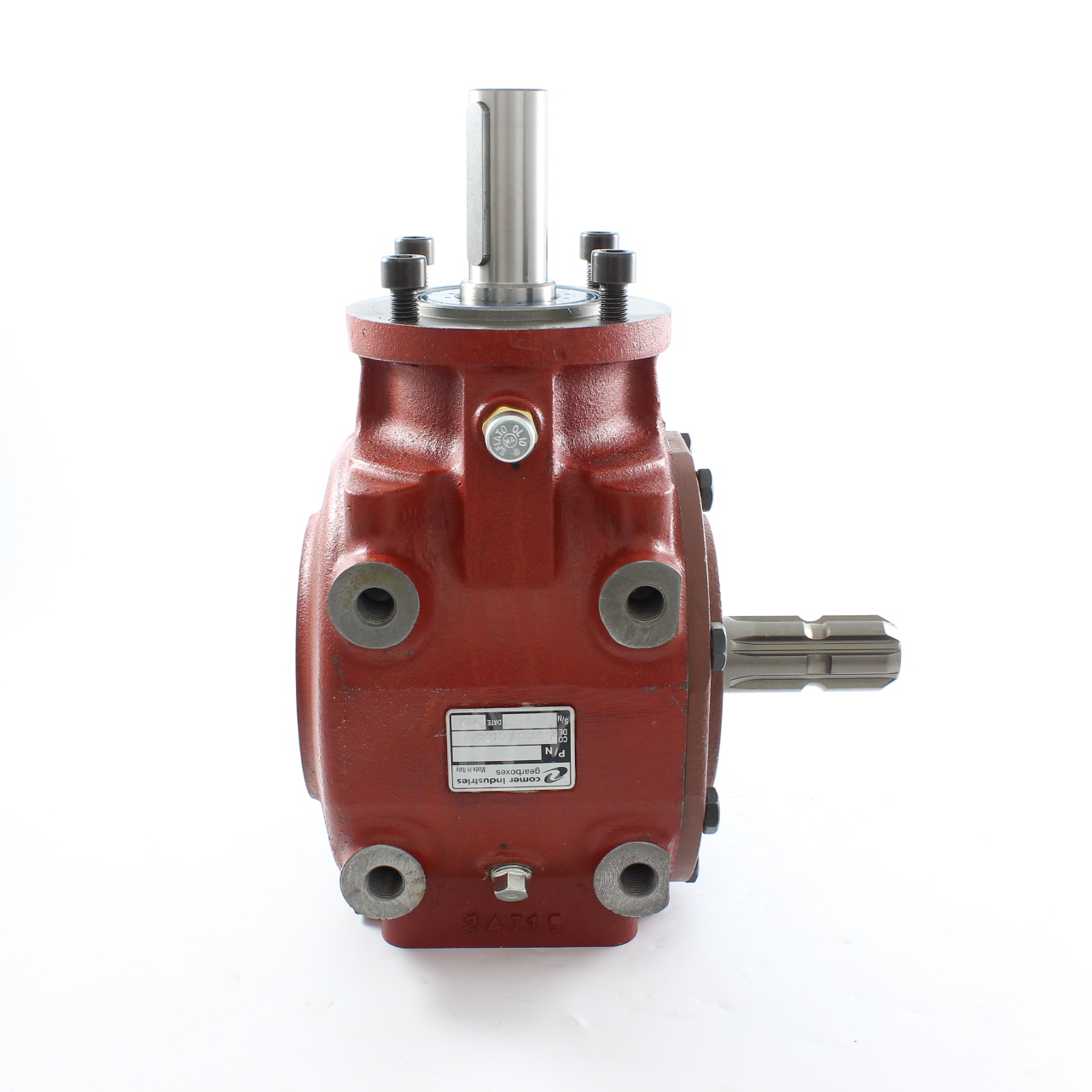

GEARBOX 3 M-45.6 R-28 T-312A
GEARBOX 3 M-45.6 R-28 T-312A
€ 414,83
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-312A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 38Cv-28Kw (540RPM)
Speed increasing unit
Input power rate: 62Cv-45,6Kw (540RPM)
Ratio: 3
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 24,6
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
