PRODUCT details
9.269.245.10

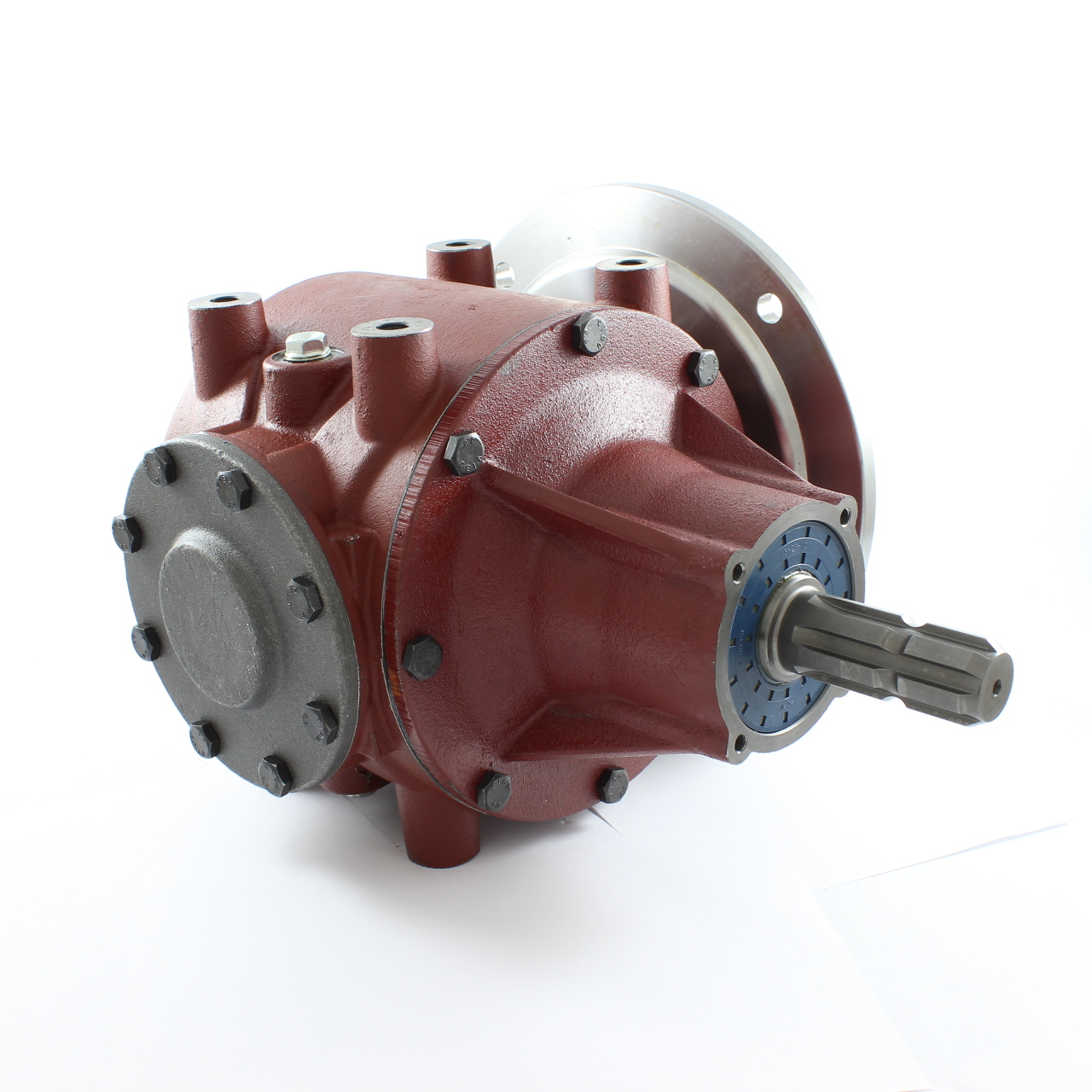

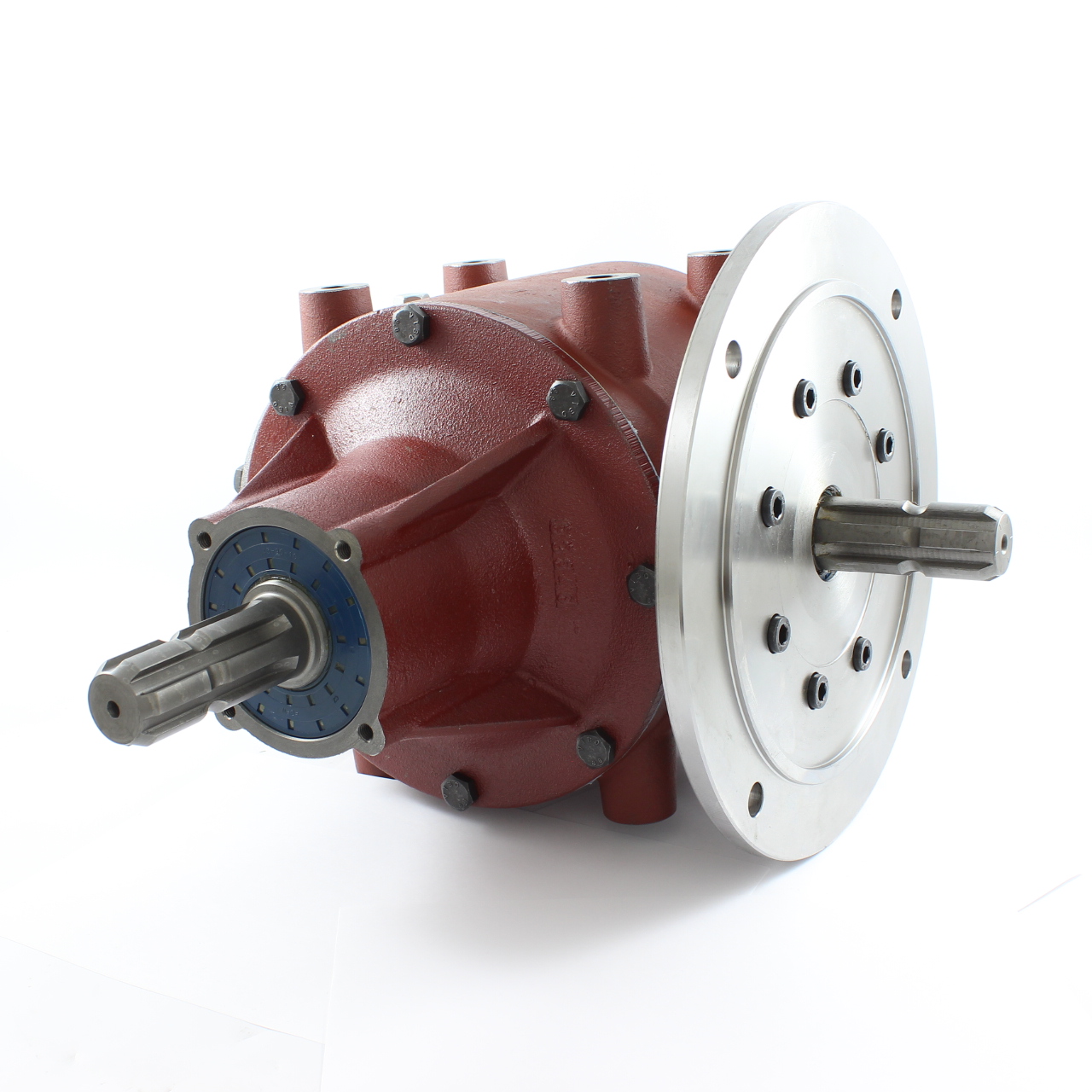

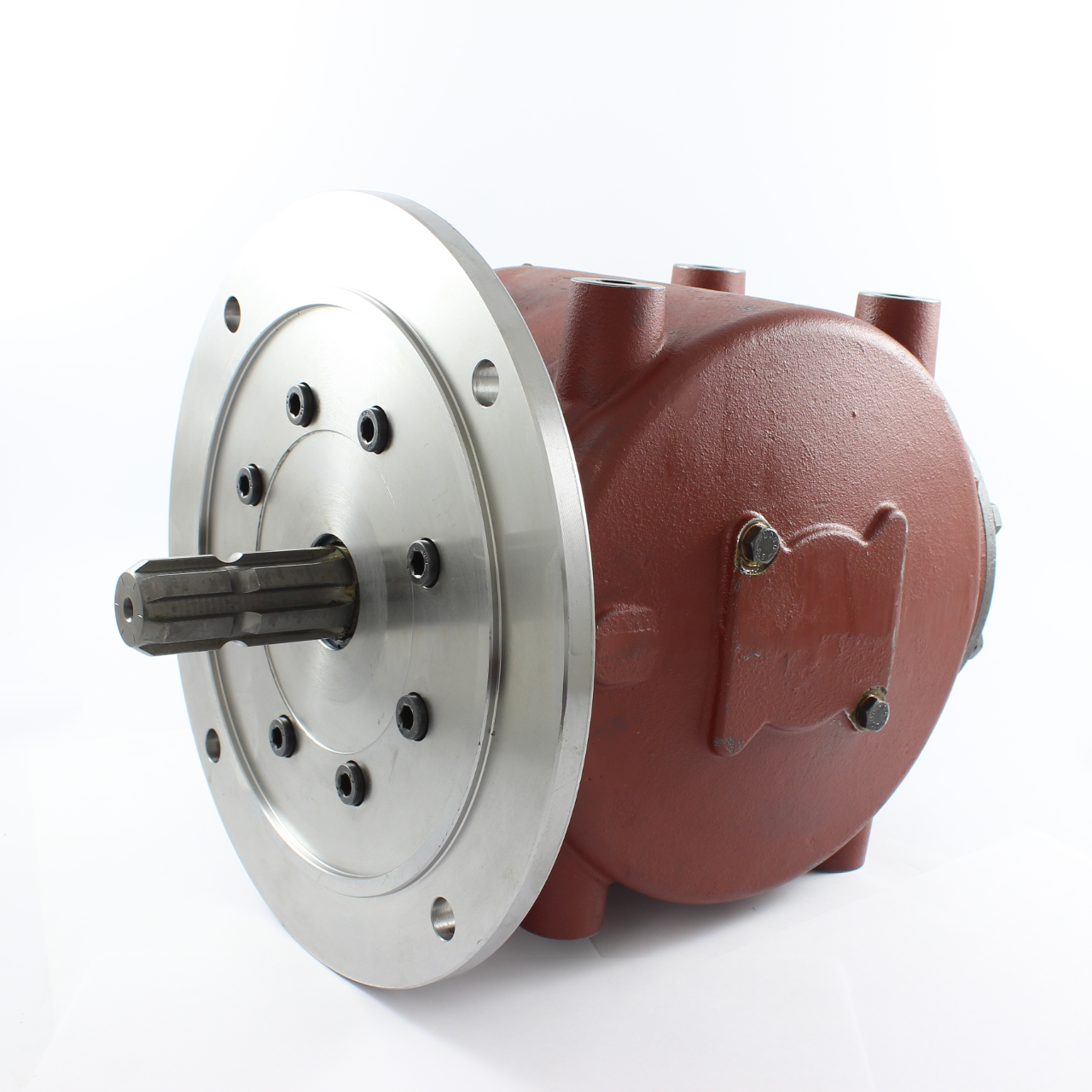

GEARBOX 3 M-62.5 R-39 T-269B
GEARBOX 3 M-62.5 R-39 T-269B
€ 1.753,49
COMING SOON
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-269B
Technical features:
Type of application:
Reduction gear unit
Input power rate: 53,4Cv-39Kw (540RPM)
Speed increasing unit
Input power rate: 85Cv-62,5Kw (540RPM)
Ratio: 3
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 45,6
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: T-269B
Technical features:
Type of application:
Reduction gear unit
Input power rate: 53,4Cv-39Kw (540RPM)
Speed increasing unit
Input power rate: 85Cv-62,5Kw (540RPM)
Ratio: 3
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 45,6
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
