PRODUCT details
9.311.874.40

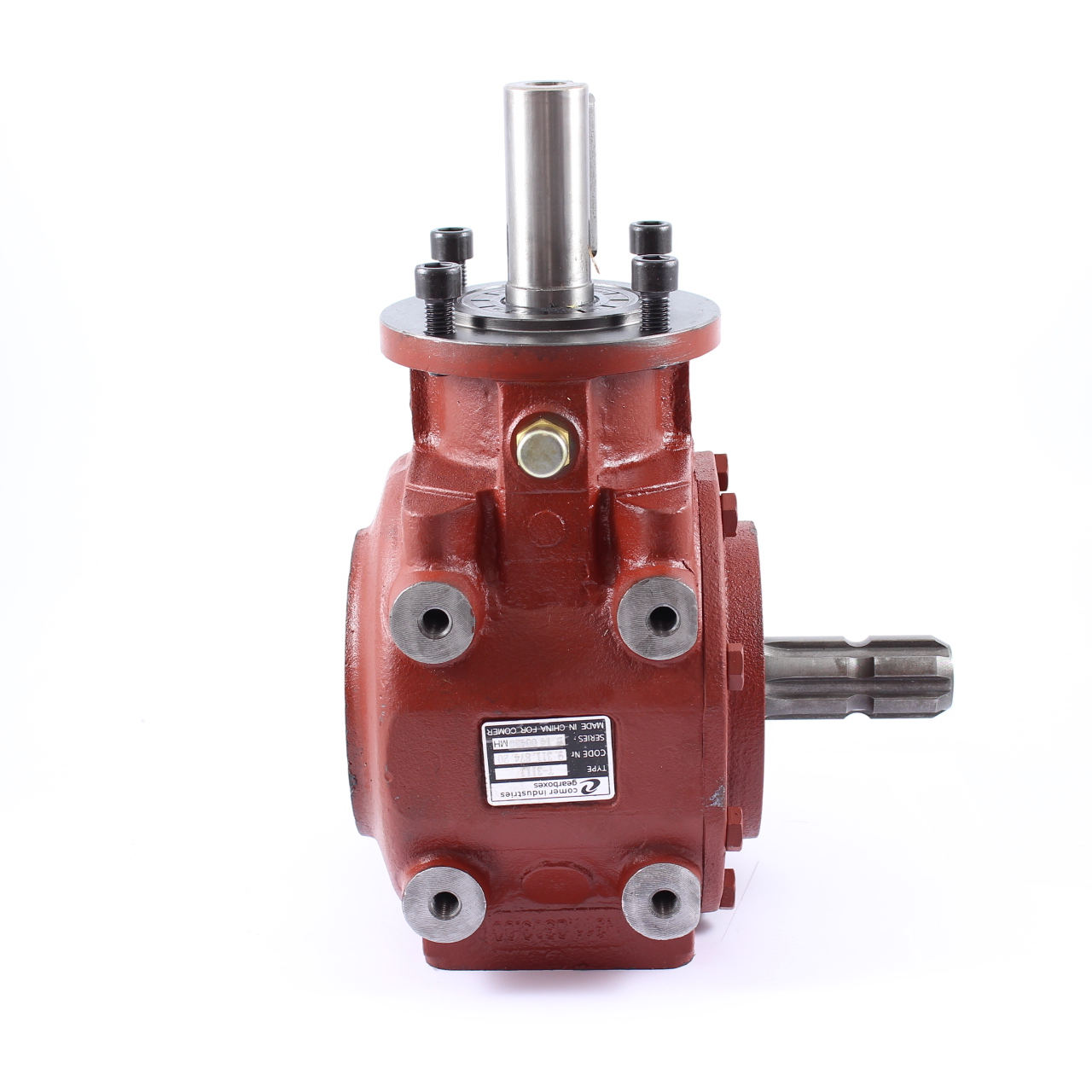

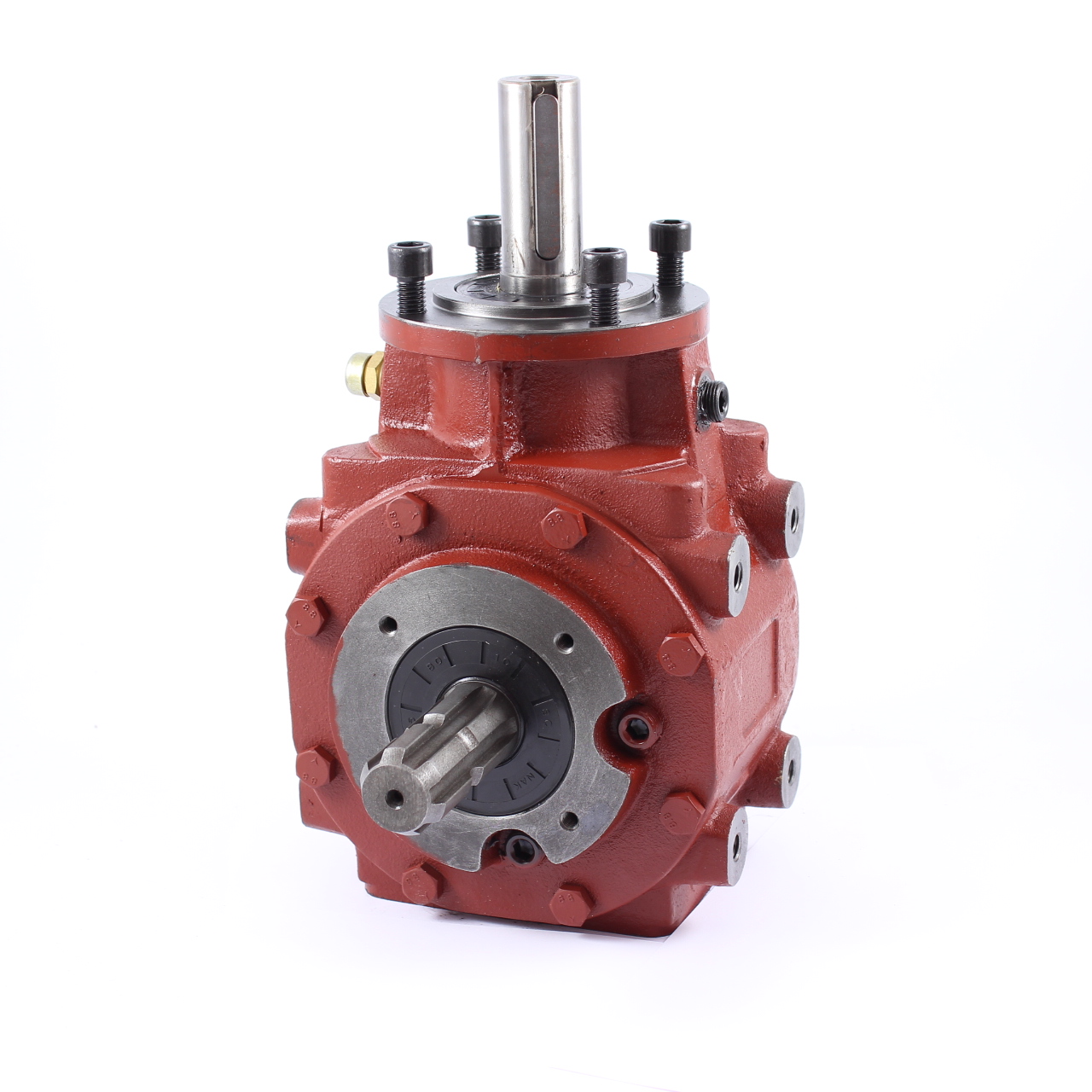

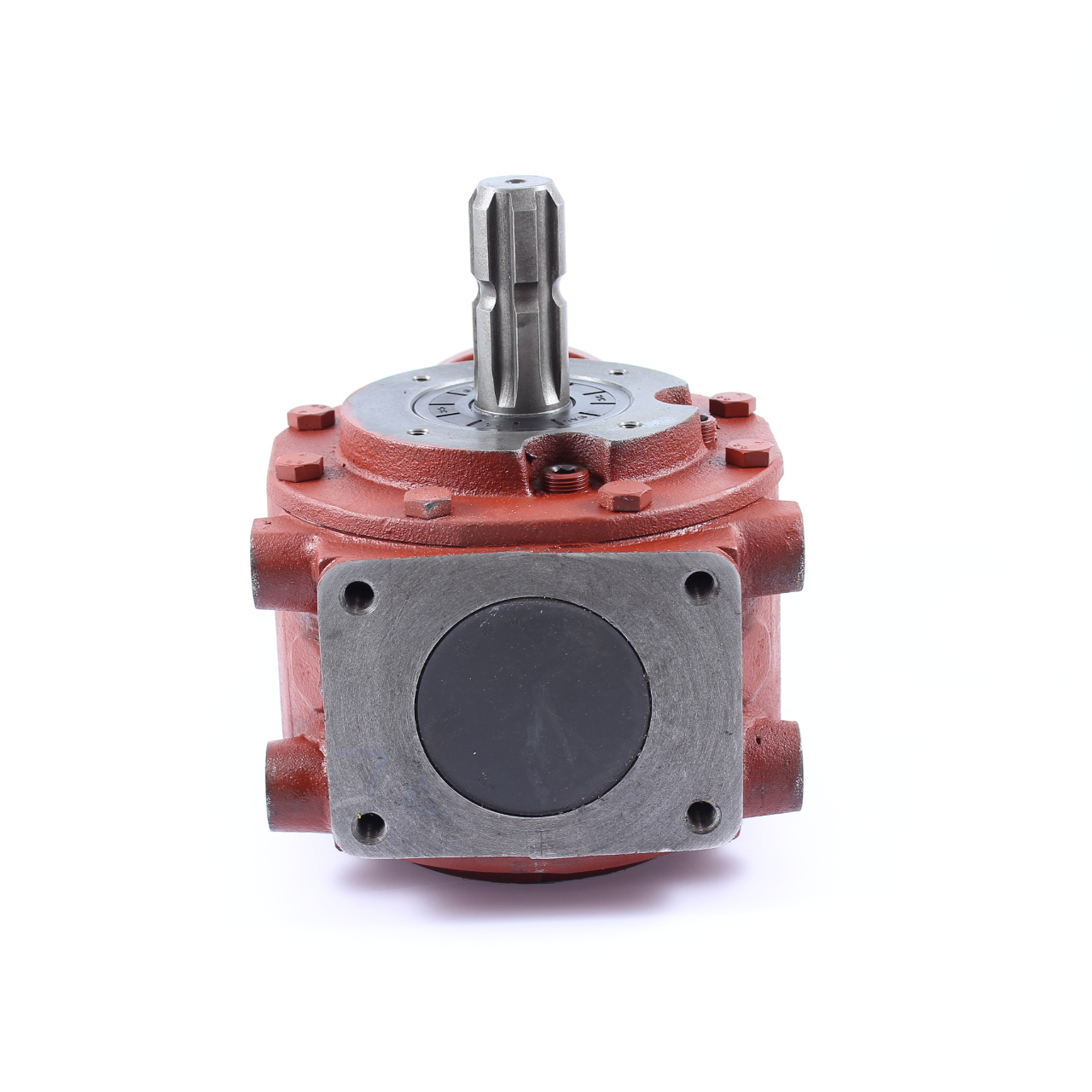

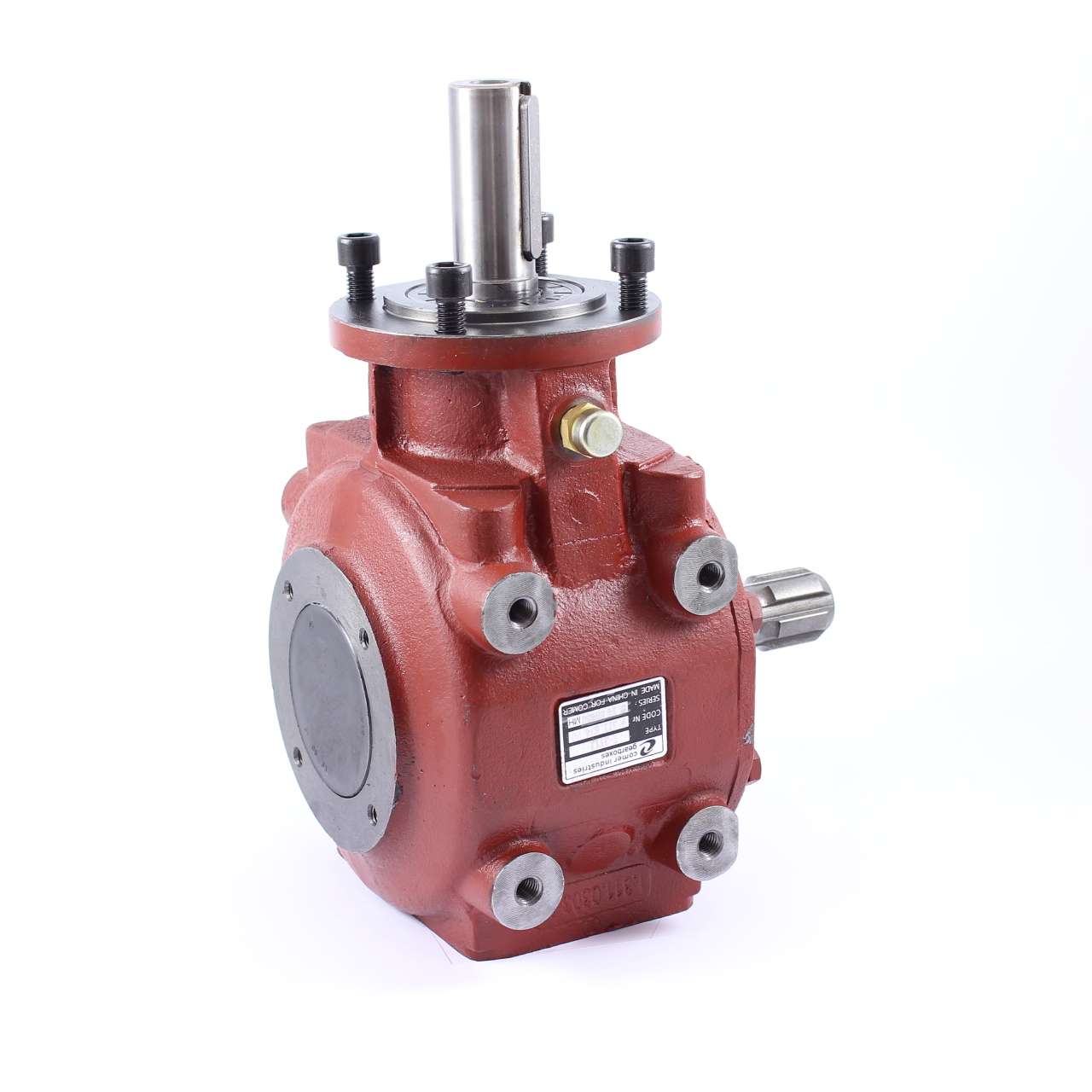

GEARBOX 3 R M-36.8 T- 311J
GEARBOX 3 R M-36.8 T- 311J
€ 364,83
AVAILABLE
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-311J
Technical features:
Type of application: Speed increasing unit
Input power rate: 50Cv-36,8Kw (540RPM)
Ratio: 3
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component

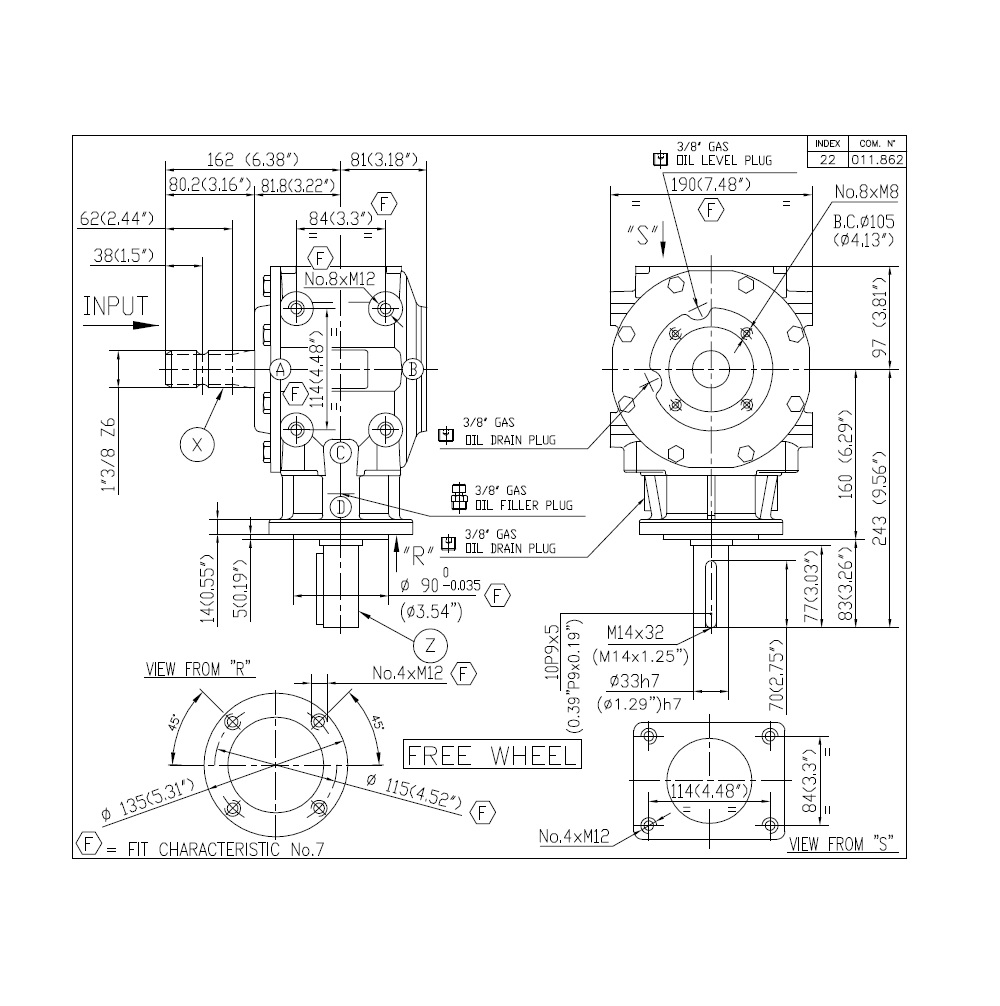

Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 20,2
Special features: Overrunning clutch inside
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
