PRODUCT details
9.624.008.10

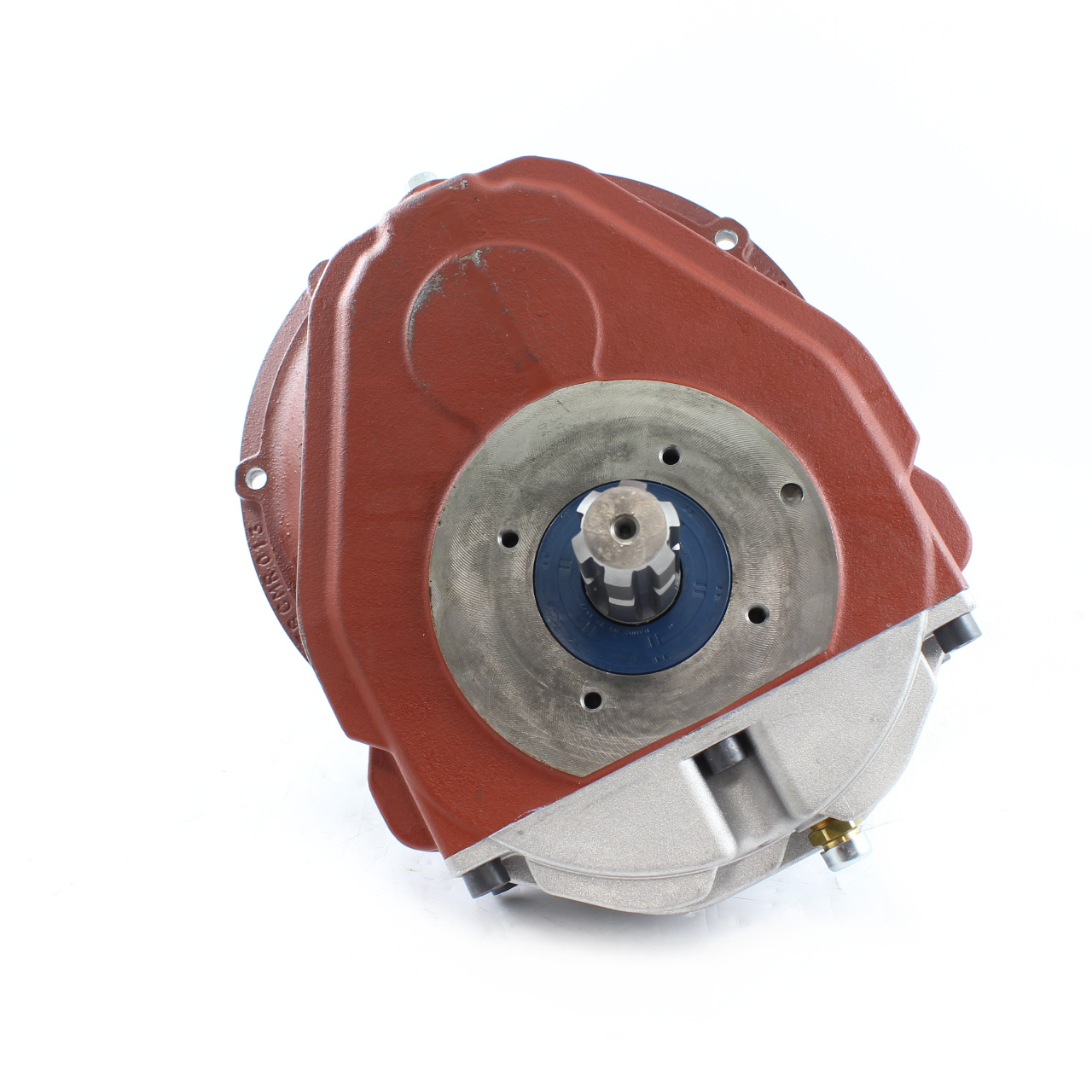

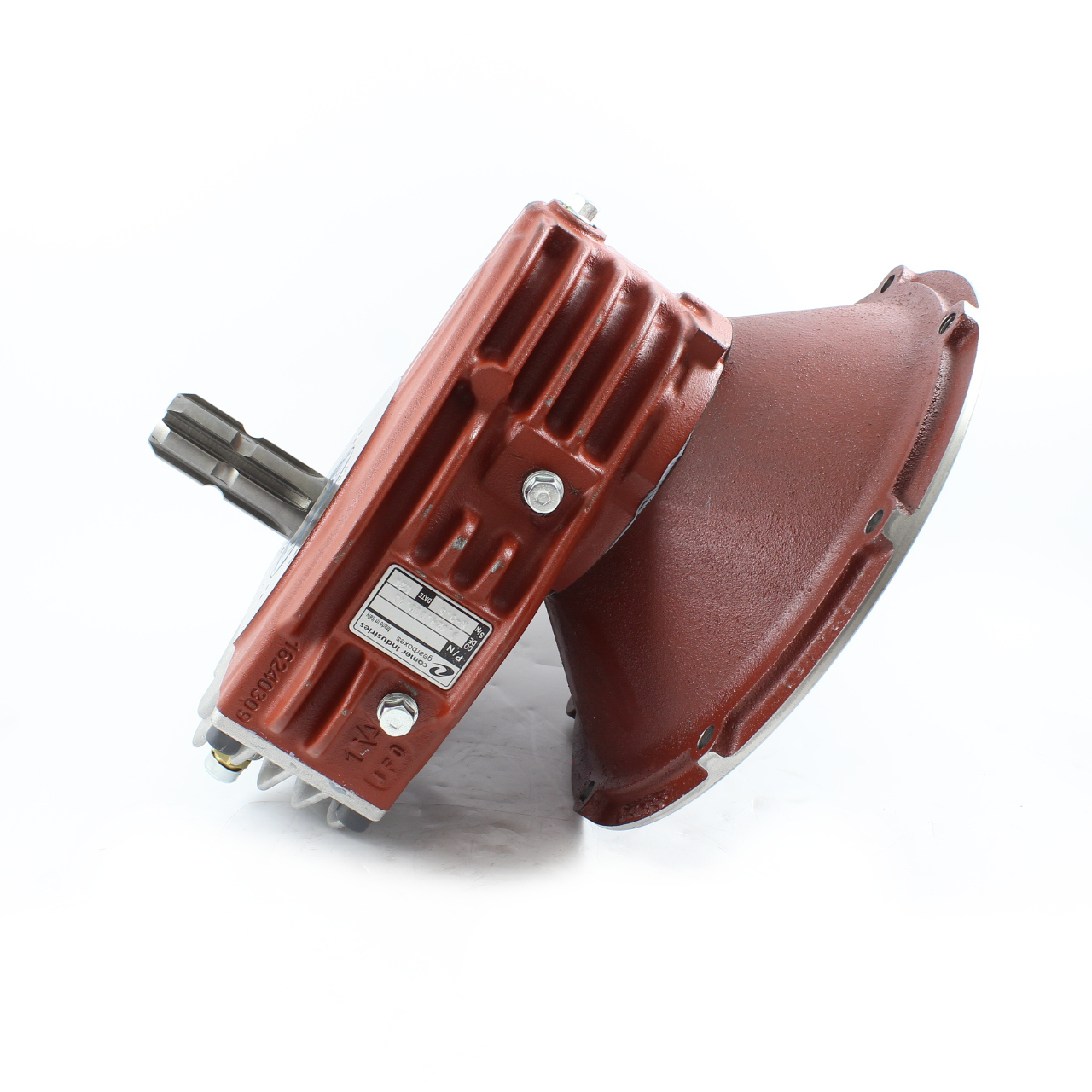

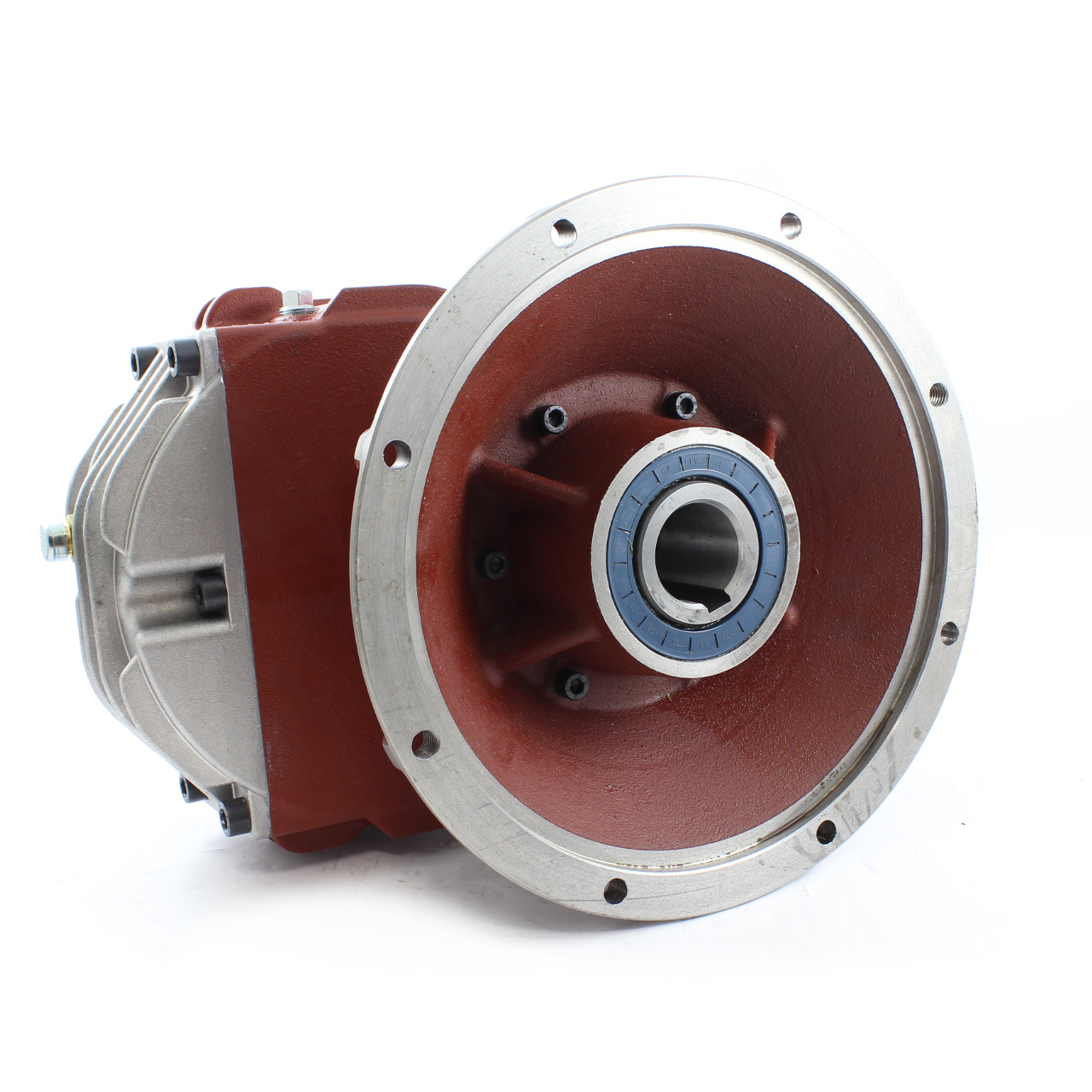

GEARBOX 3.5 M-31.6 A- 624C
GEARBOX 3.5 M-31.6 A- 624C
€ 435,53
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: A-624C
Technical features:
Type of application:
Speed increasing unit
Input power rate: 43Cv - 31.6Kw (540RPM)
Ratio: 3.5
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 25.8
Special features: Helicoidal bevel gears inside
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
