PRODUCT details
9.262.027.00

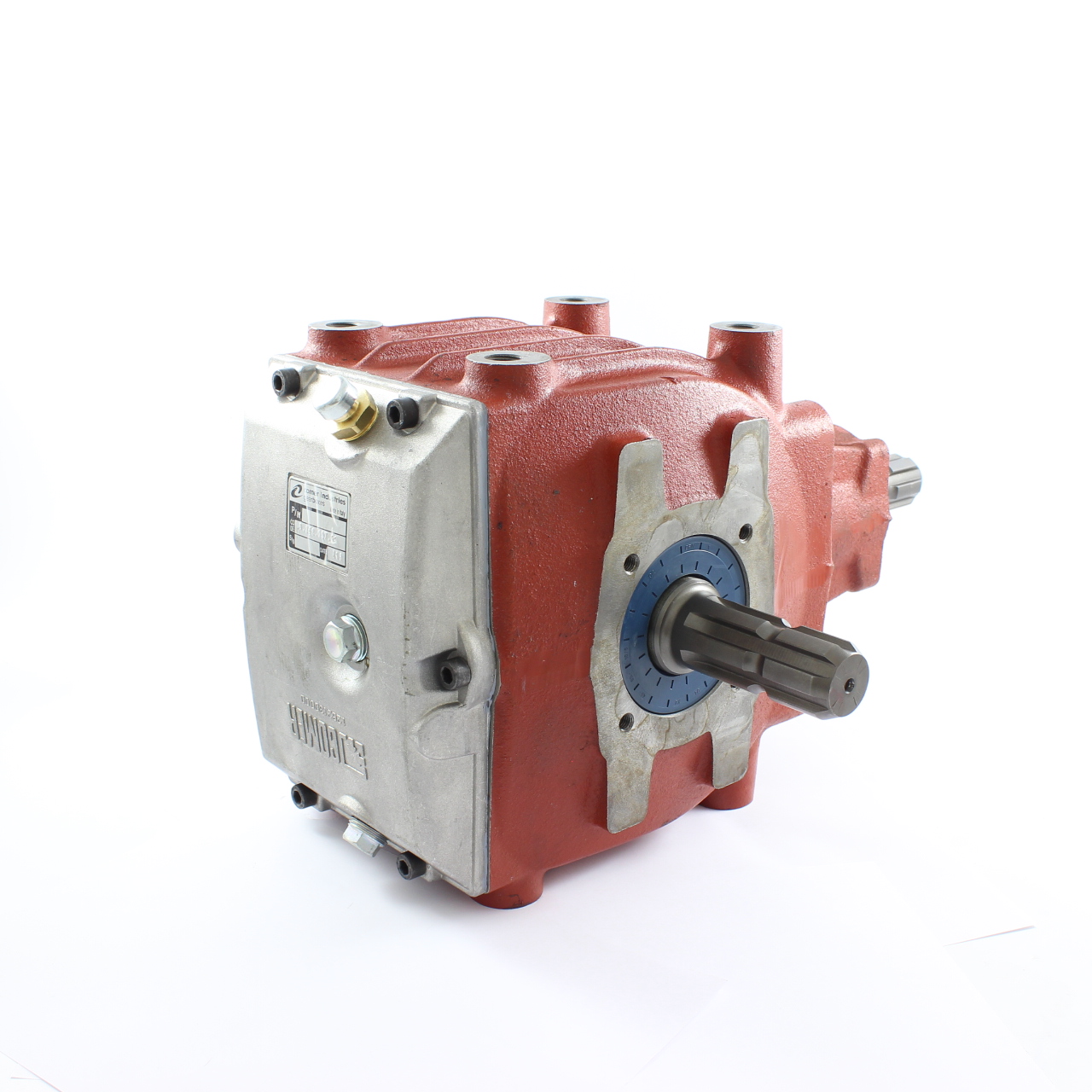

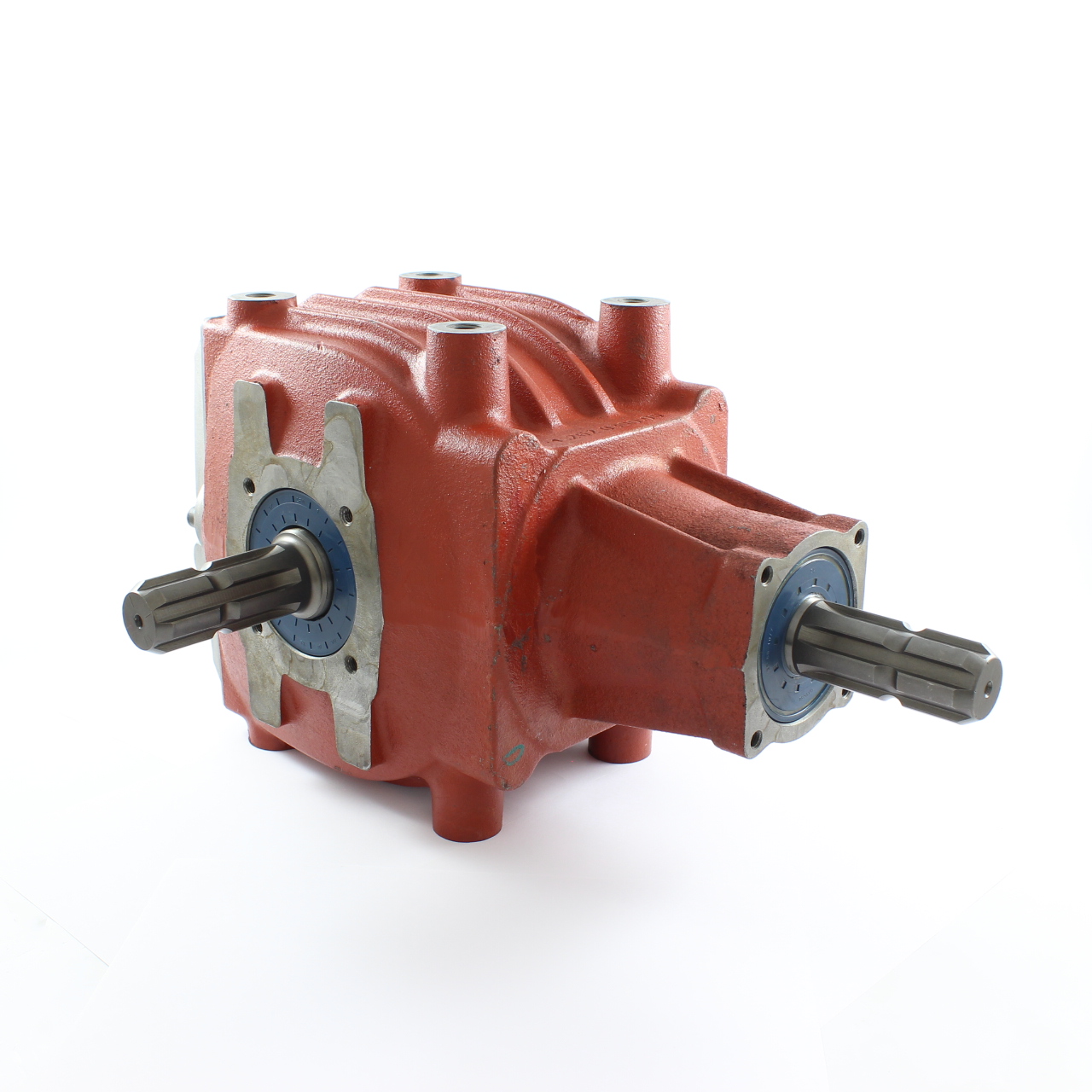

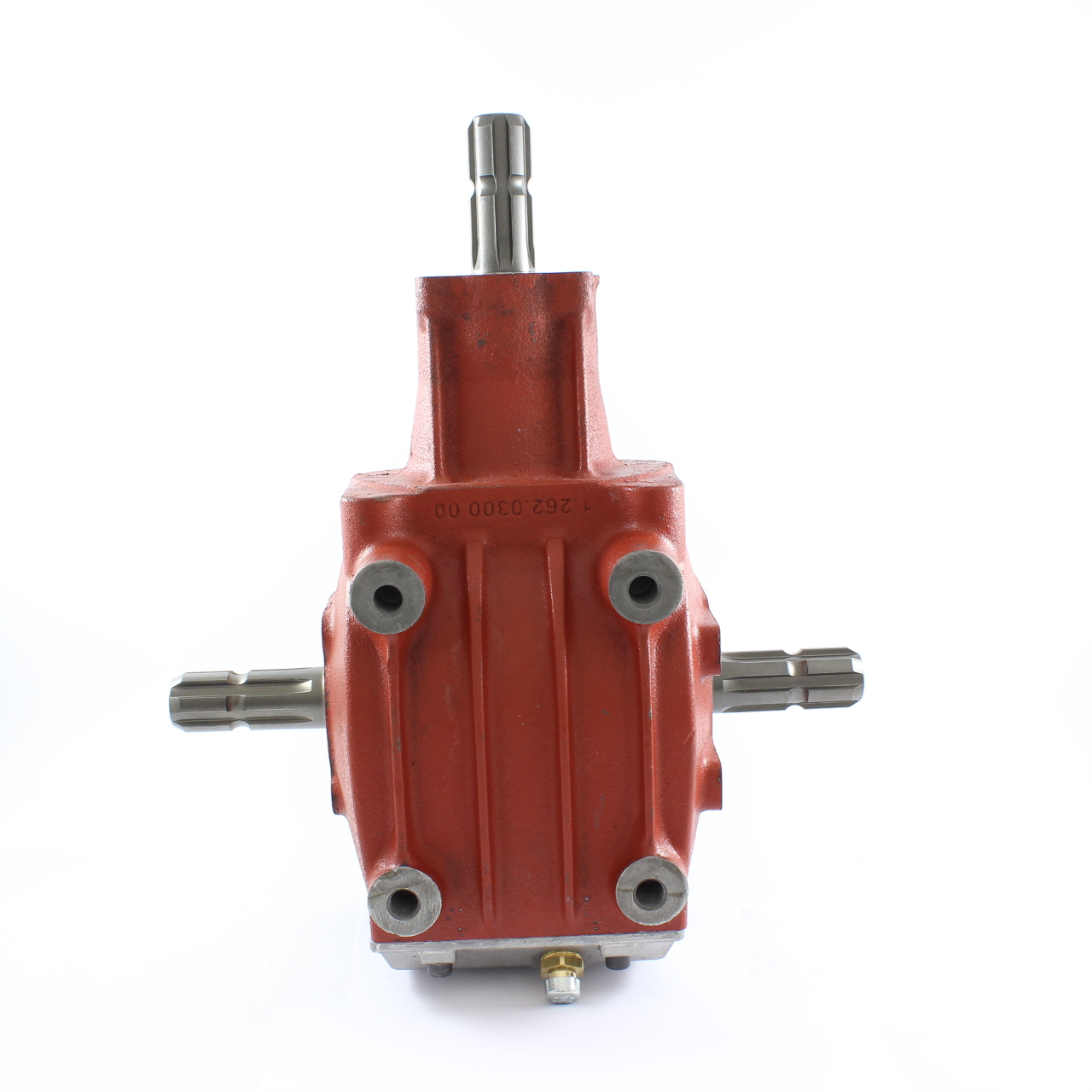

GEARBOX 4.11 M-44.2 R -27.2 T-22A
GEARBOX 4.11 M-44.2 R -27.2 T-22A
€ 1.239,40
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-22A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 37,3Cv-27,2Kw (540RPM)
Speed increasing unit
Input power rate: 60Cv-44,2Kw (540RPM)
Ratio: 4,11
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 32,9
Special features: Helicoidal bevel gears inside
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: T-22A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 37,3Cv-27,2Kw (540RPM)
Speed increasing unit
Input power rate: 60Cv-44,2Kw (540RPM)
Ratio: 4,11
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 32,9
Special features: Helicoidal bevel gears inside
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
