PRODUCT details
9.262.001.10

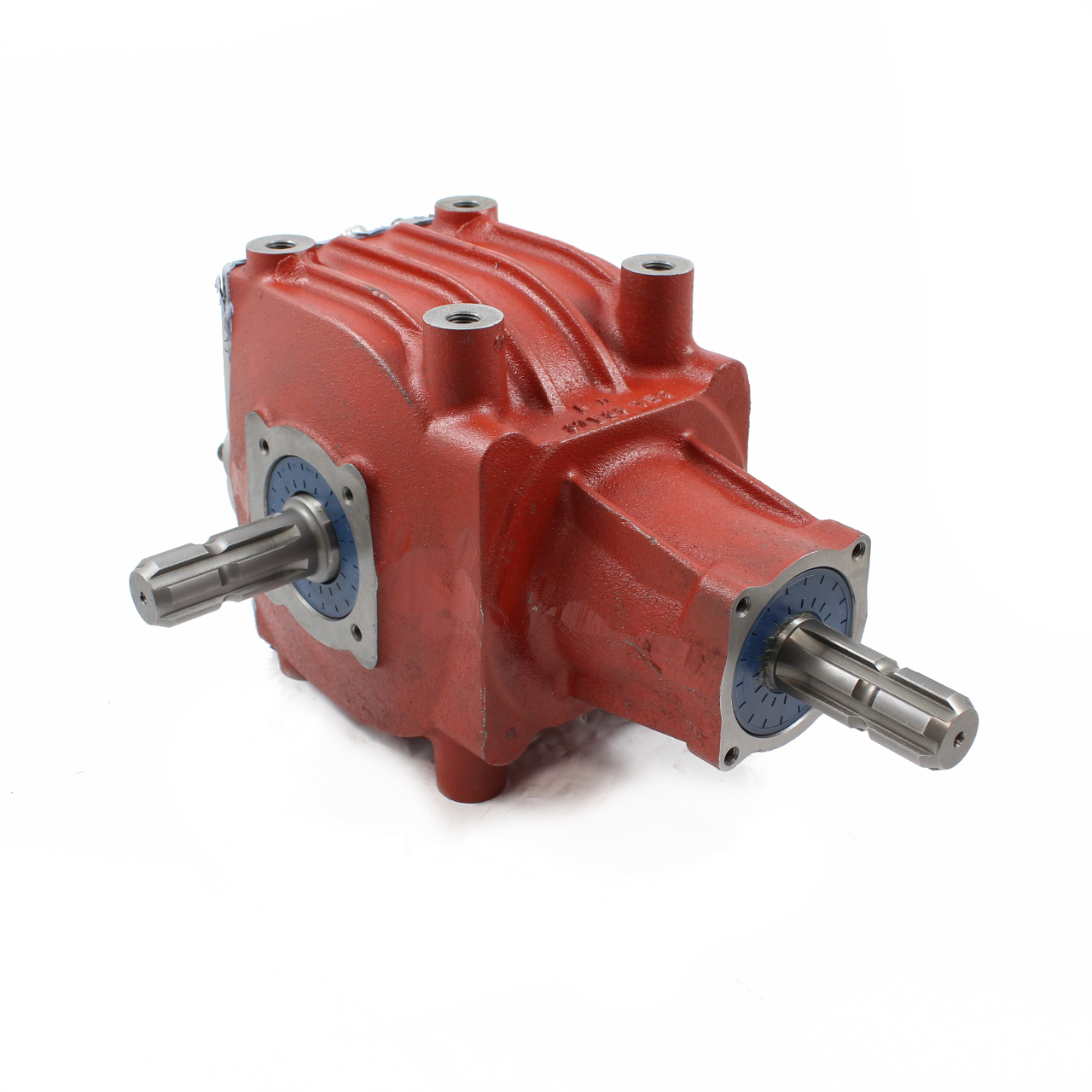

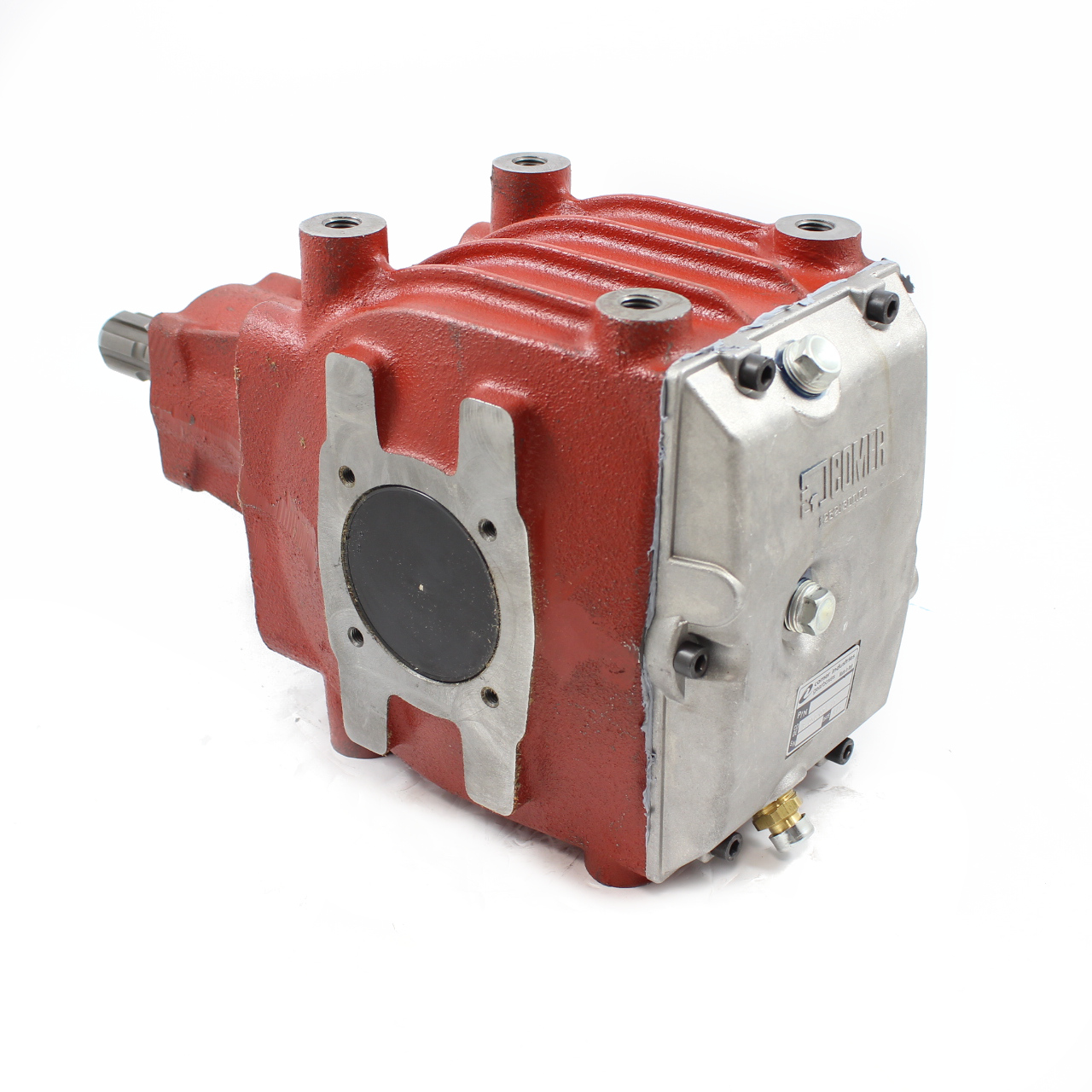

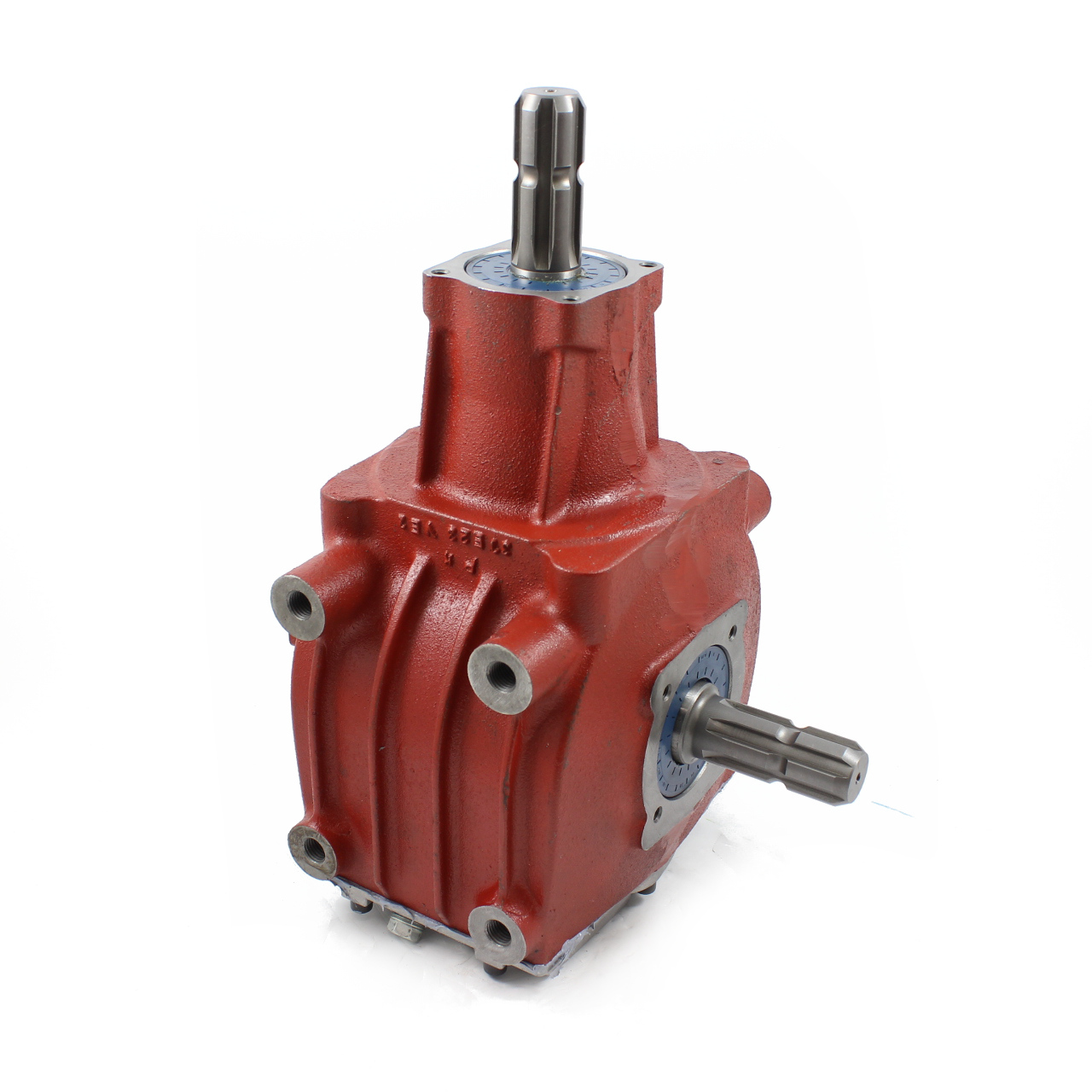

GEARBOX 6.14 M-36.8 R-14.7 T-22A
GEARBOX 6.14 M-36.8 R-14.7 T-22A
€ 951,40
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-22A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 20Cv-14,7Kw (540RPM)
Speed increasing unit
Input power rate: 50,4Cv-36,8Kw (540RPM)
Ratio: 6,14
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 31
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
