PRODUCT details
9.791.406.10

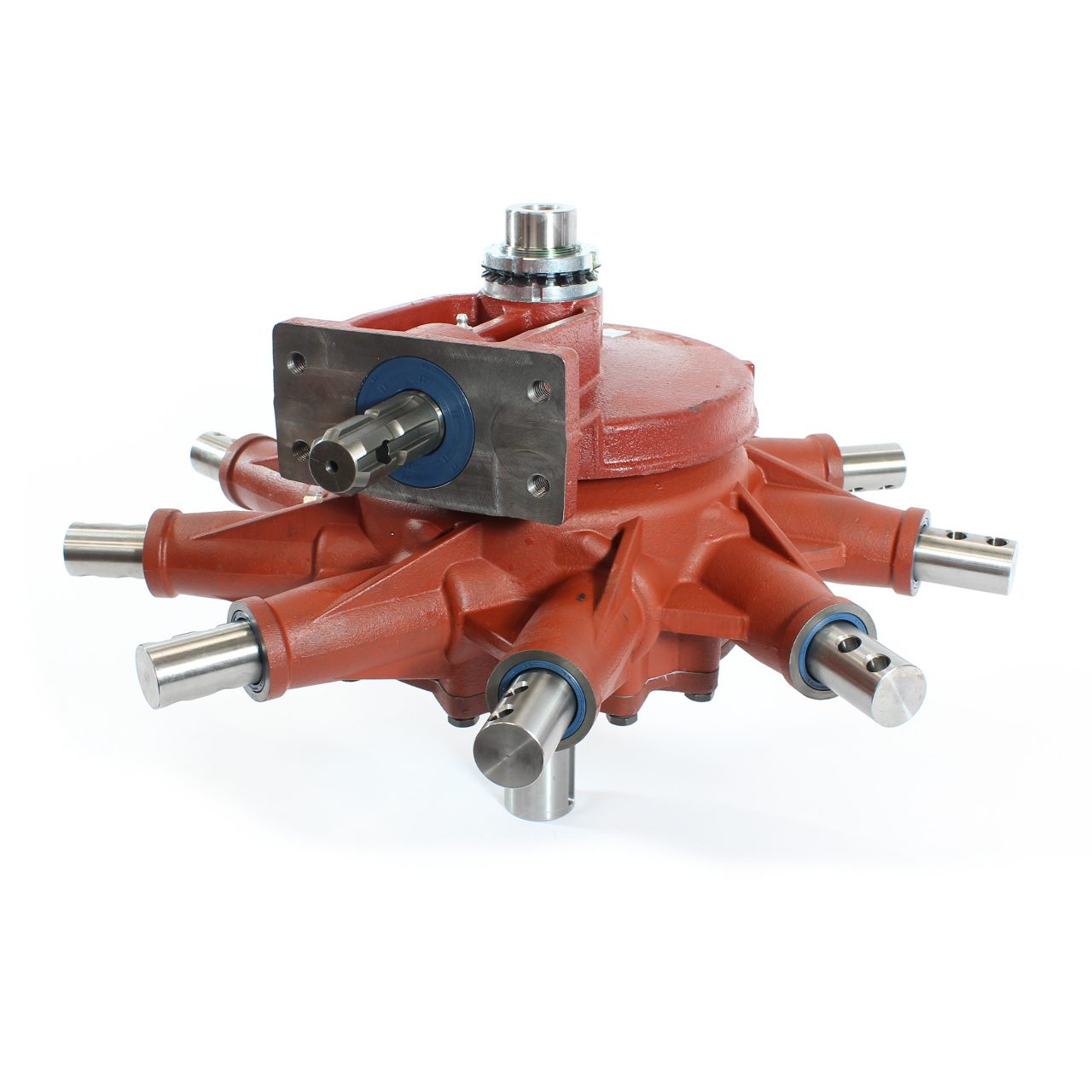

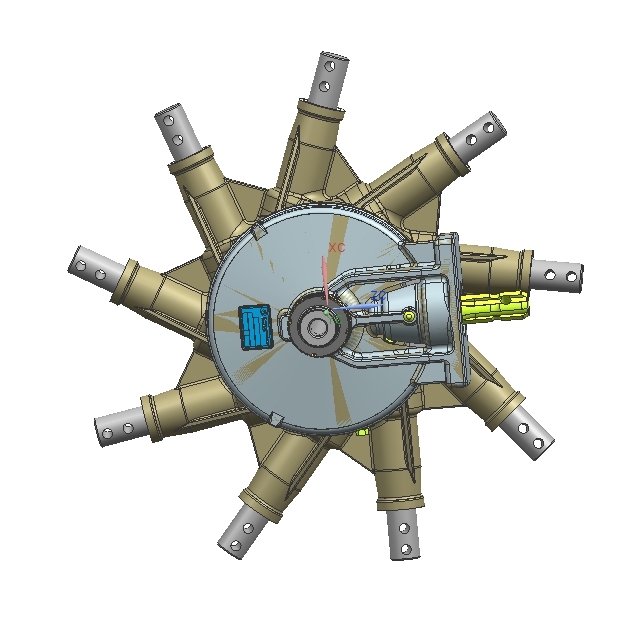

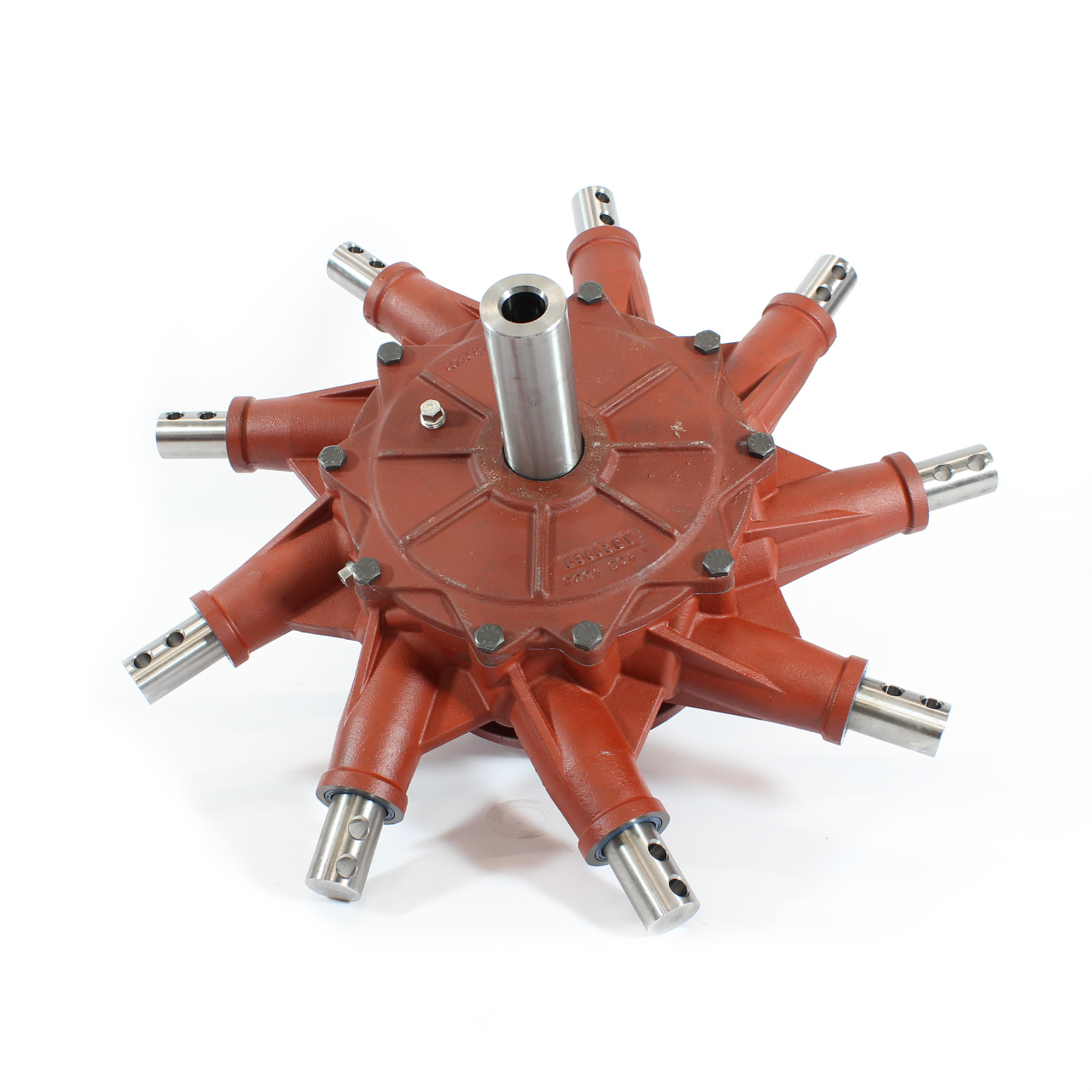

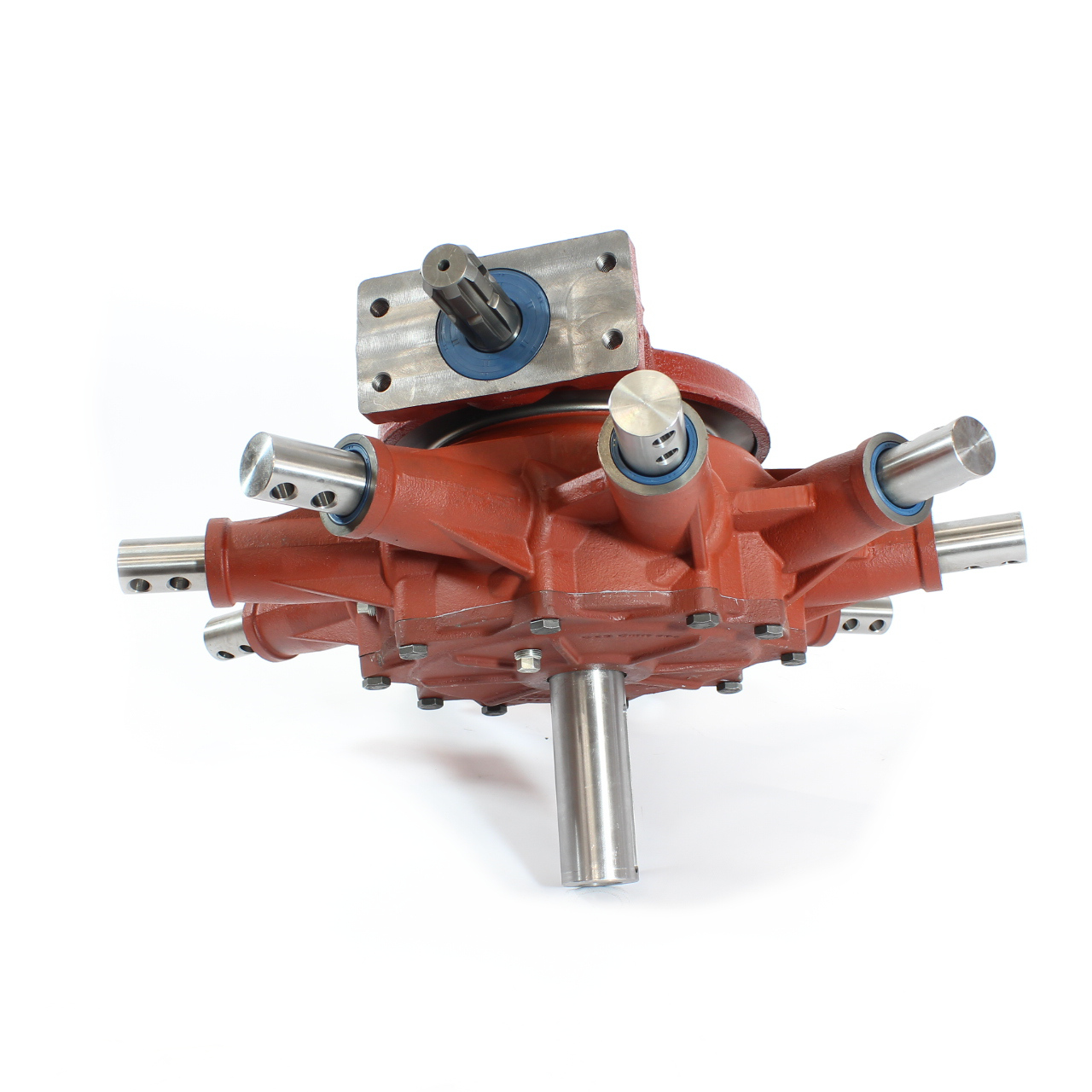

GEARBOX K-791 A
GEARBOX K-791 A
€ 1.088,85
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: K-791A
Technical features:
Type of application:
Reduction gear unit
Nr. Arms: 9
Diameter rotor: 2.8 m
Ratio: 7.2:1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 75
Supplied without lubricant
List of combined products
AVAILABLE
0.177.7505.00
SHIM 2x57.5x0.5
SHIM 2x57.5x0.5
€ 3,95
LIMITED AVAILABILITY
0.789.1303.00
COVER
COVER
€ 238,49
LIMITED AVAILABILITY
0.789.1304.00
COVER
COVER
€ 114,14
LIMITED AVAILABILITY
0.791.0702.00
CAM
CAM
€ 147,98
LIMITED AVAILABILITY
0.791.3704.00
SHAFT
SHAFT
€ 257,38
LIMITED AVAILABILITY
0.792.5000.00
PINION SHAFT Z10 M3.55
PINION SHAFT Z10 M3.55
€ 249,73
LIMITED AVAILABILITY
0.792.6000.00
CROWN WHEEL Z72 M3.55
CROWN WHEEL Z72 M3.55
€ 482,29
LIMITED AVAILABILITY
2.791.7110.00
CONNECTING ROD
CONNECTING ROD
€ 68,75
LIMITED AVAILABILITY
2.791.7123.00
CAM LOCK
CAM LOCK
€ 15,74
AVAILABLE
8.2.5.00176
LOCKNUT M50X1,5 H11
LOCKNUT M50X1,5 H11
€ 11,02
AVAILABLE
8.3.8.00336
SPRING WASHER 50x74x1.25
SPRING WASHER 50x74x1.25
€ 8,64
AVAILABLE
8.7.1.01107
OIL SEAL 50x90x10 TYPE AS DIN3760
OIL SEAL 50x90x10 TYPE AS DIN3760
€ 7,88
