PRODUCT details
5708.EDRE193

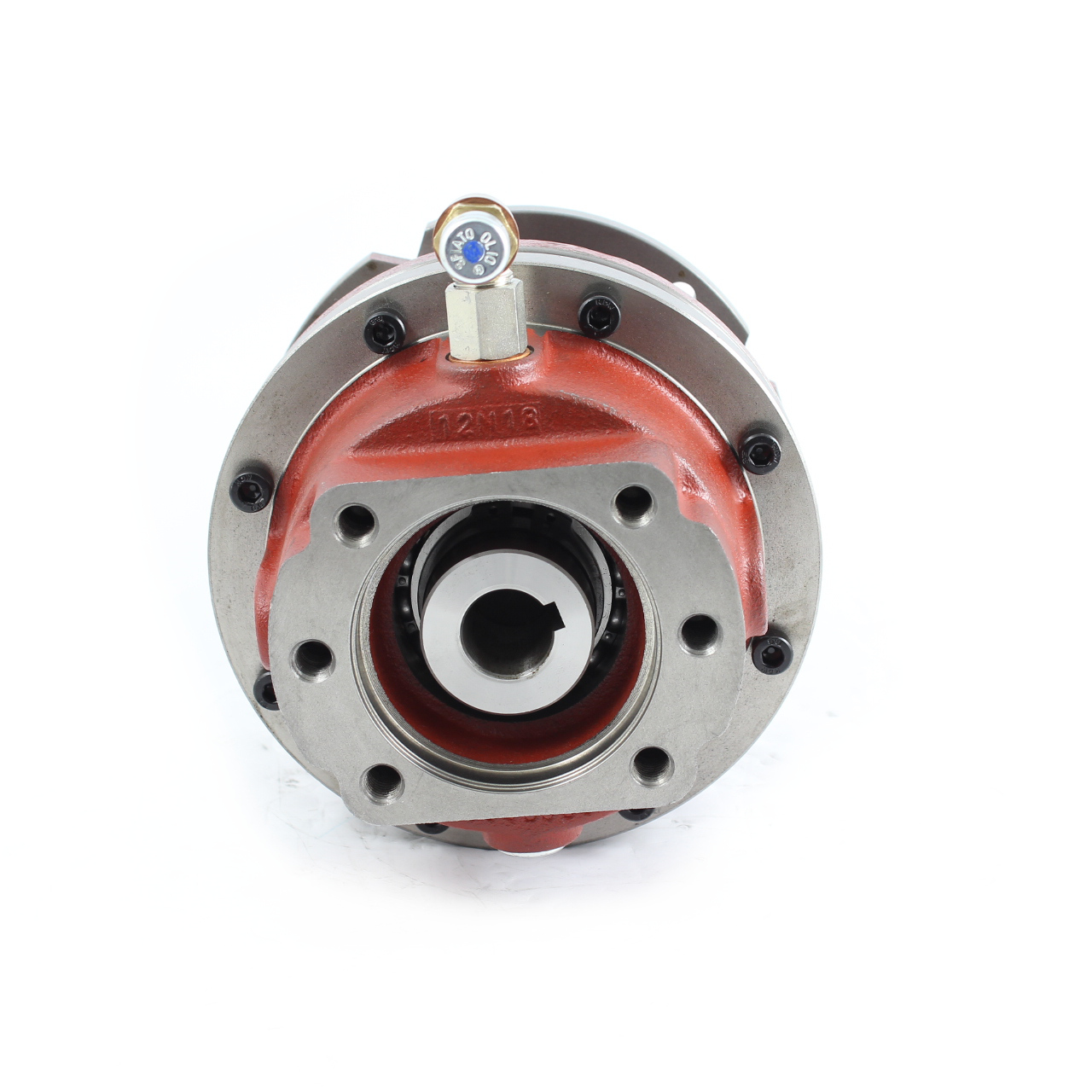

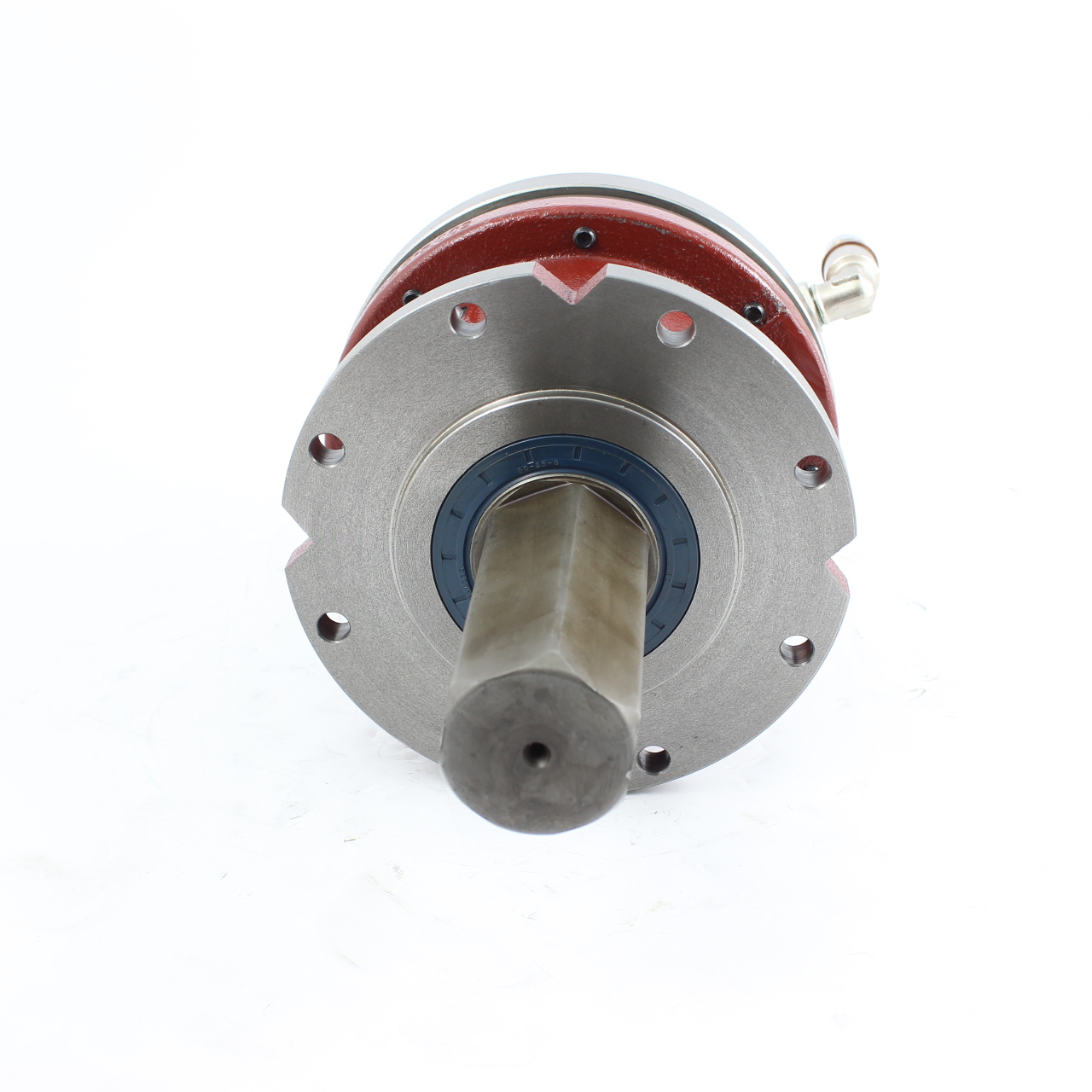

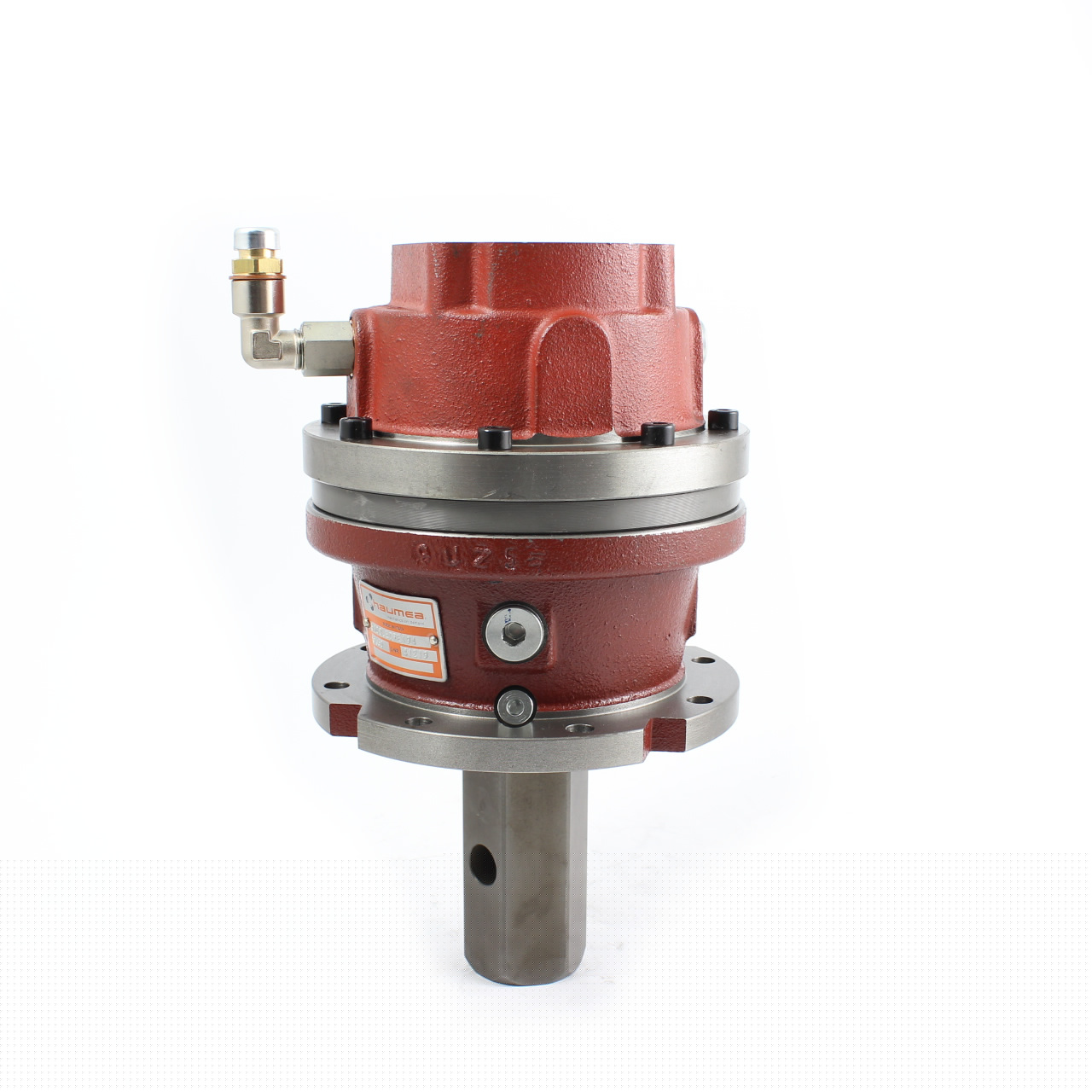

Planetary Gearbox PG 101 PE 4.28 531700 V1
Planetary Gearbox PG 101 PE 4.28 531700 V1
€ 764,00
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: HAUMEA S.R.L.
Made in Italy
Model: PG 101 PE 4.28 531700 V1
Technical features:
Gearbox with hexagonal output shaft
Typical application: Drilling Machine
Ratio: 1/4,28
Hexagonal output shaft CH.50 with hole D.18mm
Continuous Admissible Torque: 1100 Nm
Maximum torque (brief time or start-up peaks): 2200 Nm
Motor Adaptor for Hydraulic Motor Type Danfoss OMP/OMR (SAE A 2/4 hole, Shaft.25mm Ch8)
Max thermal power: 12 Kw
Outut RPM:
Output revolutions changes according to the applied Motor displacement and the available oil flow rate.
Availability to supply the complete gearmotor assembly. (Ask our technical Dept.)
Indicative Data of the applicable Auger:
Max drilling Hole diameter: 200 mm
Max drilling Depth : 1 mt
