PRODUCT details
5712.EDRE143

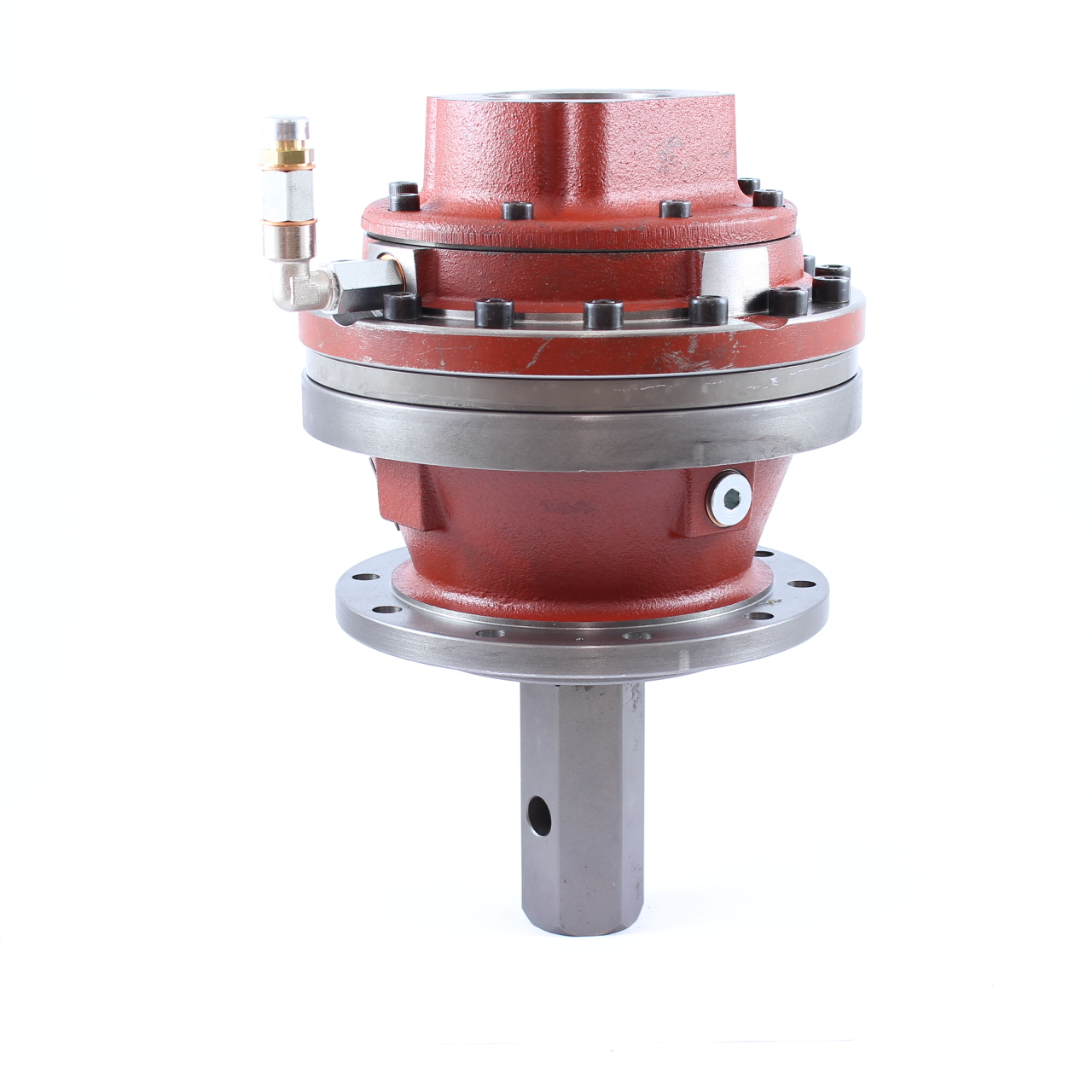

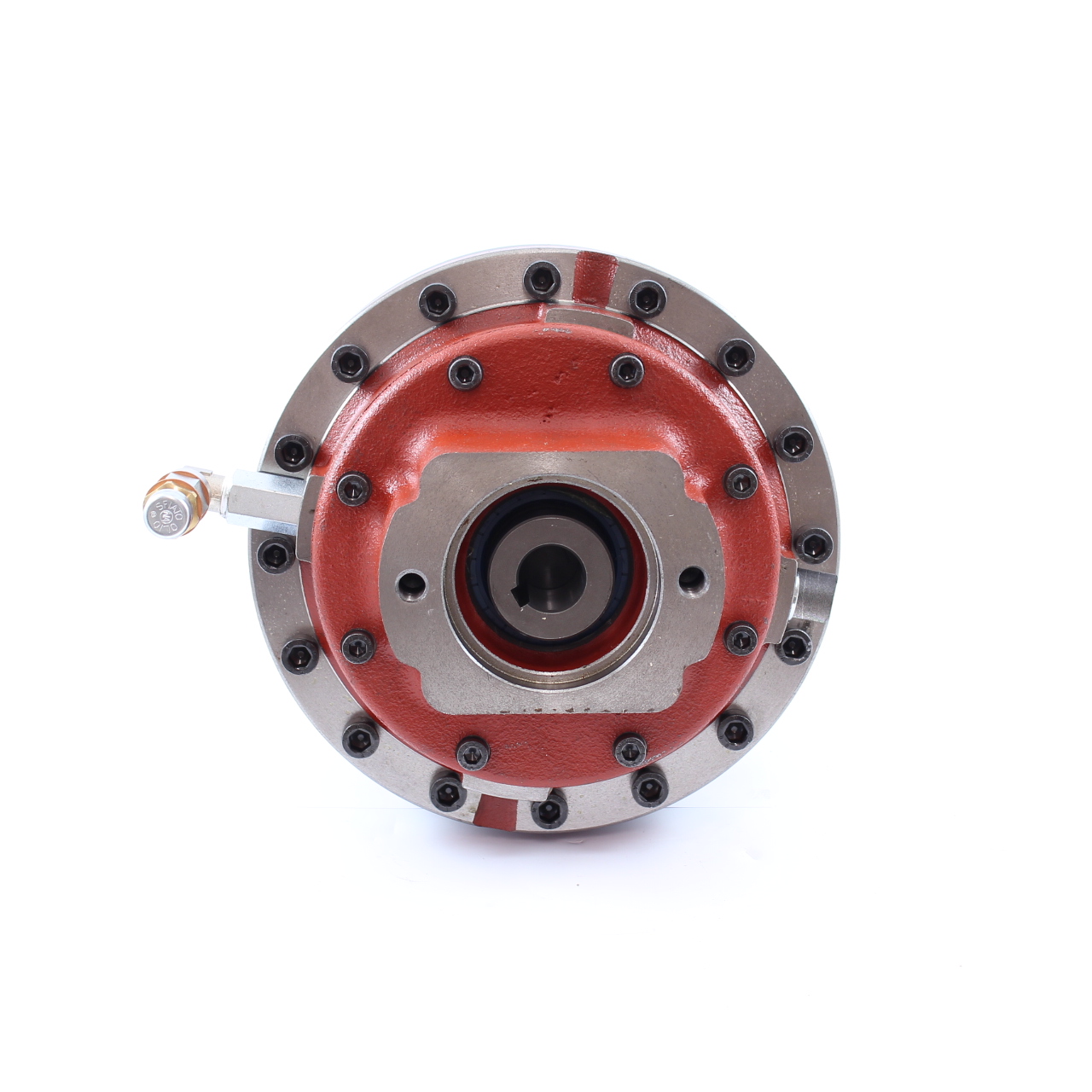

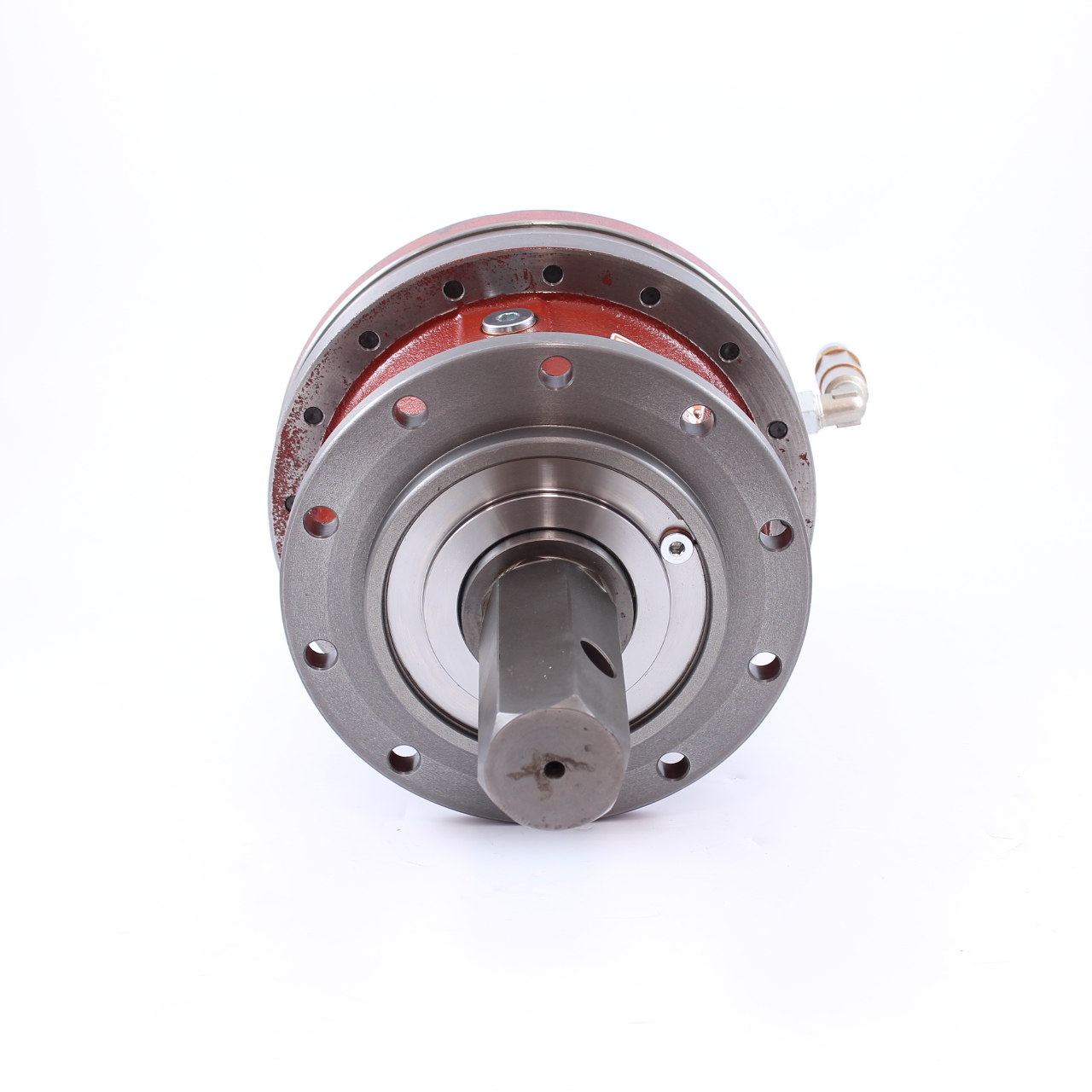

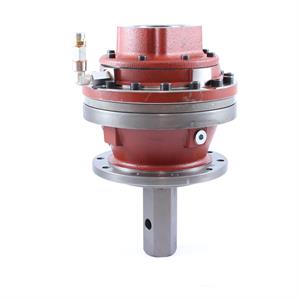

Planetary Gearbox PG 251 ME 5.16 12012 V1
Planetary Gearbox PG 251 ME 5.16 12012 V1
€ 1.017,00
COMING SOON
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: HAUMEA S.R.L.
Made in Italy
Model: PG 251 ME 5.16 12012 V1

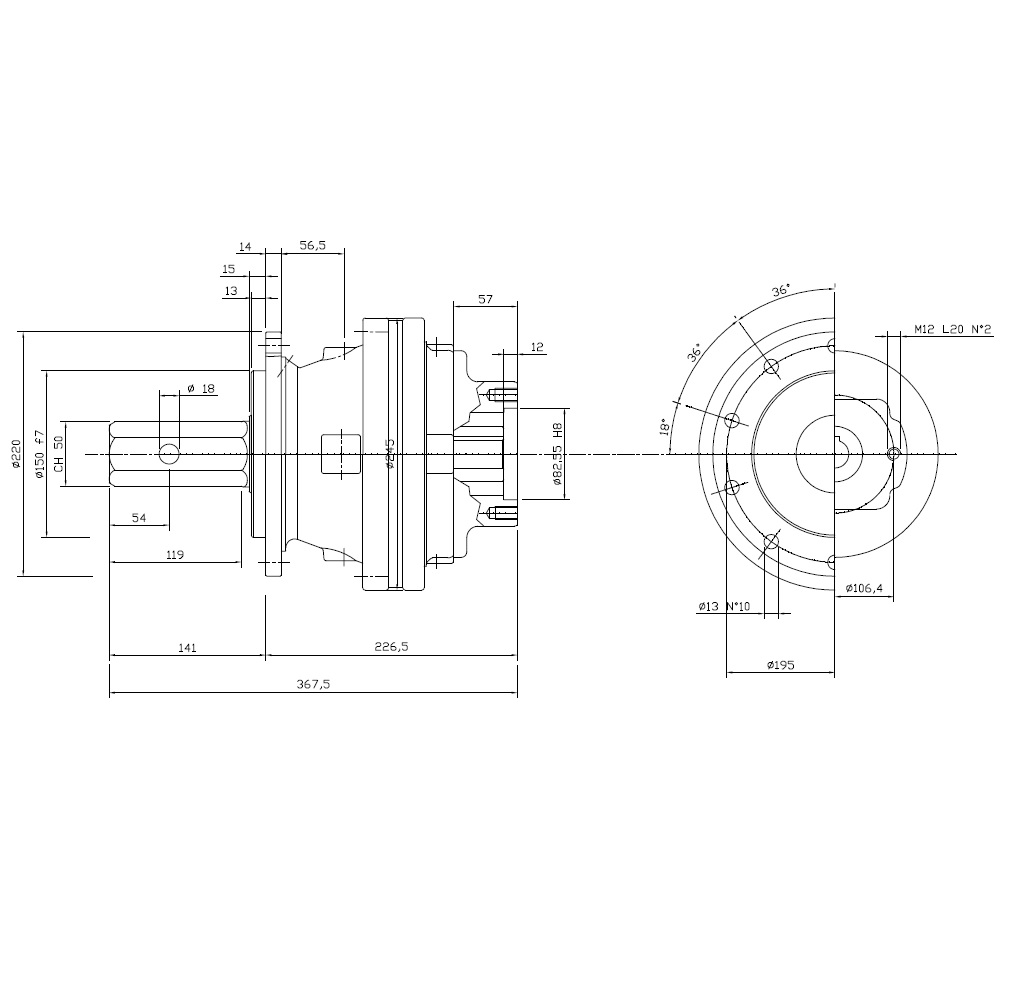

Technical features:
Gearbox with hexagonal output shaft
Typical application: Drilling Machine
Ratio: 1/5.16
Hexagonal output shaft CH.50 with hole D.18mm
Continuous Admissible Torque: 2660 Nm
Maximum torque (brief time or start-up peaks): 5320 Nm
Motor Adaptor for Hydraulic Motor Type Danfoss OMP/OMR (SAE A 2 hole, Shaft.25mm Ch8)
Max thermal power: 20 KW
Outut RPM:
Output revolutions changes according to the applied Motor displacement and the available oil flow rate.
Availability to supply the complete gearmotor assembly. (Ask our technical Dept.)
Indicative Data of the applicable Auger:
Max drilling Hole diamete: 400 mm
Max drilling Depth : 2 mt
Made in Italy
Model: PG 251 ME 5.16 12012 V1
Technical features:
Gearbox with hexagonal output shaft
Typical application: Drilling Machine
Ratio: 1/5.16
Hexagonal output shaft CH.50 with hole D.18mm
Continuous Admissible Torque: 2660 Nm
Maximum torque (brief time or start-up peaks): 5320 Nm
Motor Adaptor for Hydraulic Motor Type Danfoss OMP/OMR (SAE A 2 hole, Shaft.25mm Ch8)
Max thermal power: 20 KW
Outut RPM:
Output revolutions changes according to the applied Motor displacement and the available oil flow rate.
Availability to supply the complete gearmotor assembly. (Ask our technical Dept.)
Indicative Data of the applicable Auger:
Max drilling Hole diamete: 400 mm
Max drilling Depth : 2 mt
The product is currently not available.
You can order it even if out of stock, it will be shipped when the product will be in stock again.
You will receive email confirmation of the estimated delivery date.
