PRODUCT details

Manufacturer : Comer Industries S.p.A.

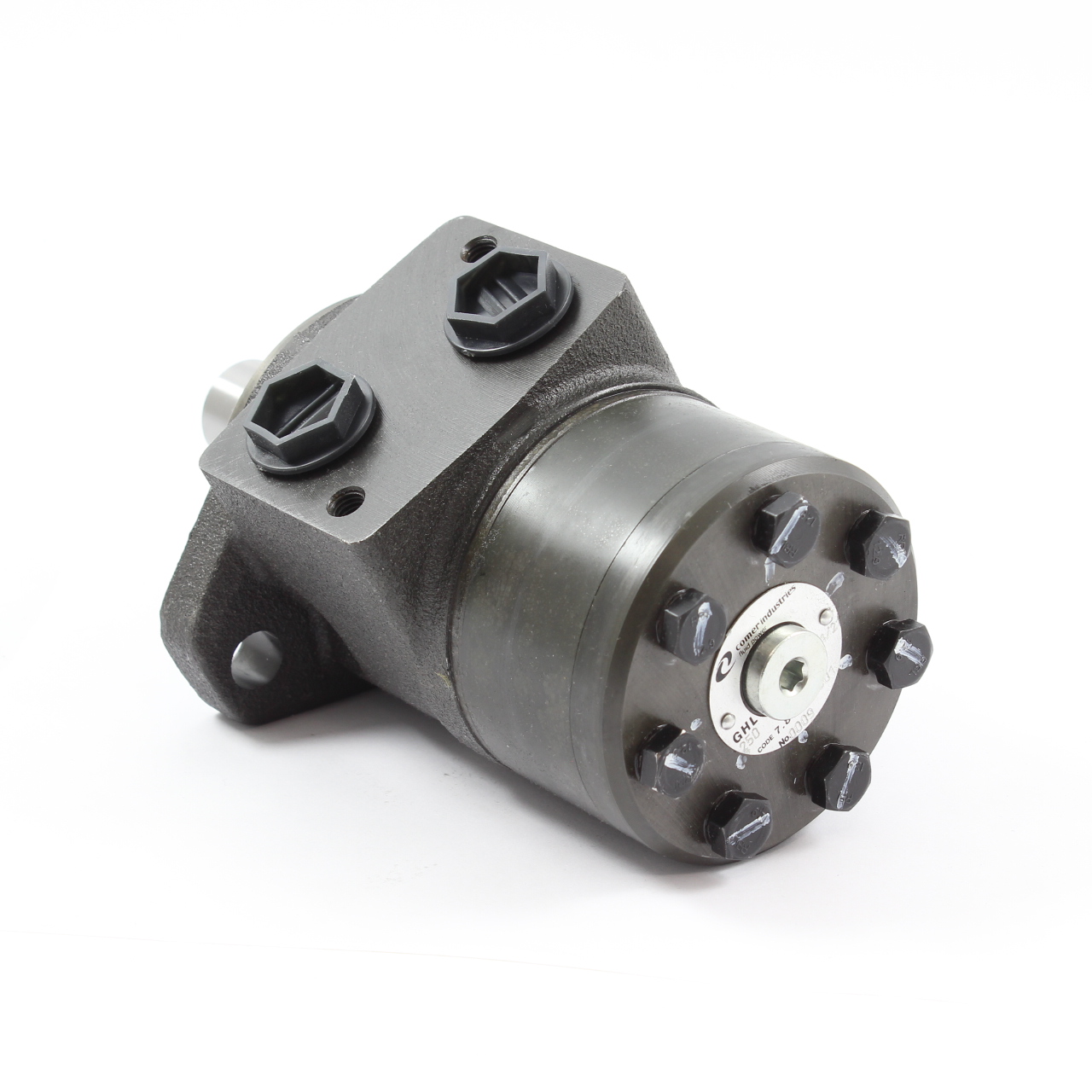

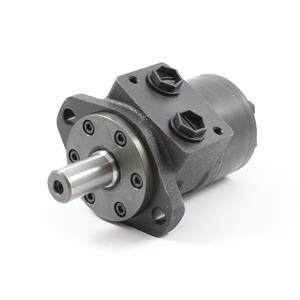

Orbit Hydraulic Motor (Gerotor) GHL 250

Technical features:

Displacement: 247,5 cc
Velocità Max (CONT./INT.*): 242 rpm / 303 rpm
Max Torque(CONT./INT.*/PEAK**): 47 daNm / 58,3 daNm / 68,5 daNm
Max Output (CONT./INT.*): 9,5 kW / 12 kW
Max Oil Flow (CONT./INT.*): 60 L/min. / 75 L/min.
Max pressure. (CONT./INT.*/PEAK**): 140 bar / 175 bar / 225 bar

* Intermittent operation (INT.): The permissible values may occur for max.10% of every minute.
**Peak load: the permissible values may occur for max. 1% of every minute.
